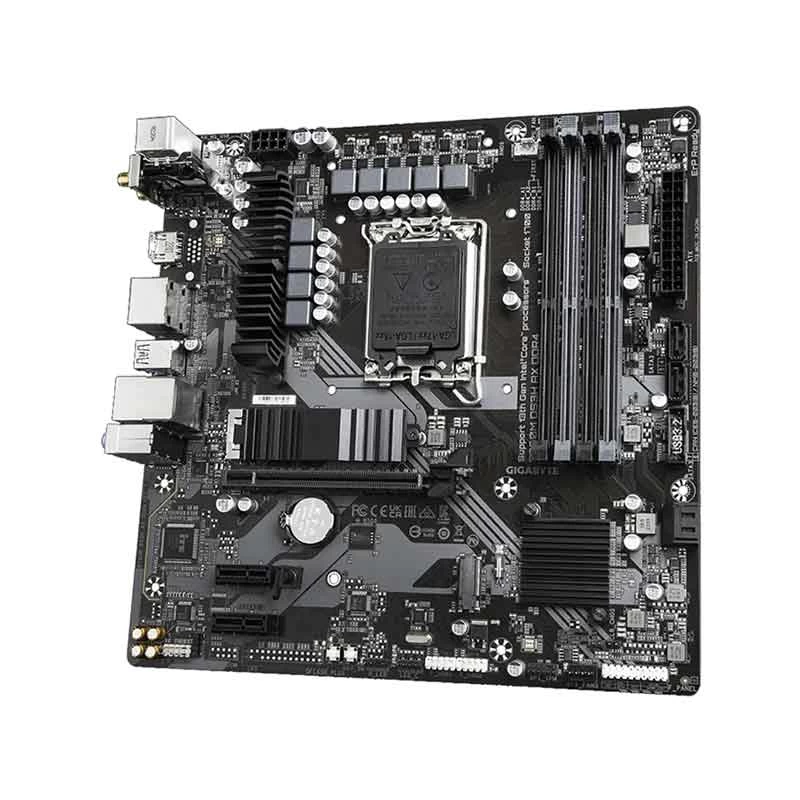

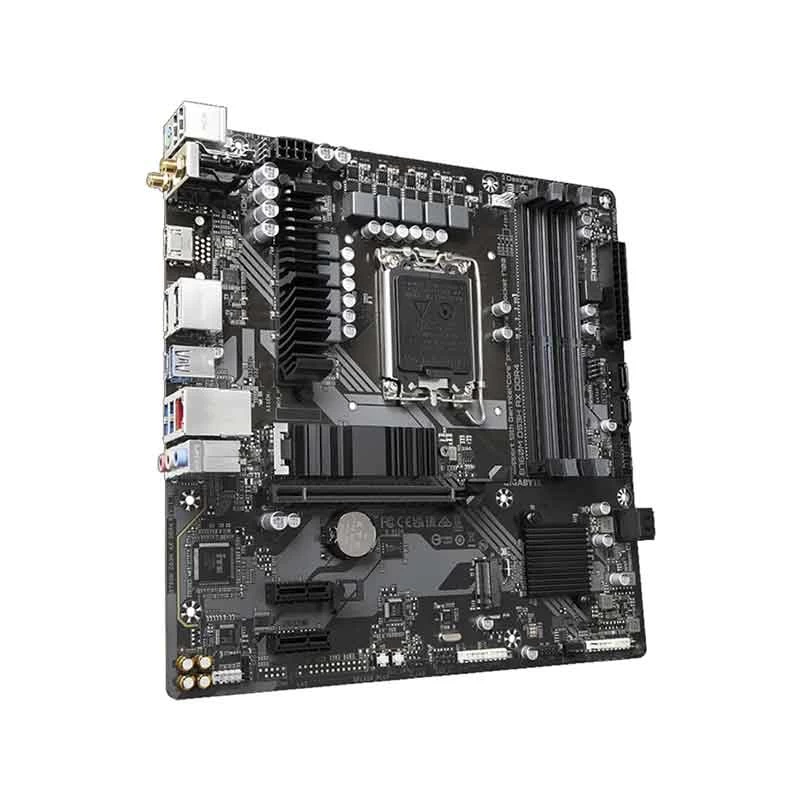

Gigabyte B760M DS3H AX (Wi-Fi 6E) DDR4 Intel Motherboard
Product Id: 02.01.018.463
Brand
Gigabyte
Regular Price Tk 19,310
Monthly EMI Tk 1,609
Special Price Tk 17,900
Quick Overview
- Chipset - Intel B760
- Memory Max. - 128GB
- Memory Slot - 4
- Sockets Supported - LGA1700
- Supported CPU - 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
- Generation - 12th/13th/14th
General
Brand
Gigabyte
Model
Gigabyte B760M DS3H AX (Wi-Fi 6E)
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Generation
12th/13th/14th
Memory Support
Memory Type
DDR4
Memory MHz
5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s non-ECC Un-buffered DIMM
Memory Channel
Dual
Memory Slot
4
Memory Slot (Additional Info)
4 x DDR DIMM
Memory Max.
128GB
Memory Max. (Additional Info)
Up to 128 GB (32 GB single DIMM capacity)
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2, ((1 x M.2, type 2280 PCIe 4.0 x4/x2 SSD support),(1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support))
Graphics
Graphics
Integrated
Graphics Chipset
Intel HD Graphics support
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16, 2 x PCI Express x1
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 6E 802.11ax
Bluetooth
Bluetooth 5.3

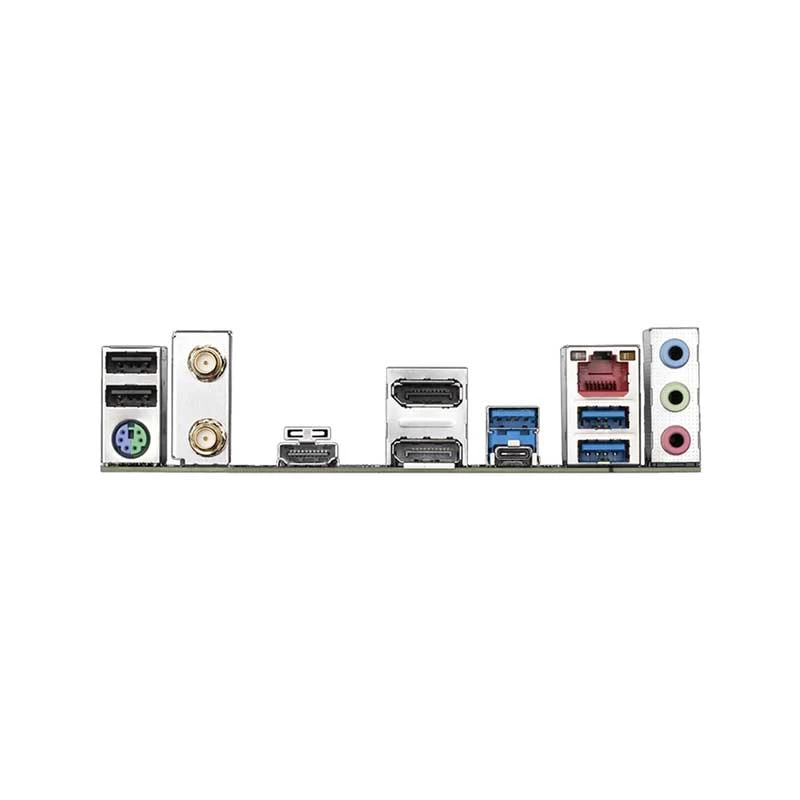

Ports
USB Port
2 x USB 2.0/1.1, 3 x USB 3.2 Gen 1, 1 x USB Type-C, with USB 3.2 Gen 2 support
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
2
IDE Port
No
SATA Port
4
Thunderbolt
No
TPM Port
1
COM Port
No
Technical Info
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
RGB Connector
1 x RGB LED strip header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 128 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 10, 11
Compatible Products
13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Warranty
Warranty
3 Year
Warranty Details
3 year
Additional Info
Feature
Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus.
Others
Extended Connectivity Rear USB-C 10Gb/s, DP, HDMI, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS Without Installing the CPU, Memory and Graphics Card.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
QUESTION & ANSWER
Customer Questions
Q:
Is it available now in Dhaka store?
By Sourav
A:
Dear Sir, This product is out of stock now, when it will be available we will update its specifications, stock and price, please keep an eye on our official website for furthermore details. Thanks for your query!
By Ryans Computers Ltd. , 04 Oct 2023 10:05:40 PM
Q:
Does it support intel core i5-13600k processor? Or will the processor work well with this motherboard??
By Himel
A:
Dear Sir, Yes! It will support Intel Core i-5 13600K processor, Thanks for your query!
By Ryans Computers Ltd. , 22 Aug 2023 05:58:52 PM
Q:
Will it support ARGB?
By Ohiduzzaman Siam
