Brand

Gigabyte

Model

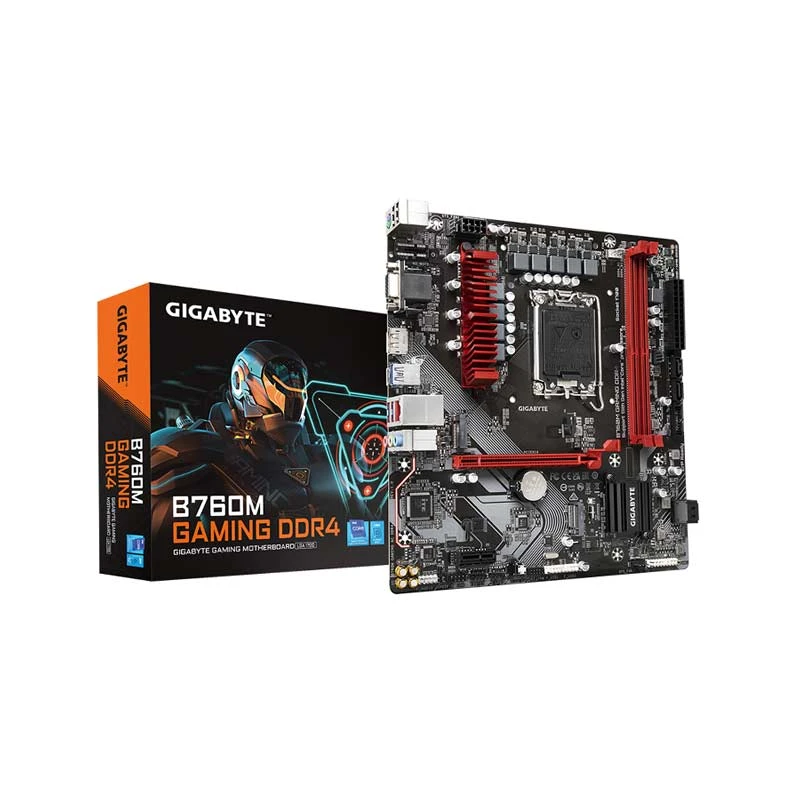

Gigabyte B760M GAMING

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th/14th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

64GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 11/ 10

Body Color

Black & Red

Warranty Details

3 year

General

Brand

Gigabyte

Model

Gigabyte B760M GAMING

Body Color

Black & Red

CPU

Chipset Brand

Intel

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Generation

12th/13th/14th

Memory Support

Memory Type

DDR4

Memory MHz

5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules non-ECC Un-buffered DIMM

Memory Channel

Dual

Memory Slot

Memory Max.

64GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 (1 x M.2 connector, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB))

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

Multi-GPU Support

PCI Express Slot

1 x PCI Express x16 slot, 1 x PCI Express x1 slot

Audio & Video

Audio Chipset

Realtek Audio CODEC, High Definition Audio

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek 2.5GbE LAN chip

LAN Speed (Mbps)

100/ 1000/ 2500Mbps

WiFi

Bluetooth

Ports

USB Port

2 x USB 2.0/1.1 ports, 3 x USB 3.2 Gen 1 ports, 1 x USB Type-C port, with USB 3.2 Gen 1 support

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

RGB

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 128 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 11/ 10

Compatible Products

LGA1700 socket: Support for the 14th, 13th, and 12th Gen Intel Core, Pentium Gold and Celeron Processors

Warranty

Warranty Details

3 year

Additional Info

Others

Supports Intel Core 14th/ 13th /12th processors, Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution, Dual Channel DDR4: 2 x DIMMs XMP Memory Module Support, Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors, EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design, Fast Networks: 2.5GbE LAN, DP, HDMI, D-Sub, Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte B760M GAMING Motherboard In Bangladesh

The Gigabyte B760M GAMING DDR4 Intel Motherboard is designed for gamers and PC builders seeking high performance and reliability. This motherboard provides a strong foundation for your Intel-based system, offering essential features and robust capabilities for gaming and multitasking.

Features and Benefits:

Intel B760 Chipset: Supports the latest Intel processors for powerful performance.
DDR4 Memory Support: Accommodates fast DDR4 RAM for improved speed and multitasking.
PCIe 4.0 Slot: Ensures high-speed data transfer with PCIe 4.0 compatibility.
Dual M.2 Slots: Allows for fast storage options with two M.2 slots.
High-Quality Capacitors: Enhances durability and stability for long-term use.
Enhanced Cooling Solutions: Features multiple fan headers and cooling options for optimal temperature management.

Buying Guide:

Check Compatibility: Ensure the motherboard supports your processor and RAM type.
Consider Future Upgrades: Look for expansion slots and future-proof features.
Evaluate Connectivity: Ensure it has enough ports and slots for your needs.
Assess Cooling Options: Verify that it has adequate cooling solutions.
Review Reviews: Read user feedback to gauge reliability and performance.

Call to Action:

Ready to build your dream PC? Get the Gigabyte B760M GAMING DDR4 Intel Motherboard from Ryans Computer! Enjoy excellent performance, great prices, and expert customer support. Shop now and elevate your gaming and computing experience with Ryans Computer today! For more options and detailed specifications, visit our Motherboards page.

What is the price of Gigabyte B760M GAMING Motherboard In Bangladesh?

The price of Gigabyte B760M GAMING Motherboard starts from 18,800 . The price may vary due to your customization and product availability. You can buy Gigabyte B760M GAMING Motherboard from our website or visit our showrooms nearby.
