2 x M.2 (1 x PCIe 5.0 M.2 Slot (Front), 1 x PCIe 4.0 M.2 Slot (Back))
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Graphics
Integrated
Graphics Chipset
AMD Radeon Graphics support
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 with PCIe UD Slot
Audio & Video
Audio Chipset
Realtek ALC4080 CODEC, High Definition Audio
Audio Channel
2
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip
LAN Speed (Mbps)
100/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7
Bluetooth
Bluetooth 5.4

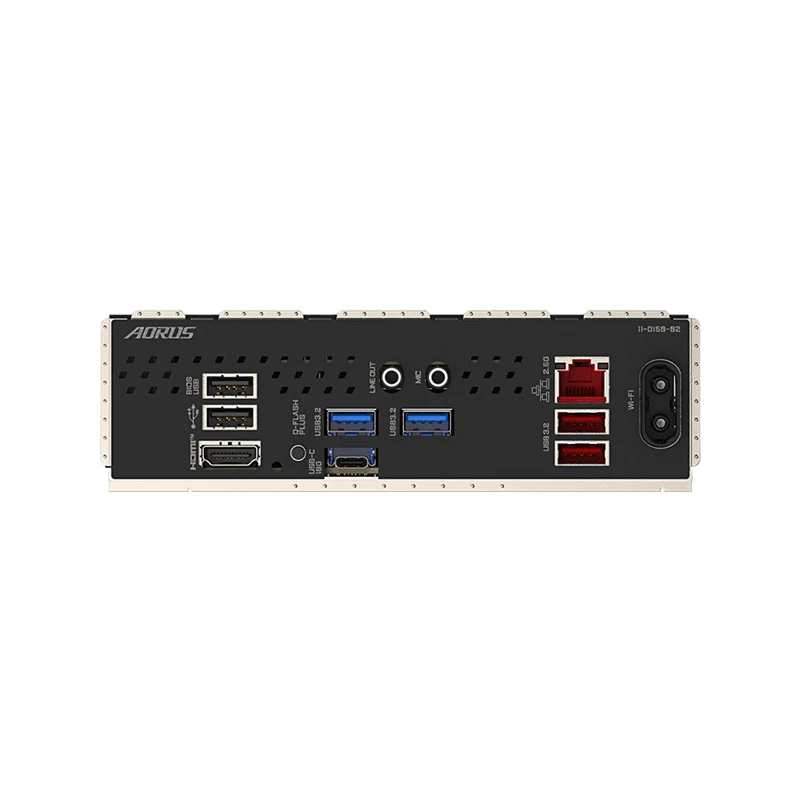

Ports
USB Port
1 x USB Type-C port, with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 2 Type-A ports (red), 2 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports.
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
2
Thunderbolt
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
No
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
Approx. Power Consumption
30W
Form Factor
Mini-ITX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 11
Compatible Products
AMD Socket AM5, support for: AMD Ryzen 9000/ 8000/ 7000 Series Processors.
Warranty
Warranty Details
3 year
Additional Info
Others
Unique Features: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup, Bundled Software: Norton Internet Security (OEM version), LAN bandwidth management software, I/O Controller: iTE I/O Controller Chip, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 1 x system fan header, 2 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 2 x SATA 6Gb/s connectors, 1 x front panel header, 1 x speaker header, 1 x front panel audio header (routed from the adapter card on the rear panel), 1 x USB Type-C header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x reset jumper, 1 x Clear CMOS jumper, 1 x chassis intrusion header
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
