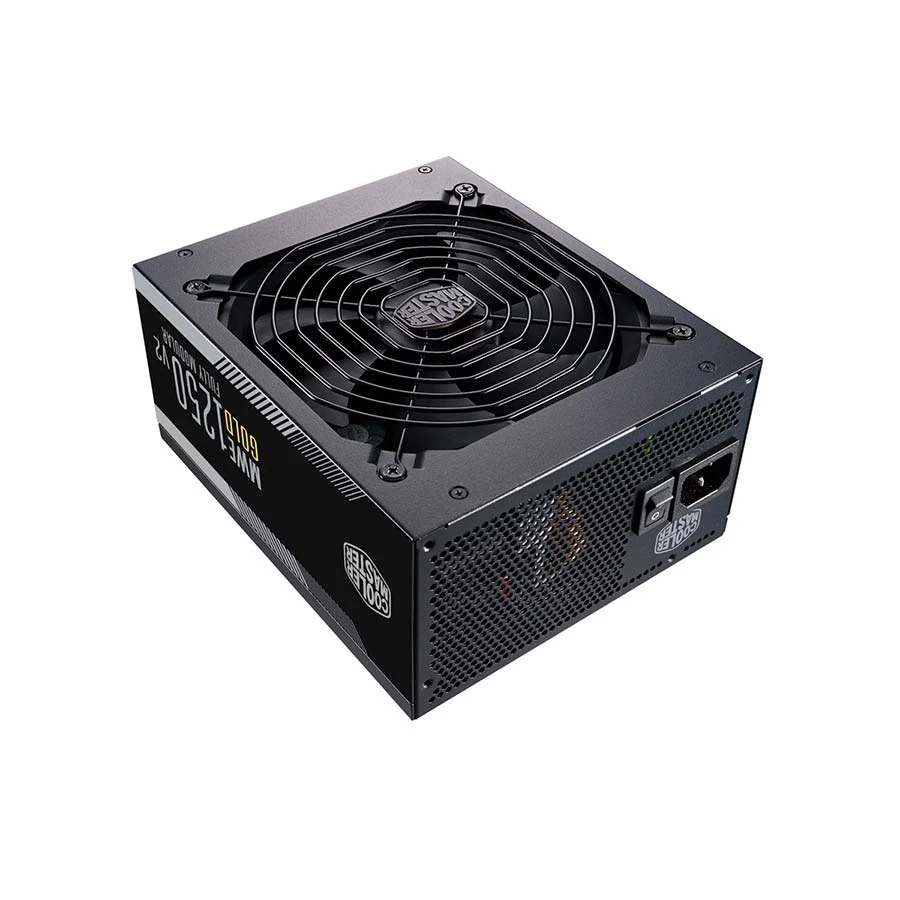

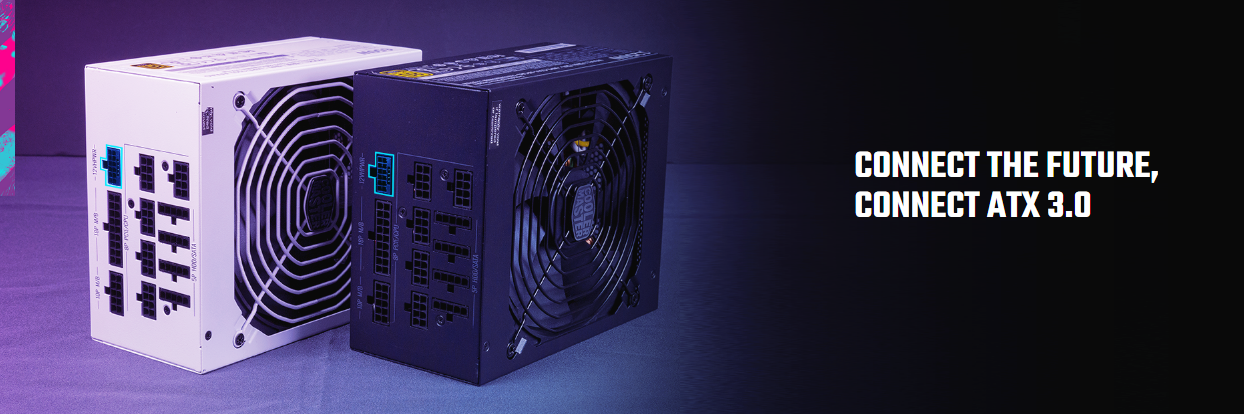

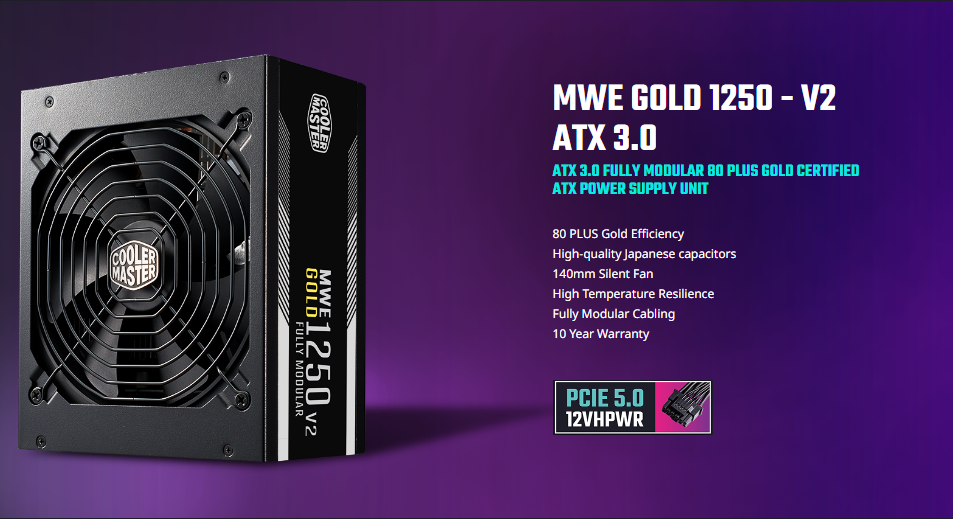

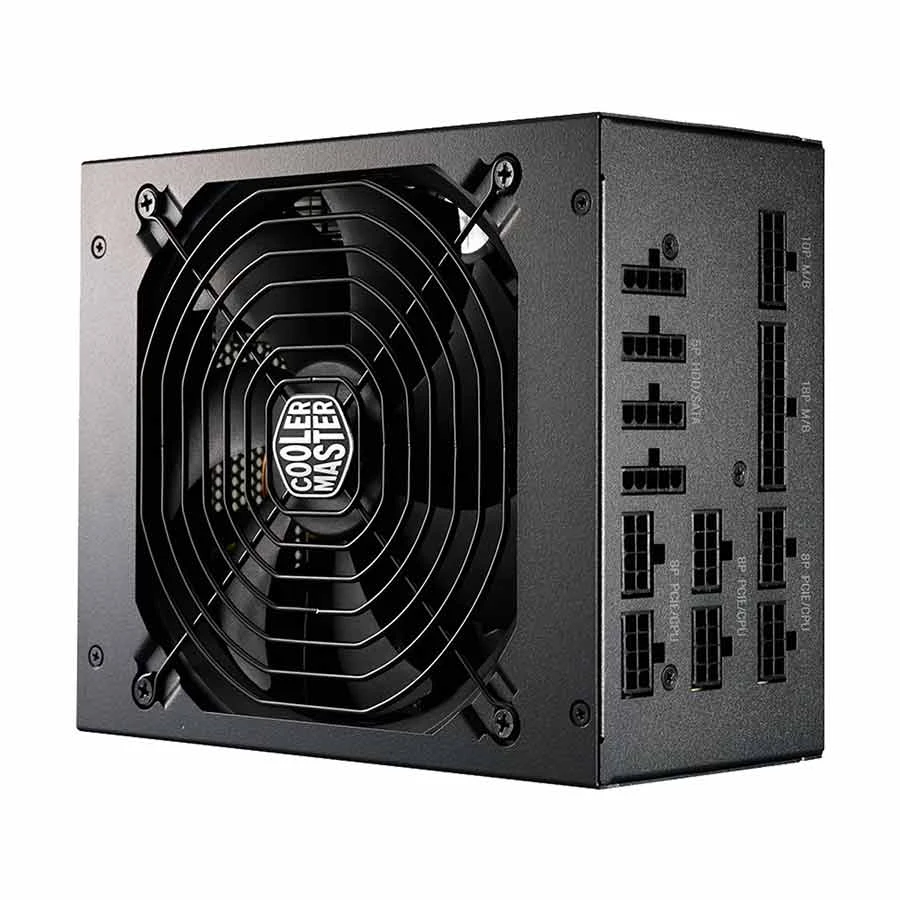

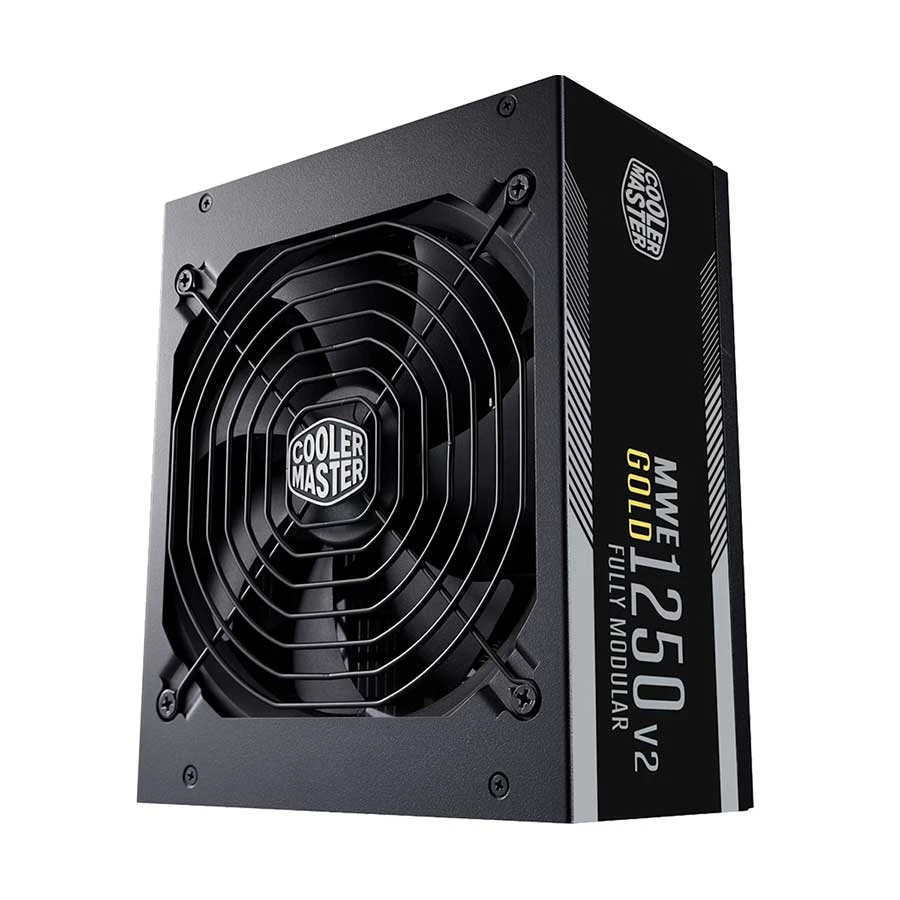

Cooler Master MWE Gold 1250W V2 ATX 3.0 Full Modular 80 Plus Gold Certified Power Supply #MPE-C501-AFCAG-3IN

Product Id: 55.01.460.172

Brand Cooler Master

Regular Price Tk 28,430 Monthly EMI Tk 2,369
Special Price Tk 26,300

Quick Overview

  • PSU Category - Full Modular
  • Type - ATX Rev. 3.0
  • Maximum Power - 1250 Watt
  • Fan Speed - Unmentioned
  • Efficiency - 90% Efficiency
  • Efficiency Rating - 80 Plus Gold
  • Protection - OPP, OVP, OCP, UVP, SCP, OTP
General
Brand
Cooler Master

Model
Cooler Master MWE Gold 1250W V2

Series
MWE Gold

PSU Category
Full Modular

Type
ATX Rev. 3.0

Part No
MPE-C501-AFCAG-3I


Cooling & Lighting
Fan Size
140mm

Lighting Effect
No

Fan Bearing
FDB

Fan Speed
Unmentioned


Performance
Efficiency
90% Efficiency

Efficiency Rating
80 Plus Gold

PFC (Power Factor Correction)
Active PFC

Power Good Signal
100 - 150 ms

Hold Up Time
>16ms at 100% Load


Protection
Protection
OPP, OVP, OCP, UVP, SCP, OTP

Over Voltage Protection (OVP)
Yes

Over Power Protection (OPP)
Yes

Over Current Protection (OCP)
Yes

Over Temperature Protection (OTP)
Yes

Short Circuit Protection (SCP)
Yes

Under Voltage Protection (UVP)
Yes

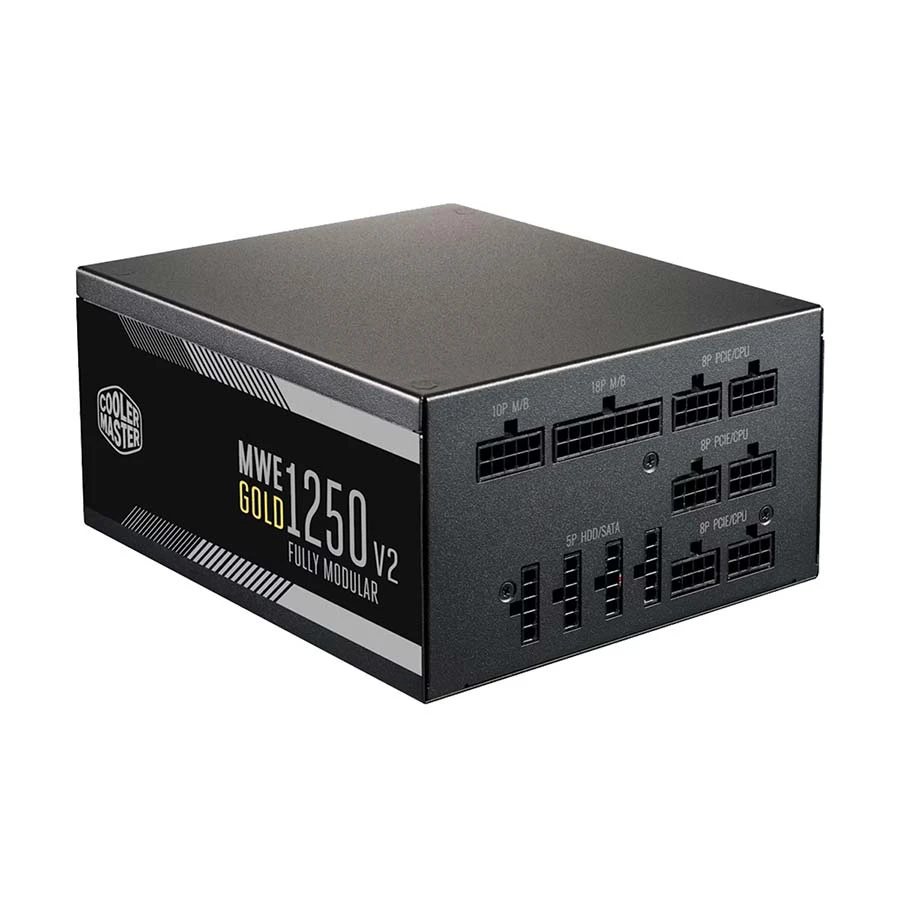

Connectors
ATX Main Connectors
1

EPS Connectors
2

PCIe Connectors
3

SATA Power Connectors
12

4-Pin Peripheral Connectors
4


Power
Min. Power (Approx.)
1000W

Maximum Power
1250 Watt

Input AC
100-240V

Input Voltage
100-240V

Input Frequency Range
50-60Hz

Input Current
15-7A

Operating Temperature
0 - 50 Degree C


Physical Description
Cable Type
flat black cable

MTBF
>100,000 Hours

Form Factor
ATX

Dimensions
180 x 150 x 86 mm

Weight (Kg)
3.02 kg

Color
Black


Warranty
Warranty Details
10 year


Additional Info
Regulatory / Safety Approval
TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS

Others

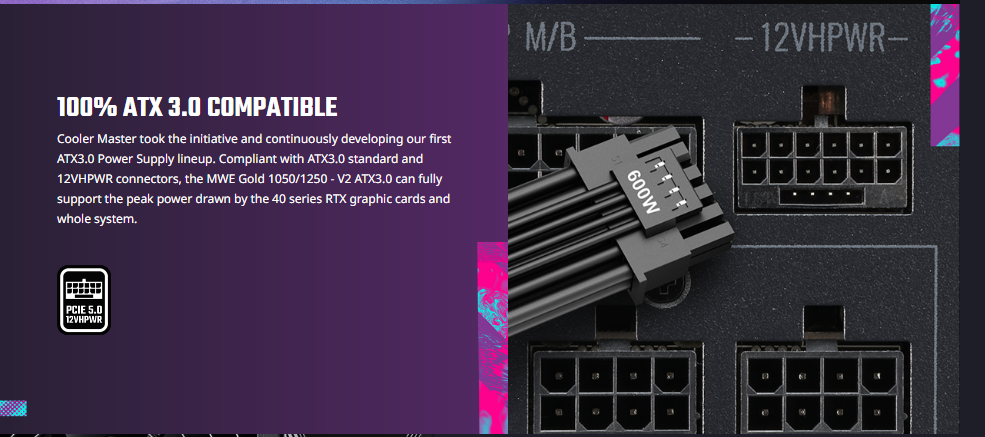

ErP 2014 Lot 3: Yes EPS 4+4 Pin Connectors: 1 EPS 8 Pin Connector: 1 12VHPWR Connector: 1

Specialty

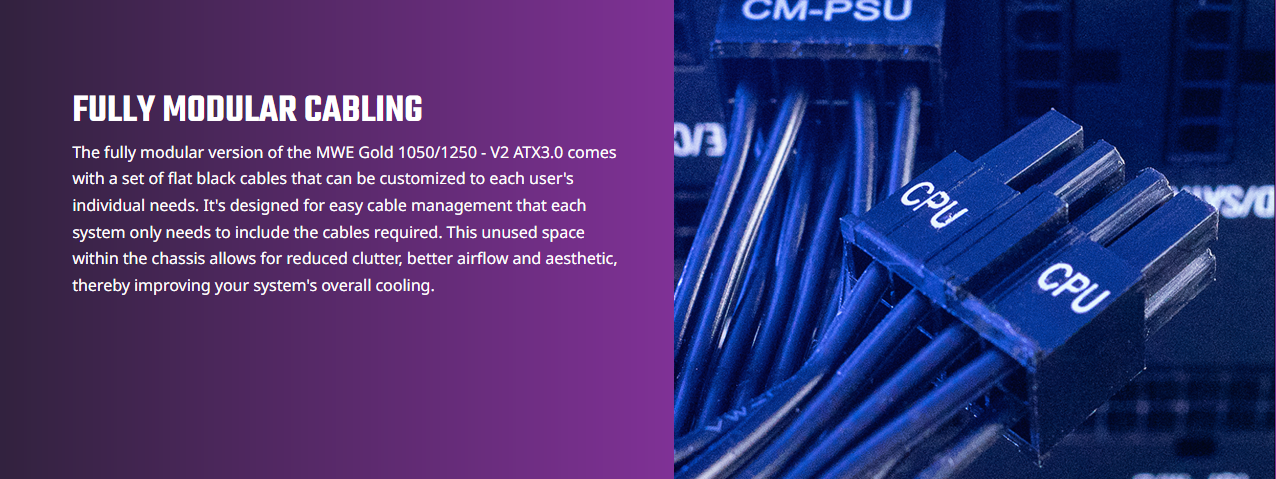

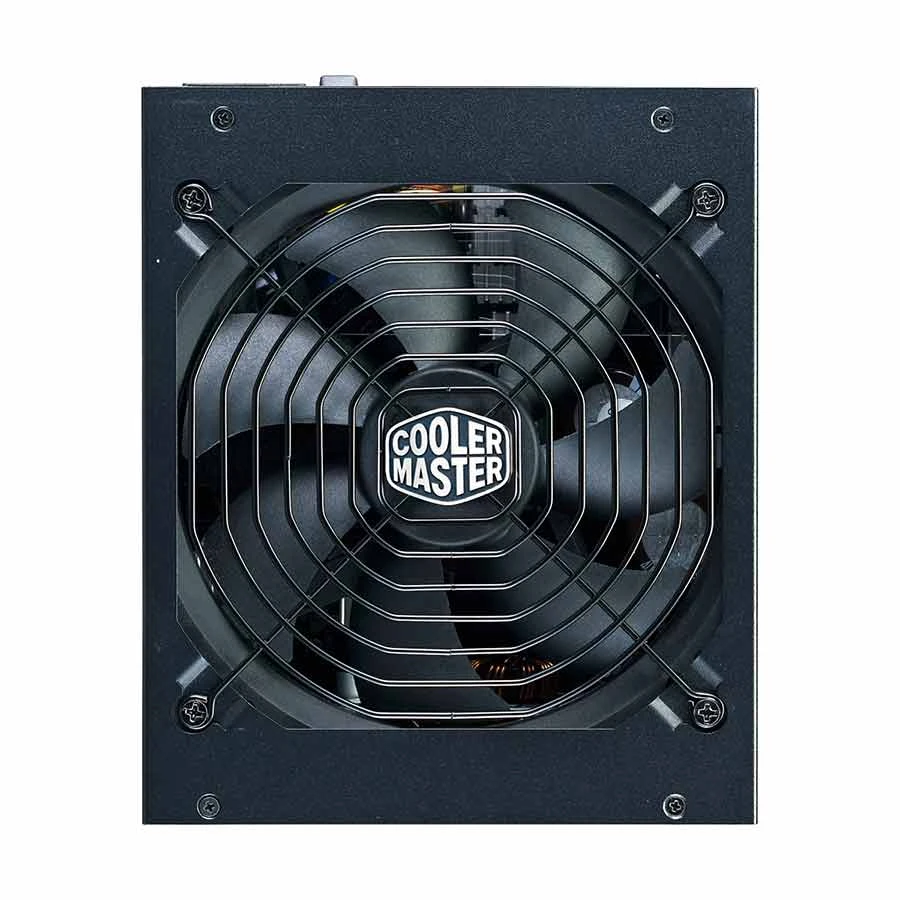

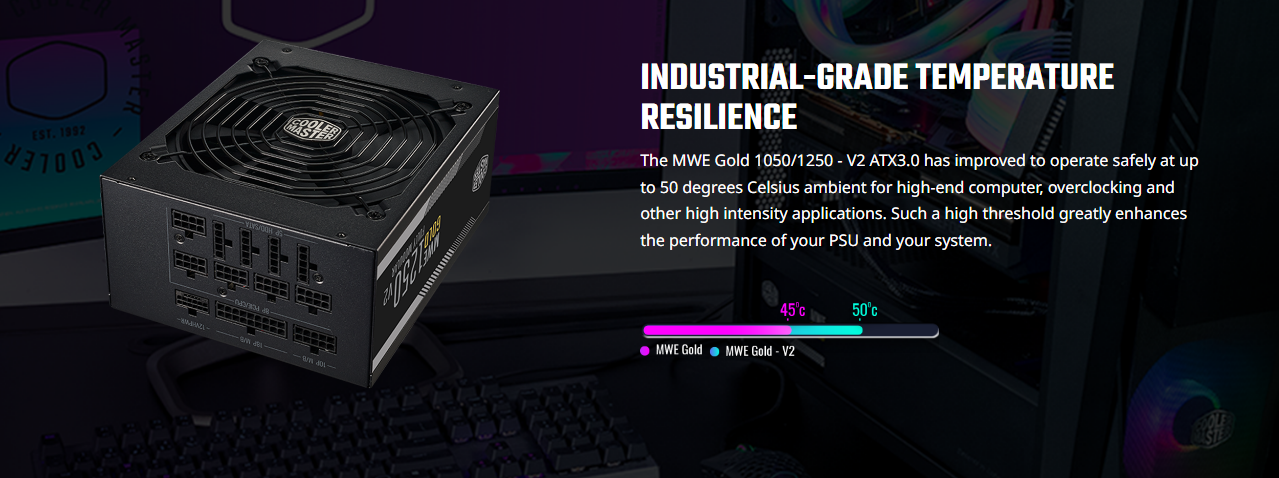

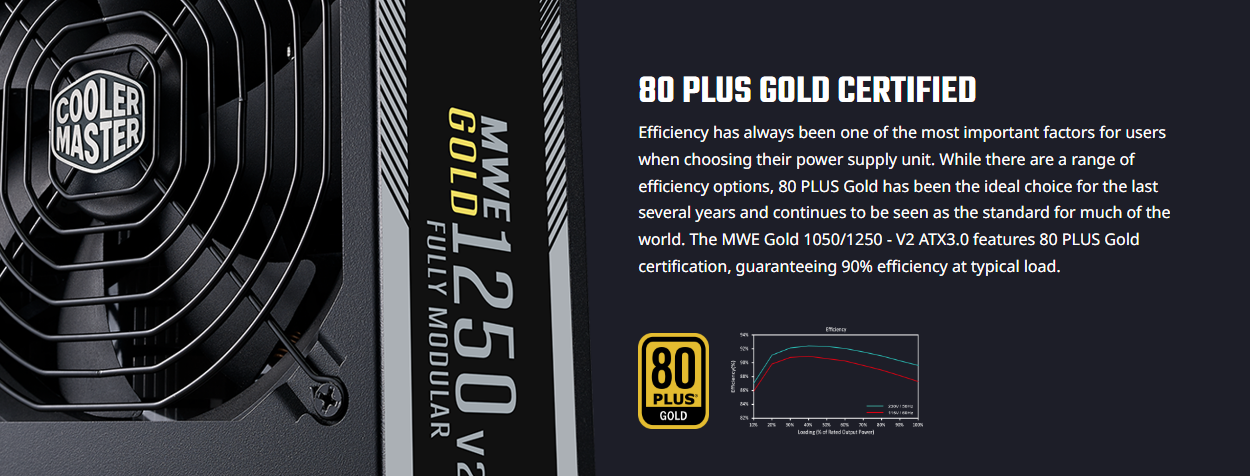

80 PLUS Gold Efficiency, High-quality Japanese capacitors, 140mm Silent Fan High Temperature Resilience, Fully Modular Cabling. Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1050/1250 - V2 ATX3.0 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.The MWE Gold 1050/1250 - V2 ATX3.0 has been optimized with an 140mm fan along with an advanced fluid-dynamic bearing(FDB) delivers quiet and effective cooling with a long lifespan. With Smart Thermal Control System(STCM), the fan will not spin until at 40% of rated output power to reduce noise.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
