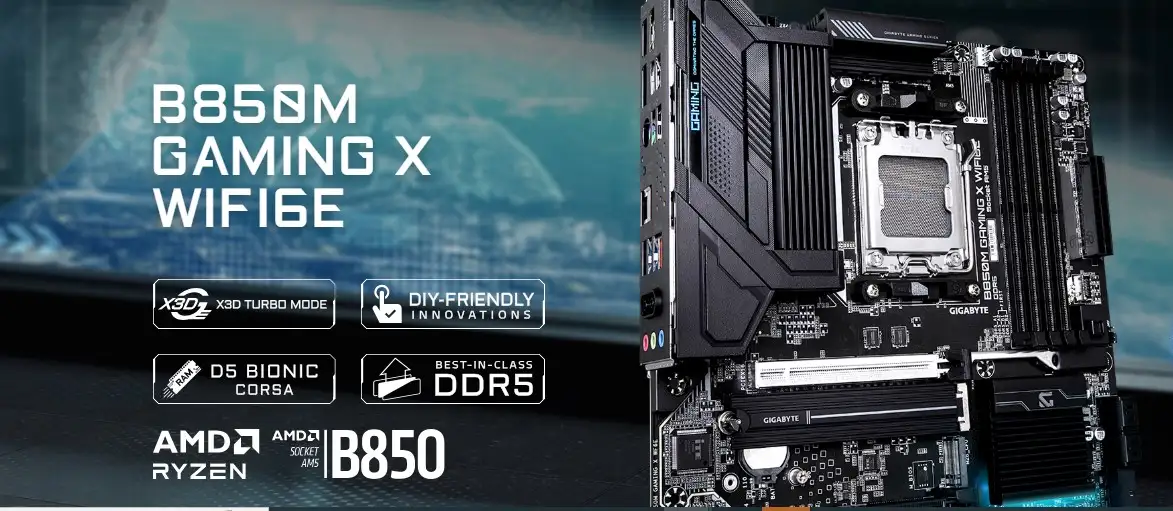

Gigabyte B850M GAMING X (Wi-Fi 6E) DDR5 AMD AM5 Socket Motherboard #B850M GAMING X WF6E / B850M GAMING X WIFI6E
2 x M.2 (1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs)
Graphics
Graphics
Integrated
Graphics Chipset
AMD Radeon Graphics support
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip
LAN Speed (Mbps)
10/ 100/ 1000/ 2500 Mbps
WiFi
Yes
WiFi Technology
Realtek Wi-Fi 6E RTL8852CE
Bluetooth
Bluetooth 5.3
Ports
USB Port
4 x USB 2.0/1.1 Type-A, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-A, 1 x USB Type-C port, with USB 3.2 Gen 2
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
2
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Connector
3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 10, 11
Compatible Products
AMD Socket AM5, support for: AMD Ryzen 9000/ 8000/ 7000 Series Processors.
Warranty
Warranty Details
3 year
Additional Info
Feature
H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control.
Others
High Definition Audio, WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 1 x system fan header, 1 x system fan/water cooling pump header, 1 x front panel header, 1 x front panel audio header, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper, Back Panel Connectors: 1 x Q-Flash Plus button, 1 x PS/2 keyboard/mouse port, 1 x RJ-45 port, 2 x antenna connectors (2T2R), I/O Controller: iTE I/O Controller Chip.
Country Of Origin
Taiwan
Made in/ Assemble
China
