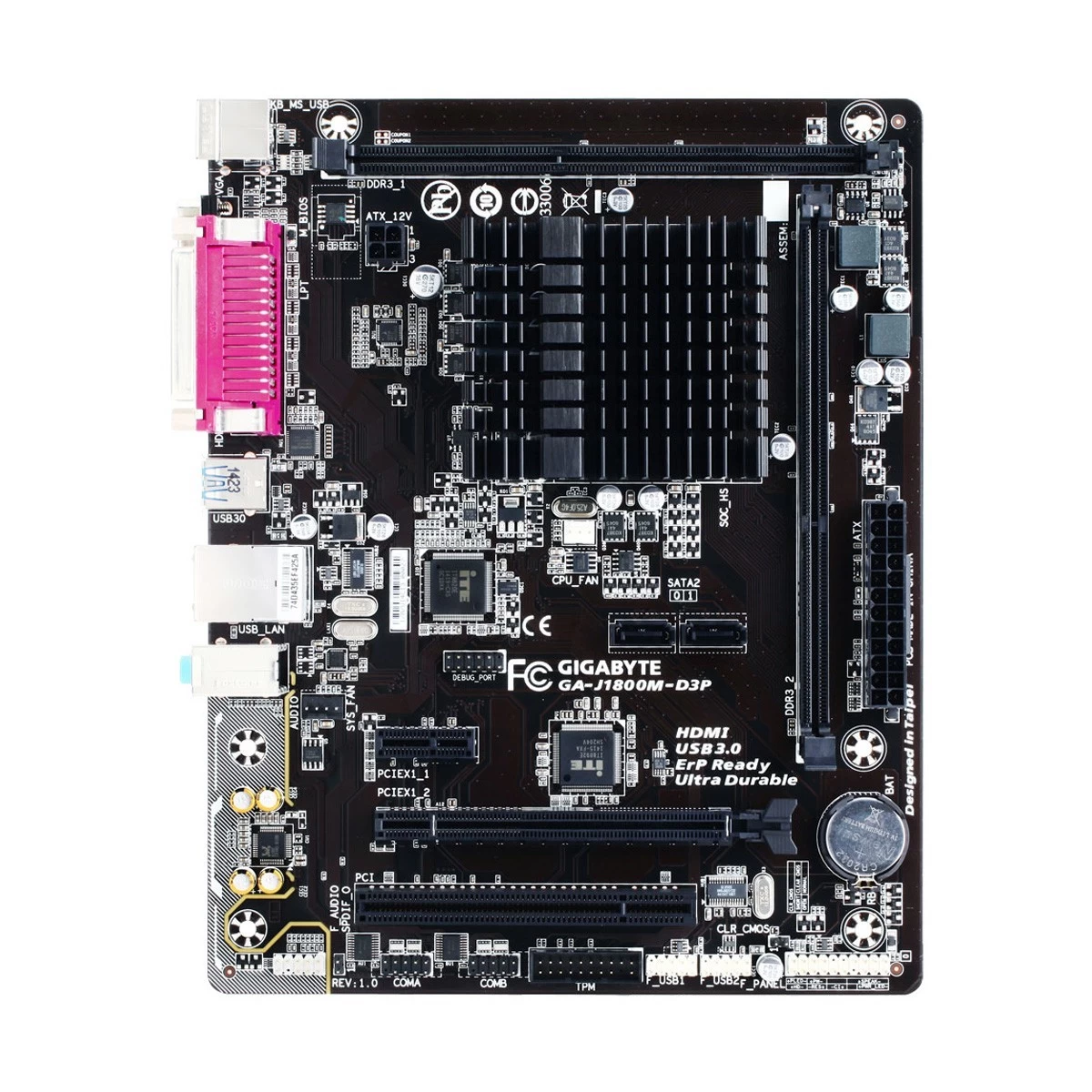

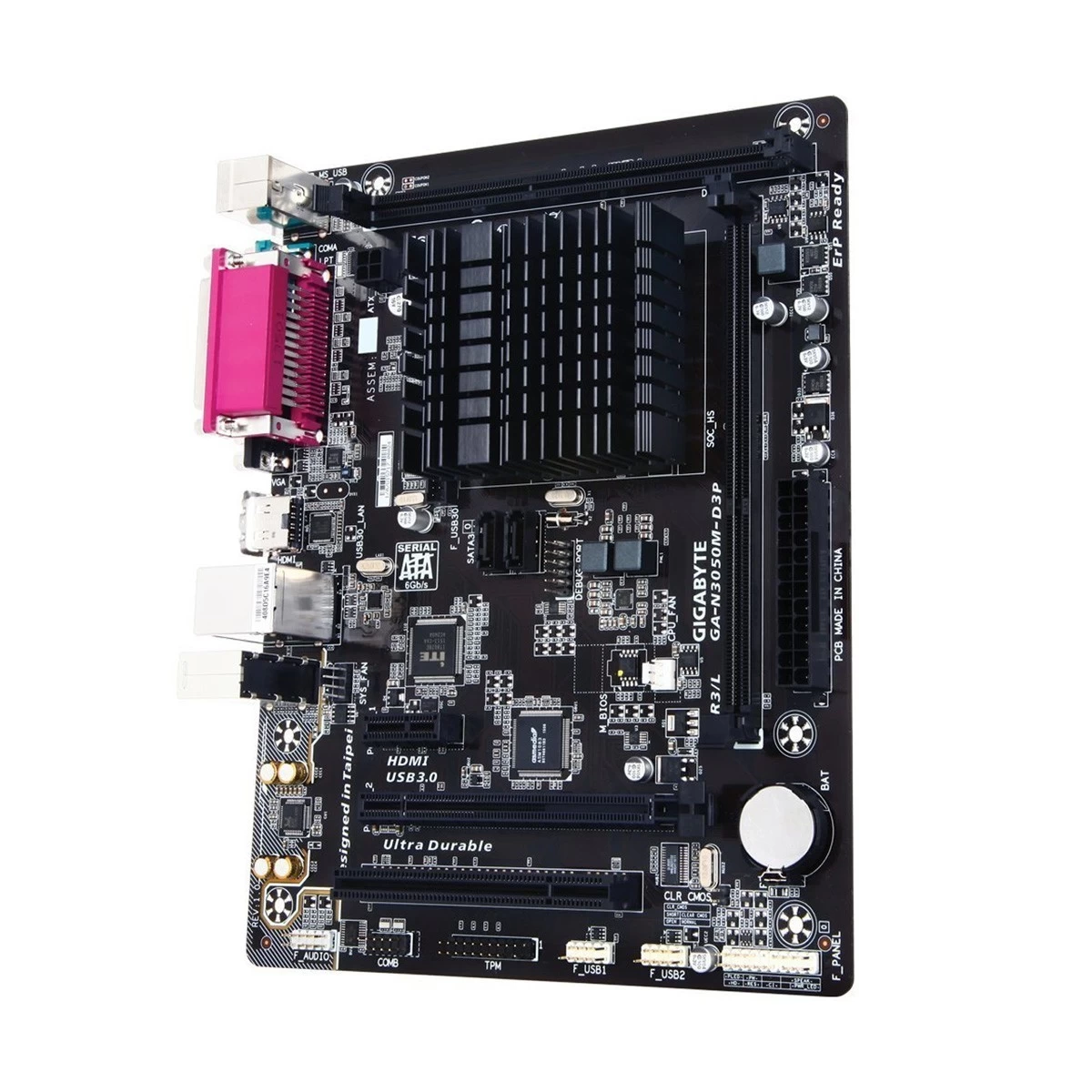

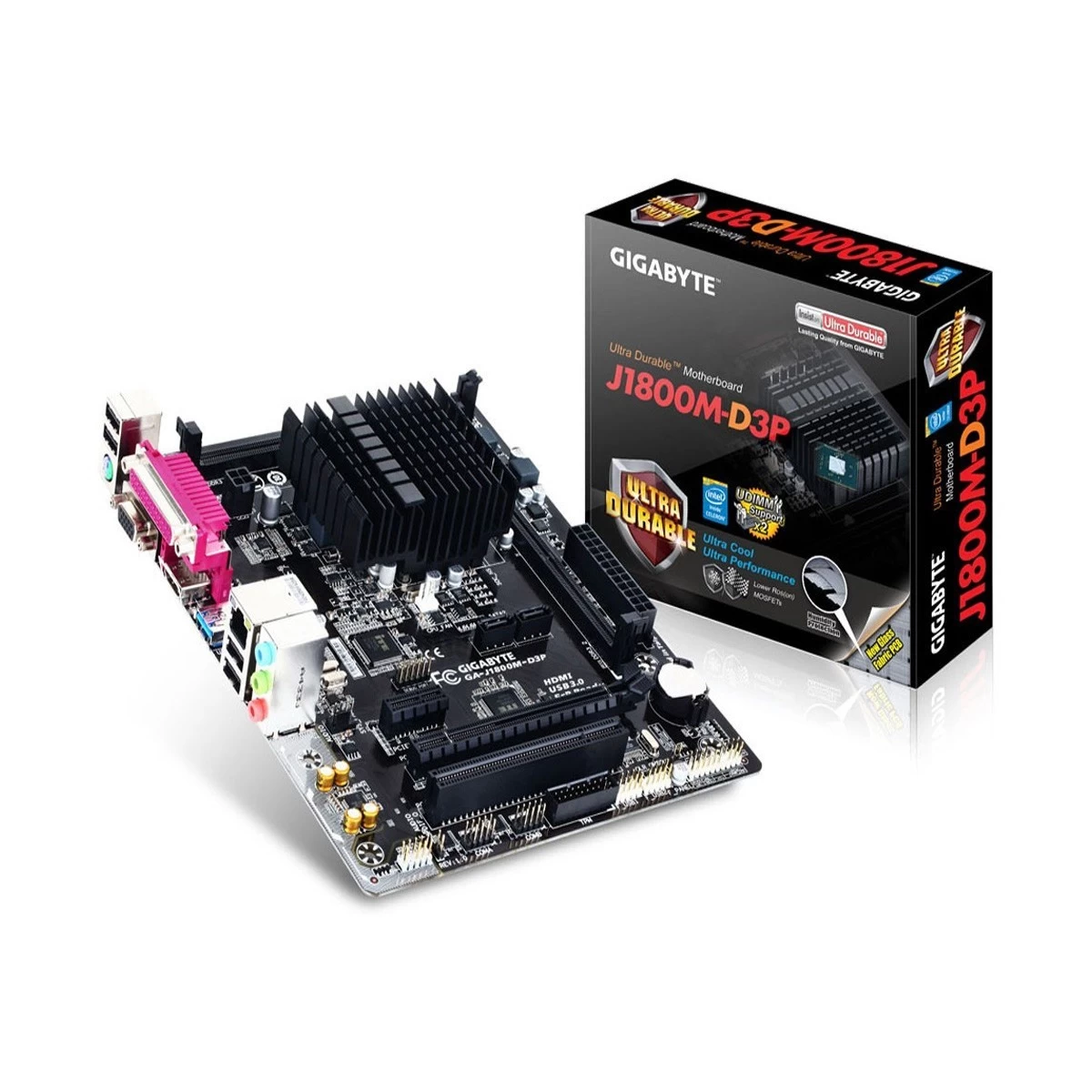

Gigabyte GA-J1800M-D3P Built In 2.41GHz DDR3 Celeron Processor+Motherboard (Combo)

Item: Gigabyte GA-J1800M-D3P Built In 2.41GHz DDR3 Celeron Processor+Motherboard (Combo)
Rating: 5
Author: Verified Buyer

2 reviews

Product Id: 02.01.018.185

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - Integrated Chipset
Sockets Supported - BGA1170
Generation - Not Applicable
Memory Slot - 2
Memory Max. - 8GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

GA-J1800M-D3P

Chipset

Integrated Chipset

Sockets Supported

BGA1170

Built-in Processor

Yes

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR3

Memory Slot

Memory Max.

8GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 7 / 8 / 8.1 / 10

Body Color

Black

Warranty

3 year

General

Brand

Gigabyte

Model

GA-J1800M-D3P

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Integrated Chipset

Sockets Supported

BGA1170

Built-in Processor

Yes

Generation

Not Applicable

Memory Support

Memory Type

DDR3

Memory MHz

1333MHz

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

2 x DDR3 DIMM

Memory Max.

8GB

Optane Memory Support

Storage

Storage Interface

3Gb/s

M.2/SSD Expansion Slot

M.2/SSD Slot Gen

Not Applicable

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1 x PCI Express x16

Audio & Video

Audio Chipset

Realtek ALC887 codec

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek GbE

LAN Speed (Mbps)

10/100/1000 Mbps

WiFi

WiFi Technology

Not Applicable

Bluetooth

Ports

USB Port

1 x USB3.0/2.0, 8 x USB2.0/1.1

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

2 x SATA

Thunderbolt

TPM Port

Yes

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

DirectX Support

Heatsink

FireWire

CrossFire Support

Sli Support

Raid Support

RGB Support

RGB Sync

Not Applicable

RGB Connector

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 64 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 7 / 8 / 8.1 / 10

Warranty

3 year

Additional Info

Feature

Built-in Intel Celeron J1800 (2.41 GHz) Dual-Core processor GIGABYTE Ultra Durable Technology Dual channel DDR3/-L UDIMM slot support Audio Noise Guard with High Quality Audio Capacitors All Solid Capacitors with Humidity Protection New Glass Fabric PCB design LAN with high ESD Protection HDMI, D-SUB ports on rear panel GIGABYTE On/Off Charge for USB devices PCIe and PCI interface for wide-range expansion card selections

Others

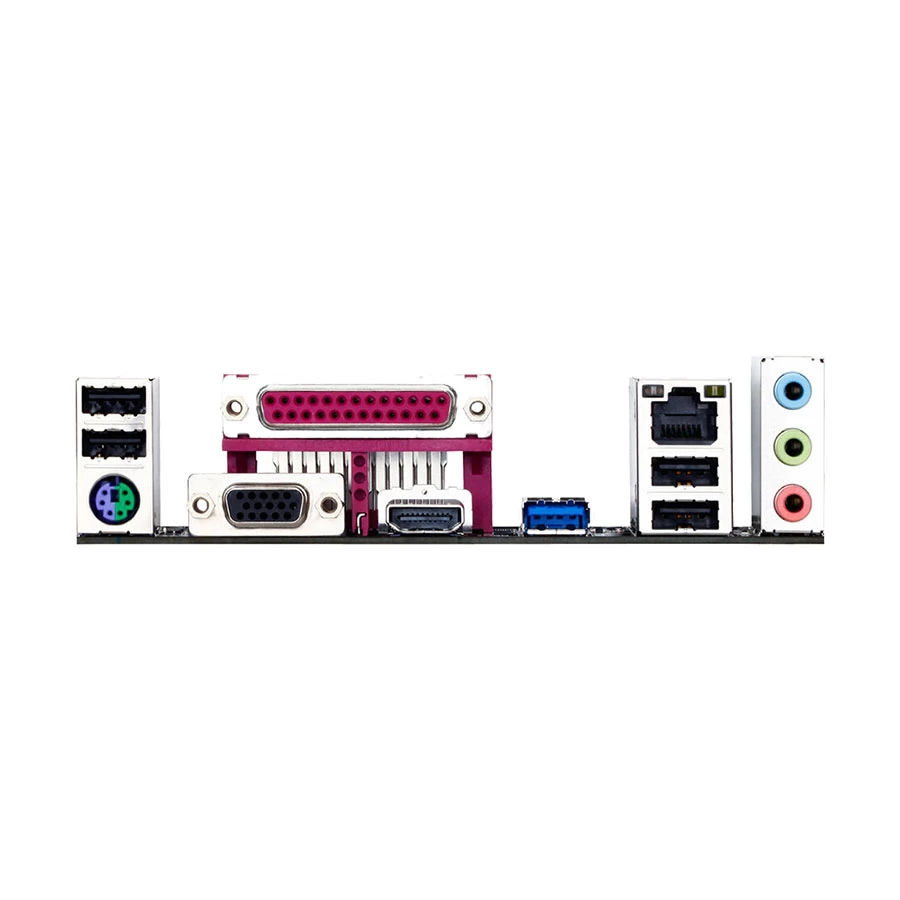

Back Panel Connectors: 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x parallel port 1 x USB 3.0/2.0 port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of GA-J1800M-D3P Motherboard In Bangladesh

The Gigabyte GA-J1800M-D3P is a compact and affordable motherboard combo featuring a built-in 2.41GHz Intel Celeron J1800 dual-core processor. Designed for small form factor PCs and budget-conscious users, this motherboard offers a fanless and energy-efficient solution for everyday computing tasks.

Equipped with dual DDR3 memory slots, VGA and HDMI ports, and a PCIe slot, the GA-J1800M-D3P provides essential features for basic multimedia playback, web browsing, and light productivity applications.

What Makes Gigabyte GA-J1800M-D3P Processor+Motherboard (Combo) Stand Out?

Here are some of the outstanding technical features of this Gigabyte Processor+Motherboard (Combo):

Processor

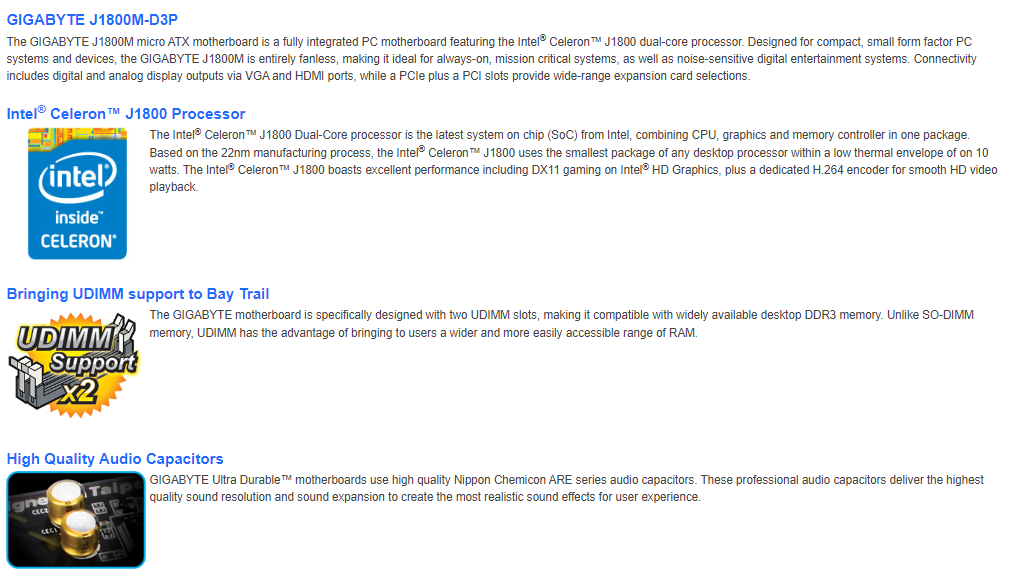

Intel Celeron J1800 Dual-Core Processor: A budget-friendly yet capable processor for basic computing tasks.
2.41GHz Clock Speed: Provides sufficient performance for everyday applications like web browsing, office work, and light gaming.
Intel HD Graphics: Integrated graphics capable of handling basic multimedia playback and casual gaming.
Low Power Consumption: Ensures efficient operation and reduced energy bills.

Motherboard

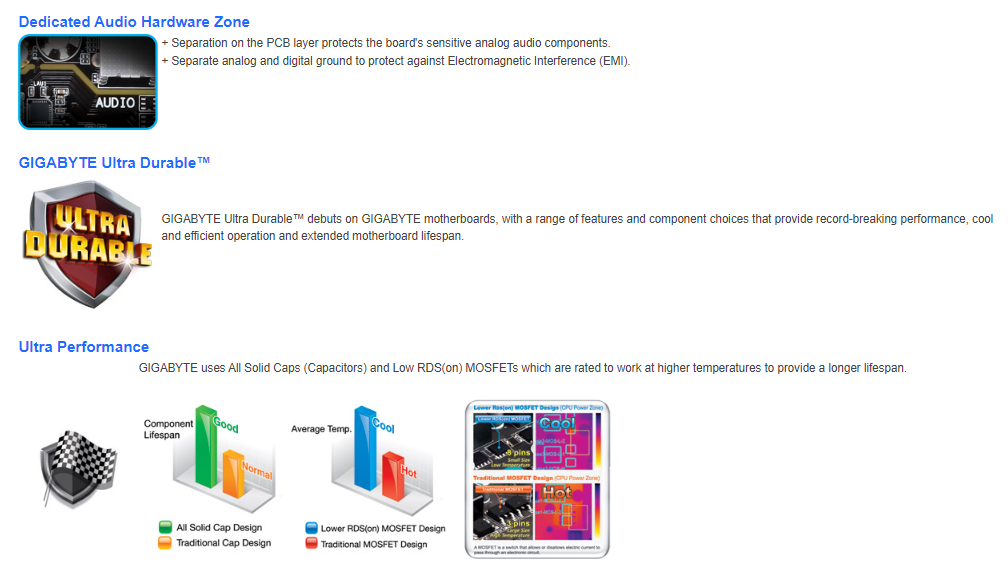

GIGABYTE Ultra Durable Technology: Offers enhanced reliability and stability.
Dual Channel DDR3 Memory Support: Supports up to 8GB of DDR3 memory for improved performance.
Audio Noise Guard with High Quality Audio Capacitors: Delivers clear and immersive audio experience.

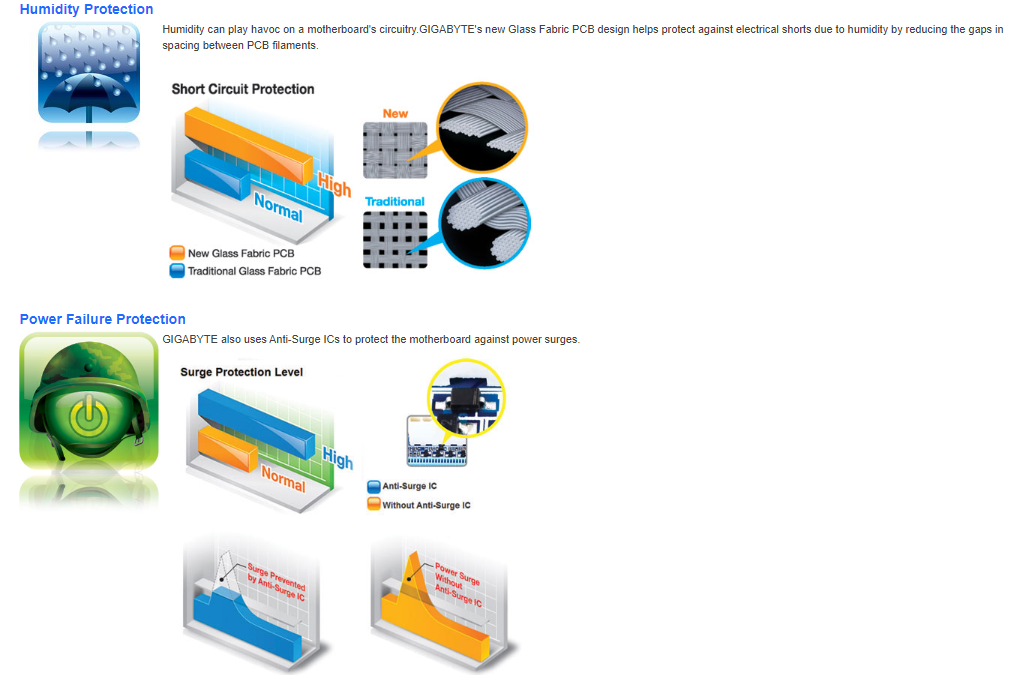

All Solid Capacitors with Humidity Protection: Enhances durability and longevity.
New Glass Fabric PCB Design: Reduces signal interference and improves stability.

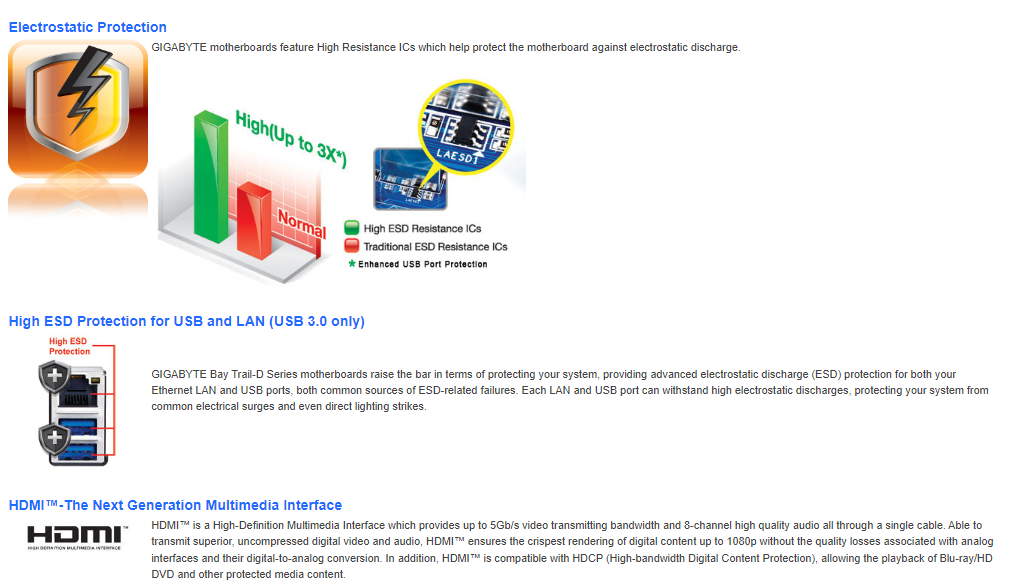

LAN with High ESD Protection: Protects against electrostatic discharge and ensures reliable network connectivity.
HDMI, D-SUB Ports: Provides versatile connectivity options for various displays.

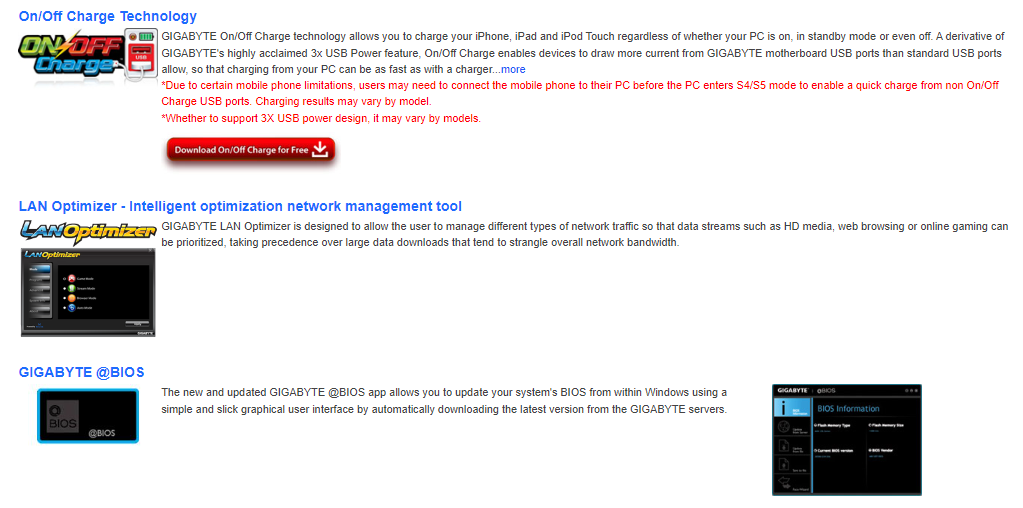

GIGABYTE On/Off Charge™ for USB Devices: Charges USB devices even when the PC is turned off.
PCIe and PCI Slots: Allows for expansion with additional cards like graphics cards or sound cards.

Who Should Buy a Gigabyte GA-J1800M-D3P Processor+Motherboard (Combo)?

This Processor and Motherboard combo is an excellent choice for users who:

Need a budget-friendly PC: Its affordable price point makes it a great option for those on a tight budget.
Prioritize energy efficiency: The low-power Celeron processor and fanless design ensure efficient operation and reduced energy consumption.
Value quiet operation: The fanless design eliminates noise, making it ideal for noise-sensitive environments like home theaters or offices.
Require a compact system: Its small form factor makes it suitable for small spaces or builds.
Need a basic PC for everyday tasks: The Celeron processor can handle tasks like web browsing, office work, and light gaming.
Prefer a reliable and durable motherboard: The Gigabyte Ultra Durable technology and high-quality components ensure long-lasting performance.

Gigabyte GA-J1800M-D3P

Built-in Intel® Celeron™ J1800 (2.41 GHz) Dual-Core processor
GIGABYTE Ultra Durable™ Technology
Dual channel DDR3/-L UDIMM slot support
Audio Noise Guard with High-Quality Audio Capacitors
All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
LAN with high ESD Protection
HDMI, and D-SUB ports on rear panel
GIGABYTE On/Off Charge™ for USB devices
PCIe and PCI interface for wide-range expansion card selections

What is the price of GA-J1800M-D3P Motherboard In Bangladesh?

The price of GA-J1800M-D3P Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy GA-J1800M-D3P Motherboard from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.

QUESTION & ANSWER

Customer Questions

What is the size of it?

Asked By ZAWAD

Dear customer, The size of this motherboard Micro-ATX.

Answered By Ryans Computers Ltd. , 08 Aug 2024

Will it support Twinmos 4GB DDR3 1600 BUS Desktop RAM ?

Asked By Atik Ahmed

Dear customer you have to use Memory Type DDR3 Memory MHz 1333MHz Thanks

Answered By Ryans Computers Ltd. , 14 Jul 2024

Does it support i3 4th gen

Asked By Tanjim

Dear Sir, It will not support external processor, in this motherboard, processor is built in, Thanks for your query!

Answered By Ryans Computers Ltd. , 02 May 2024

What, photoshop or video editing work can be done with this motherboard

Asked By Yeasin

Dear Sir, Gigabyte GA-J1800M-D3P Built In 2.41GHz DDR3 Celeron Processor+Motherboard (Combo) is not compatible for higher graphical related work or heavy work, it is just compatible for basic computing, Thanks for your query!

Answered By Ryans Computers Ltd. , 15 Feb 2024

Can i use 2 hard disk?

Asked By Tanjina

Dear Sir, SATA Port - 2 x SATA, you can use 2 hard disk, Thanks for your query!

Answered By Ryans Computers Ltd. , 19 Nov 2023

Can I use my 500GB hard disk and 128GB SSD on this together?

Asked By Towsif

Dear Sir, There are two SATA ports, you can use 2.5 inch SSD and general HDD, Thanks for your query!

Answered By Ryans Computers Ltd. , 19 Nov 2023

Does it support i5 6th gen?

Asked By Rony

Dear Sir, this one is processor+motherboard (Combo), no need extra processor. Thanks for your query!
