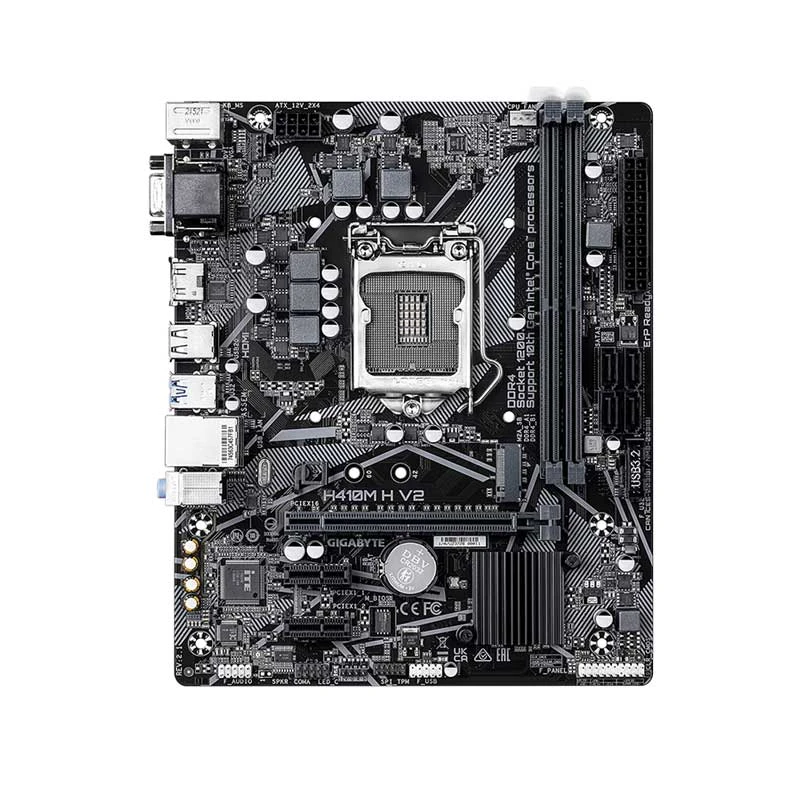

Gigabyte H410M H V2 (2.1) DDR4 10th Gen Intel Motherboard
10th Gen Intel Core i9/i7 Processors: Support for DDR4 2933/2666/2400/2133 MT/s memory modules, 10th Gen Intel Core i5/i3/Pentium/Celeron Processors: Support for DDR4 2666/2400/2133 MT/s memory modules
Memory Channel
Dual
Memory Slot
2
Memory Max.
64GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
1
M.2/SSD Expansion Slot Details

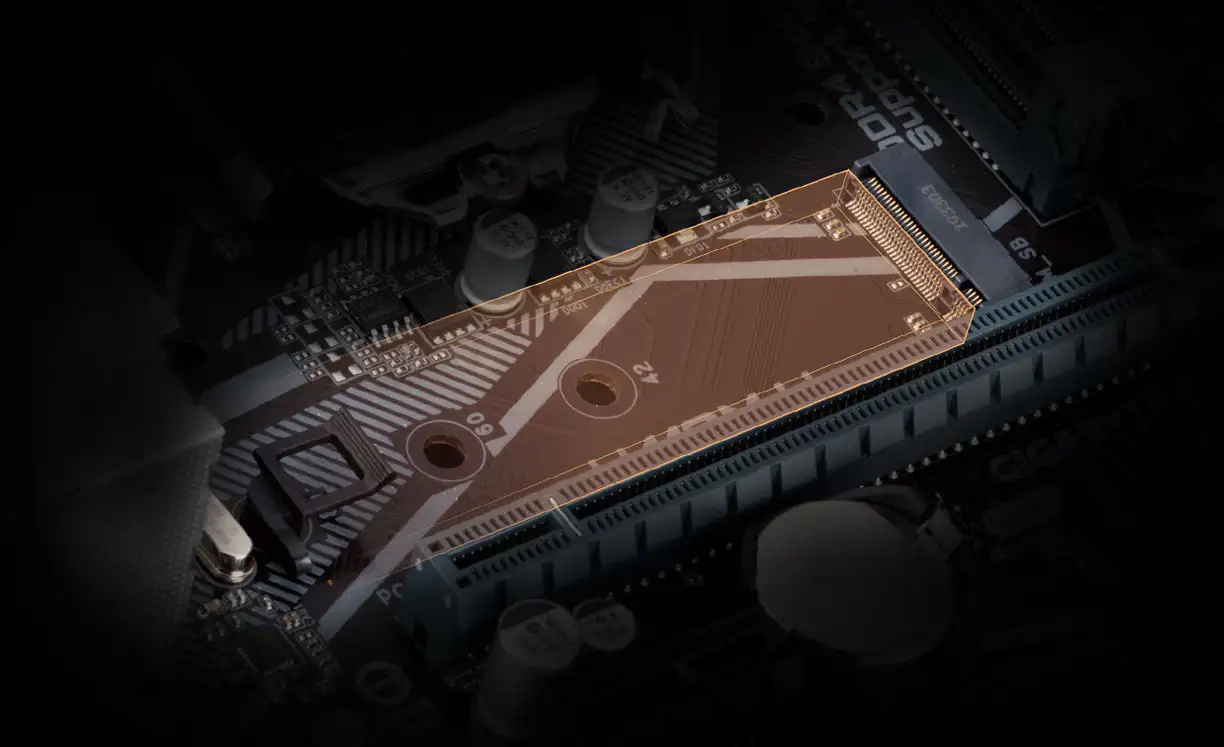

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
M.2/SSD Slot Gen
Up to Gen 3
Graphics
Graphics
Integrated
Graphics Chipset
Intel HD Graphics Support
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16, 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

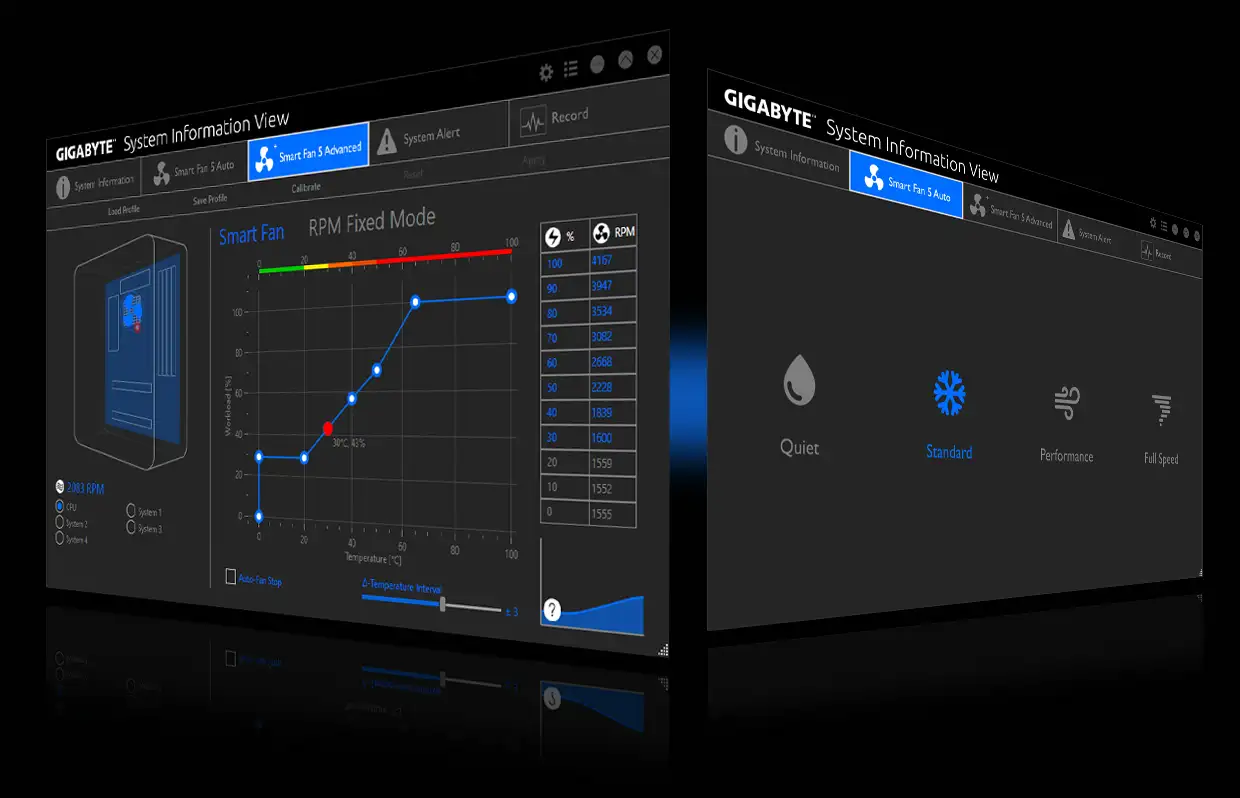

I/O Controller: iTE I/O Controller Chip, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control, Unique Features: Support for APP Center, Ambient LED, EasyTune, Smart Backup, System Information Viewer, Support for Q-Flash, Bundled Software: Norton Internet Security (OEM version), LAN bandwidth management software. Supports 10th Gen Intel Core Processors, Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs, 8-Channel HD Audio with High Quality Audio Capacitors, NVMe PCIe Gen3 x4 2280 M.2 Connector, GbE LAN with Bandwidth Management, Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, GIGABYTE APP Center, Simple and Easy Use, Anti-Sulfur Resistors Design.
Others
Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 4 x SATA 6Gb/s connectors, 1 x CPU fan header, 1 x system fan header, 1 x RGB LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only), 1 x serial port header, 1 x Clear CMOS jumper
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
