1 x M.2 (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
M.2/SSD Slot Gen
Up to Gen 3
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16, 1 x PCI Express x1
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek GbE LAN chip
LAN Speed (Mbps)
10/ 100/ 1000Mbps
WiFi
No
Bluetooth
No

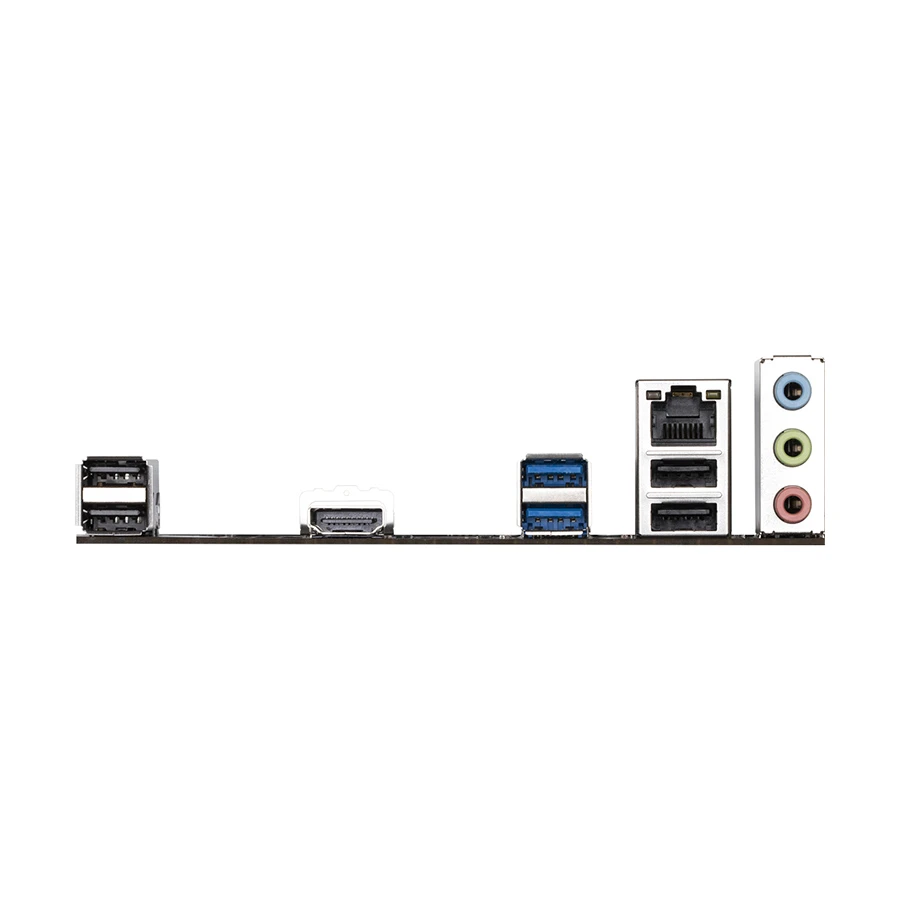

Ports
USB Port
2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
2 x SATA
Thunderbolt
No
TPM Port
No
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5
RGB Support
RGB
RGB Connector
1 x RGB LED strip header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 128 Mbit
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 11, 10
Compatible Products
10th Gen Intel Core i9/ i7/ i5/ i3 and Pentium/ Celeron processors
Warranty
Warranty
3 year
Additional Info
Feature

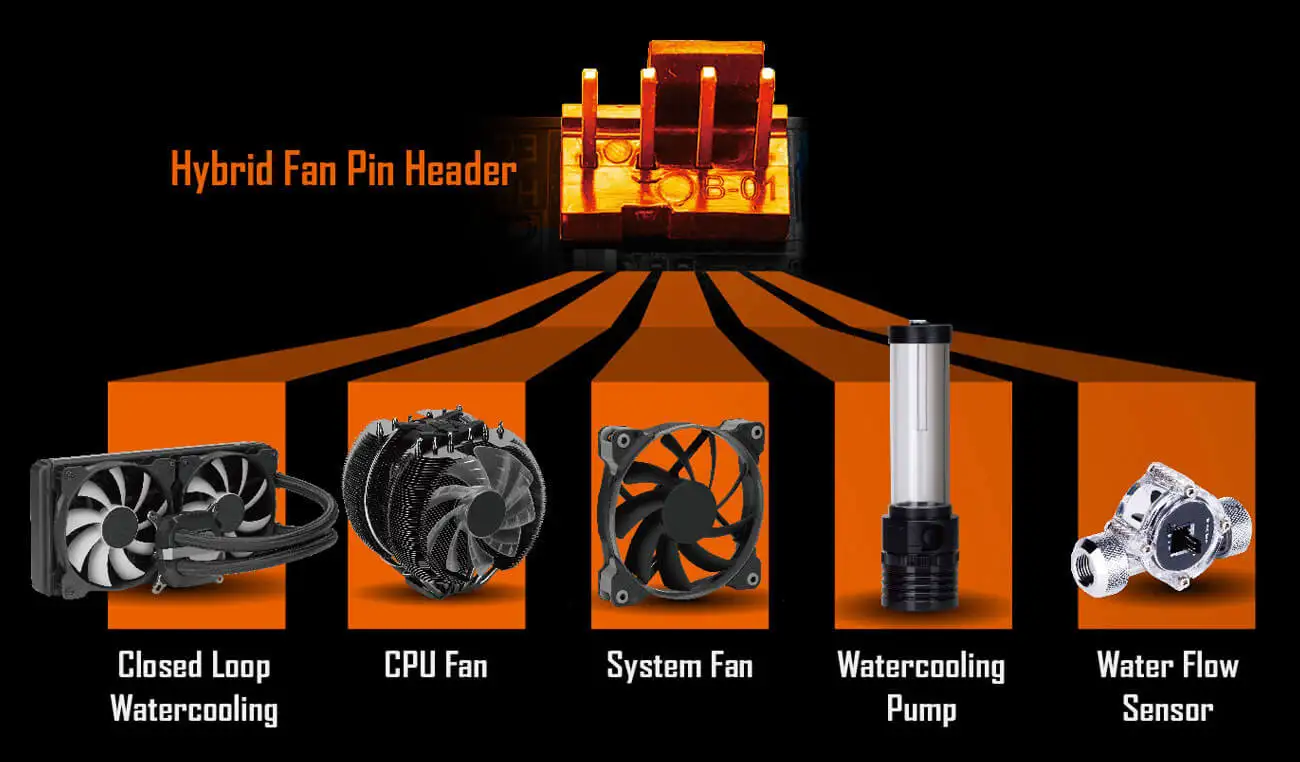

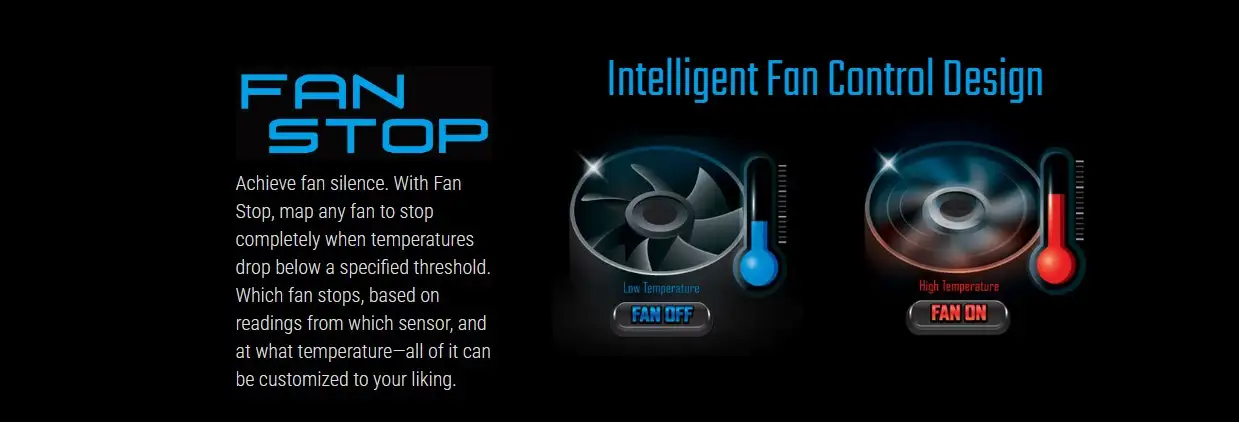

H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, GbE LAN with Bandwidth Management, Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, GIGABYTE APP Center, Simple and Easy Use, Anti-Sulfur Resistors Design.
Others
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, High Definition Audio, Back Panel Connectors: 1 x RJ-45 port, 3 x audio jacks, Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x serial port header, 1 x Clear CMOS jumper, iTE I/O Controller Chip.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
QUESTION & ANSWER
Customer Questions
Q:
সর্বোচ্চ কোন জিপিইউ সাপোর্ট করবে? i5 10 gen প্রসেসর এর সাথে?
Asked By Rayhan
A:
প্রিয় গ্রাহক, এই কনফিগারেশনে আপনি যে কোন জিপিইউ ইন্সটল করতে পারেন , যদি আপনার power supply ও case ঠিক থাকে। ধন্যবাদ।
Answered By Ryans Computers Ltd.
, 08 Nov 2025
Q:
Does this mobo support intel core i3 10100 processor
Asked By Sheralimollah
A:
Dear customer, This product supports mobo support intel core i3 10100 processor. Thanks.
Answered By Ryans Computers Ltd.
, 13 Apr 2025
Q:
আমি বরিশাল থেকে আজ GIGABYTE H410 MK Motherboard টি কিনেছি আজ। এর সাথে Intel Core i3 10th Gen. এর কোন প্রচেসসরটি কোন গ্রাফিক্স কার্ড এর সাপোর্ট ছাড়ায় সব থেকে ভাল রান করবে? জানালে আমি খুব তাড়াতাড়ি প্রসেসরটি কিনব। ধন্যবাদ।
Asked By Emamul
A:
প্রিয় গ্রাহক, বিস্তারিত জানতে আমাদের হট লাইন নম্বরে যোগাযোগ করুন 16 810, 09609016810 ধন্যবাদ
Answered By Ryans Computers Ltd.
, 26 Mar 2025
Q:
এটা কি বরিশাল শো রুমে পাওয়া যাবে? আমি কিনতে ইচ্ছুক।
Asked By Emamul
A:
প্রিয় গ্রাহক , এই প্রোডাক্টটি এই মুহূর্তে আমাদের বরিশাল শাখায় অ্যাভেইলেবল আছে । বিস্তারিত জানতে এই নাম্বারে16 810, 09609016810 যোগাযোগ করুন । ধন্যবাদ ।
Answered By Ryans Computers Ltd.
, 07 Mar 2025
Q:
এটায় রেম কয়টা ইউজ করা যাবে
Asked By K
A:
প্রিয় গ্রাহক, Memory Slot- 2, ধন্যবাদ
Answered By Ryans Computers Ltd.
, 15 Feb 2025
Your Question (Please don`t
use any links, &, (, ), /, +, $, # Symbols)
REVIEW
Customer Reviews
Works well I like the better other than that I can't fault it..
By Mahin
. December, 2024
exceptional reliability, smooth performance, and great value for budget-conscious PC builders
By Munna
. December, 2024
eliable connectivity options
By Kazi Faisal Rahman
. December, 2024
This is a very good quality product
By Ismail Hossain
. November, 2024
Great
By Anik
. November, 2024
Outstanding performance
By Khandoker Mazharul Islam Anik
. November, 2024
The motherboard specifications are very good and the motherboard is very long lasting.
By Farhan
. November, 2024
this motherboard delivers impressive performance and solid expandability without compromising on quality.
