Gigabyte H410M K (2.1) DDR4 Q470 Chipset 10th Gen Intel LGA1200 Socket Motherboard
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory Max.
64GB
Memory Max. (Additional Info)
supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
1
M.2/SSD Expansion Slot Details

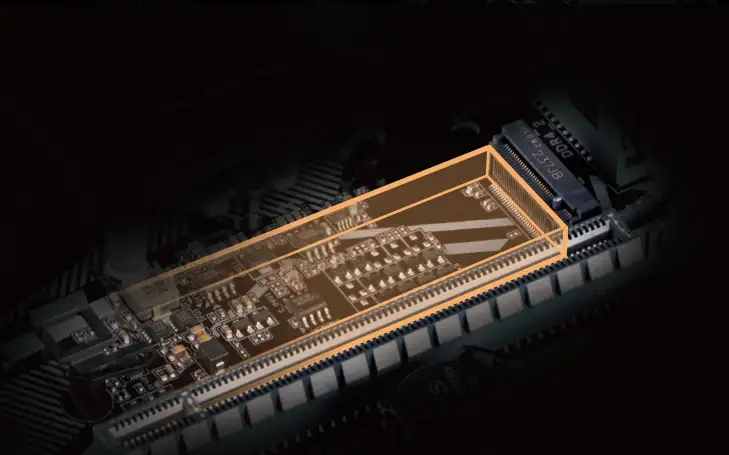

1 x M.2 slot M key type 2280 support SATA and PCIe 3.0 x4/x2 SSD
M.2/SSD Slot Gen
Up to Gen 3
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot

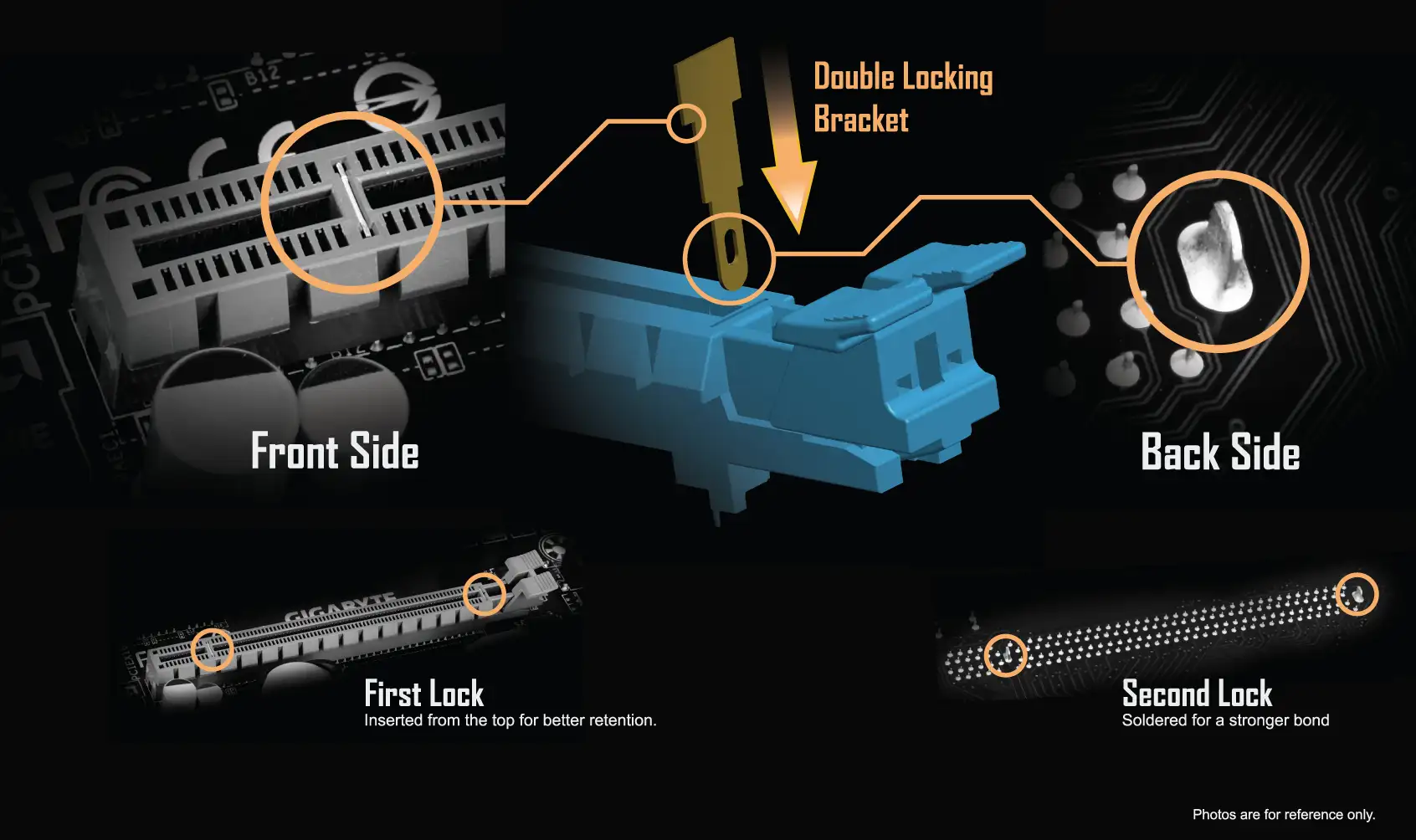

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16, 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek GbE LAN
LAN Speed (Mbps)
10/100/1000 Mbps
WiFi
No
Bluetooth
No
Ports
USB Port
4 x USB 2.0/1.1 Type-A, 2 x USB 3.2 Gen 1 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
2 x SATA
Thunderbolt
No
TPM Port
No
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
No
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0 , 1 , 5 (SATA), 0 , 1 (M.2)
RGB Support
RGB
RGB Connector
1 x RGB LED strip header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 128 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 11 / 10
Compatible Products
Compatible with LGA1200 Socket 10th Gen Intel Processor.
Warranty
Warranty
3 year
Additional Info
Feature
HDMI port, supporting a maximum resolution of 4096x2160@30 Hz.
Others

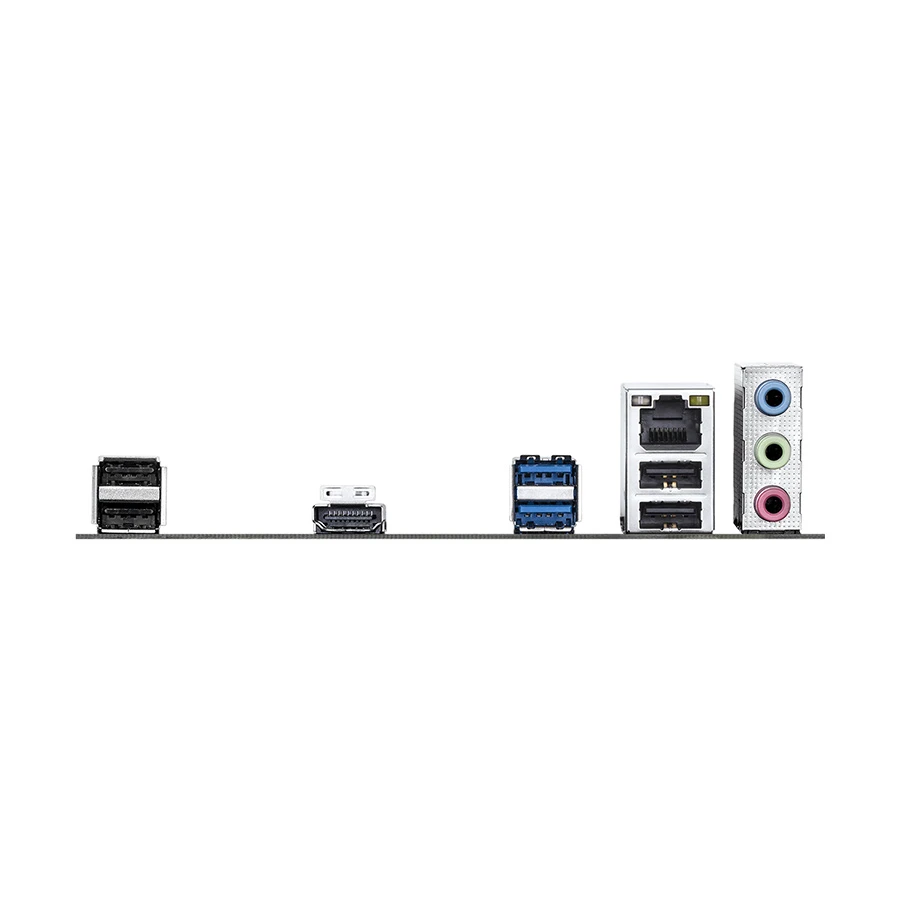

Internal I/O Connectors: (1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x serial port header 1 x Clear CMOS jumper), Back Panel Connectors: (1 x RJ-45 port 3 x audio jacks), I/O Controller: (iTE I/O Controller Chip).
Country Of Origin
Taiwan
Made in/ Assemble
China
