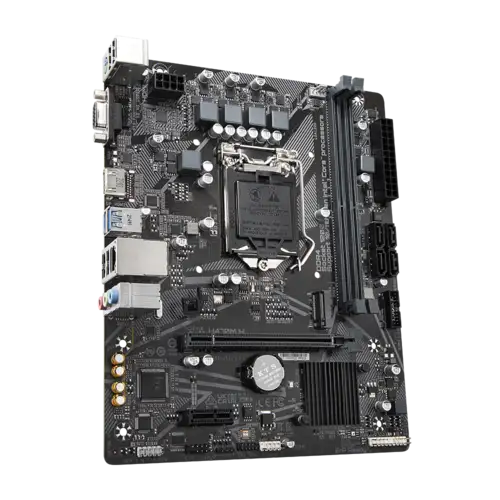

Gigabyte H470M H DDR4 10th/11th Gen Intel LGA1200 Socket Motherboard

Product Id: 02.01.018.460

Brand Gigabyte

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel H470
  • Memory Max. - 64GB
  • Memory Slot - 2
  • Sockets Supported - LGA1200
  • Supported CPU - 11th Gen Intel Core i9 / i7 / i5 processors, 10th Gen Intel Core i9 / i7 / i5 / i3 /Pentium/ Celeron processors.
  • Generation - 10th/11th
General
Brand
Gigabyte

Model
Gigabyte H470M H

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel H470

Sockets Supported
LGA1200

Built-in Processor
No

Supported CPU
11th Gen Intel Core i9 / i7 / i5 processors, 10th Gen Intel Core i9 / i7 / i5 / i3 /Pentium/ Celeron processors.

Generation
10th/11th


Memory Support
Memory Type
DDR4

Memory MHz
3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz non-ECC Un-buffered DIMM

Memory Channel
Dual

Memory Slot
2

Memory Slot (Additional Info)
2 x DDR4 DIMM

Memory Max.
64GB

Memory Max. (Additional Info)
64 GB (32 GB single DIMM capacity)

Optane Memory Support
Yes


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2, type 2280 SATA and PCIe 3.0 x4/x2 SSD


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16, 1 x PCI Express x1


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek GbE

LAN Speed (Mbps)
10 / 100 / 1000Mbps

WiFi
No

WiFi Technology
No

Bluetooth
No


Ports
USB Port
1 x USB 3.2 Gen 1, 1 x USB 2.0/1.1

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Connector
1 x RGB LED strip header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 128 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10, 11

Compatible Products
Comet Lake Core i3 10105, Comet Lake Core i3 10100, Comet Lake Core i5 10400F, Core i5 10400, Comet Lake Core i5 10400, Lake Core i7 10700 Desktop Processors.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Supports 11th/10th Gen Intel Core Processors, Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs, 8-Channel HD Audio with High Quality Audio Capacitors, NVMe PCIe Gen3 x4 2280 M.2 Connector, GbE LAN with Bandwidth Management, Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, GIGABYTE APP Center, Simple and Easy Use, Anti-Sulfur Resistors Design

Others
GbE LAN with Bandwidth Management, NVMe PCIe Gen3 x4 2280 M.2 Connector, GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems potential. Smart Fan 5, Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature all of it can be customized to your liking.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
