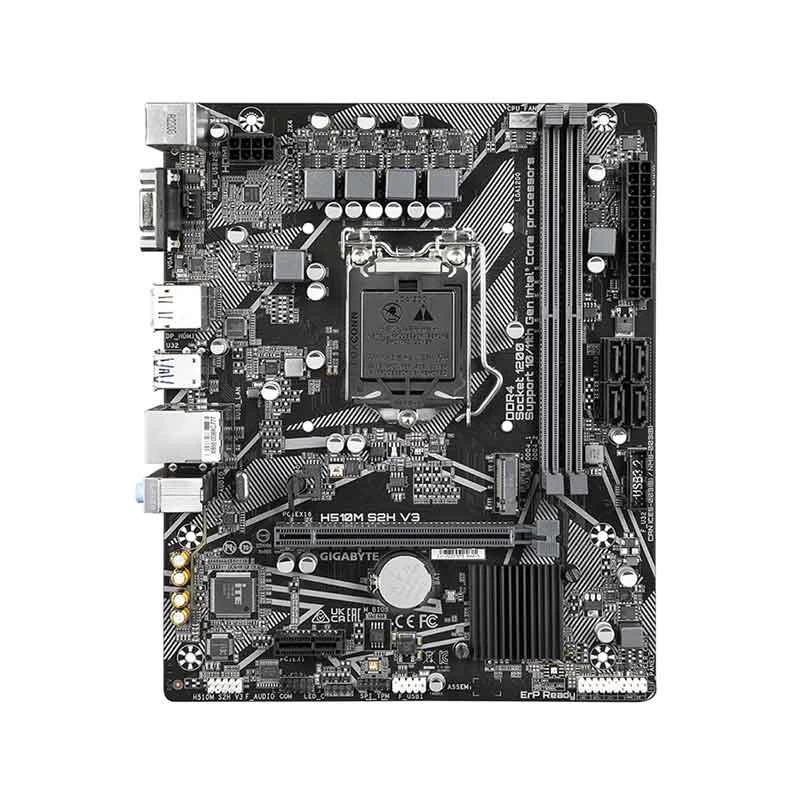

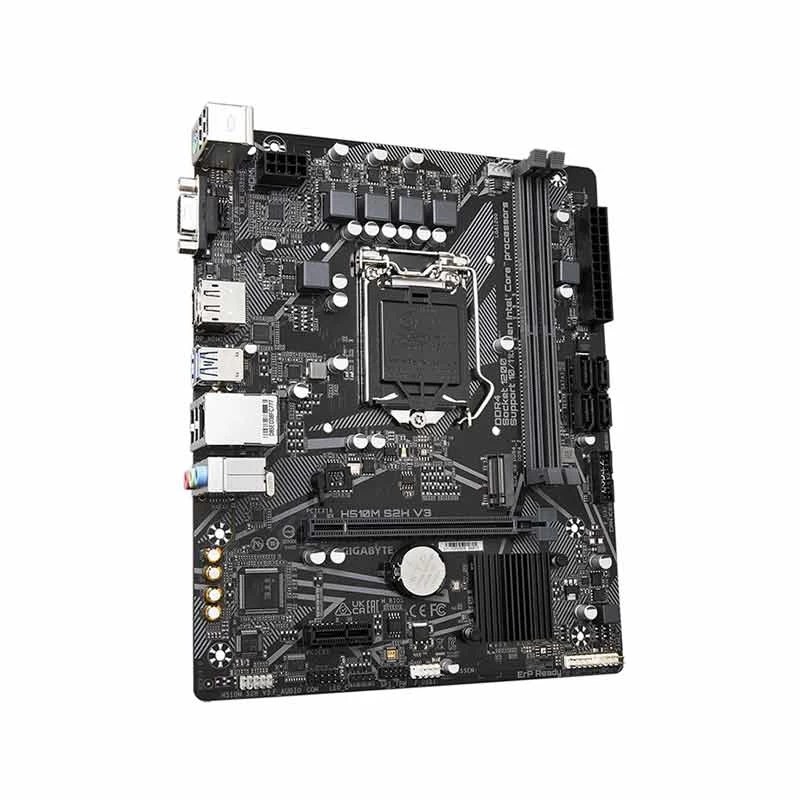

Gigabyte H510M S2H V3 DDR4 Intel Motherboard

Item: Gigabyte H510M S2H V3 DDR4 Intel Motherboard
Rating: 5
Author: Verified Buyer

11 reviews

Product Id: 02.01.018.488

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - Intel H470
Sockets Supported - LGA1200
Supported CPU - 10th/11th Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors.
Generation - 10th/11th
Memory Slot - 2
Memory Max. - 64GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte H510M S2H V3

Chipset

Intel H470

Sockets Supported

LGA1200

Built-in Processor

Generation

10th/11th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

64GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10 / 11

Body Color

Black

Warranty Details

3 year

General

Brand

Gigabyte

Model

Gigabyte H510M S2H V3

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel H470

Sockets Supported

LGA1200

Built-in Processor

Supported CPU

10th/11th Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors.

Generation

10th/11th

Memory Support

Memory Type

DDR4

Memory MHz

3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz ECC/non-ECC Un-buffered memory.

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

2 x DIMM

Memory Max.

64GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

M.2/SSD Slot Gen

Up to Gen 3

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

Multi-GPU Support

PCI Express Slot

1 x PCI Express x16 slot supporting PCIe 3.0 and running at x16, 1 x PCI Express x1 slot supporting PCIe 3.0 and running at x1

Audio & Video

Audio Chipset

Realtek Audio CODEC High Definition Audio

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek GbE LAN

LAN Speed (Mbps)

10/100/1000Mbps

WiFi

Bluetooth

Ports

USB Port

2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0/1.1 Type-A

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

RGB

RGB Connector

1 x RGB LED strip header

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 128 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 10 / 11

Compatible Products

Compatible with LGA1200 Socket 10th & 11th Gen Intel Processor.

Warranty

Warranty Details

3 year

Additional Info

Others

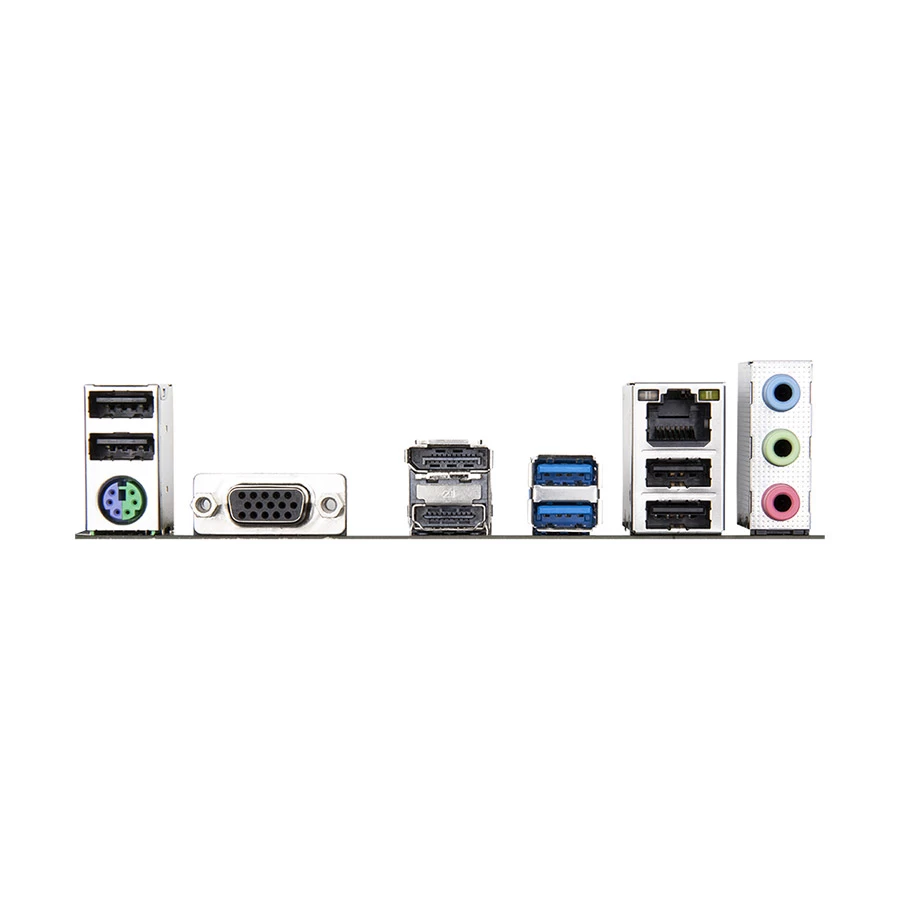

Back Panel Connectors: (1 x PS/2 keyboard/mouse port 1 x RJ-45 port 3 x audio jacks), Internal I/O Connectors: (1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper), DisplayPort: (supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3.), HDMI port: (supporting a maximum resolution of 4096x2160@30 Hz Support for HDMI 1.4 version and HDCP 2.3), D-Sub port: (supporting a maximum resolution of 1920x1200@60 Hz The D-Sub port is only available with the 10th Generation processors), Support for up to 3 displays at the same time.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte H510M S2H V3 Motherboard In Bangladesh

GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

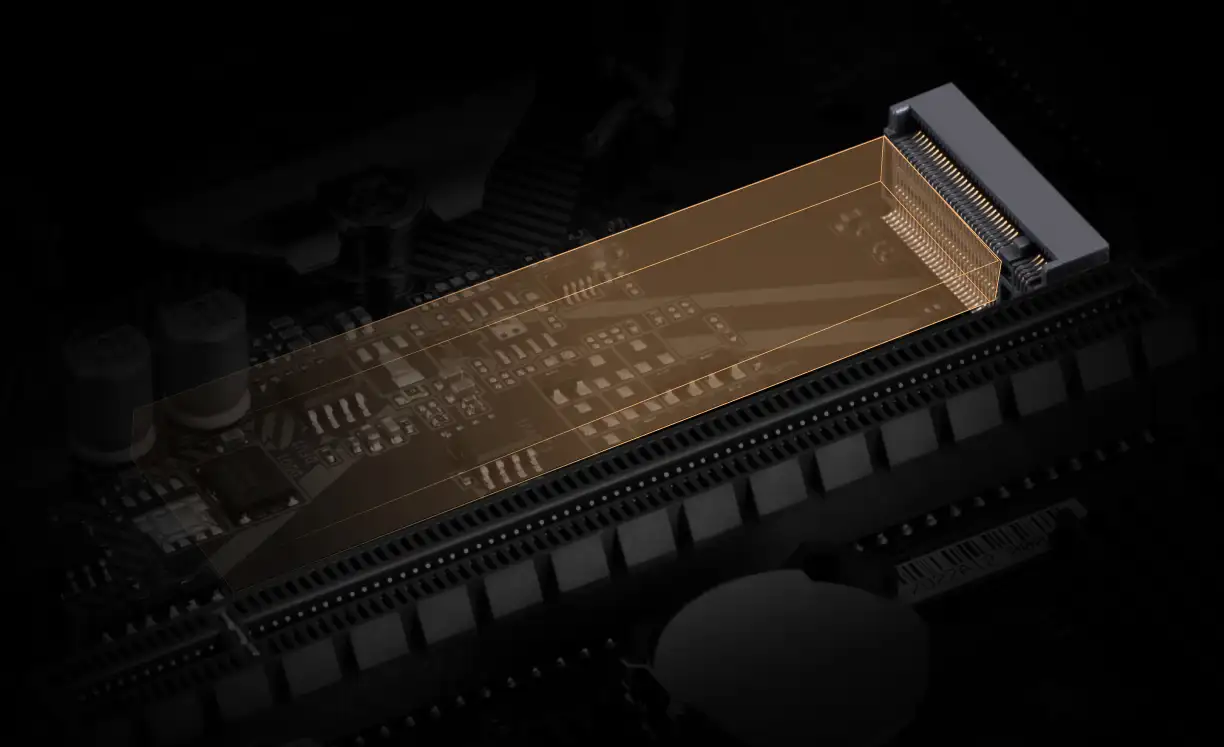

NVMe PCIe Gen3 x4 2280 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

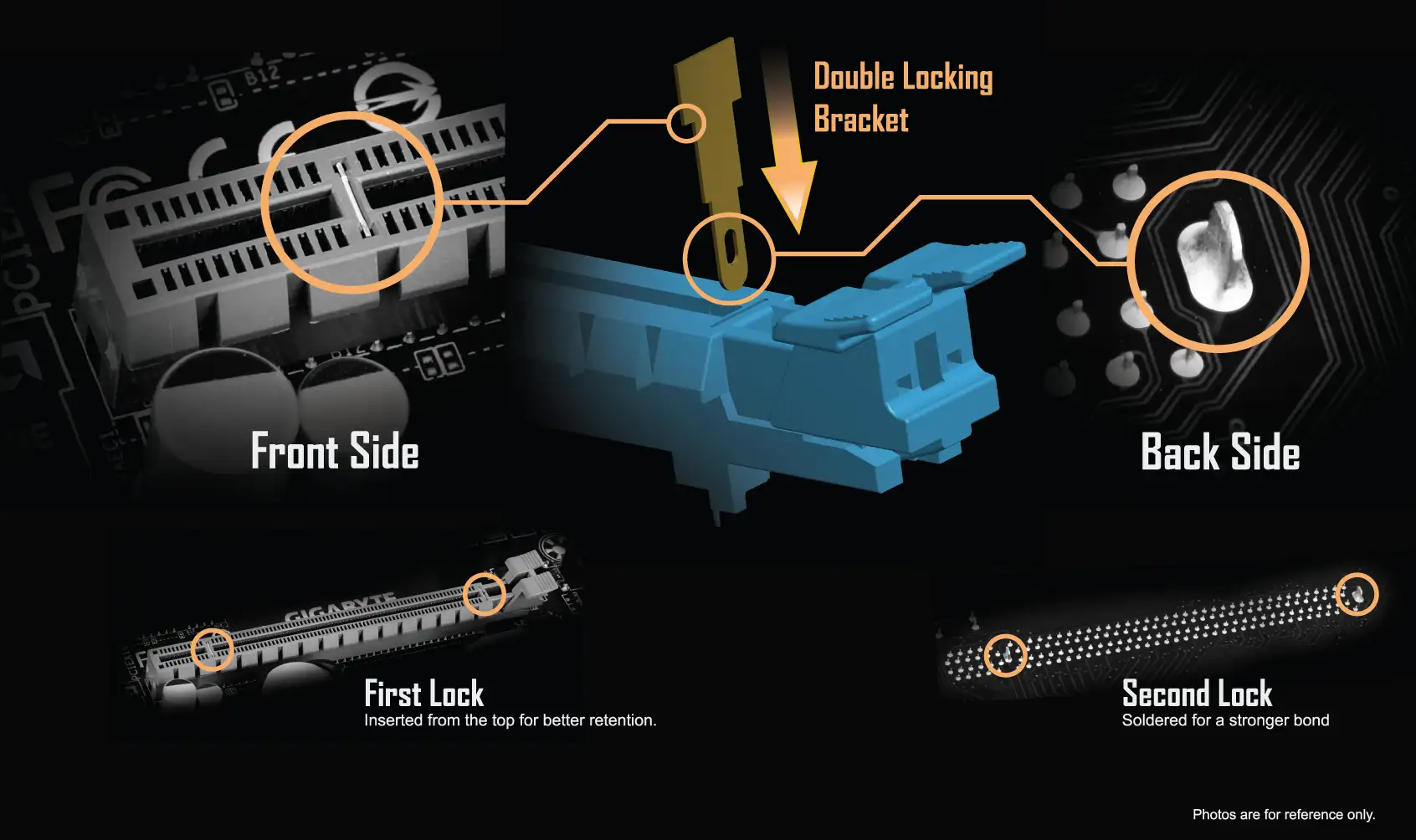

GIGABYTE Patented Double Locking Bracket

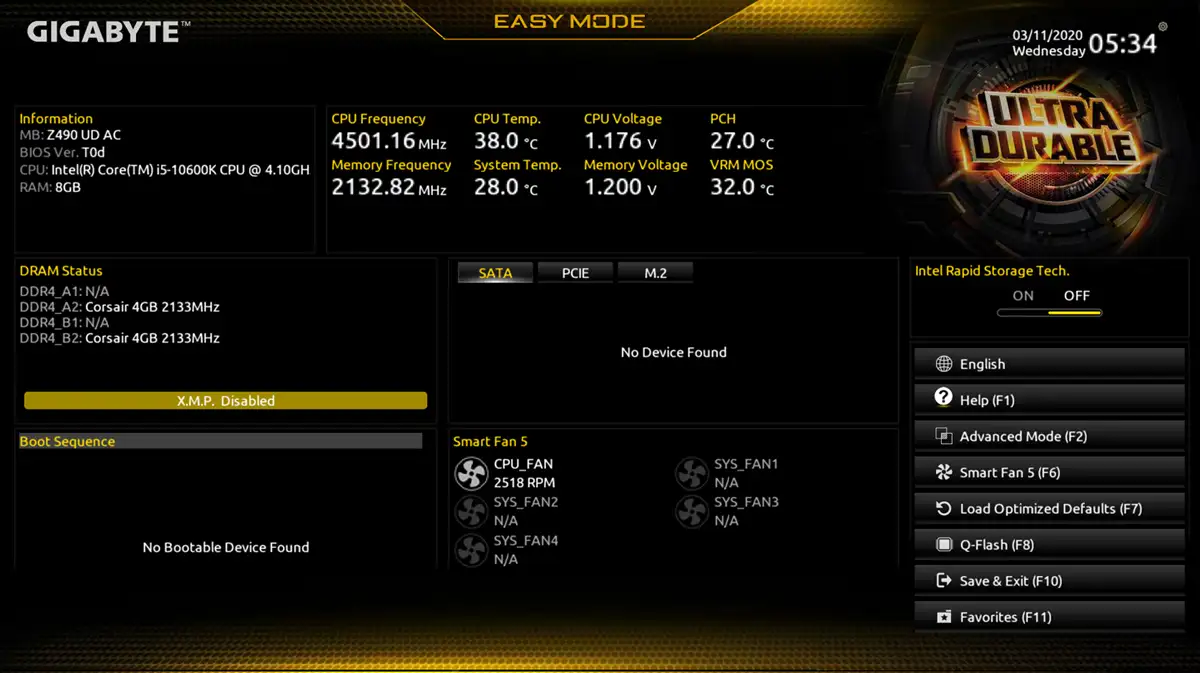

Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

What is the price of Gigabyte H510M S2H V3 Motherboard In Bangladesh?

The price of Gigabyte H510M S2H V3 Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Gigabyte H510M S2H V3 Motherboard from our website or visit our showrooms nearby.
