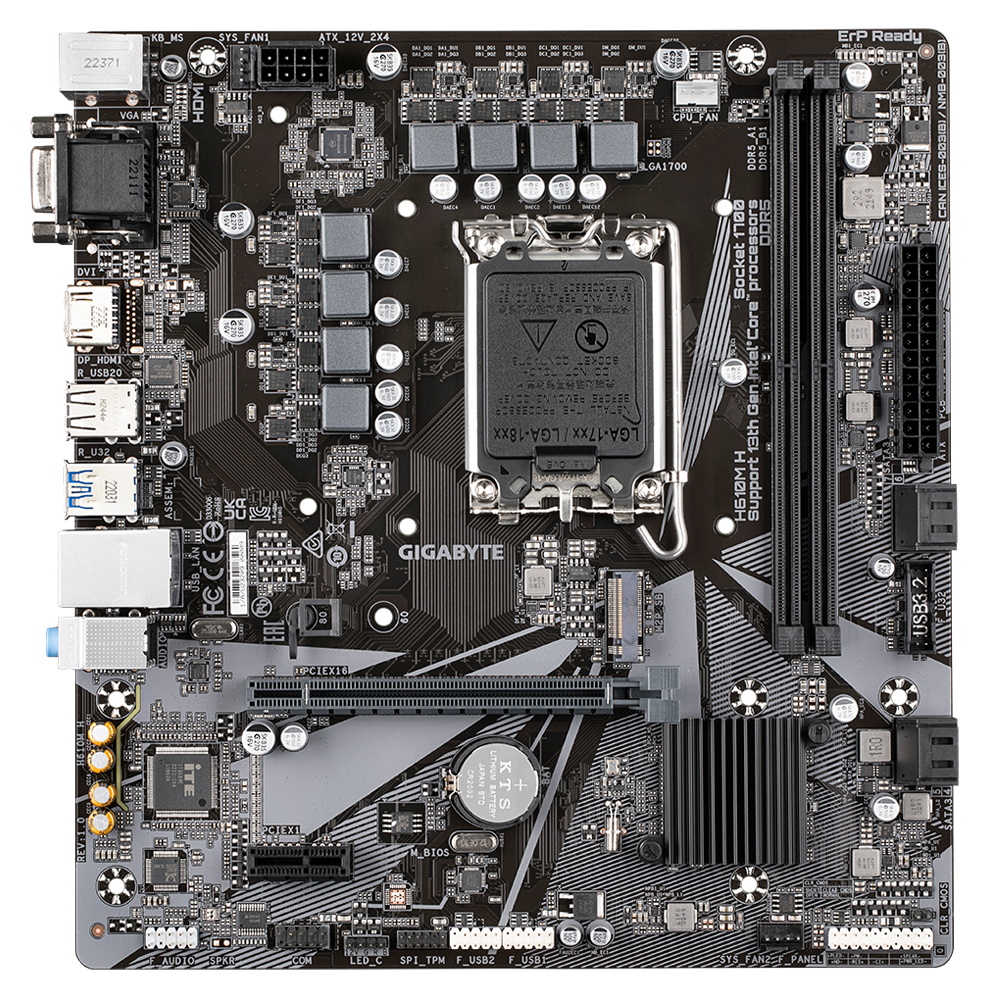

Gigabyte H610M H DDR5 Intel Motherboard

Item: Gigabyte H610M H DDR5 Intel Motherboard
Rating: 5
Author: Verified Buyer

10 reviews

Product Id: 02.01.018.503

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - Intel H610
Sockets Supported - LGA1700
Supported CPU - 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors.
Generation - 12th/13th/14th
Memory Slot - 2
Memory Max. - 64GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte H610M H

Chipset

Intel H610

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th/14th

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

64GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10 / 11

Body Color

Black

Warranty Details

3 year

General

Brand

Gigabyte

Model

Gigabyte H610M H

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel H610

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors.

Generation

12th/13th/14th

Memory Support

Memory Type

DDR5

Memory MHz

5600/ 5200/ 4800/ 4400MHz ECC/non-ECC Un-buffered Memory.

Memory Channel

Dual

Memory Slot

Memory Max.

64GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 (M key) type 2280/2260, support PCIe 3.0 x4/x2 SSD

M.2/SSD Slot Gen

Up to Gen 3

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

Multi-GPU Support

PCI Express Slot

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Audio & Video

Audio Chipset

Realtek Audio CODEC

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek GbE LAN

LAN Speed (Mbps)

10/100/1000Mbps

WiFi

WiFi Technology

Not Applicable

Bluetooth

Ports

USB Port

2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0/1.1 Type-A

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

Yes

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

FireWire

CrossFire Support

Sli Support

RGB Support

RGB

RGB Connector

1 x RGB LED strip header

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 128 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 10 / 11

Compatible Products

Compatible with LGA1700 Socket 12th, 13th & 14th Gen Intel Processor.

Warranty

Warranty Details

3 year

Additional Info

Others

Internal I/O Connectors: (1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x serial port header 1 x Clear CMOS jumper), Back Panel Connectors: (1 x PS/2 keyboard port 1 x PS/2 mouse port 3 x audio jacks)

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte H610M H Motherboard In Bangladesh

Supports Intel® Core™ 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
6+1+1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

What is the price of Gigabyte H610M H Motherboard In Bangladesh?

The price of Gigabyte H610M H Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Gigabyte H610M H Motherboard from our website or visit our showrooms nearby.
