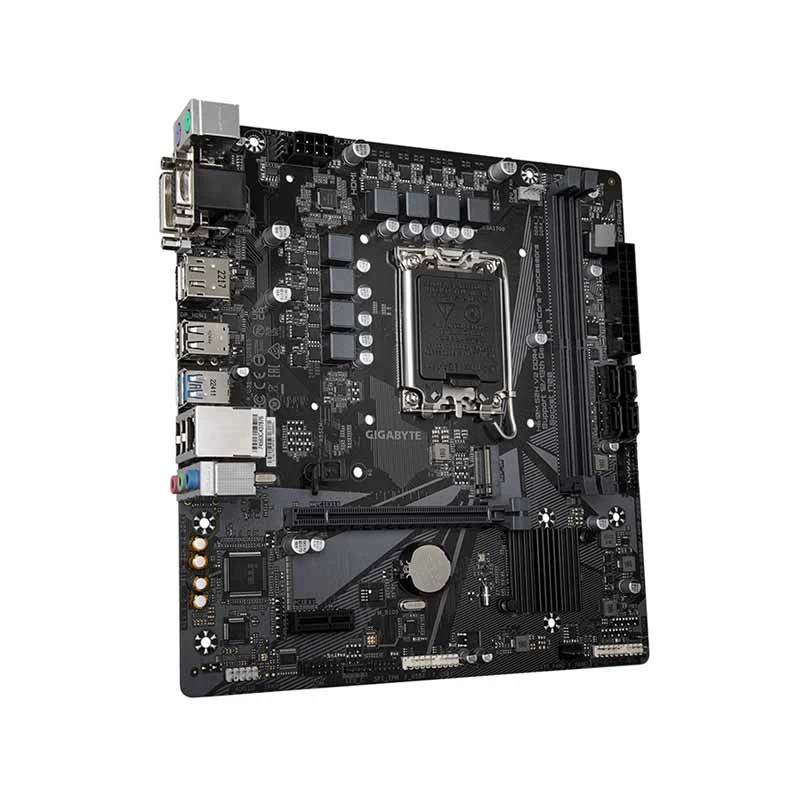

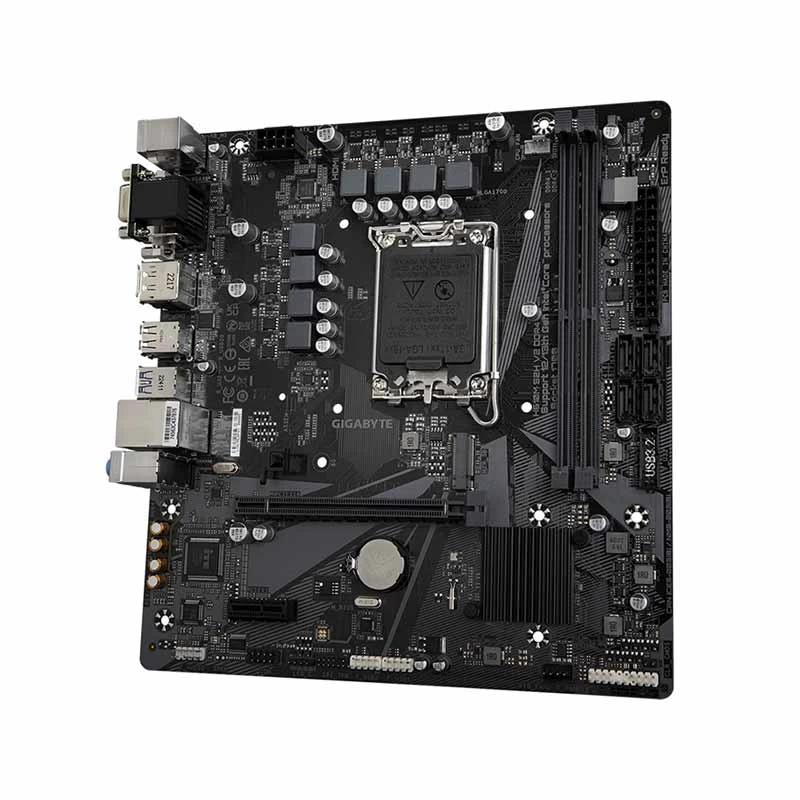

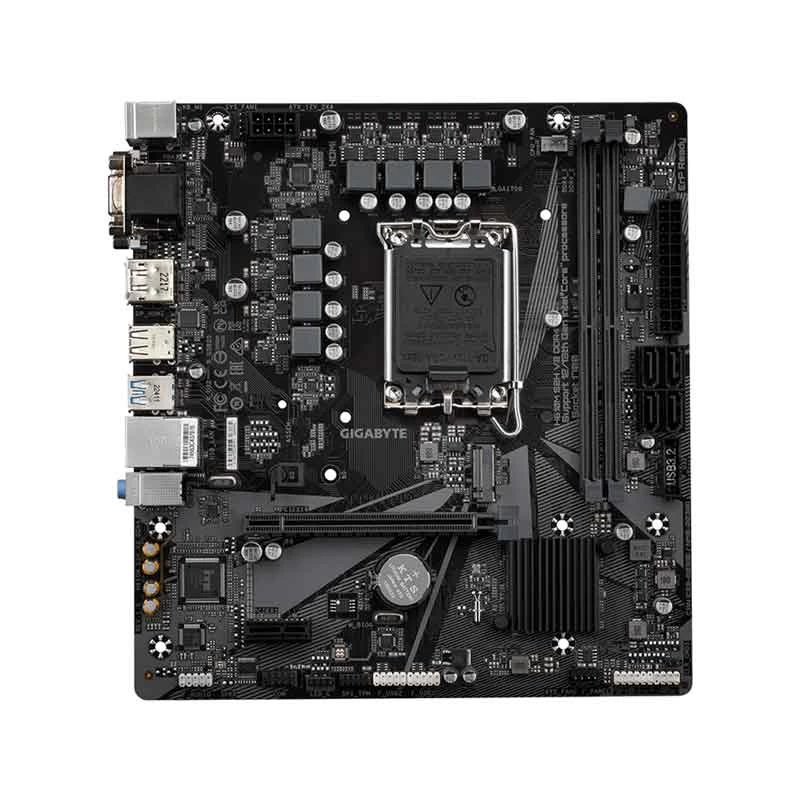

Gigabyte H610M S2H V2 DDR4 Motherboard

Product Id: 02.01.018.495

Brand Gigabyte

Regular Price Tk 12,150 Monthly EMI Tk 1,013
Special Price Tk 11,300

Quick Overview

  • Chipset - Intel H610
  • Memory Max. - 64GB
  • Memory Slot - 2
  • Sockets Supported - LGA1700
  • Supported CPU - Support for 13th/14th Generation Intel Core Processors and 12th Generation Intel Core, Pentium Gold and Celeron Processors.
  • Generation - 12th/13th/14th
General
Brand
Gigabyte

Model
Gigabyte H610M S2H V2

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel H610

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
Support for 13th/14th Generation Intel Core Processors and 12th Generation Intel Core, Pentium Gold and Celeron Processors.

Generation
12th/13th/14th


Memory Support
Memory Type
DDR4

Memory MHz
3200/3000/2933/2666/2400/2133 MHz ECC Un-buffered

Memory Channel
Dual

Memory Slot
2

Memory Slot (Additional Info)
2 x DDR4

Memory Max.
64GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics

PCI Express Slot
1 x PCI Express x16 slot, 1 x PCI Express x1 slot


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek GbE LAN chip (1 Gbps/100 Mbps)

LAN Speed (Mbps)
0/100/1000Mbps

WiFi
No

Bluetooth
No


Ports
USB Port
2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports

VGA Port
1

DVI Port
1

HDMI Port
1

DisplayPort (DP)
1

SATA Port
4

Thunderbolt
No


Technical Info
CrossFire Support
No

Sli Support
No

RGB Connector
1 x RGB LED strip header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 128 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 11 / 10 64-bit

Compatible Products
Support for 14th Generation Intel Core Processors, 13th Generation Intel Core Processors and 12th Generation Intel Core, Pentium Gold and Celeron Processors.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Supports 14th/13th/12th Gen Intel Core Series Processors, Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs, 6+1+1 Hybrid Digital VRM Design, GbE LAN with Bandwidth Management. NVMe PCIe 3.0 x4 M.2.

Others

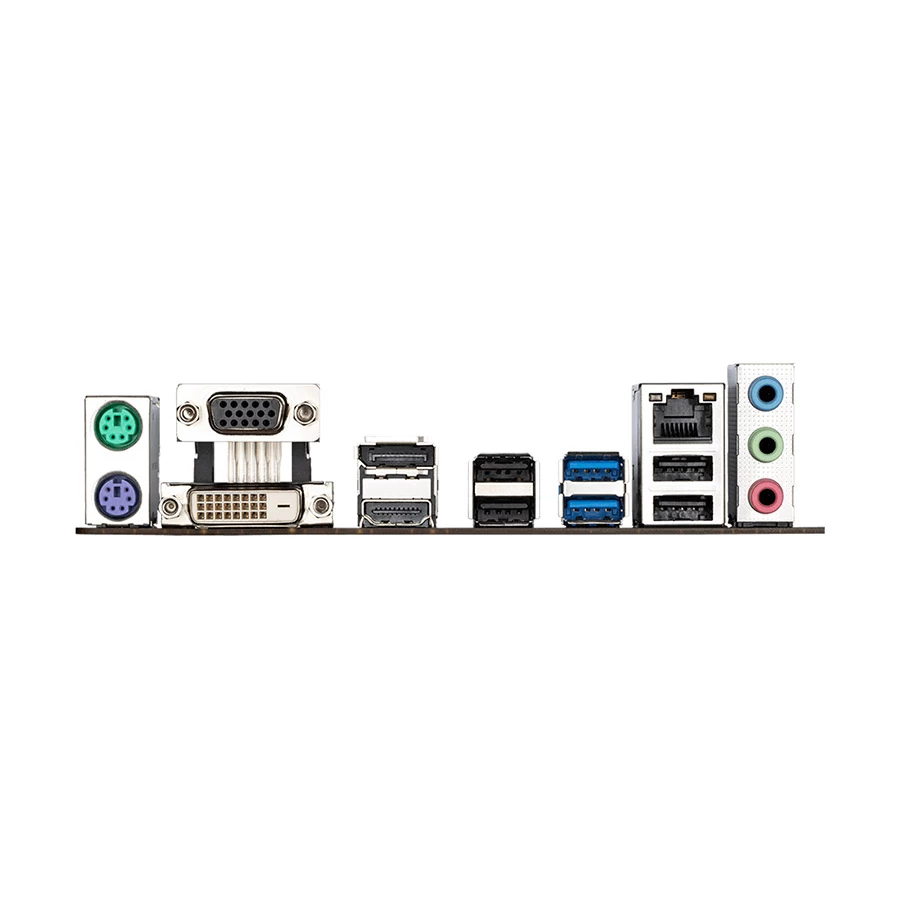

Internal I/O Connectors - 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x RGB LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x serial port header, 1 x Clear CMOS jumper. Back Panel Connectors - 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x DisplayPort, 1 x HDMI port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks. I/O Controller - iTE I/O Controller Chip, H/W Monitoring - Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control. Form Factor - Micro ATX Form Factor; 23.0cm x 21.5cm.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
Does this motherboard support the ARGB fans of https://www.ryanscomputers.com/montech-air-100-argb-mid-tower-black-micro-atx-gaming-desktop-casing ?
By Areeb Arsh
A:
Dear Sir, This motherboard has RGB Connector - 1 x RGB LED strip header, Thanks for your query!
By Ryans Computers Ltd. , 28 Oct 2023 04:59:25 PM
Q:
Is this processor support M.2 NVMe PCIe 4.0 ?
By Muhammad Shafiul
Q:
Sir, does this mobo. support gen 4 ssd or can i get full potential of gen 4 ssd with this mobo?
By Safwan Fahim
A:
Dear Sir, Yes! It will support PCIe gen 4 SSD, but you will not get full potential of Gen 4 because this motherboard's SSD PCIe Gen 3.0, Thanks for your query!
By Ryans Computers Ltd. , 10 Mar 2024 12:37:03 PM
Q:
Does this motherboard support pCIe 4.0
By Muhammad Shafiul
A:
Dear Sir, Yes! It will support motherboard PCIe 4.0, Thanks for your query!
By Ryans Computers Ltd. , 09 Dec 2023 12:29:52 PM
