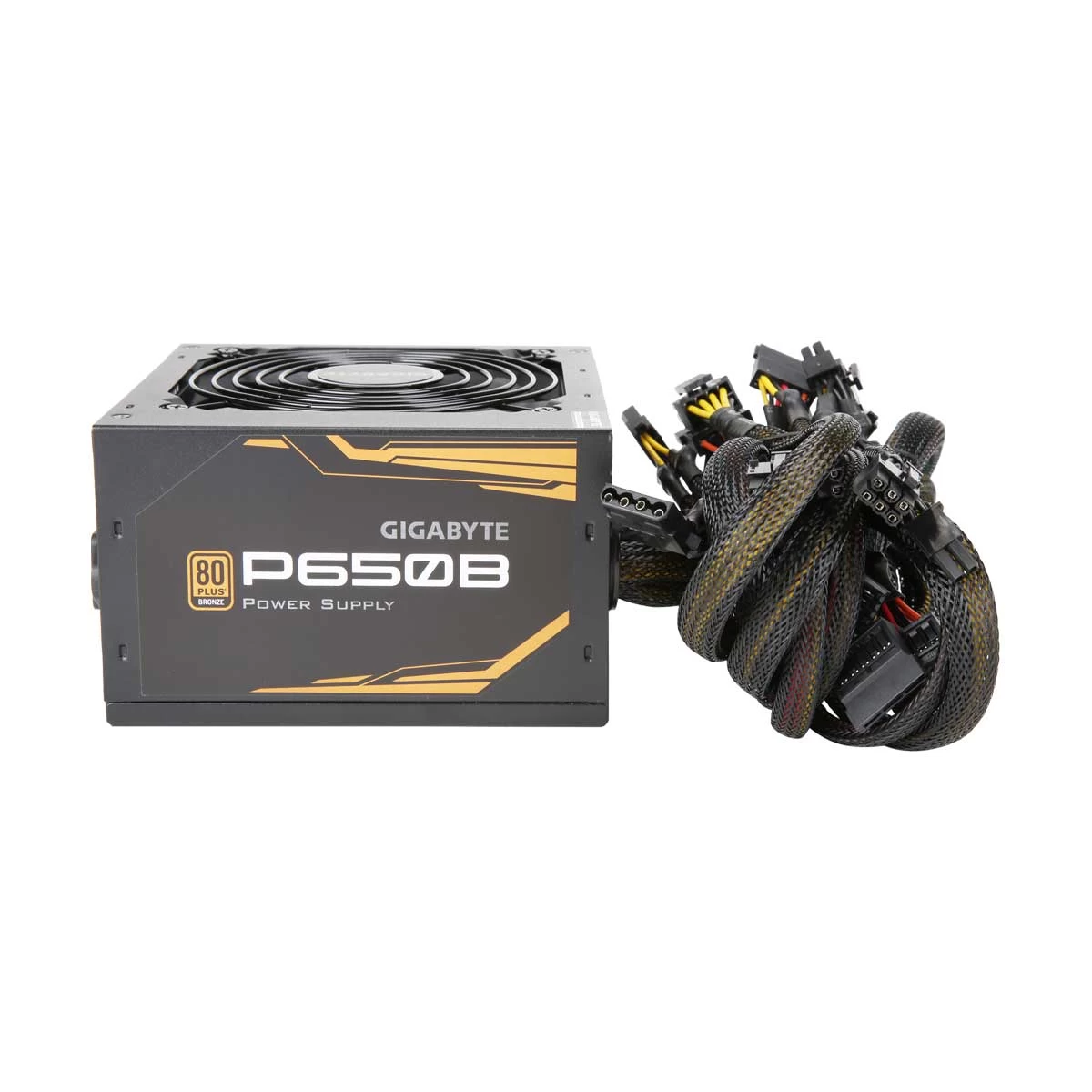

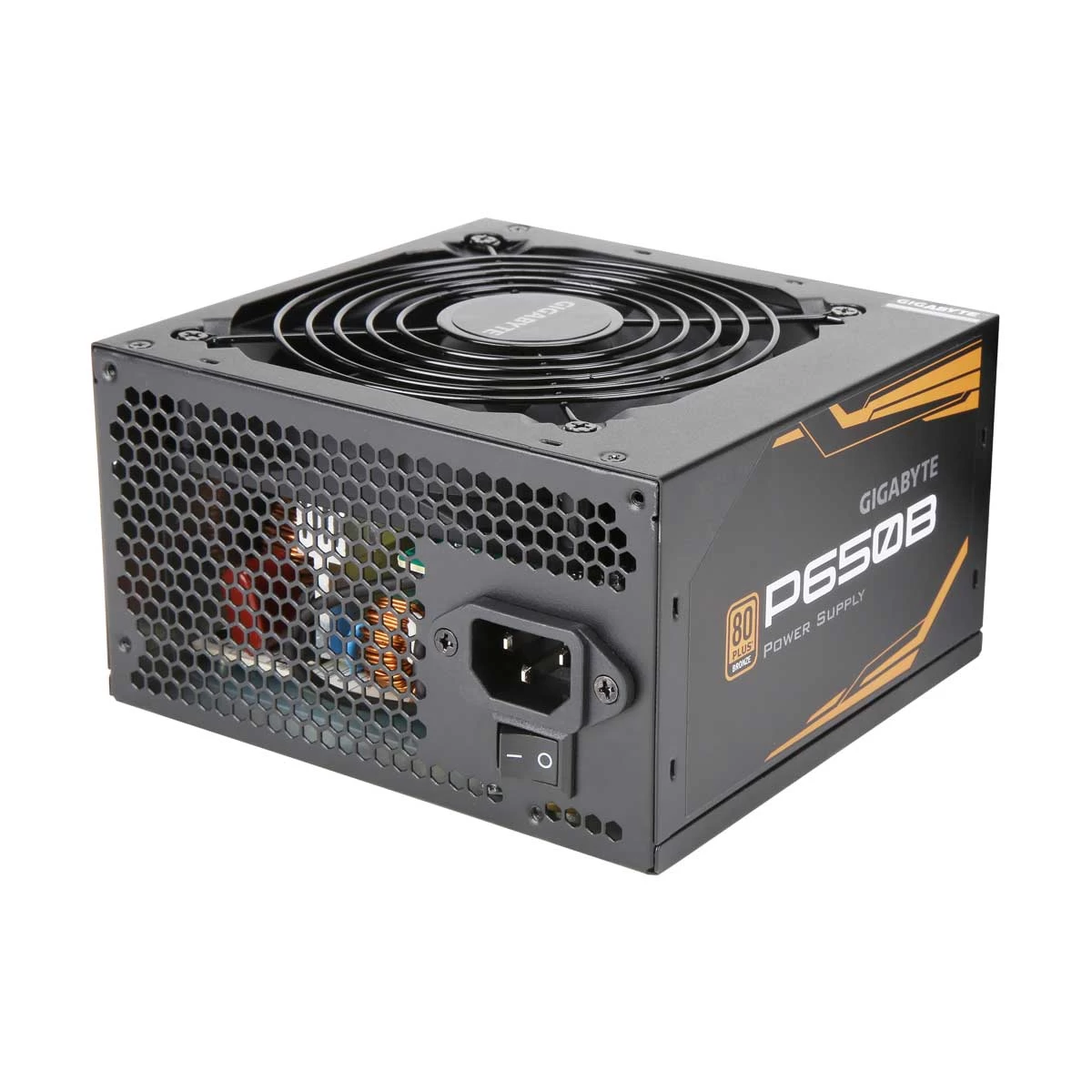

Gigabyte P650B 650W 80 Plus Bronze Certified Power Supply

Product Id: 55.01.018.17

Brand Gigabyte

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • PSU Category - Non Modular
  • Type - ATX 12V v2.31
  • Maximum Power - 650 Watt
  • Efficiency - 89% Efficiency
  • Efficiency Rating - 80 Plus Bronze
  • Protection - OPP, UVP, OVP, SCP, OCP
General
Brand
Gigabyte

Model
Gigabyte P650B 650W

PSU Category
Non Modular

Type
ATX 12V v2.31


Cooling & Lighting

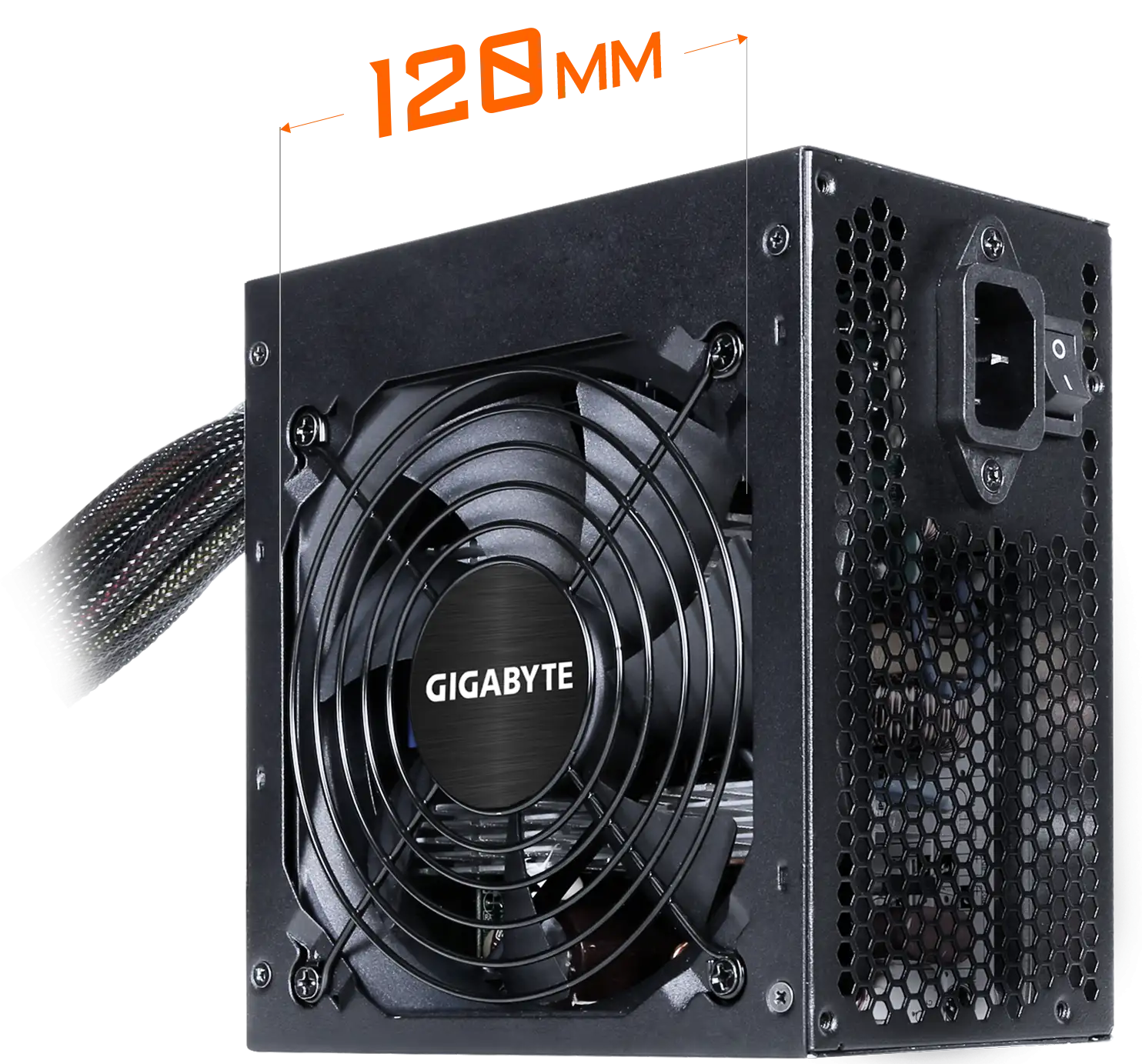

Fan Size
120mm

Lighting Effect
No

Lighting Type
Not Applicable

Fan Bearing
Hydraulic Bearing


Performance
Efficiency
89% Efficiency

Efficiency Rating
80 Plus Bronze

PFC (Power Factor Correction)
Active PFC (>0.9 typical)


Protection
Protection
OPP, UVP, OVP, SCP, OCP

Over Voltage Protection (OVP)
Yes

Over Power Protection (OPP)
Yes

Over Current Protection (OCP)
Yes

Over Temperature Protection (OTP)
No

Short Circuit Protection (SCP)
Yes

Under Voltage Protection (UVP)
Yes


Connectors

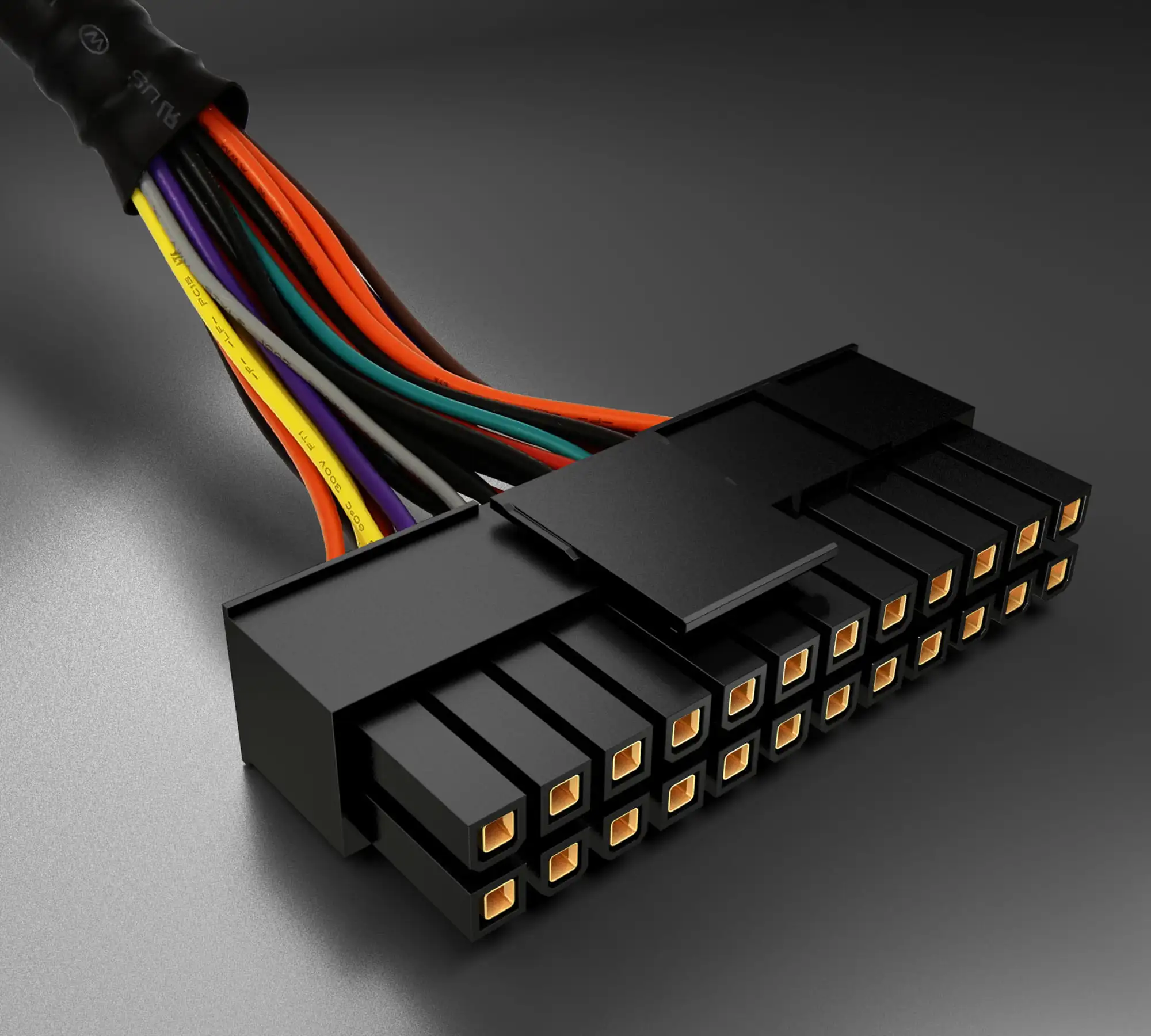

ATX Main Connectors
1

EPS Connectors
1

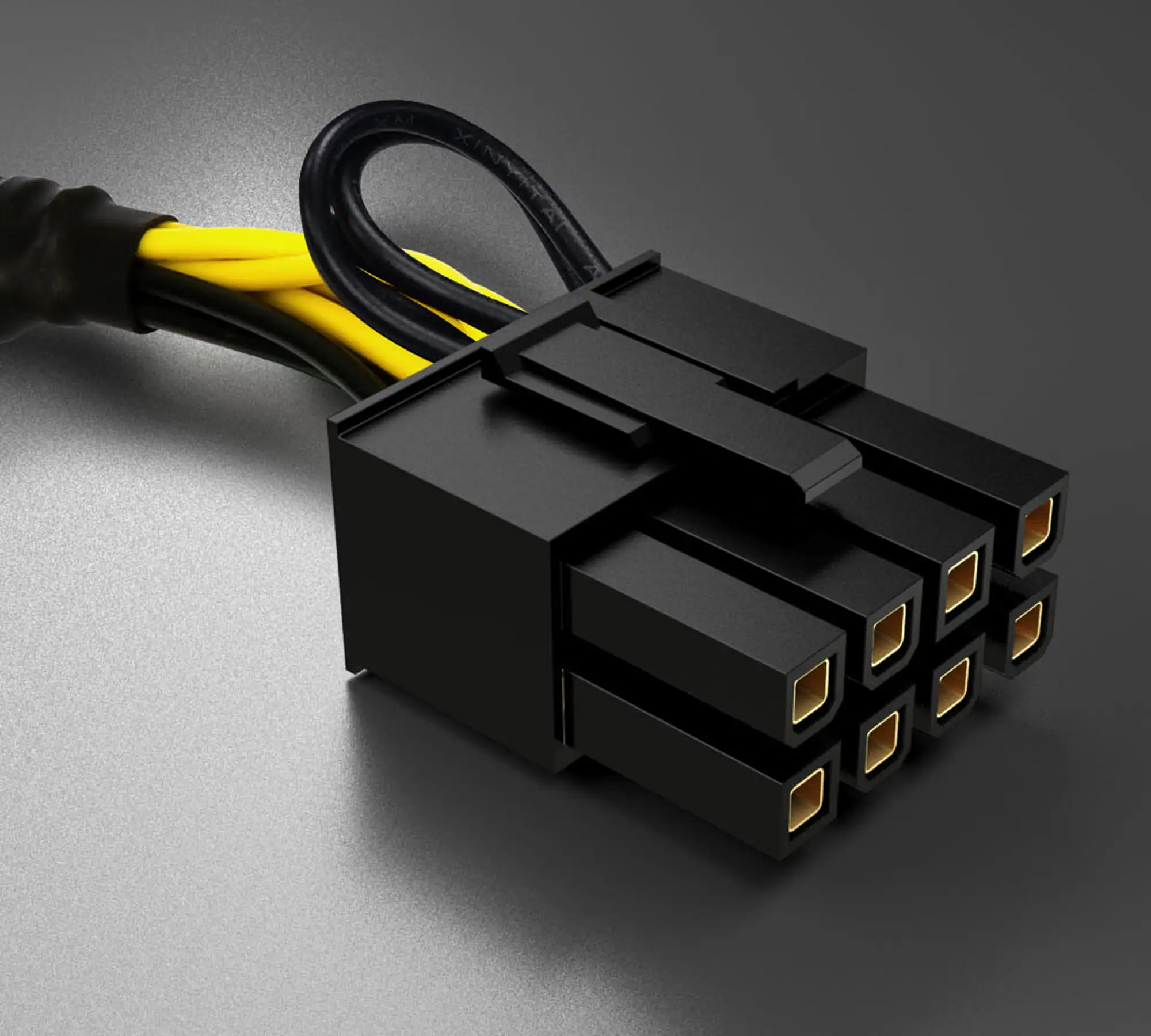

PCIe Connectors
4

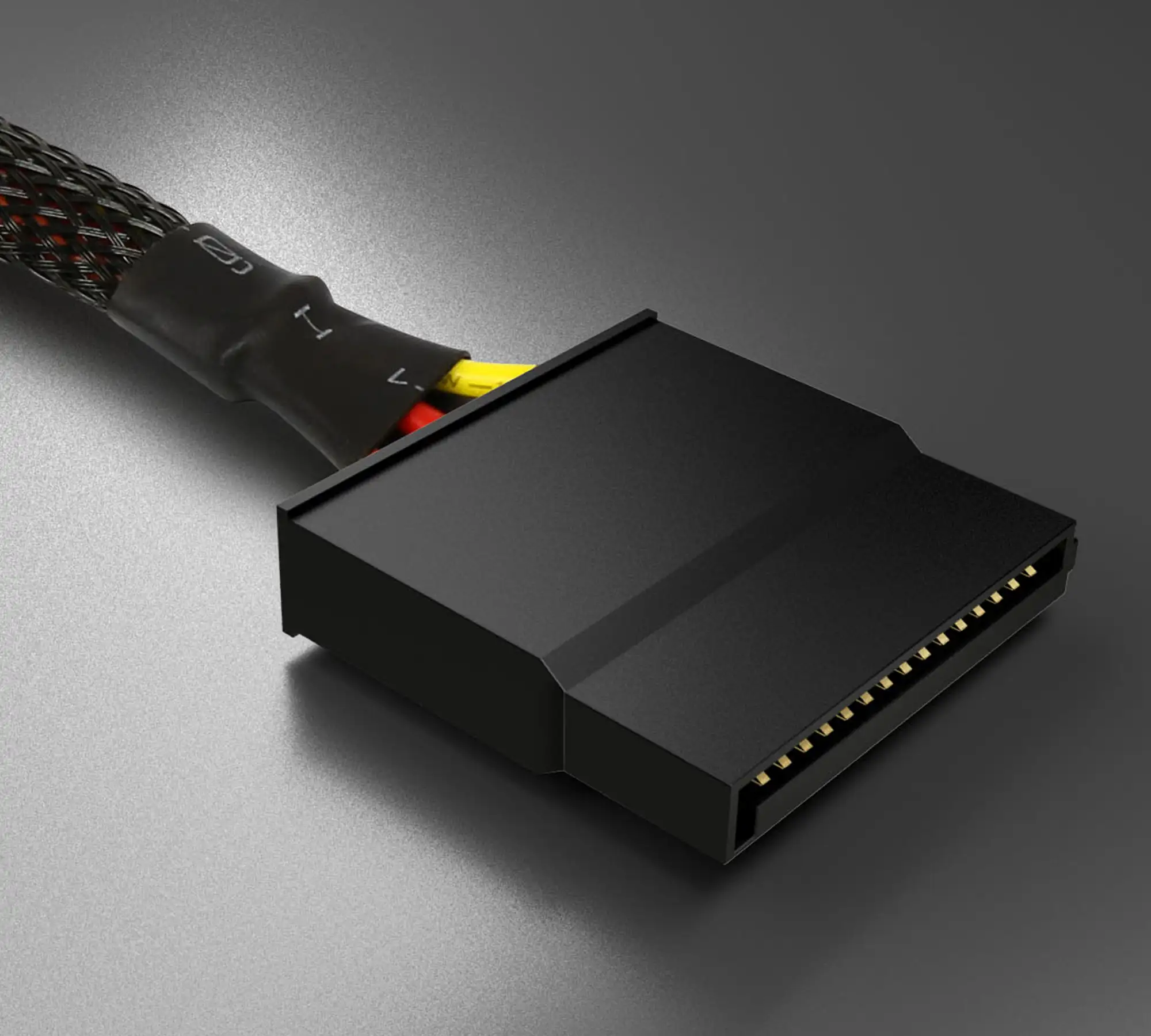

SATA Power Connectors
6

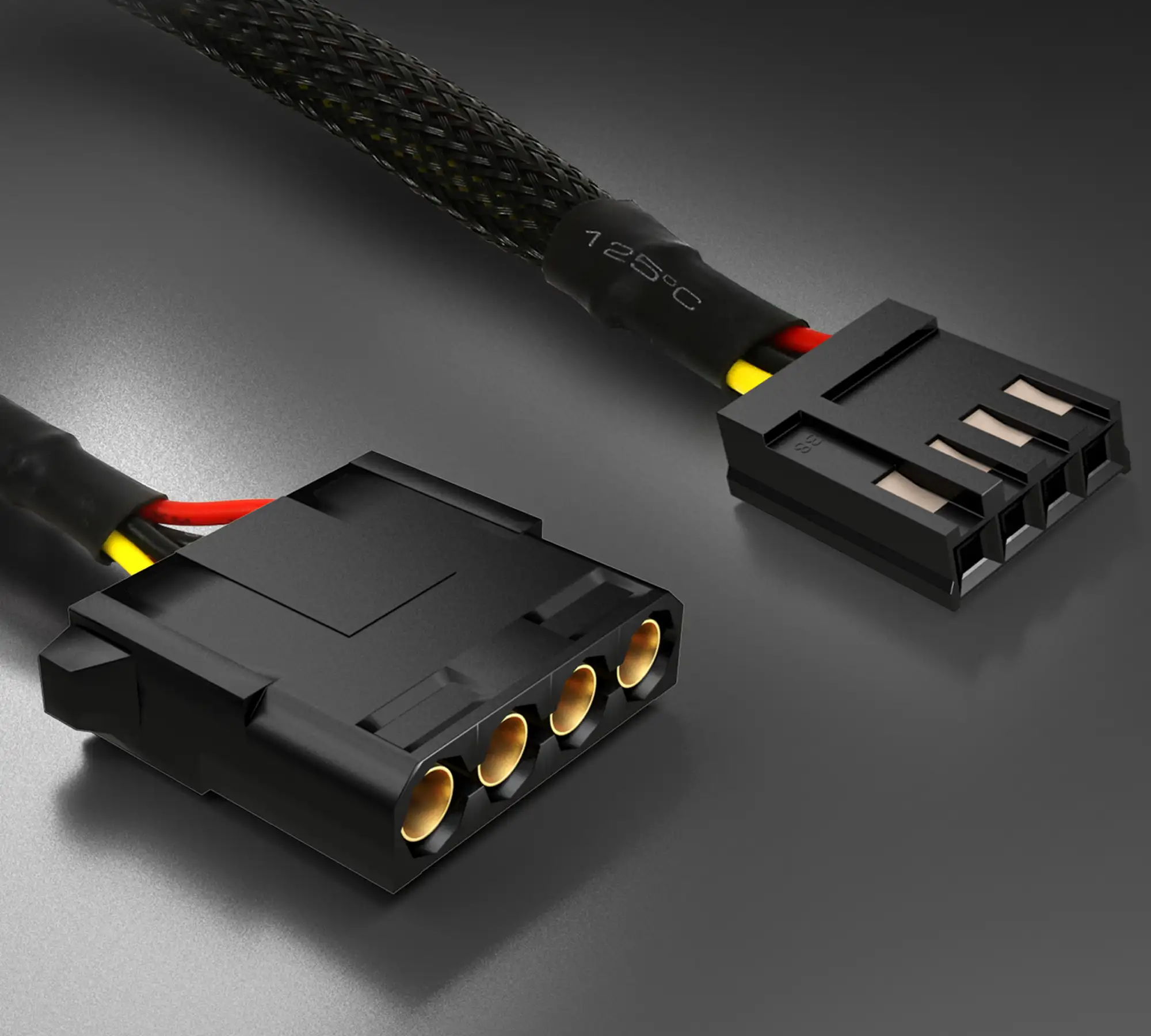

4-Pin Peripheral Connectors
3

Floppy Connectors
1


Power
Min. Power (Approx.)
575W

Maximum Power
650 Watt

Input AC
9A-4A

Input Voltage
100 - 240V

Input Frequency Range
50Hz - 60Hz

Input Current
9A-4A


Physical Description

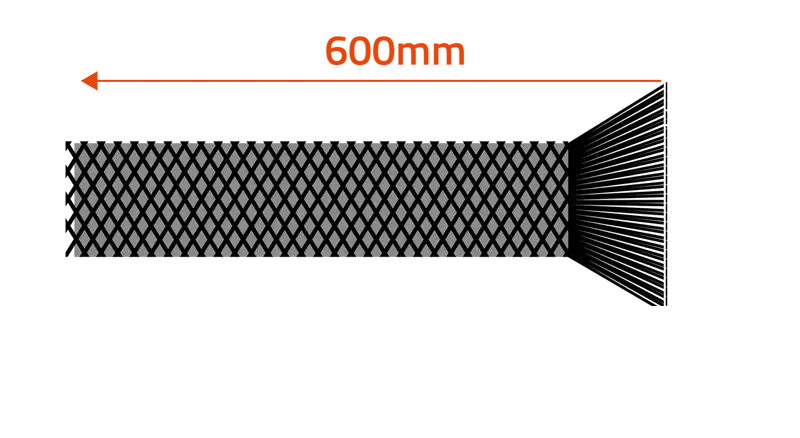

Cable Type
Reliable Mesh Braided Cable

MTBF
100,000 hours

Form Factor
ATX

Dimensions
140 x 86 x 150mm

Color
Black


Warranty
Warranty Details
3 year


Additional Info
Regulatory / Safety Approval
CE, CCC, BSMI, KCC, EAC, UL, TUV, RCM, FCC, PSE

Others
Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation.

Specialty
80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. P650B can be up to 89% efficiency. P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case. Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation. 120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
