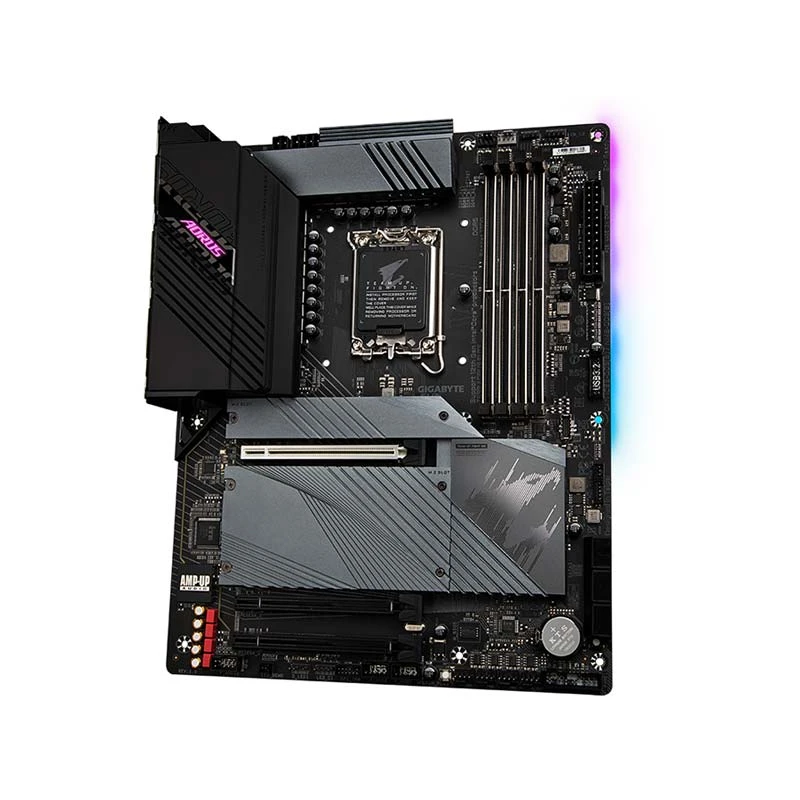

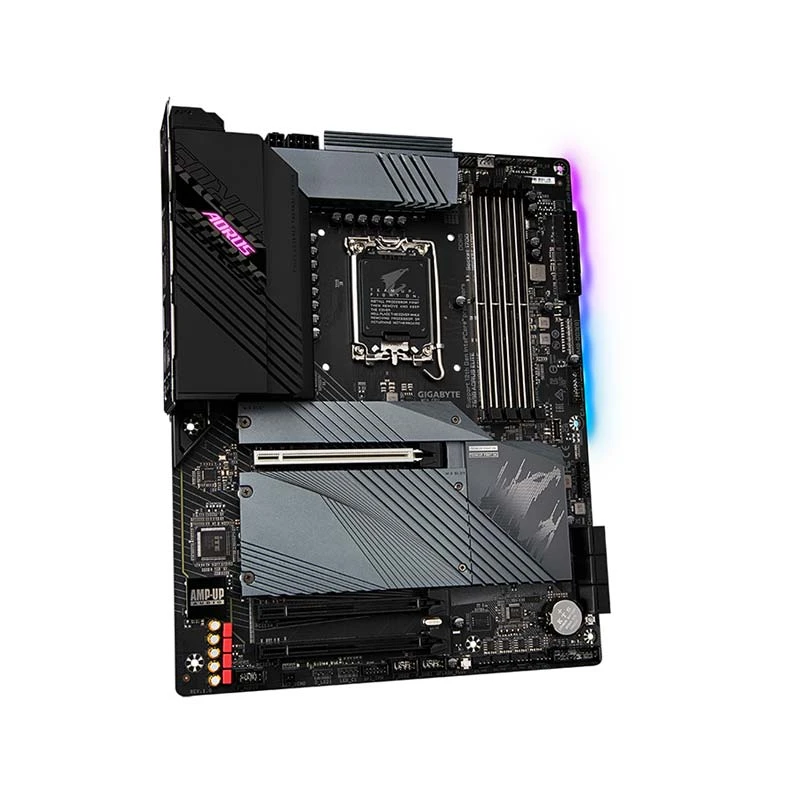

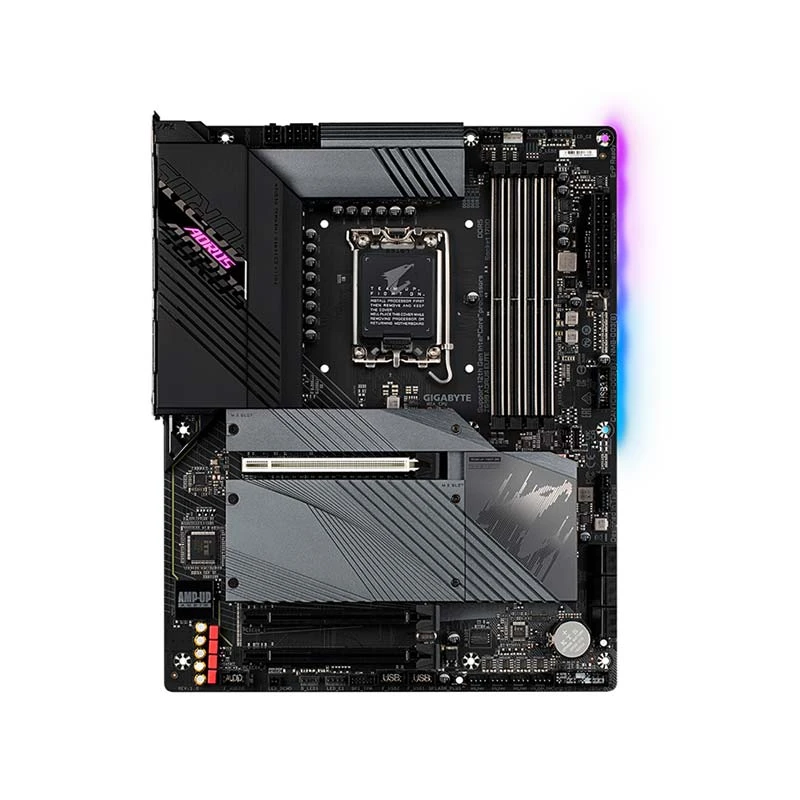

Gigabyte Z690 AORUS ELITE DDR5 12th/13th Gen Intel LGA1700 Socket Gaming Motherboard

Product Id: 02.01.018.391

Brand Gigabyte

Regular Price Tk 31,790 Monthly EMI Tk 2,649
Special Price Tk 29,500

Quick Overview

  • Chipset - Intel Z690
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - Intel Core, Pentium, Gold and Celeron Processors
  • Generation - 12th/13th
General
Brand
Gigabyte

Model
Gigabyte Z690 AORUS ELITE

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z690

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
Intel Core, Pentium, Gold and Celeron Processors

Generation
12th/13th


Memory Support
Memory Type
DDR5

Memory MHz
6000(O.C.) /5800(O.C.) /5600(O.C.) /5400(O.C.) /5200(O.C.) /4800 /4000MHz ECC, non-ECC & Un-buffered Memory.

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Optane Memory Support
Yes


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
4

M.2/SSD Expansion Slot Details
4 x M.2, (1 x M.2, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD), (1 x M.2, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD), (2 x M.2, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD)


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16 (PCIEX16), 2 x PCI Express x16 (PCIEX4-1, PCIEX4-2)


Audio & Video
Audio Chipset
Realtek ALC1220-VB CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip

LAN Speed (Mbps)
10/100/1000/2500 Mb/s

WiFi
No

WiFi Technology
Not Applicable

Bluetooth
No


Ports
USB Port
1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
6 x SATA

Thunderbolt
2

TPM Port
Yes

COM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Sync
RGB Fusion

RGB Connector
2 x RGB LED strip headers

Approx. Power Consumption
90W

Form Factor
ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 11 and 10

Compatible Products
LGA1700 Socket 12th & 13th Gen Intel Processor


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
GIGABYTE Z690 Series Motherboards Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming. With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.

Others

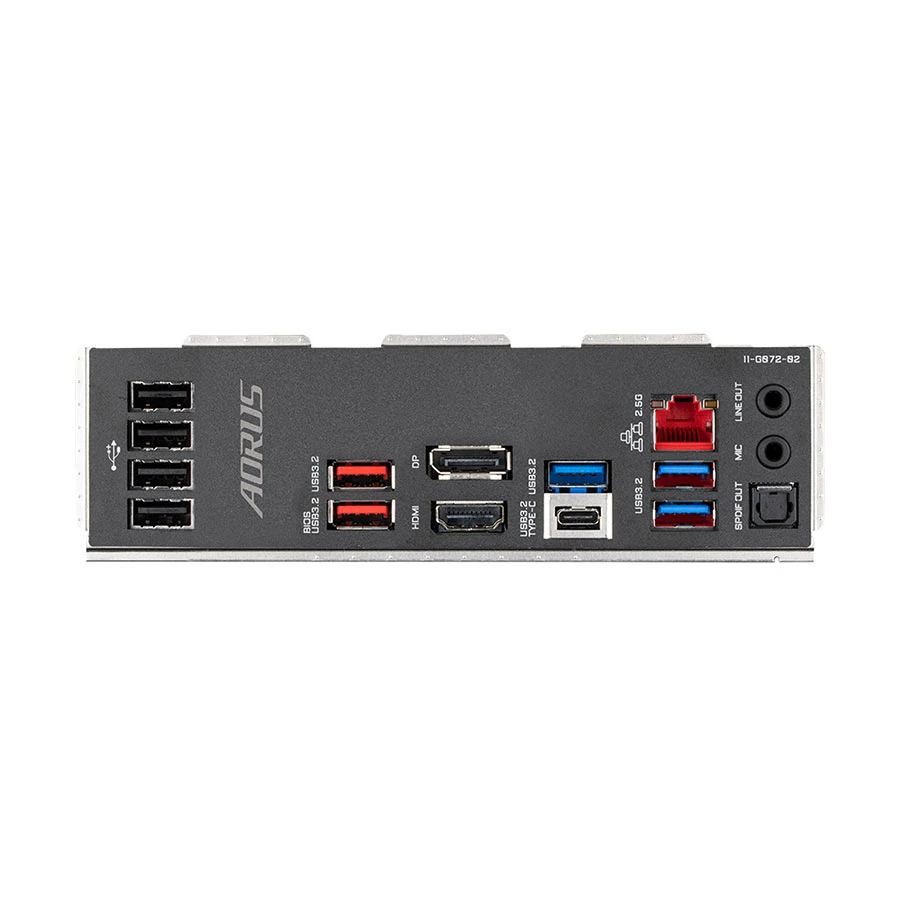

2 x Thunderbolt add-in card connectors, Back Panel Connectors: 1 x optical S/PDIF Out connector, 2 x audio jacks, 1 x RJ-45 port

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
