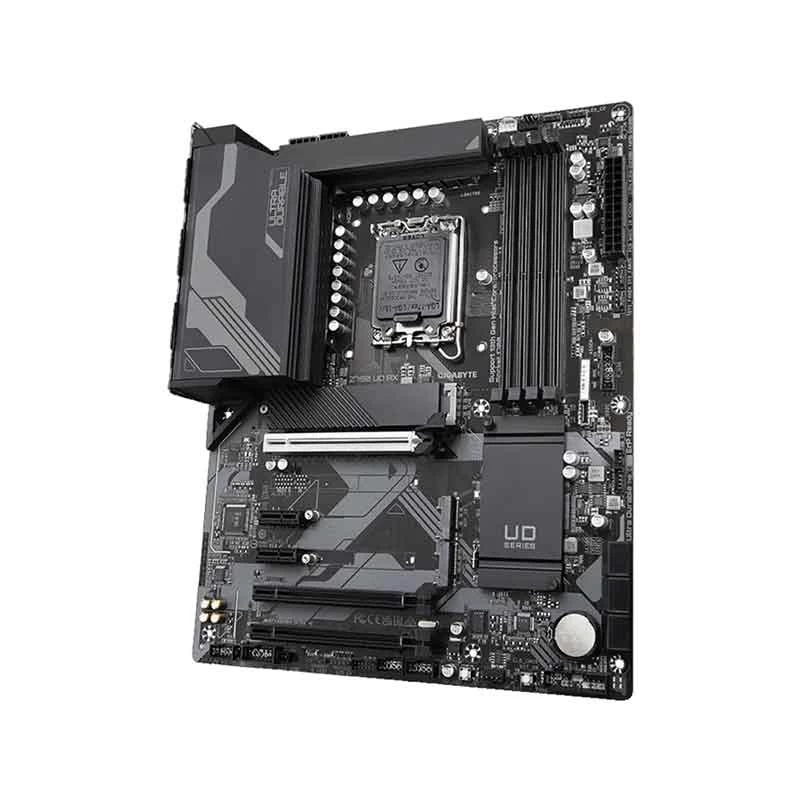

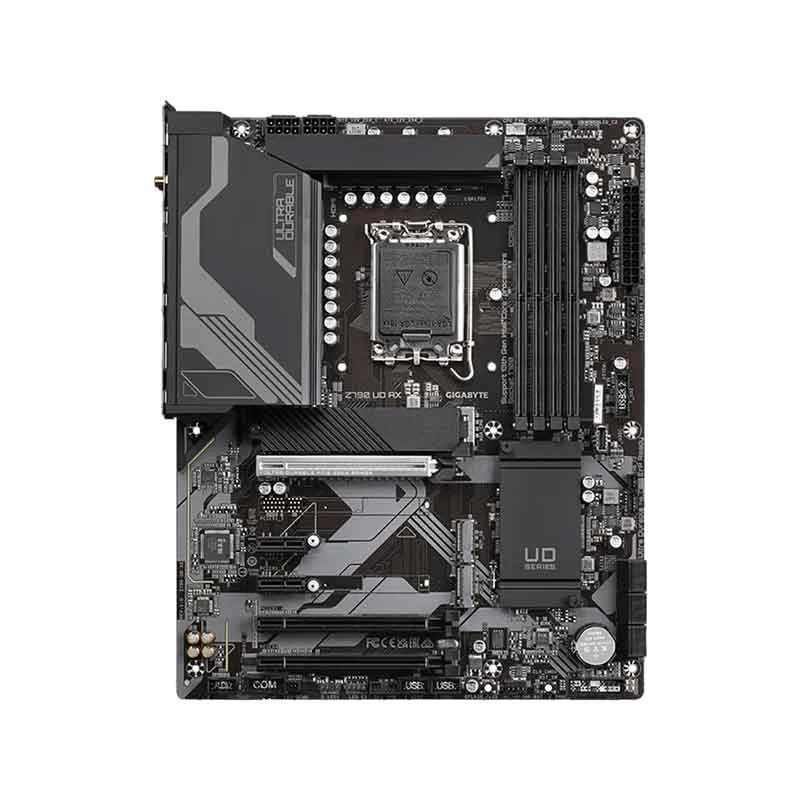

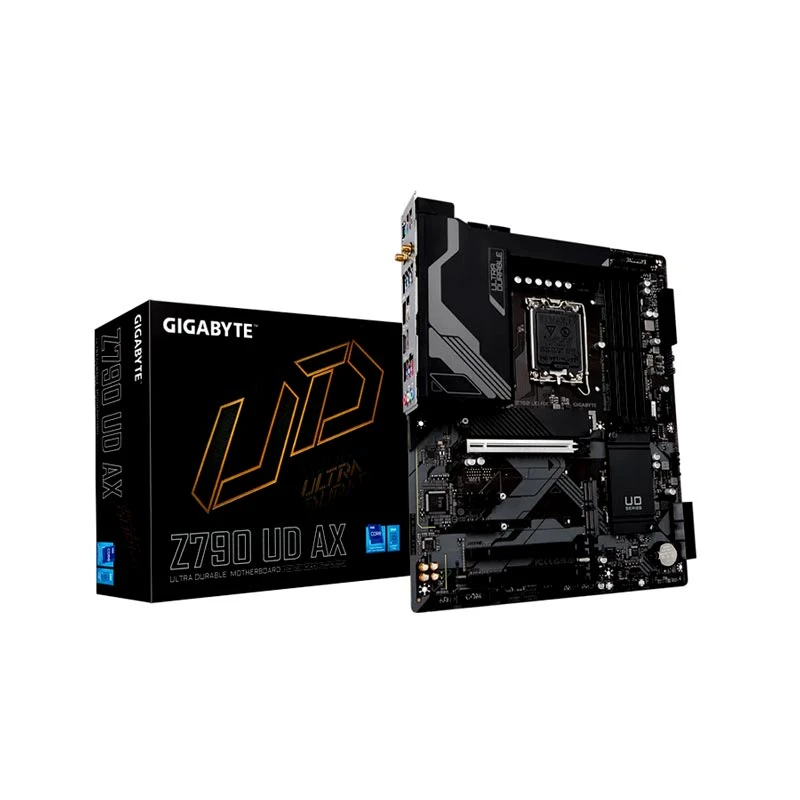

Gigabyte Z790 UD AX (Wi-Fi 6E) DDR5 Intel Motherboard

Product Id: 02.01.018.464

Brand Gigabyte

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

Quick Overview

  • Chipset - Intel Z790
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
General
Brand
Gigabyte

Model
Gigabyte Z790 UD AX (Wi-Fi 6)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz non-ECC Un-buffered DIMM

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR DIMM

Memory Max.
128GB

Memory Max. (Additional Info)
Up to 128 GB (32 GB single DIMM capacity)

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details
3 x M.2, ((1 x M.2, type 22110/2280 PCIe 4.0 x4/x2 SSD support), (2 x M.2, type 2280 PCIe 4.0 x4/x2 SSD support))


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
AMD CrossFire technology

PCI Express Slot
1 x PCI Express x 16 (PCIe 5.0 and running at x16 (PCIEX16) for CPU), 1 x PCI Express x 16 (supporting PCIe 4.0 and running at x4 (PCIEX4)), 1 x PCI Express x 16 (supporting PCIe 3.0 and running at x1 (PCIEX1_4)), 2 x PCI Express x 1 (supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) for Chipset)


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN

LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6E 802.11ax

Bluetooth
Bluetooth 5.3

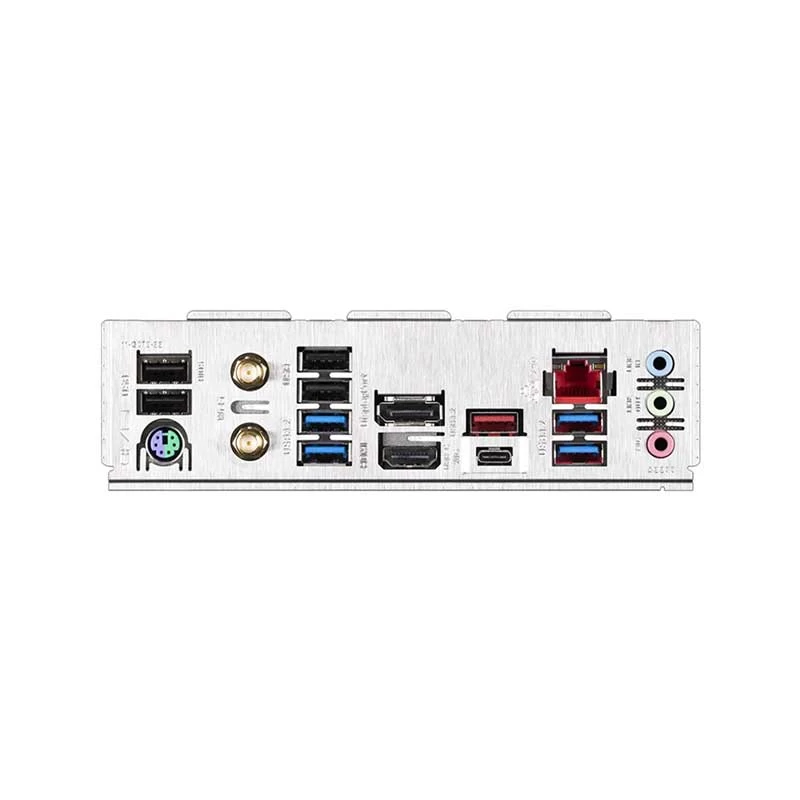

Ports
USB Port
1 x USB Type-C, with USB 3.2 Gen 2x2, 1 x USB 3.2 Gen 2 Type-A port (red), 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
6

Thunderbolt
2

TPM Port
1

COM Port
No


Technical Info
FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Connector
2 x RGB LED strip headers

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10, 11

Compatible Products
13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Extended Connectivity: DP, HDMI, Front USB-C 5Gb/s, Rear USB-C 20Gb/s, Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Others
Unparalleled Performance: Twin 16+1+1 Phases Digital VRM Solution, Dual Channel DDR5: 4 SMD DIMMs with XMP 3.0 Memory Module Support, Next Generation Storage: 3 PCIe 4.0 x4 M.2 Connectors, Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance. EZ-Latch Plus: PCIe 5.0 x16 Slot with Quick Release & Screwless Design, Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax

Country Of Origin
Taiwan

Made in/ Assemble
China
