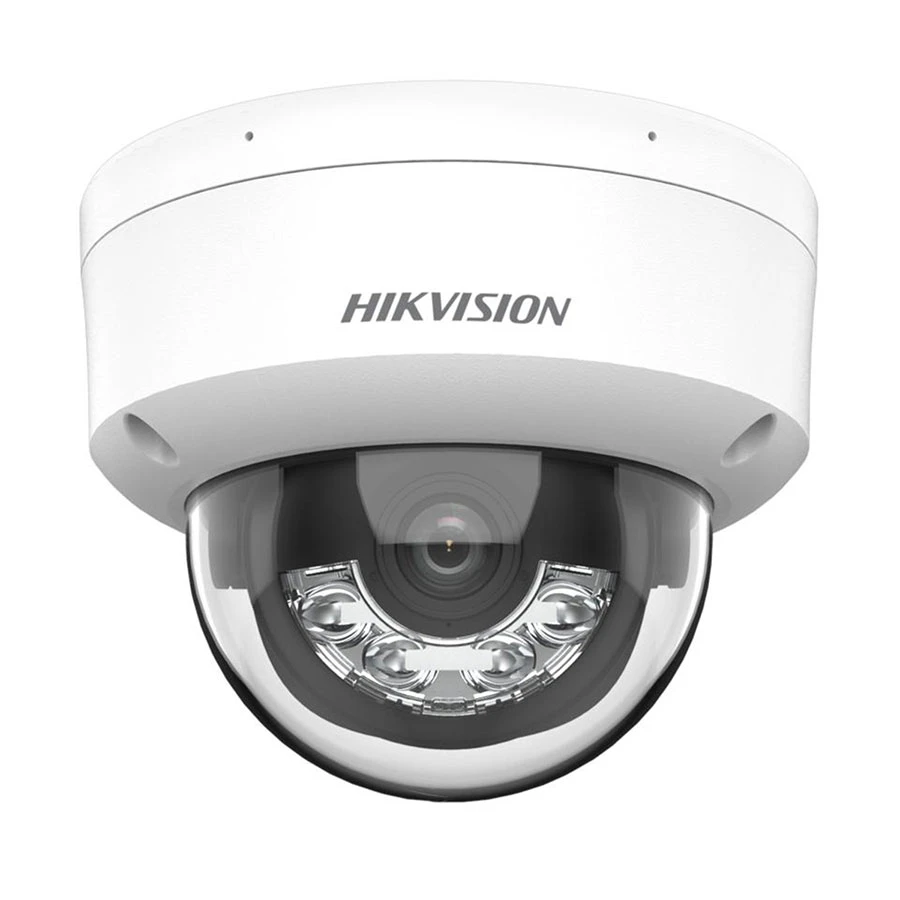

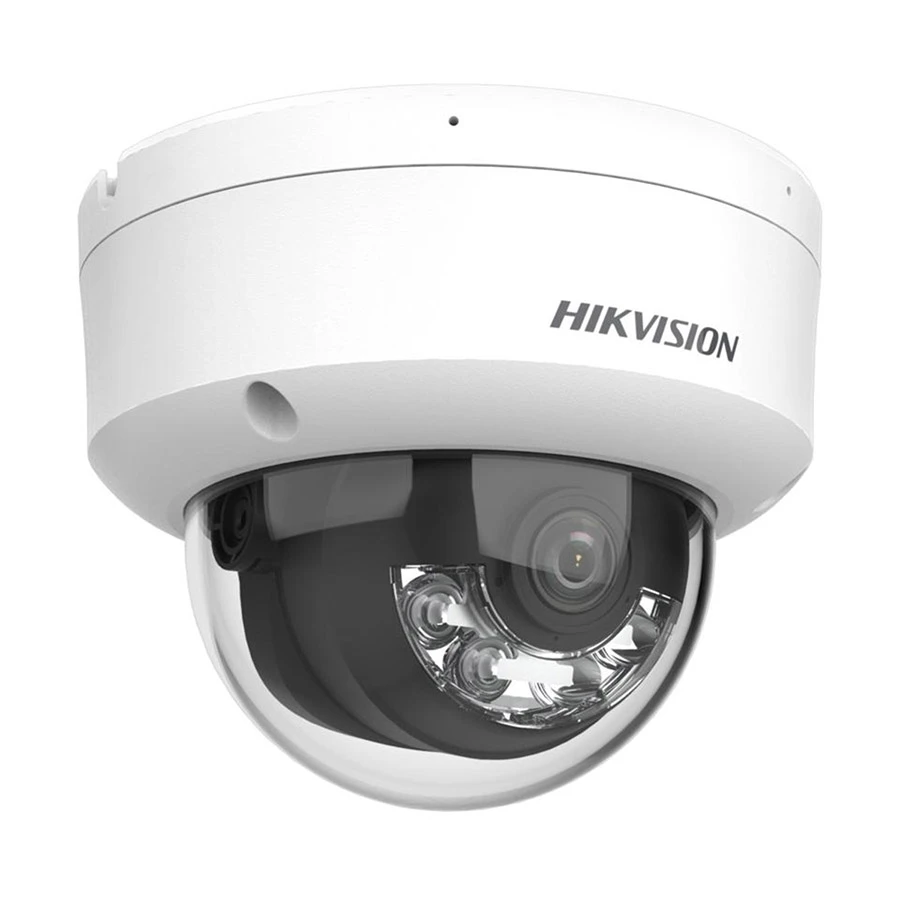

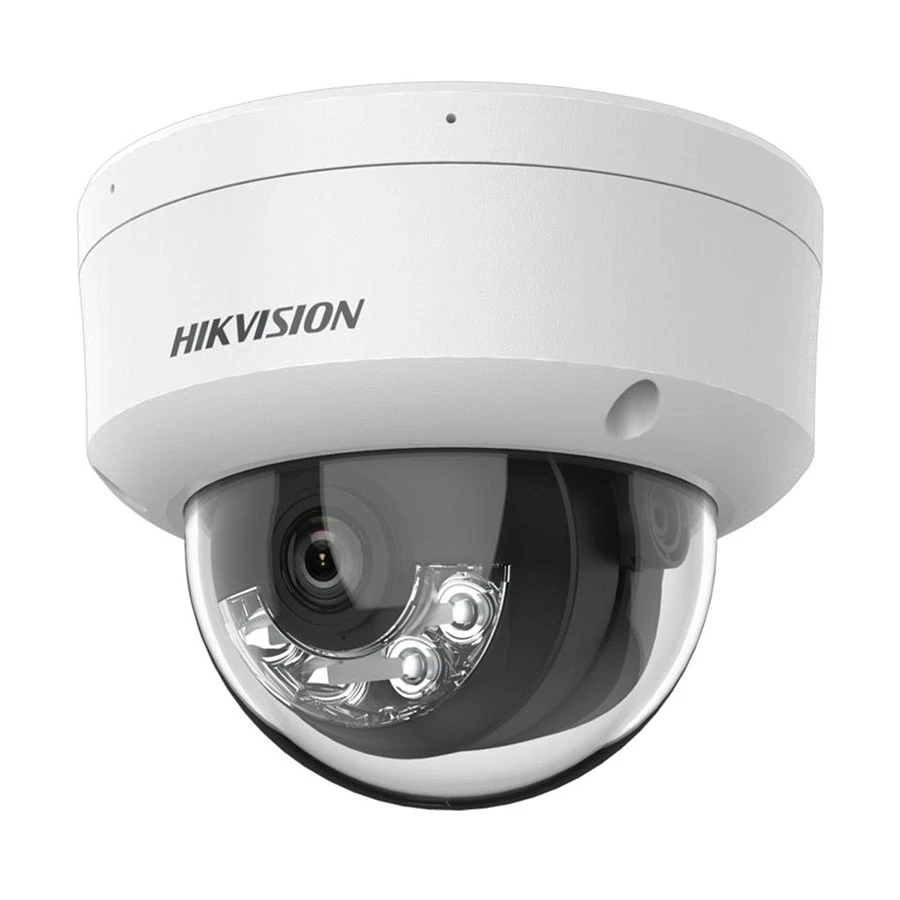

Hikvision DS-2CD1163G2-LIU (2.8mm) (6MP) Smart Hybrid Light Fixed Dome IP Camera

Item: Hikvision DS-2CD1163G2-LIU (2.8mm) (6MP) Smart Hybrid Light Fixed Dome IP Camera
Rating: 5
Author: Verified Buyer

11 reviews

Product Id: 127.03.485.414

Out Of Stock

See similar model

Quick Overview

Usage - Outdoor
Form-Factor - Dome
Mega Pixels (MP) - 6.0
Night Vision Mode - Black and White
Working Distance - 76 Meter
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Hikvision

Model

Hikvision DS-2CD1163G2-LIU

Usage

Outdoor

Type

Fixed Dome IP Camera

Number of Camera

Mega Pixels (MP)

6.0

Max. Camera Resolution

3200 x 1800

Secondary Camera Mega Pixel (MP)

Not Applicable

Secondary Camera Max Resolution

Not Applicable

Number of Lens

Single Lens (Primary)

Lens

2.8mm

Night Vision

Yes

Night Vision Mode

Black and White

Mic & Speaker

Only Mic

Defense System

Thieve Detection

Sim Supported

Wi-Fi

Human Detection

Yes

Viewing Angle.

105 Degree (H), 55 Degree (V), 127 Degree (D)

Working Distance

76 Meter

Power

12 VDC +- 25%, 0.5 A, max. 6 W,5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W

Approx. Power Consumption

7.5W

Body Material

Metal + Plastic

Color

White

Dimensions

121.4 x 97.6mm

Weight (gm)

550 gm

Warranty

2 Year (Without Adapter)

General

Brand

Hikvision

Model

Hikvision DS-2CD1163G2-LIU

Usage

Outdoor

Type

Fixed Dome IP Camera

Camera

Number of Camera

Camera Type

Fixed

Mega Pixels (MP)

6.0

Max. Camera Resolution

3200 x 1800

Secondary Camera Type

Not Applicable

Secondary Camera Mega Pixel (MP)

Not Applicable

Secondary Camera Max Resolution

Not Applicable

Sensor Type.

1/2.4 Inch Progressive Scan CMOS

Resolution

Main Stream: 50Hz: 20fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720), 60Hz: 20fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720), Sub-Stream: 50Hz: 20fps (1280 x 720, 640 x 480, 640 x 360), 60Hz: 20fps (1280 x 720, 640 x 480, 640 x 360)

Shutter Speed

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Night Vision

Yes

Night Vision Mode

Black and White

S/N Ratio

>=52 dB

Lens

Number of Lens

Single Lens (Primary)

Lens

2.8mm

Lens Mount

M12

Focal Length

2.8mm

PTZ

Viewing Angle.

105 Degree (H), 55 Degree (V), 127 Degree (D)


General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Dual-Stream

Yes

Noise Reduction

Yes

Digital Noise Reduction (DNR)

3D DNR

Wide Dynamic Range (WDR)

120 dB

Network & Connectivity

Sim Supported

Sim Network Type

Not Applicable

Interface(s)

1 RJ45 10 M/100 M self-adaptive Ethernet port

Wi-Fi

Security

Defense System

Thieve Detection

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Password Protection

Yes

Watermark

Yes

Motion Detection

Yes

Human Detection

Yes

Dust Protection

Yes

Water Protection

Yes

Simultaneous Live View

Up to 6 channels

Technical Info

Scanning System

Progressive

Video Type

Main stream: H.265+/ H.265/ H.264+/ H.264, Sub-stream: H.265/ H.264/ MJPEG

Wavelength

850nm

Mic & Speaker

Only Mic

Ingress Protection Grade

IP67

Working Distance

76 Meter

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

Physical Description

Form-Factor

Dome

Storage Type

FTP

Button

1 x Reset Button

Body Material

Metal + Plastic

Color

White

Dimensions

121.4 x 97.6mm

Weight (gm)

550 gm

Power

12 VDC +- 25%, 0.5 A, max. 6 W,5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W

Battery Capacity

Not Applicable

Battery Backup

Battery Backup Time

Not Applicable

Power Supply

12 VDC +- 25%, 0.5 A, max. 6W, 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3

Approx. Power Consumption

7.5W

Operating Temperature

-30 Degree C - 60 Degree C

Storing/Storage Temperature

-30 Degree C - 60 Degree C

Operating Humidity

Humidity 95% or less (non-condensing)

Storing/Storage Humidity

Humidity 95% or less (non-condensing)

Warranty

2 Year (Without Adapter)

Additional Info

Others

Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR, Angle Adjustment: Pan: 0 Degree to 355 Degree, tilt: 0 Degree to 75 Degree, rotate: 0 Degree to 355 Degree, Aperture: F1.6, DORI: 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m, Supplement Light Type: IR,White Light, Supplement Light Range: Up to 30 m, Video Bit Rate, 32 Kbps to 16 Mbps, H.264 Type: Baseline Profile, Main Profile, High Profile, H.265 Type: Main Profile, H.265 Type: Main Profile, Bit Rate Control: CBR, VBR, Region of Interest (ROI): 1 fixed region for main stream, Scalable Video Coding (SVC): H.264 and H.265 encoding, Audio Sampling Rate: 8 kHz/16 kHz, Audio Compression: G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/ AAC-LC, Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/ 16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC), API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK,Hik-Connect, User/Host: Up to 32 users, Client: iVMS-4200,Hik-Connect, Web Browser: Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+, Day/Night Switch: Day, Night, Auto, Schedule, Image Enhancement: BLC, HLC, 3D DNR, Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser.

Specialty

Smart Supplement Light, Mono sound, Environment Noise Filtering, Privacy Mask: 4 programmable polygon privacy masks, Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Hikvision DS-2CD1163G2-LIU IP Camera In Bangladesh

The Hikvision DS-2CD1163G2-LIU is a 6MP Smart Hybrid Light Fixed Dome IP Camera. It features a 1/2.8" progressive scan CMOS sensor, a fixed 2.8mm lens, and a maximum resolution of 2688 x 1520. The camera also supports H.265+/H.264+ video compression, which can reduce bandwidth and storage requirements by up to 80%.

Who Should Buy Hikvision Hikvision DS-2CD1163G2-LIU IP Camera?

The Hikvision DS-2CD1163G2-LIU IP Camera is a good choice for anyone looking for a high-quality, affordable IP camera. It is suitable for a variety of applications, including home security, retail, and commercial surveillance.

Here are some specific examples of who might benefit from purchasing this camera:

Homeowners who want to protect their property from theft and vandalism
Business owners who need to monitor their premises and employees
Retailers who want to deter shoplifting and improve customer service
Schools and universities who want to ensure the safety of students and staff
Overall, the Hikvision DS-2CD1163G2-LIU IP Camera is an excellent value for the price. It offers a wide range of features and benefits that make it a great choice for anyone looking for a reliable and affordable IP camera.

How to Maintain Hikvision DS-2CD1163G2-LIU

Here’s an easy-to-read version of how to maintain the Hikvision DS-2CD1163G2-LIU camera:

1. Keep It Clean

Lens: Wipe the camera lens with a soft cloth to remove dust or fingerprints. This keeps the picture clear.
Outside: Clean the outside of the camera gently to keep it free from dirt.

2. Update the Software

Check for Updates: Visit the Hikvision website to see if there’s a new update for your camera. Updates fix problems and add new features.
Backup: Before updating, save your camera settings just in case something changes.

3. Check Mount and Wires

Mounting: Make sure the camera is still tightly attached where you installed it. It shouldn't move or tilt.
Cables: Look at the wires for any signs of damage, especially if the camera is outside. Replace any damaged wires quickly.

4. Protect From Weather

Waterproofing: If your camera is outside, check the waterproof cover. Make sure no water can get in.
Temperature: Avoid placing the camera where it gets too hot or cold. Keep it in a safe spot.

5. Watch Your Storage

SD Card: If you use an SD card for storage, check it regularly. Format it sometimes to keep it working well.
Network Connection: Make sure the camera is connected to the internet if you're using cloud storage.

What is the price of Hikvision DS-2CD1163G2-LIU IP Camera In Bangladesh?

The price of Hikvision DS-2CD1163G2-LIU IP Camera not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Hikvision DS-2CD1163G2-LIU IP Camera from our website or visit our showrooms nearby.
