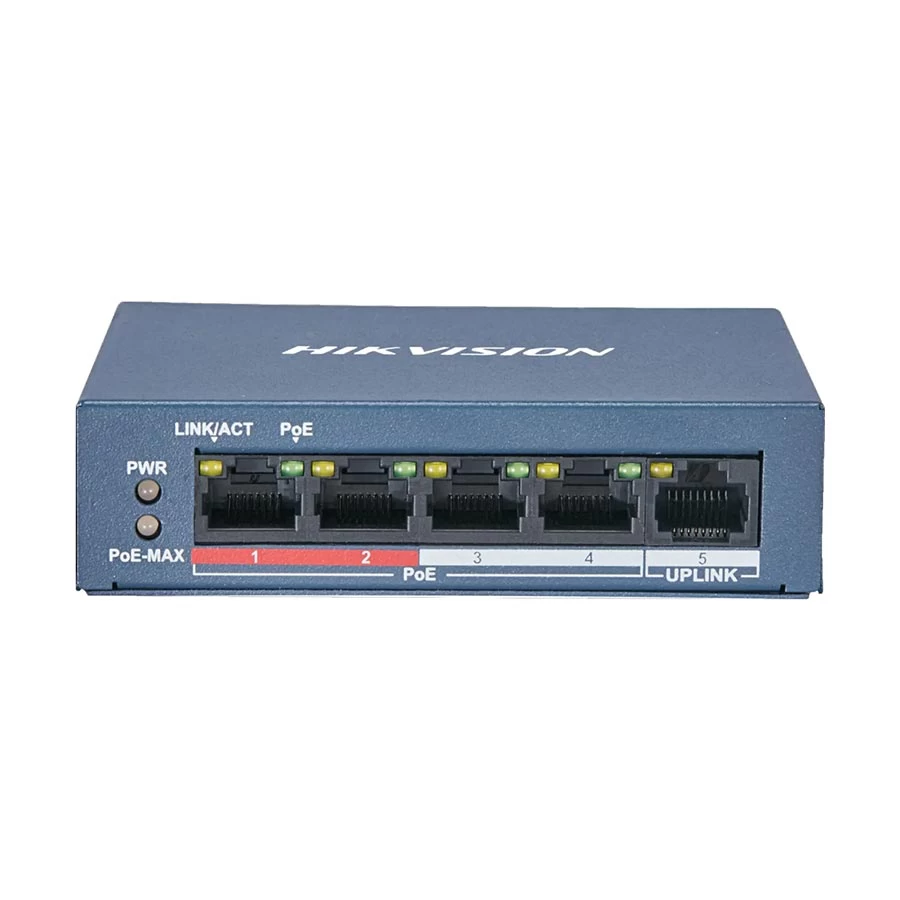

Hikvision DS-3E0105P-E/M(B) 5 Port Unmanaged PoE Switch
Product Id: 29.05.485.15
Brand
Hikvision
Regular Price Tk 3,530
Special Price Tk 3,300
Delivery in 1 days
Quick Overview
- Form Factor - Desktop
- Type - Network Switch
- Manageability - Unmanaged
- PoE - Yes
General
Brand
Hikvision
Model
Hikvision DS-3E0105P-E/M(B)
Type
Network Switch
Ports & Slots
Number of Total Port
5 Port
Gigabit Port
No
SFP Port
No
SFP+ Port
No
PoE Port
4 Port 10/100 Mbps PoE
PoE+ Port
No
Technical Info
PoE
Yes
Manageability
Unmanaged
Interface(s)
4 x 10/100 Mbps PoE ports, 1 x 10/100 Mbps RJ45 port
Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Transmission Method
Store-and-forward
Connector Type
5 x 10/100Mbps The RJ45 port
Switching Capacity
1 Gbps
Physical Description
Fan/Fanless
Fanless
Body Material
Metal
Body Color
Blue
Form Factor
Desktop
Dimension
105 x 27.6 x 83.1mm
Weight
0.48 kg
Power
Power Supply
48 VDC, 0.8 A
Approx. Power Consumption
3W (Idle)
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive, Working Mode: Standard mode (default); Extend mode, High Priority Ports: Ports 1 to 2, MAC Address Table: 2K, Packet Forwarding Rate: 0.744 Mpps, Internal Cache: 0.768 Mbits, PoE Standard: IEEE 802.3af, IEEE 802.3at, PoE Power Pin: End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-), PoE Port: Ports 1 to 4, Max. Port Power: 30W, PoE Power Budget: 35W, Operating Temperature: -10 to 55 degree C, Operating Humidity: 5% to 95% (no condensation), EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016), Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013), Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006).
Specialty
Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime, Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters, 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables, 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment, Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Hikvision DS-3E0105P-E/M(B) Network Switch In Bangladesh
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Brand - Hikvision, Model - Hikvision DS-3E0105P-E/M(B), Type - Network Switch, Number of Total Port - 5 Port, PoE - Yes, Manageability - Unmanaged, Gigabit Port - No, SFP Port - No, SFP+ Port - No, PoE Port - 4 Port 10/100 Mbps PoE, PoE+ Port - No, Interface - 4 x 10/100 Mbps PoE ports, 1 x 10/100 Mbps RJ45 port, Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Data Transfer Rate (Mbps) - 10/100 Mbps, Transmission Method - Store-and-forward, Connector Type - 5 x 10/100Mbps The RJ45 port, Switching Capacity - 1 Gbps, Fan/Fanless - Fanless, Body Material - Metal, Body Color - Blue, Power Supply - 48 VDC, 0.8 A, Power Consumption - 3W (Idle), Form Factor - Desktop, Dimension - 105 x 27.6 x 83.1mm, Weight - 0.48 kg, Others - Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive, Working Mode: Standard mode (default); Extend mode, High Priority Ports: Ports 1 to 2, MAC Address Table: 2K, Packet Forwarding Rate: 0.744 Mpps, Internal Cache: 0.768 Mbits, PoE Standard: IEEE 802.3af, IEEE 802.3at, PoE Power Pin: End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-), PoE Port: Ports 1 to 4, Max. Port Power: 30W, PoE Power Budget: 35W, Operating Temperature: -10 to 55 degree C, Operating Humidity: 5% to 95% (no condensation), EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016), Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013), Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)., Specialty - Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime, Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters, 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables, 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment, Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs., Warranty - 1 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
What is the price of Hikvision DS-3E0105P-E/M(B) Network Switch In Bangladesh?
The price of Hikvision DS-3E0105P-E/M(B) Network Switch starts from 3,300 . The price may vary due to your customization and product availability. You can buy Hikvision DS-3E0105P-E/M(B) Network Switch from our website or visit our showrooms nearby.
