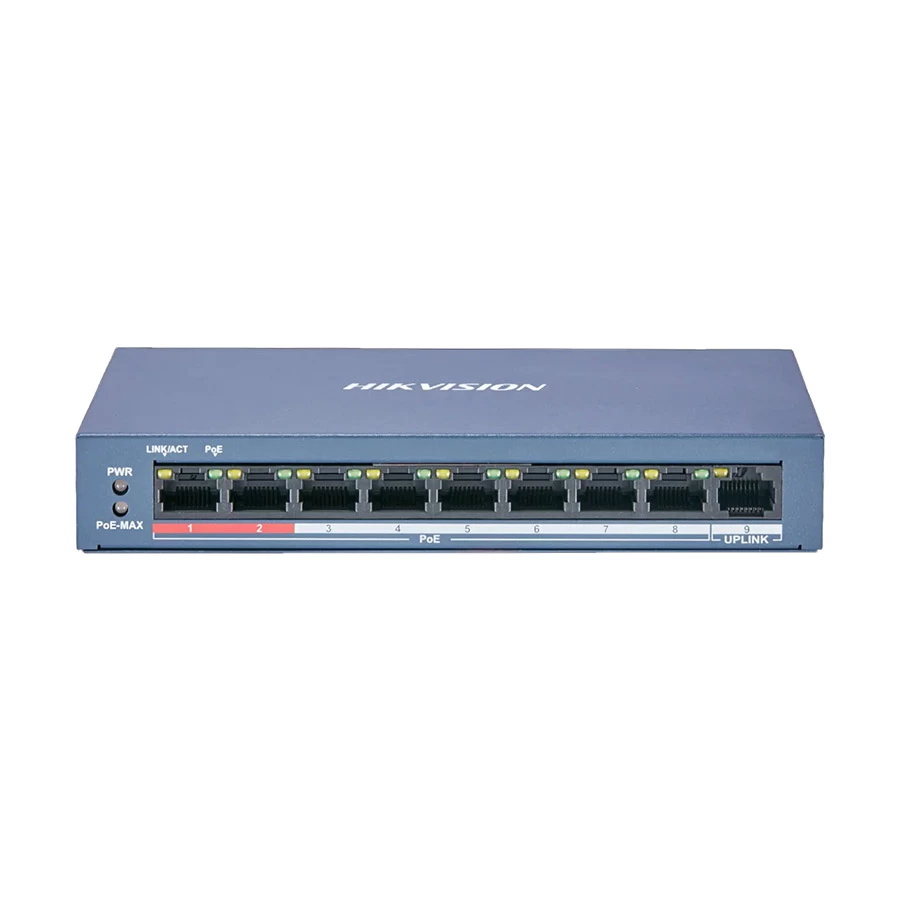

Hikvision DS-3E0109P-E/M(B) 9 Port Unmanaged PoE Switch

Product Id: 29.05.485.14

Brand Hikvision

Regular Price Tk 5,700 Monthly EMI Tk 475
Special Price Tk 5,300

Delivery in 1 days

Quick Overview

  • Form Factor - Rackmount
  • Port - 4 - 10 Port
  • Type - Network Switch
  • Manageability - Unmanaged
  • PoE - Yes
General
Brand
Hikvision

Model
Hikvision DS-3E0109P-E/M(B)

Type
Network Switch


Ports & Slots
Port
4 - 10 Port

Number of Total Port
9 Port

Gigabit Port
No

SFP Port
No

SFP+ Port
No

PoE Port
8

PoE+ Port
No


Technical Info
PoE
Yes

Manageability
Unmanaged

Interface(s)
8 x Port 10/100 Mbps PoE, 1 x Port 10/100 Mbps RJ45

Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Transmission Method
Store-and-forward

Connector Type
9 x 10/100Mbps The RJ45 port

Switching Capacity
1.8 Gbps


Physical Description
Fan/Fanless
Fanless

Indicators
Yes

Body Material
Metal

Body Color
Blue

Form Factor
Rackmount

Dimension
170 x 27.6 x 93.1mm

Weight
0.89 kg


Power
Power Supply
48 VDC, 1.35 A

Approx. Power Consumption
65W


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive, Working Mode: Standard mode (default); Extend mode, High Priority Ports: Ports 1 to 2, MAC Address Table: 2K, Packet Forwarding Rat: 1.339 Mpps, Internal Cache: 1 Mbits, Ports For Long-Distance Transmission: Ports 1 to 8, PoE Standard: IEEE 802.3af, IEEE 802.3at, PoE Power Pin: End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-), PoE Port: Ports 1 to 8, Max. Port Power: 30W, PoE Power Budget: 60W, Power Consumption In Idle: 5W, Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013), Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Specialty
Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime, Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters, 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables, 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment, Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
