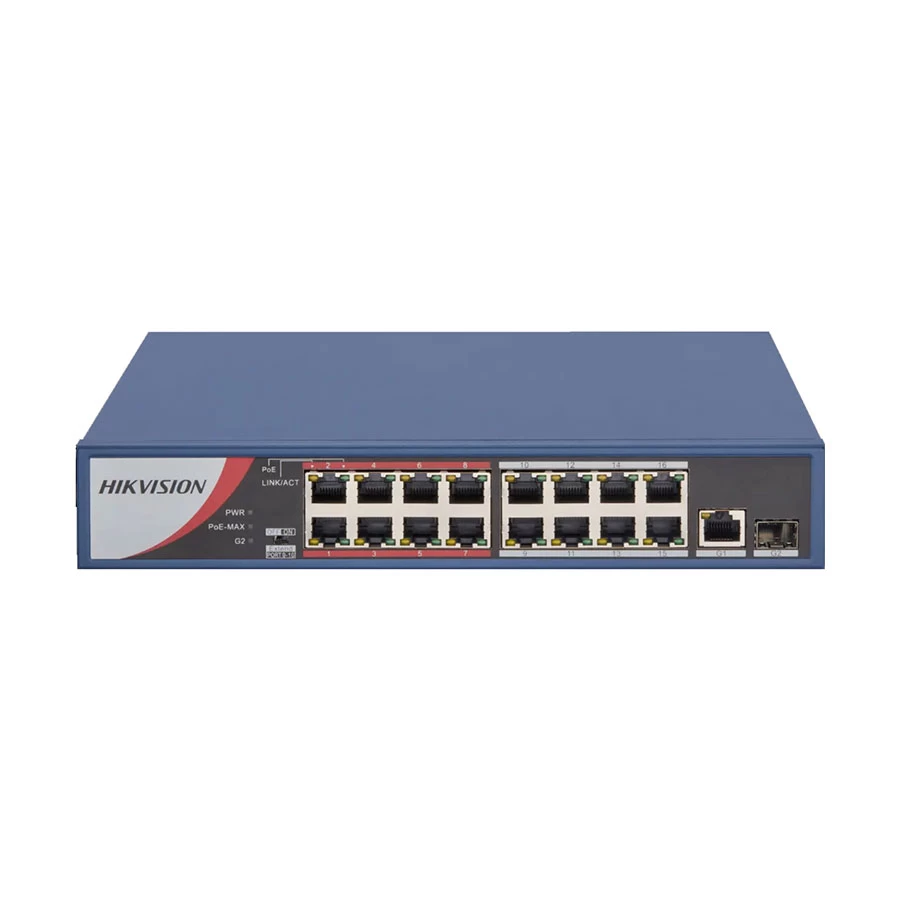

Hikvision DS-3E0318P-E/M(B) 18 Port Unmanaged PoE Switch
Product Id: 29.05.485.16
Brand
Hikvision
Quick Overview
- Form Factor - Rackmount
- Type - Network Switch
- Manageability - Unmanaged
- PoE - Yes
General
Brand
Hikvision
Model
Hikvision DS-3E0318P-E/M(B)
Type
Network Switch
Ports & Slots
Number of Total Port
18 Port
Gigabit Port
2
SFP Port
No
SFP+ Port
No
PoE Port
No
PoE+ Port
No
Technical Info
PoE
Yes
Manageability
Unmanaged
Interface(s)
16 x 10/100 Mbps PoE ports, 1 x 10/100/1000 RJ45 port, 1 x 10/100/1000 fiber optical port
Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Transmission Method
Store-and-forward
Connector Type
16 x RJ45 port, 1 x gigabit fiber optical port
Switching Capacity
7.2 Gbps
Physical Description
Indicators
Yes
Body Material
Metal
Body Color
Blue
Form Factor
Rackmount
Dimension
266 x 44.5 x 220.8mm
Weight
1.80 kg
Power
Power Supply
100 to 240 VAC, 50/60 Hz, Max. 2.5 A
Approx. Power Consumption
150W
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive, Working Mode: Standard mode (default); Extend mode, High Priority Ports: Ports 1 to 8, MAC Address Table: 4K, Packet Forwarding Rate: 5.356 Mpps, Internal Cache: 2.75 Mbits, PoE Power Pin: End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-), PoE Port: Ports 1 to 16, Max. Port Power: 30W, Long Range: Ports 9 to 16: up to 300 m; and the speed rate of the port is 10 Mbps, Operating Temperature: -10 to 55 degree C, Operating Humidity: 5% to 95% (no condensation).
Specialty
Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime, Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters, 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables, 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment, Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Hikvision DS-3E0318P-E/M(B) Network Switch In Bangladesh
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Brand - Hikvision, Model - Hikvision DS-3E0318P-E/M(B), Type - Network Switch, Number of Total Port - 18 Port, PoE - Yes, Manageability - Unmanaged, Gigabit Port - 2, SFP Port - No, SFP+ Port - No, PoE Port - 16, PoE+ Port - No, Interface - 16 x 10/100 Mbps PoE ports, 1 x 10/100/1000 RJ45 port, 1 x 10/100/1000 fiber optical port, Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Data Transfer Rate (Mbps) - 10/100/1000 Mbps, Transmission Method - Store-and-forward, Connector Type - 16 x RJ45 port, 1 x gigabit fiber optical port, Switching Capacity - 7.2 Gbps, Indicator - Yes, Body Material - Metal, Body Color - Blue, Power Supply - 100 to 240 VAC, 50/60 Hz, Max. 2.5 A, Power Consumption - 150W, Form Factor - Rackmount, Dimension - 266 x 44.5 x 220.8mm, Weight - 1.80 kg, Others - Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive, Working Mode: Standard mode (default); Extend mode, High Priority Ports: Ports 1 to 8, MAC Address Table: 4K, Packet Forwarding Rate: 5.356 Mpps, Internal Cache: 2.75 Mbits, PoE Power Pin: End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-), PoE Port: Ports 1 to 16, Max. Port Power: 30W, Long Range: Ports 9 to 16: up to 300 m; and the speed rate of the port is 10 Mbps, Operating Temperature: -10 to 55 degree C, Operating Humidity: 5% to 95% (no condensation)., Specialty - Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime, Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters, 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables, 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment, Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs., Warranty - 1 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
What is the price of Hikvision DS-3E0318P-E/M(B) Network Switch In Bangladesh?
The price of Hikvision DS-3E0318P-E/M(B) Network Switch starts from 17,000 . The price may vary due to your customization and product availability. You can buy Hikvision DS-3E0318P-E/M(B) Network Switch from our website or visit our showrooms nearby.
