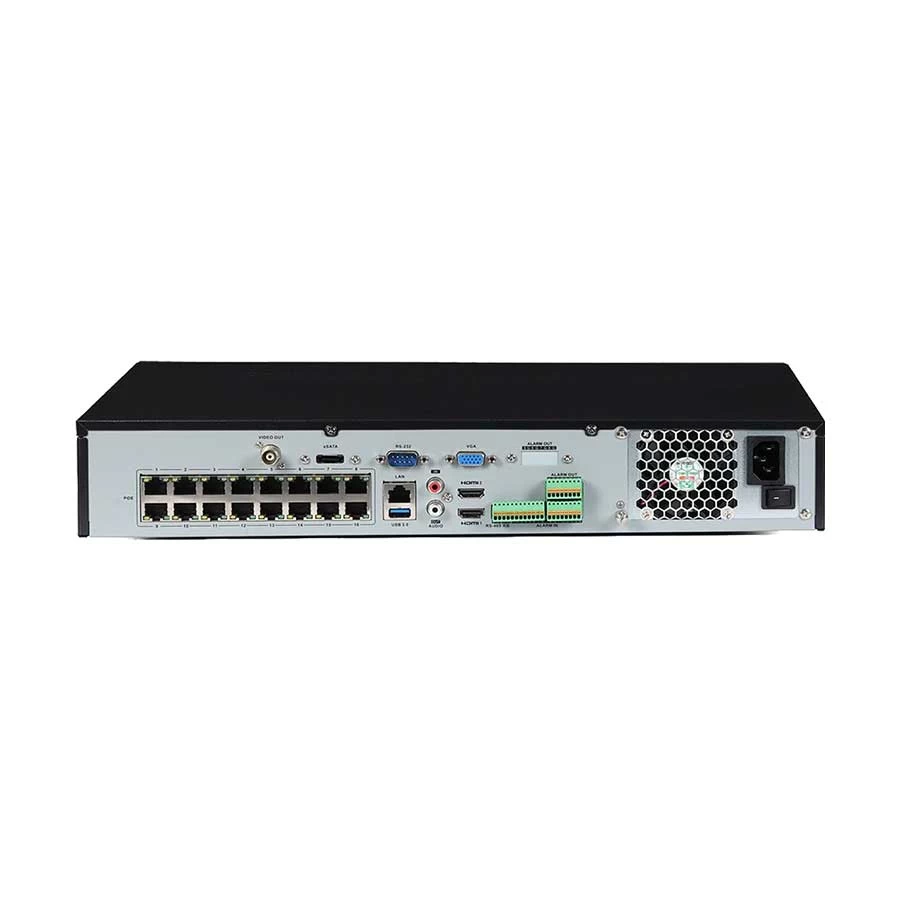

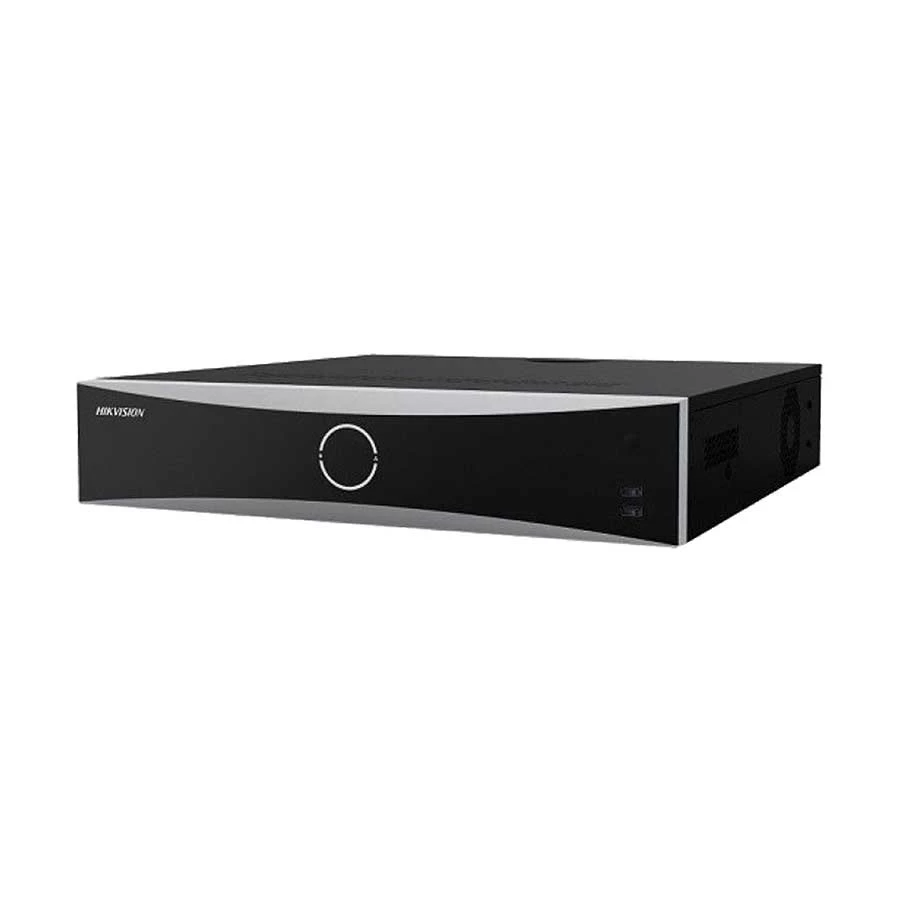

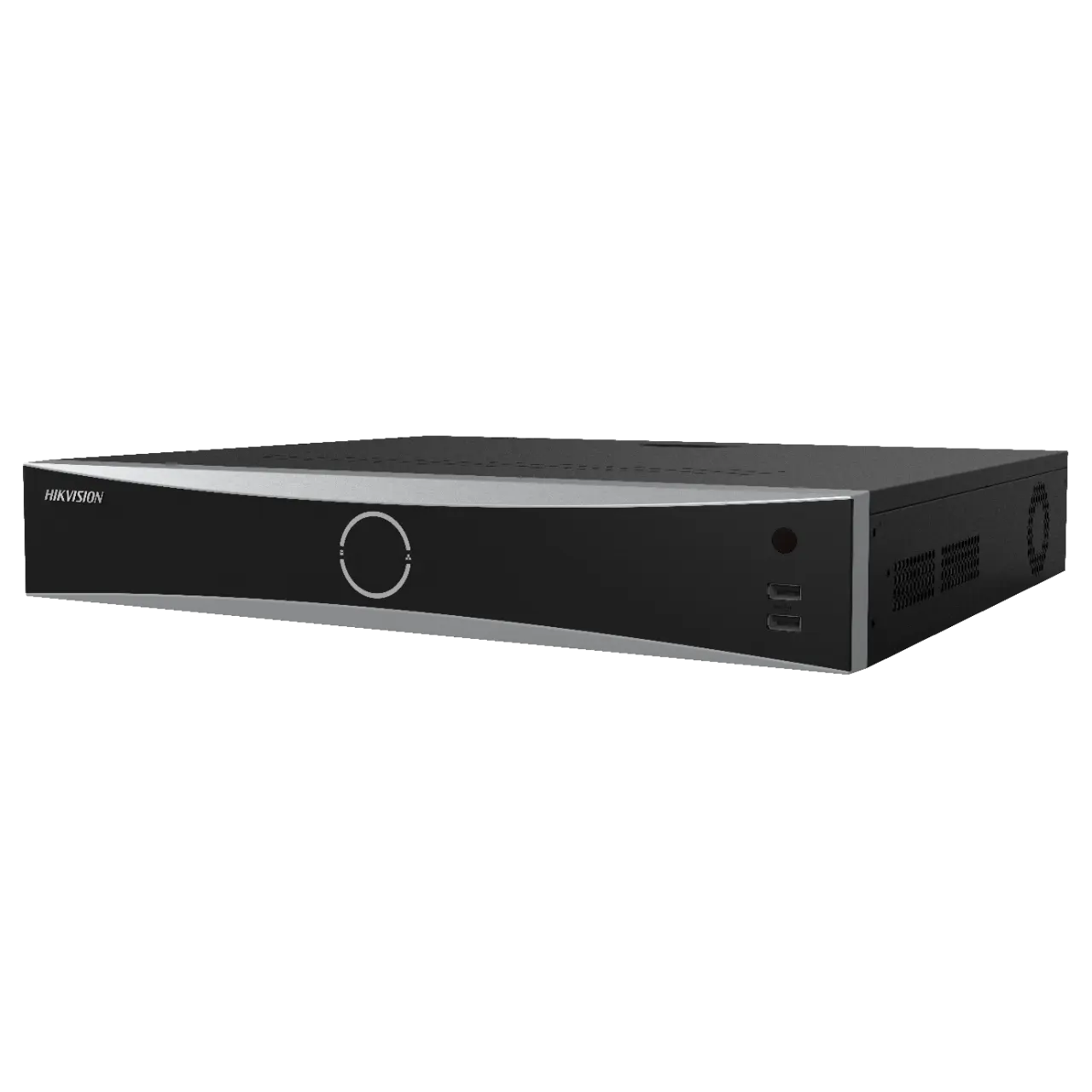

Hikvision DS-7716NXI-K4 16 Channel AcuSense 4K NVR
Product Id: 127.04.485.251
Brand
Hikvision
Regular Price Tk 33,090
Monthly EMI Tk 2,758
Special Price Tk 31,000
Quick Overview
- Dual Stream Support - Yes
- Number HDD Interface (SATA) - 4 SATA
- Video Recording Res. - 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Max. Storage Support - 40TB
Brand
Hikvision
Model
Hikvision DS-7716NXI-K4
Type
4K NVR
Video Input Channel (BNC)
16 Channel
Video Compression/Format
H.265+/H.265/H.264+/H.2
Video Output (VGA)
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60H
Video Output (DVI)
No
Video Output (HDMI)
1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Video Output (BNC)
HDMI/VGA independent out
Video Recording Res.
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Max. Video Recording Res.
1920 x 1080
IP Video Input
16-ch
Audio Input Channel (RCA)
1-ch, RCA (2.0 Vp-p, 1 K ohm, using the audio input
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC
Audio Output Channel
1-ch, RCA
Two way Audio
Two way Audio
Stream Type
Video, Video & Audio
Dual Stream Support
Yes
Decoding Capability
AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) , AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
Synchronous Playback
16-ch
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Number HDD Interface (SATA)
4 SATA
Max HDD Support (GB,TB)
Up to 10TB capacity for each HDD
Max. Storage Support
40TB
eSATA
No
Network Interface (RJ45)
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Serial Interface
2 RS-485 (half-duplex), 1 RS-232
USB Port
Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
POE Interface
No
Remote Connections
128
Main Processor
No
Display Split
No
CVBS Input
No
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
160 Mbps
Number of Arrays
No
MD Zones
No
Interoperability
No
Privacy Masking
No
Video Detection
No
Trigger Events
No
OSD
No
PTZ Controler
No
Power Supply
100 to 240 VAC, 50 to 60Hz
Approx. Power Consumption
<- 20 W (without HDD)
Max. Power
<- 20W
Dimensions
445 x 400 x 75mm
Weight (Kg)
5 kg
Smart Phone Supported
Yes
Supported Camera Models
IP camera
Feature
Up to 16-ch IP camera inputs, H.265+/H.265/H.264+/H.264 video formats, Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12- ch@1080p decoding capacity, Up to 160 Mbps incoming bandwidth, Adopt Hikvision Acusense technology to minimize manual effort and security costs.
Others
All channels support Motion Detection 2.0, 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture, Smart search for the selected area in the video, and smart playback to improve the playback eifficiency. H.265+ compression effectively reduces the storage space by up to 75% Adopt stream over TLS encryption technology which provides more secure stream transmission service.
Warranty Details
1 year
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Hikvision DS-7716NXI-K4 DVR/NVR/XVR In Bangladesh
- Up to 16-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
- Up to 160 Mbps incoming bandwidth
- Adopt Hikvision Acusense technology to minimize manual effort and security costs
What is the price of Hikvision DS-7716NXI-K4 DVR/NVR/XVR In Bangladesh?
The price of Hikvision DS-7716NXI-K4 DVR/NVR/XVR starts from 31,000 . The price may vary due to your customization and product availability. You can buy Hikvision DS-7716NXI-K4 DVR/NVR/XVR from our website or visit our showrooms nearby.
