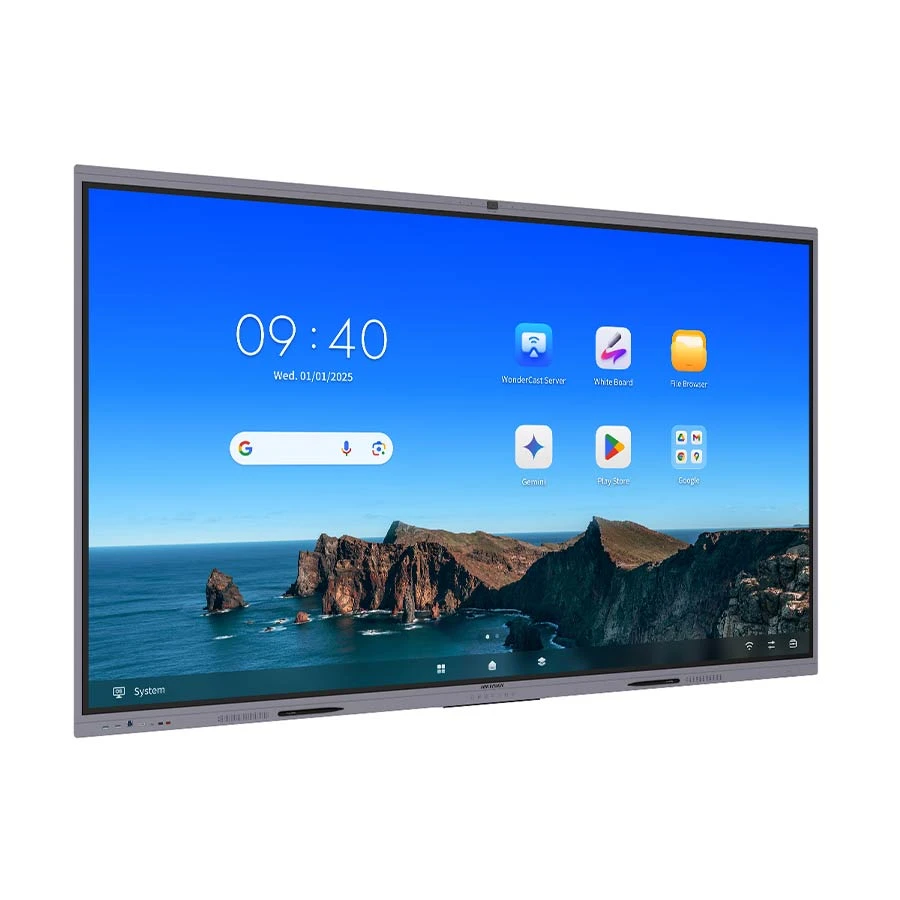

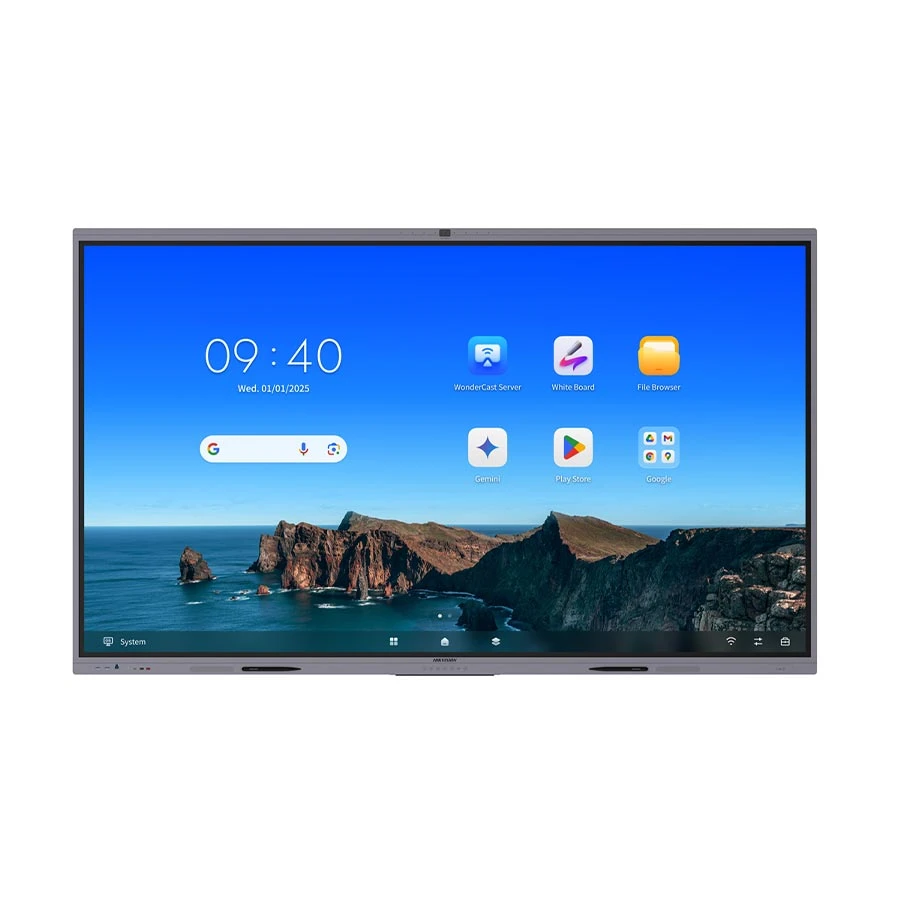

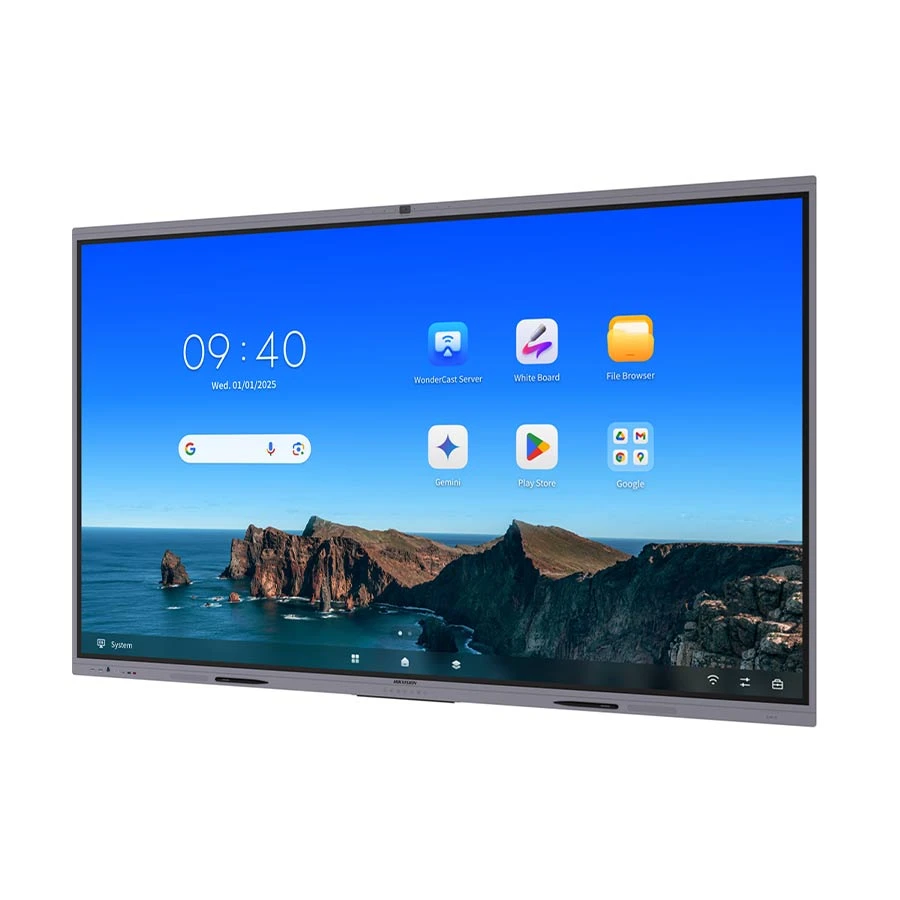

Hikvision DS-D5A86RB-B3 86 Inch 16GB RAM 128GB ROM Android 16 4K UHD Touch Interactive Flat Panel Display

Item: Hikvision DS-D5A86RB-B3 86 Inch 16GB RAM 128GB ROM Android 16 4K UHD Touch Interactive Flat Panel Display
Rating: 5
Author: Verified Buyer

Product Id: 118.01.485.51

Coming Soon

Quick Overview

Country Of Origin - China
Display Size - 86 Inch
Resolution - 3840 x 2160
Number of Touch - 50 Point
Embedded OS - Android 16.0
Storage (MB/GB/TB) - 128GB
Speaker Details - 2 x 20 W
Body Color - Gray

Payment Method Shipping & Charge Order Procedure

Brand

Hikvision

Model

Hikvision DS-D5A86RB-B3

Technology

4K UHD Interactive Flat Panel

Display Size

86 Inch

Resolution

3840 x 2160

Panel Type

IPS

Number of Touch

50 Point

Touch Interface

TOUCH-USB 2.0 x 1 (Front x 1), TOUCH-USB 2.0 x 1 (Rear x 1)

Touch Resolution

32768 x 32768

Refresh Rate (Hz)

60Hz

Camera (Built-in)

Yes

Camera Megapixel (MP)

48MP (Photos) & 8MP (Video)

Processor

Quad-core Cortex-A72 x 4 (2.2 GHz) and quad-core Cortex-A53 x 4 (1.8 GHz)

RAM

16GB

Storage (MB/GB/TB)

128GB

Speaker (Built-in)

Yes

Microphone (Built-in)

Yes

Connectivity

LAN, Wi-Fi, Bluetooth

HDMI Input

USB Port

USB 3.0 x 2 (Front x 2), USB 2.0 x 2 (Rear x 2), Type-C x 1 (Front x 1 Supports USB 3.0, 15 W charging functions)

Lan Port

2 x RJ45

OPS Included

Slot

Yes

OPS Slot

Embedded OS

Android 16.0

Wall Mounting

600 x 400mm

Body Color

Gray

Dimensions

1957.04 x 1173.7 x 95.8mm (Without Wall Attachment), 1957.04 x 1173.7 x 123.0mm (With Wall Attachment)

Weight

52.5 kg

Accessories In The Box

Wall mount bracket, hook, user manual, touch writing pen, packing list, power cable, remote control.

Warranty

3 year

General

Brand

Hikvision

Model

Hikvision DS-D5A86RB-B3

Technology

4K UHD Interactive Flat Panel

Display

Display Size

86 Inch

Resolution

3840 x 2160

Supported Display Resolutions

3840 x 2160

Display Area

1895.04 (H) x 1065.96 (V) mm

Anti-Glare

Yes

Panel Type

IPS

Panel Bit

10bit (8 bit + FRC)

Aspect Ratio

16:9

Display Orientation

Landscape

Brightness (cd/m2)

400cd/m2

Colors

1.07 Billion

Light Source Type

DLED

Light Life

50,000 hours

Color Gamut

72% NTSC (CIE1931) (Typ.)

Refresh Rate (Hz)

60Hz

Contrast Ratio

1200:1 (Static), 15,000:1 (Dynamic)

Response Time (ms)

5ms

Viewing Angle.

178 Degree (H)/178 Degree (V)

Surface

9H (Pencil), 7 (Mohs)

Number of Touch

50 Point

Touch Interface

TOUCH-USB 2.0 x 1 (Front x 1), TOUCH-USB 2.0 x 1 (Rear x 1)

Touch Resolution

32768 x 32768

Hardware

Processor

Quad-core Cortex-A72 x 4 (2.2 GHz) and quad-core Cortex-A53 x 4 (1.8 GHz)

RAM

16GB

Storage (MB/GB/TB)

128GB

GPU

Mali-G52 MC3

Slot

Yes

Technical Info

Camera (Built-in)

Yes

Camera Technology

Standard

Camera Megapixel (MP)

48MP (Photos) & 8MP (Video)

Max. Camera Resolution

3840 x 2160

Connectivity

LAN, Wi-Fi, Bluetooth

Input Ports

HDMI 2.1 TMDS x 3 (Front x 1; Rear x 2; Supports HDCP 2.3 & 2.2 & 1.4; HDMI1 Supports CEC&ARC protocol) Audio x 1 (Rear), RS232 x 1 (Rear), LAN (1000 Mbps) x 2 (Rear),

Output Ports

Audio x 1 (Rear)

HDMI Input

USB Port

USB 3.0 x 2 (Front x 2), USB 2.0 x 2 (Rear x 2), Type-C x 1 (Front x 1 Supports USB 3.0, 15 W charging functions)

RS232 Input/Output

Lan Port

2 x RJ45

OPS Included

OPS Slot

Audio

Speaker (Built-in)

Yes

Speaker Details

2 x 20 W

Microphone (Built-in)

Yes

Microphone Details

Specification Omni-directional 8-array layout, Mic Function: Echo reduction and smart noise-cancellation, Voice Distance: 12 m, Sampling Rate: 48 K, Mic Depth : 16 bit

Voice Distance

Up to 12 Meter

Audio In

Audio Out

Electrical

Power (AC) Input

100 to 240 VAC, 50/60 Hz

Approx. Power Consumption

< - 0.5W (Standby), <210W (Average)

Environmental

Operating Temperature

0 Degree C to 40 Degree C

Operating Humidity

10%~90% RH

Physical Description

RF (NFC Reader/Writer)

Yes

Wall Mounting

600 x 400mm

Body Color

Gray

Dimensions

1957.04 x 1173.7 x 95.8mm (Without Wall Attachment), 1957.04 x 1173.7 x 123.0mm (With Wall Attachment)

Weight

52.5 kg

Accessories In The Box

Wall mount bracket, hook, user manual, touch writing pen, packing list, power cable, remote control.

Software

Embedded OS

Android 16.0

Warranty

3 year

Additional Info

Others

RAM Details: 8GB+8GB Virtual, Pixel Pitch 0.164 (H) x 0.493 (V) mm, Surface Haze 25% Haze, Glass Bonding Method Zero Lamination, Working Duration 7 x 16 H, Transmittance 88% -/+ 3, Type: Infrared Touch Screen, Up to 50-point multi-touch, Touch Response Time <= 5 ms, Minimum Touch Object >= 1.5 mm (>= 90% touching area), Touch Precision -/+ 0.5 mm (>= 90% touching area), HDCP Version 2.3 & 2.2 & 1.4, Camera Function: Supports intelligent switching between Android system, OPS, and PC, Field Angle: 93.4 Degree (diagonal), 84.5 Degree (horizontal), 54.1 Degree (vertical), Distortion <= 2.5%, Camera Resolution Ratio Up to 4K, Wi-Fi: Wi-Fi AP & Station, 2.4 G/5 G, Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 x 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP, Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4, NFC: Supports card reader, 13.56 MHz, (ISO 14443A/ ISO 14443B), Light Sensor: Yes, TF-Card Slot: 1.

Feature

Built-in Android 16 system, EDLA certified, UHD 4K display with resolution of 3840 x 2160, Anti-glare and anti-blocking design to ensure smooth interaction, Dual systems of Android and Windows (optional with 195 x 30 x 180 mm OPS), saving costs and easy to use, video conference software is recommended to run on the Windows system, Quick response, up to 50-point touch control, and a smooth writing experience, Built-in network switch chip eliminates the need for an external network switch, Multi-button front design, convenient for classroom use, All-in-one design with tempered glass and intelligent temperature control, making it environmentally friendly and safe.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Hikvision DS-D5A86RB-B3 Digital Display In Bangladesh

What is the price of Hikvision DS-D5A86RB-B3 Digital Display In Bangladesh?

The price of Hikvision DS-D5A86RB-B3 Digital Display not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Hikvision DS-D5A86RB-B3 Digital Display from our website or visit our showrooms nearby.
