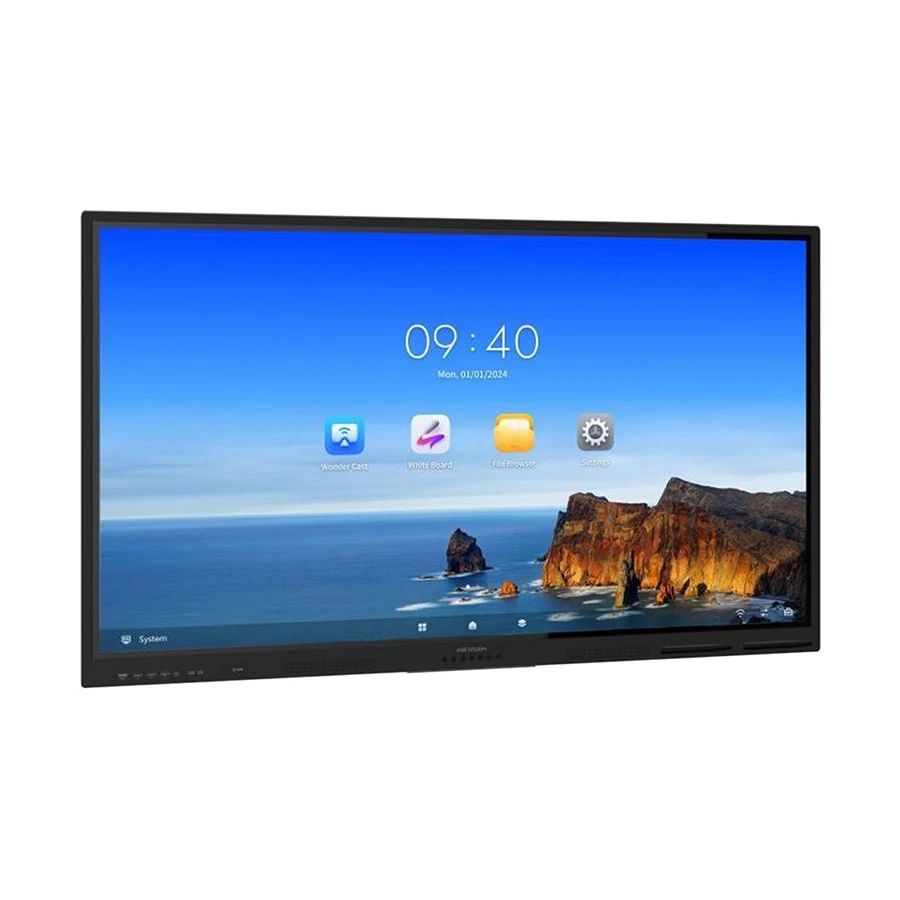

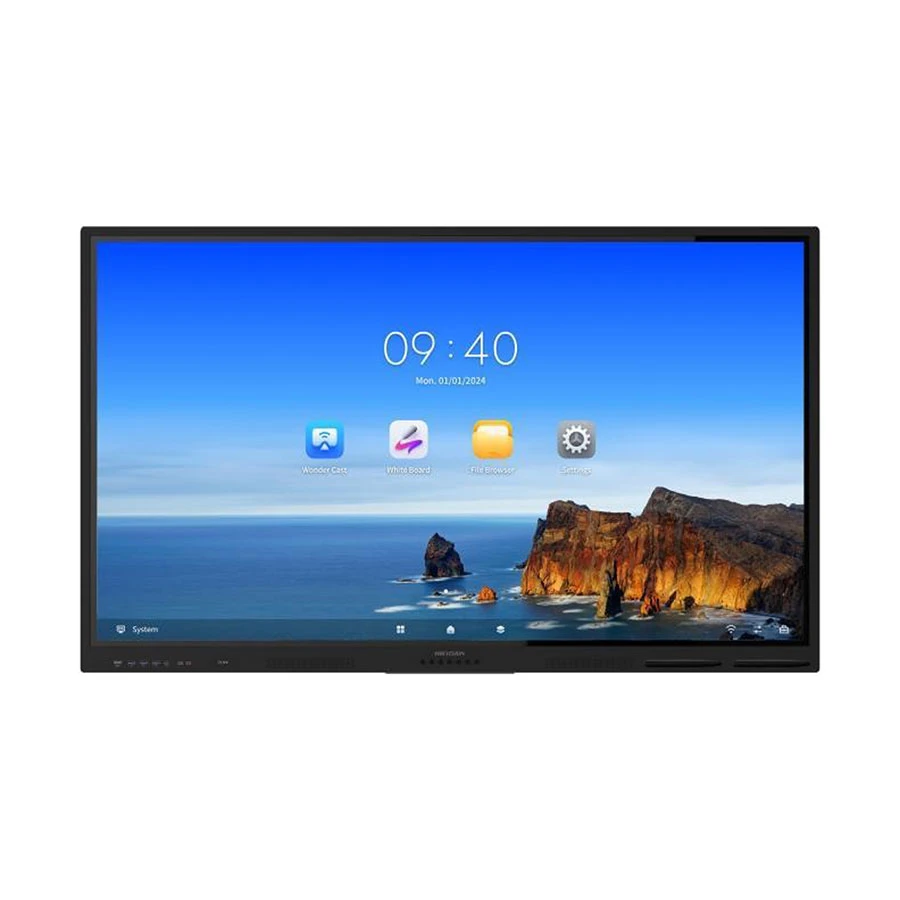

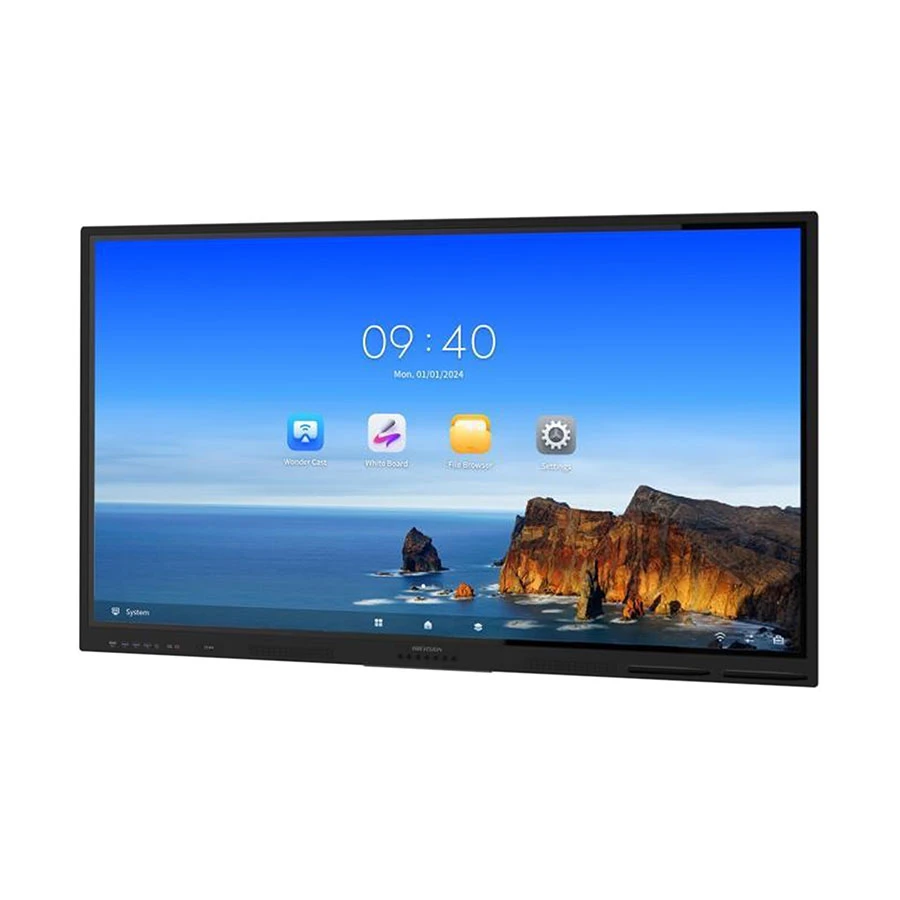

Hikvision DS-D5B86RB/EL 86 Inch 4K UHD Touch Interactive Flat Panel Display (Android 13)

Item: Hikvision DS-D5B86RB/EL 86 Inch 4K UHD Touch Interactive Flat Panel Display (Android 13)
Rating: 5
Author: Verified Buyer

6 reviews

Product Id: 118.01.485.17

Out Of Stock

See similar model

Quick Overview

Country Of Origin - China
Display Size - 86 Inch
Resolution - 3840 x 2160
Number of Touch - 40 Point
Embedded OS - Android 13
Storage (MB/GB/TB) - 64GB
Speaker Details - 2 x 20 W
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Hikvision

Model

Hikvision DS-D5B86RB/EL

Technology

4K UHD Interactive Flat Panel

Display Size

86 Inch

Resolution

3840 x 2160

Panel Type

Number of Touch

40 Point

Touch Interface

USB 2.0 x 1

Touch Resolution

32767 x 32767

Refresh Rate (Hz)

60Hz

Camera (Built-in)

Processor

Cortex-A55 x 4 (1.92GHz)

RAM

8GB

Storage (MB/GB/TB)

64GB

Speaker (Built-in)

Yes

Microphone (Built-in)

Connectivity

Wi-Fi & Bluetooth

HDMI Input

USB Port

USB 3.0 x 3, USB 2.0 x 2, Type-C x 1

Lan Port

OPS Included

Slot

1 x OPS Slot

OPS Slot

Power (Voltage)

100 to 240 VAC, 50/60 Hz

Embedded OS

Android 13

Wall Mounting

800 x 600 mm

Body Color

Black

Dimensions

1960.44 x 1164.69 x 82.5 mm

Weight

59.71 kg

Accessories In The Box

Wall mount bracket, hook, user manual, stylus x 2, packing list, 1.5 m power cable (European standard), remote controller

Warranty Details

3 year

General

Brand

Hikvision

Model

Hikvision DS-D5B86RB/EL

Technology

4K UHD Interactive Flat Panel

Display

Display Size

86 Inch

Resolution

3840 x 2160

Supported Display Resolutions

3840 x 2160

Display Area

1895.04 mm x 1065.96 mm

Anti-Glare

Yes

Panel Type

Panel Bit

10 bit

Aspect Ratio

16:9

Brightness (cd/m2)

400cd/m2 (Typical)

Colors

1.07G

Light Source Type

DLED

Light Life

50,000 Hours

Color Gamut

72% NTSC (CIE1931) (Typ.)

Refresh Rate (Hz)

60Hz

Contrast Ratio

5000:1 (Static), 30,000:1 (Dynamic)

Response Time (ms)

5ms

Viewing Angle.

178 Degree (H & V)

Surface

25% Haze

Number of Touch

40 Point

Touch Interface

USB 2.0 x 1

Touch Resolution

32767 x 32767

Hardware

Processor

Cortex-A55 x 4 (1.92GHz)

RAM

8GB

Storage (MB/GB/TB)

64GB

GPU

Mali-G52 MP2 (2EE)

Slot

1 x OPS Slot

Technical Info

Camera (Built-in)

Connectivity

Control

1 x RS-232, 1 x Touch-USB

Connectivity

Wi-Fi & Bluetooth

Input Ports

HDMI In (HDMI 2.0) x 2, Audio In x 1

Output Ports

Audio Out x 1

HDMI Input

USB Port

USB 3.0 x 3, USB 2.0 x 2, Type-C x 1

RS232 Input/Output

Lan Port

OPS Included

OPS Slot

Audio

Speaker (Built-in)

Yes

Speaker Details

2 x 20 W

Microphone (Built-in)

Audio In

Audio Out

Electrical

Power (Voltage)

100 to 240 VAC, 50/60 Hz

Approx. Power Consumption

<- 0.5 W (Standby), 326 W (Max.), 268 W (Average)

Environmental

Operating Temperature

0 Degree C to 40 Degree C

Operating Humidity

10% - 90% RH

Physical Description

Wall Mounting

800 x 600 mm

Body Color

Black

Dimensions

1960.44 x 1164.69 x 82.5 mm

Weight

59.71 kg

Accessories In The Box

Wall mount bracket, hook, user manual, stylus x 2, packing list, 1.5 m power cable (European standard), remote controller

Software

Embedded OS

Android 13

OS Supported

Android

Warranty

Warranty Details

3 year

Additional Info

Others

Network Interface: LAN (100 Mbps) x 2, WIFI AP & Station 2.4G/5G, WIFI AP IEEE 802.11 a/b/g/n/ac 2 x 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP, WIFI Station IEEE 802.11 a/b/g/n/ac/ax 1 x 1 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP, Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.2, NFC: Support card reader, Light Sensor: Yes, Type: Infrared Touch Screen, Minimum Touch Object>- 2 mm (>- 90% touching area), Touch Precision+/- 1 mm (-> 90% touching area), Surface Glass: 3.2 mm Anti-Glare Glass Working Duration7 x 16H, Surface Hardness: 9H (Pencil), 7 (Mohs)

Feature

UHD 4K display with resolution of 3840 x 2160. Anti-glare and anti-blocking design to ensure smooth interaction. Dual systems of Android and Windows (optional) saving cost and easy to use, video conference software are recommended to run under Windows system. Quick response, at most 40-point touch controls and smooth writing experience. Multi-button design in front, convenient for classroom use. Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Hikvision DS-D5B86RB/EL Digital Display In Bangladesh

Hikvision DS-D5B86RB/EL offers an impressive 86-inch 4K UHD display. Perfect for meetings, presentations, and interactive learning, this panel ensures clear and vibrant visuals.

Features:

86-Inch 4K UHD Screen: Provides stunningly clear and detailed images.
Touch Interactive: Supports multi-touch functionality for interactive use.
High Brightness: Ensures visibility in various lighting conditions.
Built-In Speakers: Delivers integrated sound for a complete experience.

Buying Guide:

Check Screen Size: Ensure the 86-inch size fits your space.
Verify Resolution: 4K UHD offers superior image clarity.
Consider Touch Functionality: Useful for interactive presentations and meetings.
Look for Connectivity Options: Ensure compatibility with your devices.

Why Choose Ryans Computer? We offer competitive pricing on top-quality display technology. Enjoy fast delivery and expert support with every purchase.

Visit Ryans Computer today to get the Hikvision DS-D5B86RB/EL. Enhance your presentations with our excellent service and great prices!

What is the price of Hikvision DS-D5B86RB/EL Digital Display In Bangladesh?

The price of Hikvision DS-D5B86RB/EL Digital Display not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Hikvision DS-D5B86RB/EL Digital Display from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.

QUESTION & ANSWER

Customer Questions

If we want 1 128 GB Built in Storage in place of 64 GB 2 Add a trolley stand for moving easily from one place to another 3 Delivery and fitting at the Shahjalal University of Science and Technology Sylhet Bangladesh with the above configuration or specification how much will be the final price then

Asked By Dr Nasir

Dear Customer,
Sir, depending on your configuration, the price of the interactive panel will be around 350 to 4 lakhs and an additional 30 thousand taka can be added for the interactive trolley. Delivery charges cannot be specified here, you can get an idea of this after placing your order. For more details, call 16 810 or 09609016810.
Thank you.

Answered By Ryans Computers Ltd. , 19 May 2026
