N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

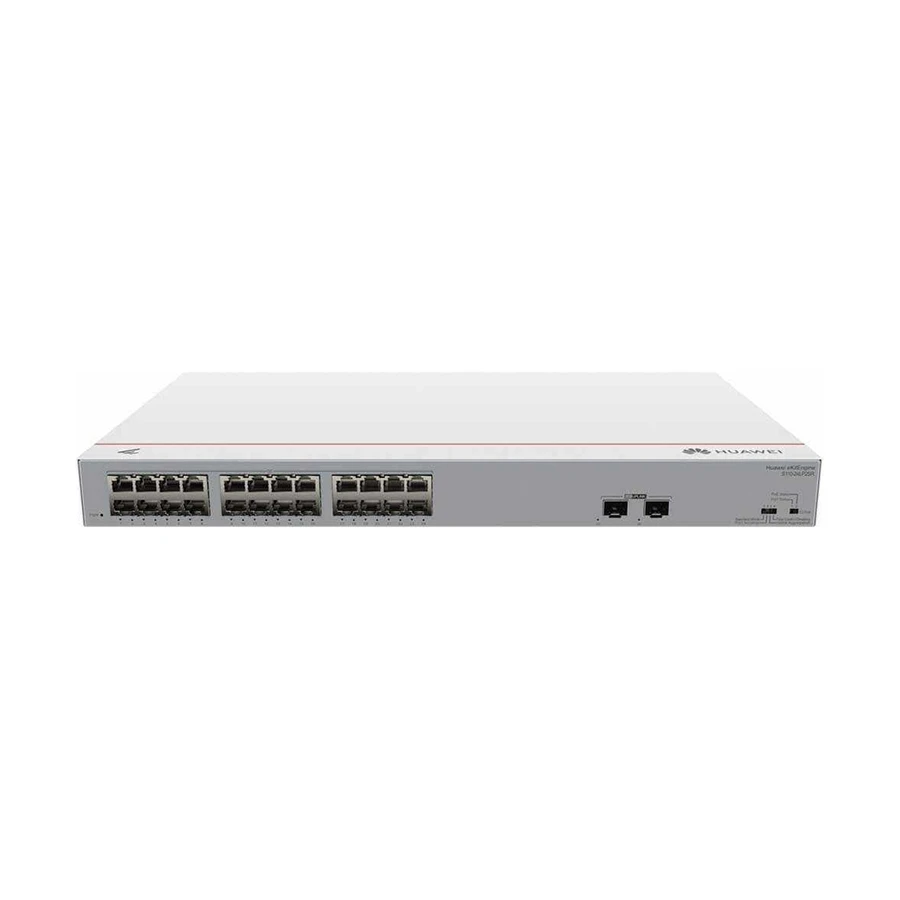

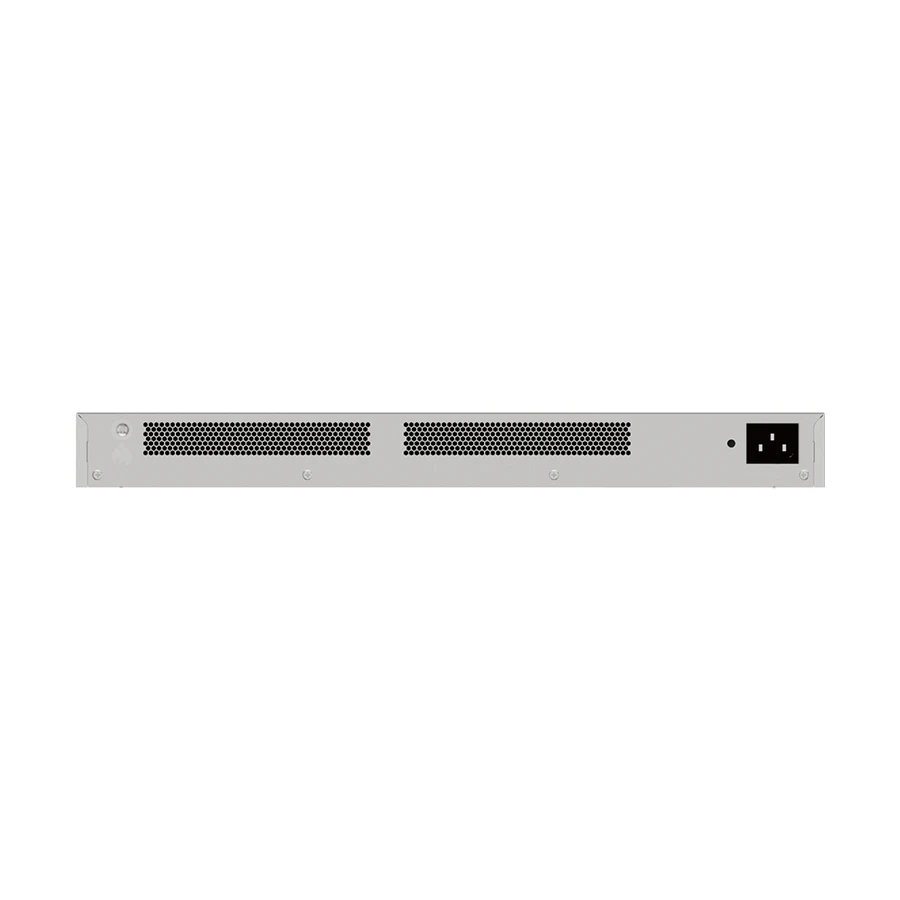

Huawei S110-24LP2SR 26 Port Unmanaged eKit SOHO Switch

Product Id: 29.05.487.13

Brand Huawei

Special Price
Tk 30,000  (Estimated)
Regular Price
Tk 32,230 (Estimated)
EMI TK 2,686

Delivery in 1 days

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 26 Port
  • PoE - Yes
  • Manageability - Unmanaged
  • Data Transfer Rate - 10/100/1000 Mbps
  • Form Factor - 1U Rack-mountable
General
Brand
Huawei

Model
Huawei S110-24LP2SR

Type
Network Switch


Ports & Slots
Number of Total Port
26 Port

Gigabit Port
26

SFP Port
2

SFP+ Port
24


Technical Info
PoE
Yes

Manageability
Unmanaged

Interface(s)
24 x 10/100/1000Mbps PoE+, 2 x 10/100/1000Mbps SFP

Data Transfer Rate
10/100/1000 Mbps

Connector Type
24 x 10/100/1000 Mbps RJ45, 2 x 10/100/1000Mbps SFP

MTBF
376236.72 Hours


Physical Description
Fan/Fanless
Fanless

Indicators
PWR , Port Indicator (Steady on, Blinking)

Body Material
Metal

Body Color
Grey

Form Factor
1U Rack-mountable

Dimension
43.6 x 442 x 260mm

Weight
3.2 Kg

Packet Contents
Huawei S110-24LP2SR Switch, User Manual, Warranty Card


Power
Power Supply
100 - 240 V AC; 50/60 Hz

Approx. Power Consumption
24W (Typical), Without PoE: 24 W, Full PoE load: 165 W (PoE: 124 W) (Max.), 13W (Static)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
Typical heat dissipation: 81.89 BTU/hour, MTTR: 2 hours, Availability: > 0.99999, Noise at normal temperature (acoustic power): Noise-free (no fans), < 30, Noise at normal temperature (acoustic pressure): Noise-free (no fans), < 20, Working mode: Standard mode, Port isolation, Uplink aggregation, Flow control disabling, MAC address entry: 8K, Long-term operating temperature: 0 Degree C to 40 Degree C at an altitude of 0 -1800m (0-5906 ft.), Restriction on the operating temperature variation rate: When the altitude is 1800 - 5000 m (5906-16404 ft.), the highest operating temperature reduces by 1 Degree C every time the altitude increases by 220 m (722 ft.), Storage temperature: -40 Degree C to 70 Degree C, Long-term operating relative humidity: 5% RH to 95% RH (non-condensing), Long-term operating altitude: 0 - 5000 m (0 - 16404 ft.), Storage altitude: 0 - 5000 m (0 - 16404 ft.), Power supply mode: AC built-in, Rated input voltage: AC input: 100 - 240 V AC; 50/60 Hz, Input voltage range: AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz, Maximum input current: 3 A, Service port surge protection: Common mode: -+4 kV, Power supply surge protection: Differential mode: -+6 kV; common mode: -+6 kV, Ingress protection level (dustproof/waterproof): IP20, Heat dissipation mode: Natural heat dissipation, Certification: EMC certification, Safety certification, Manufacturing certification

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
