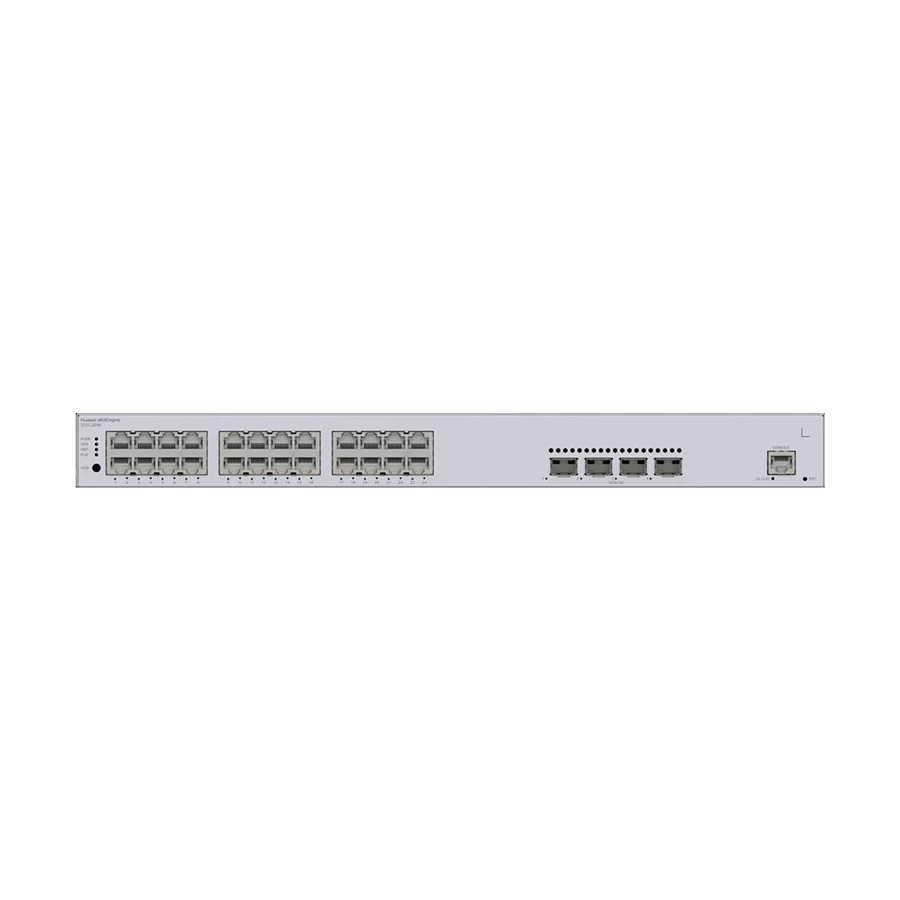

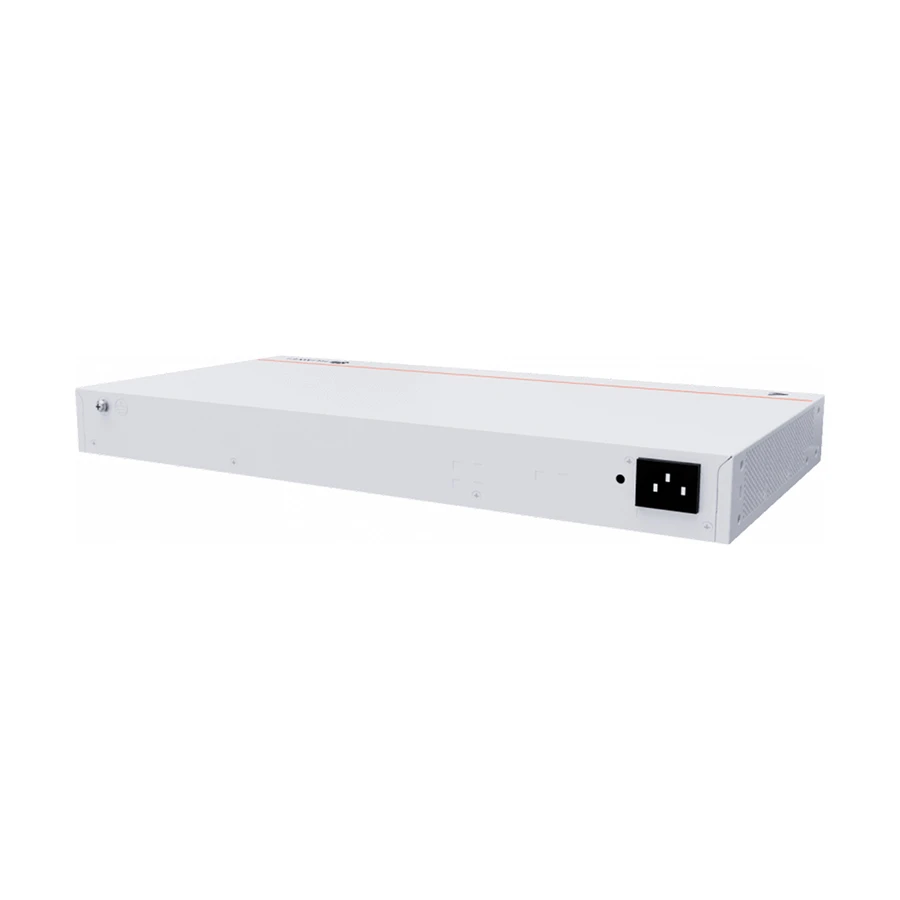

Huawei S310-24P4X 28 Port Managed eKit SMB Switch

Product Id: 29.05.487.31

Brand Huawei

Regular Price Tk 101,770 Monthly EMI Tk 8,481
Special Price Tk 94,000

Delivery in 1 days

Quick Overview

  • Form Factor - 1U Rack-mountable
  • Port - Above 30 Port
  • Type - Network Switch
  • Manageability - Managed
  • PoE - Yes
General
Brand
Huawei

Model
Huawei S310-24P4X

Type
Network Switch


Ports & Slots
Port
Above 30 Port

Number of Total Port
28 Port

Gigabit Port
28

SFP+ Port
4

PoE+ Port
24


Technical Info
PoE
Yes

Manageability
Managed

Interface(s)
24 x 10/100/1000Mbps PoE+, 4 x 10GE SFP+

Memory
2GB

Connector Type
24 x 10/100/1000 Mbps PoE+, 4 x 10/100/1000Mbps SFP+

MTBF
527537.88 Hours


Physical Description
Fan/Fanless
Fan

Indicators
PWR, SYS (Steady on, Fast blinking, Slow blinking), PoE (Steady on), CLOUD (Fast blinking, Slow blinking)

Body Material
Metal

Body Color
White

Form Factor
1U Rack-mountable

Dimension
43.6 x 442.0 x 220.0mm

Weight
2.92 Kg


Power
Power Supply
100 V AC to 240 V AC, 50/60 Hz

Approx. Power Consumption
37.12 W (Typical), Without PoE: 44.35 W, Full PoE load: 485.91 W (PoE: 400 W) (Max.), 27.07W (Static)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
Typical heat dissipation: 126.65 BTU/hour, Maximum heat dissipation: Without PoE: 151.32,Full PoE load: 1657.92, MTTR: 2 hours, Availability: > 0.99999,Noise at normal temperature (acoustic power): 49.3 dB(A), Noise at normal temperature (acoustic pressure): 37.3 dB(A),Number of fans modules: 2, Long-term operating temperature: - 5 Degree C to 50 Degree C at an altitude of 0 -1800m (0-5906 ft.), Restriction on the operating temperature variation rate: When the altitude is 1800 - 5000 m (5906-16404 ft.), the highest operating temperature reduces by 1 Degree C every time the altitude increases by 220 m (722 ft.), Devices cannot start when the temperature is lower than 0 Degree C, Storage temperature: -40 Degree C to 70 Degree C, Long-term operating relative humidity: 5% RH to 95% RH (non-condensing), Long-term operating altitude: 0 - 5000 m (0 - 16404 ft.), Storage altitude: 0 - 5000 m (0 - 16404 ft.),Power supply mode: AC built-in,Rated input voltage: AC input: 100 V AC to 240 V AC, 50/60 Hz High-voltage DC input: 240 V DC. Flash memory: Physical space: 1 GB, Console port: RJ45,Service port surge protection: Common mode: -+7 kV, Power supply surge protection: Differential mode: -+6 kV; common mode: -+6 kV, Ingress protection level (dustproof/waterproof): IP20,Types of fans: Built-in, Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment, Airflow direction: Air intake from left and front, air exhaustion from right, Certification: EMC certification, Safety certification, Manufacturing certification

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
