General

Brand

TP-Link

Model

TP-Link Omada ES228GMP V1

Type

Desktop Switch

Ports & Slots

Number of Total Port

28 Port

Gigabit Port

SFP Port

PoE+ Port

Technical Info

PoE

Yes

Manageability

Managed

Interface(s)

24 x 10/100/1000 Mbps PoE+ RJ45 Ports, 2 x 10/100/1000 Mbps RJ45 Port, 2 x Gigabit SFP Slot, Auto-Negotiation/Auto MDI/MDIX

Network Standards

802.3af PoE, 802.3at PoE+

Data Transfer Rate

10/100/1000 Mbps

Connector Type

26 x 10/100/1000 Mbps RJ45, 2 x 10/100/1000Mbps SFP

Switching Capacity

56Gbps

Physical Description

Fan/Fanless

2 x Fan

Indicators

Yes

Body Material

Metal

Body Color

Black

Form Factor

Rackmount

Dimension

440 x 330 x 44mm

Packet Contents

ES228GMP, Power Cord, Mounting Brackets, Rubber Feet, Screws, Installation Guide

Power

Power Supply

100 - 240V AC, 50/60Hz

Warranty

Warranty Details

2 Year (Without Adapter)

Additional Info

Others

Physical Security Lock, PoE Ports (RJ45): Standard: 802.3af PoE and 802.3at PoE+ compliant, PoE Ports: 24 ports, PoE Budget: 384W available for all PoE+ ports, 30W max per port, Fast PoE & Perpetual PoE, PoE Auto Recovery, Up to 250m PoE transmission distance, Surge Protection: +-6kV, Packet Forwarding Rate: 41.67 Mpps, MAC Address Table: 8K, Packet Buffer Memory: 4 Mbit, Jumbo Frame: 15 KB, SOFTWARE FEATURES: Quality of Service: Port-based/802.1p/DSCP QoS, 8 Priority Queues, Priority Schedule Mode, WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control, Port-Based Rating Limit, Storm Control, Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control, L2 Features: Static Link Aggregation, Loop Prevention / Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both, Port Statistics, Port Mirror Status, Traffic Statistics, 802.1ab LLDP, 802.1ab LLDP, L2 Multicast: IGMP v1/v2/v3 Snooping, Fast Leave, VLAN: MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN, Max 32 VLAN Groups, 4K VID, Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller, Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Hardware Controller, Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller, Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller, Management Features: Web-based GUI, DHCP Client, Cable Diagnostics, Cable Diagnostics, Batch Configuration, Batch Firmware Upgrading, Unified Configuration, Certification: FCC, CE, RoHS, Environment: Operating Temperature: -5 Degree C-45 Degree C, Storage Temperature: -40 Degree C-70 Degree C, Operating Humidity: 10%-90% non-condensing, Storing Humidity: 5%-90% non-condensing

Specialty

28 x Gigabit Ports (24 x PoE+, 2 x RJ45, 2 x SFP), 384W Total PoE Budget, Up to 250m PoE Transmission, Easy Centralized Management, Automatic Loop Prevention, PoE Auto Recovery, Traffic Separation, Traffic Prioritization, Easy Setup, Use, and Maintenance, Access Anytime via Omada App or Web

Country Of Origin

China

Made in/ Assemble

China

Details

Features of TP-Link Omada ES228GMP V1 Network Switch In Bangladesh

The TP-Link Omada ES228GMP V1 is a powerful 28-port desktop switch. It works well for offices, schools, and small data centers. Network managers and IT teams needing many connections can use this switch. It is a good option for users who want easy PoE support and stable connectivity. It makes managing multiple devices simple and keeps network setups neat and organised.

What Are the Features & Benefits of the TP-Link Omada ES228GMP V1

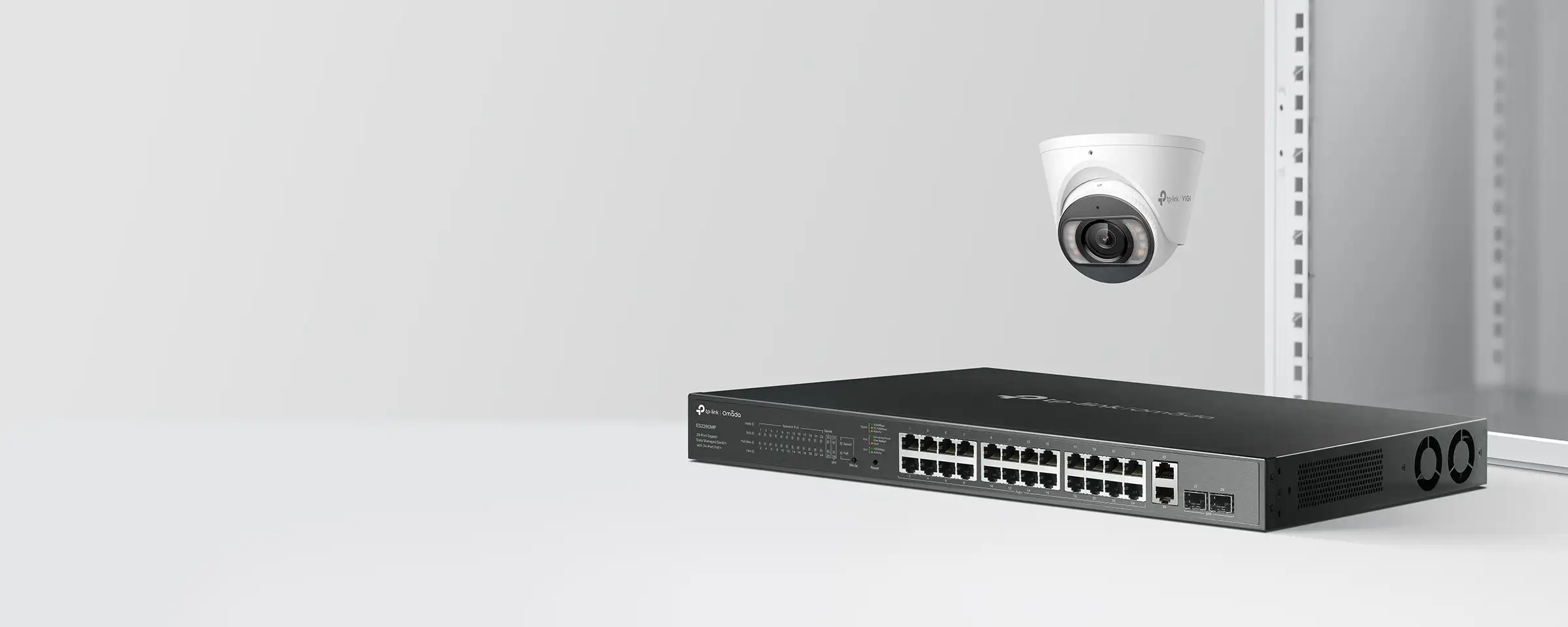

The TP-Link Omada ES228GMP V1 supports 28 ports with 802.3af PoE and 802.3at PoE+ standards. Data transfers run at 10/100/1000 Mbps to ensure fast and reliable network speed. Managed features allow control over traffic for smoother internet and application performance. The switch comes in a black rackmount form, saving space in offices or server rooms. It can power cameras, phones, and other devices without separate adapters. Energy-efficient design lowers power consumption while supporting multiple devices. Users can prioritize important traffic to avoid slowdowns. Its professional build ensures long-lasting performance. Installation is simple and monitoring devices is easy.

What Should You Consider Before Buying the TP-Link Omada ES228GMP V1

Before buying, ensure 28 ports match your network size. Managed features need basic networking knowledge. PoE may not be required for all users, adding unnecessary cost. Rackmount design needs proper installation space. Noise is low but noticeable in quiet environments. This buying guide helps users decide if the switch fits their needs. High price may not suit casual home users or very small networks.

Buy Your TP-Link Omada ES228GMP V1 from Ryans Computers Ltd

Get the TP-Link Omada ES228GMP V1 fromRyans Computers. We provide genuine products at the best price in Bangladesh. Online orders are fast, and delivery covers most areas. Our customer service is ready to assist with setup questions. Visit your nearest Ryans Computers outlet to secure your switch today.

What is the price of TP-Link Omada ES228GMP V1 Network Switch In Bangladesh?

The price of TP-Link Omada ES228GMP V1 Network Switch starts from 29,690 . The price may vary due to your customization and product availability. You can buy TP-Link Omada ES228GMP V1 Network Switch from our website or visit our showrooms nearby.
