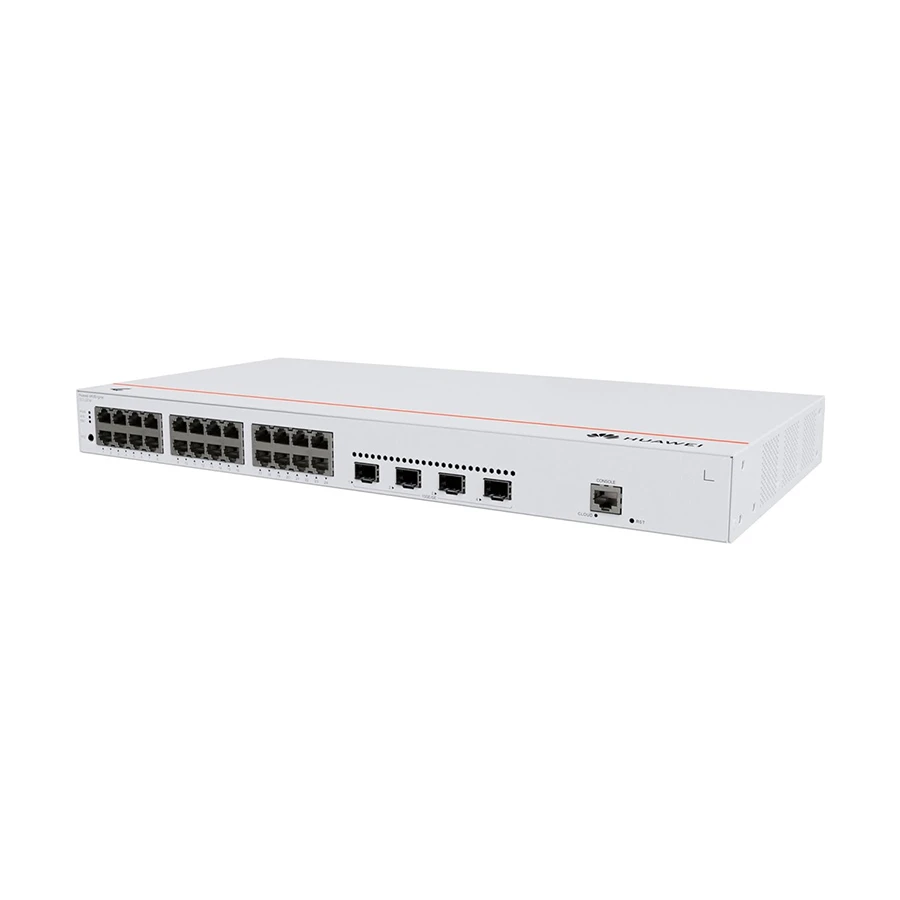

Huawei S310-24T4X 28 Port Switch Managed eKit SMB Switch

Product Id: 29.05.487.30

Brand Huawei

Regular Price Tk 59,460 Monthly EMI Tk 4,955
Special Price Tk 55,000

Delivery in 1 days

Quick Overview

  • Form Factor - 1U Rack-mountable
  • Port - 21 - 30 Port
  • Type - Network Switch
  • Manageability - Managed
  • PoE - No
General
Brand
Huawei

Model
Huawei S310-24T4X

Type
Network Switch


Ports & Slots
Port
21 - 30 Port

Number of Total Port
28 Port

Gigabit Port
28

SFP Port
4

PoE Port
No


Technical Info
PoE
No

Manageability
Managed

Interface(s)
24 x 10/100/1000Mbps Ethernet, 4 x 10GE SFP+

Memory
2GB

Connector Type
24 x 10/100/1000 Mbps RJ45, 4 x 10/100/1000Mbps SFP+

MTBF
620194.5 Hours


Physical Description
Fan/Fanless
Fan

Indicators
PWR, SYS (Steady on, Fast blinking, Slow blinking), MST (Steady on, Blinking), CLOUD (Fast blinking, Slow blinking, Steady on)

Body Material
Metal

Body Color
White

Form Factor
1U Rack-mountable

Dimension
43.6 x 442.0 x 220.0mm

Weight
2.32 Kg


Power
Power Supply
100 - 240 V AC; 50/60 Hz

Approx. Power Consumption
27.27 W (Typical), 35.04 W (Max.), 19.00 W (Static)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
Typical heat dissipation: 93.05 BTU/hour, Maximum heat dissipation: 119.56 BTU/hour, MTTR: 2 hours, Availability: > 0.99999, Noise at normal temperature (acoustic power): 47 dB(A), Noise at normal temperature (acoustic pressure): 35 dB(A), Number of fans modules: 1, Long-term operating temperature: - 5 Degree C to 50 Degree C at an altitude of 0 -1800m (0-5906 ft.), Restriction on the operating temperature variation rate: When the altitude is 1800 - 5000 m (5906-16404 ft.), the highest operating temperature reduces by 1 Degree C every time the altitude increases by 220 m (722 ft.), Devices cannot start when the temperature is lower than 0 Degree C. Storage temperature: -40 Degree C to 70 Degree C, Long-term operating relative humidity: 5% RH to 95% RH (non-condensing), Long-term operating altitude: 0 - 5000 m (0 - 16404 ft.), Storage altitude: 0 - 5000 m (0 - 16404 ft.), Power supply mode: AC built-in, Rated input voltage: AC input: 100 - 240 V AC; 50/60 Hz, Input voltage range: AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz, Maximum input current: 0.8 A, Flash memory: Physical space: 1 GB, Console port: RJ45,` Service port surge protection: Common mode: -+7 kV, Power supply surge protection: Differential mode: -+6 kV; common mode: -+6 kV, Ingress protection level (dustproof/waterproof): IP20, Types of fans: Built-in, Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment, Airflow direction: Air intake from left and front, air exhaustion from right, Certification: EMC certification, Safety certification, Manufacturing certification

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
