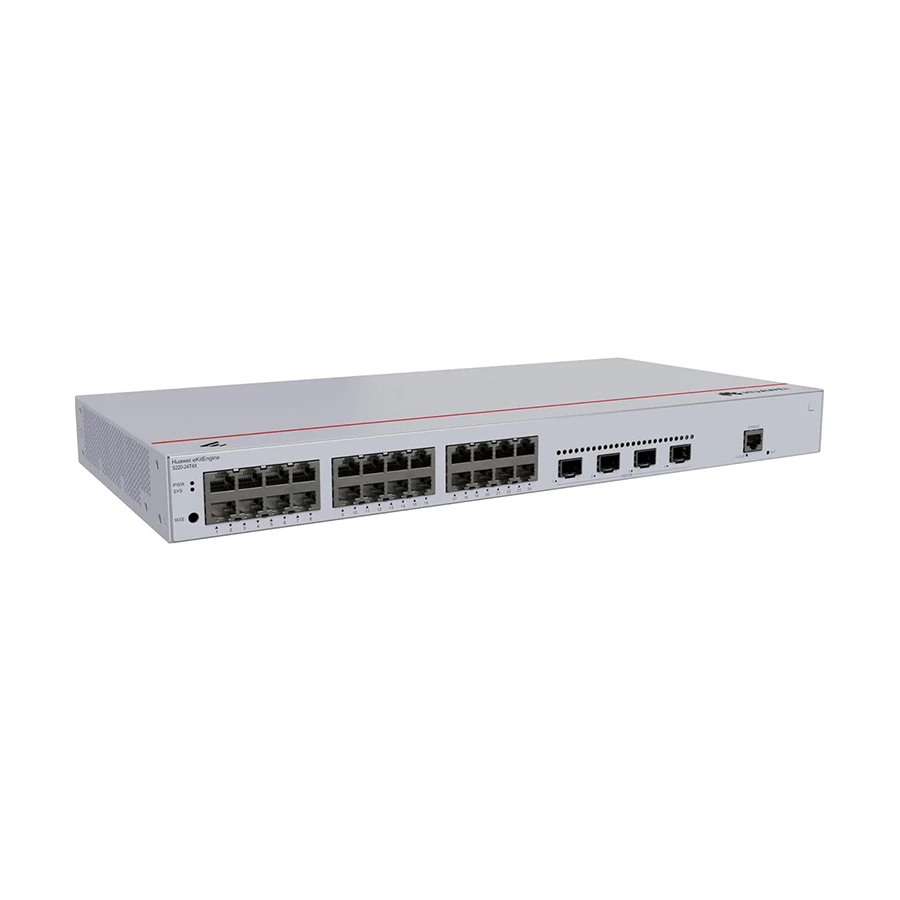

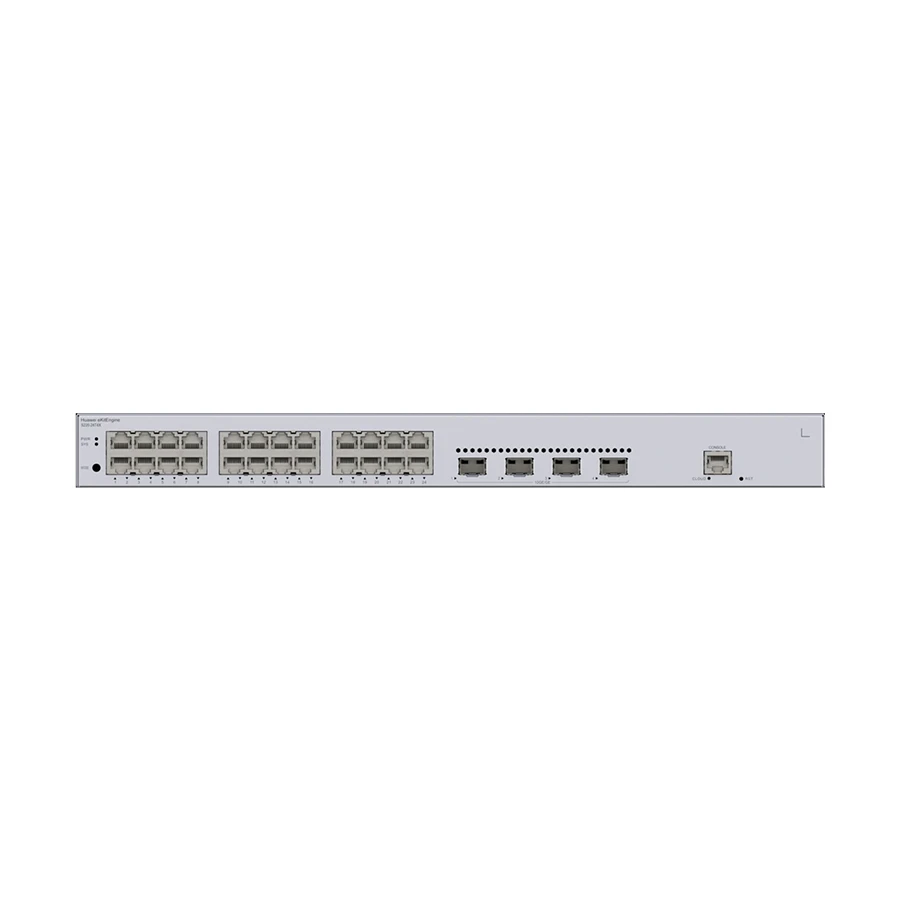

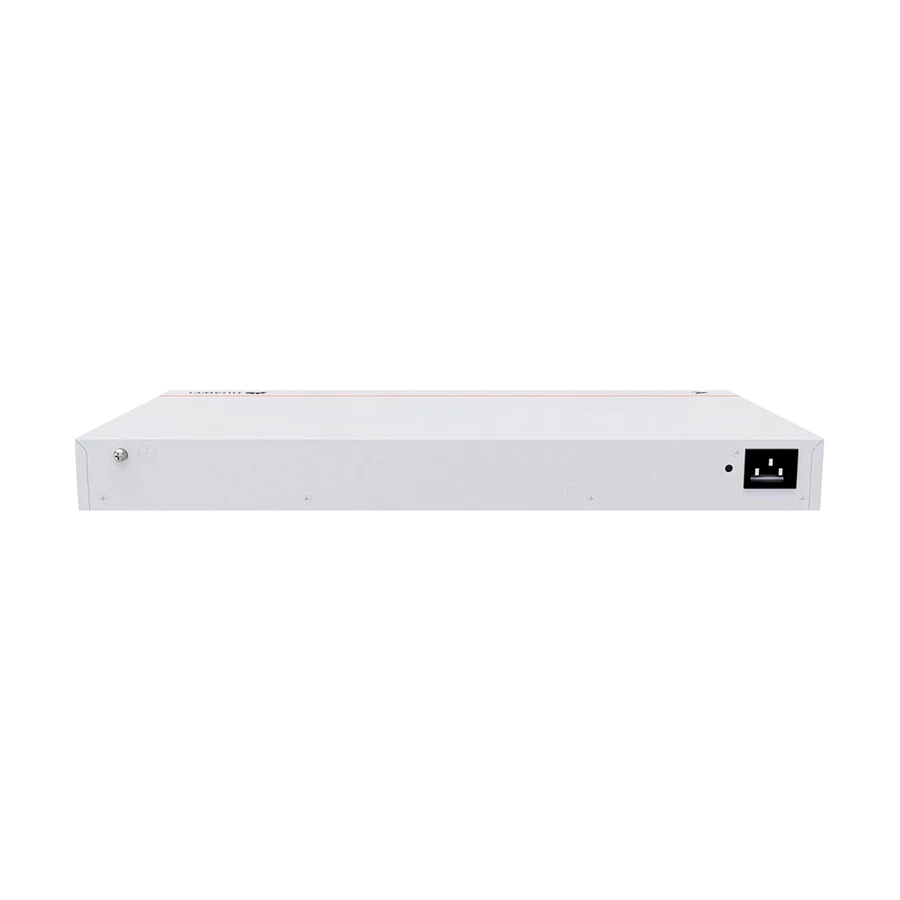

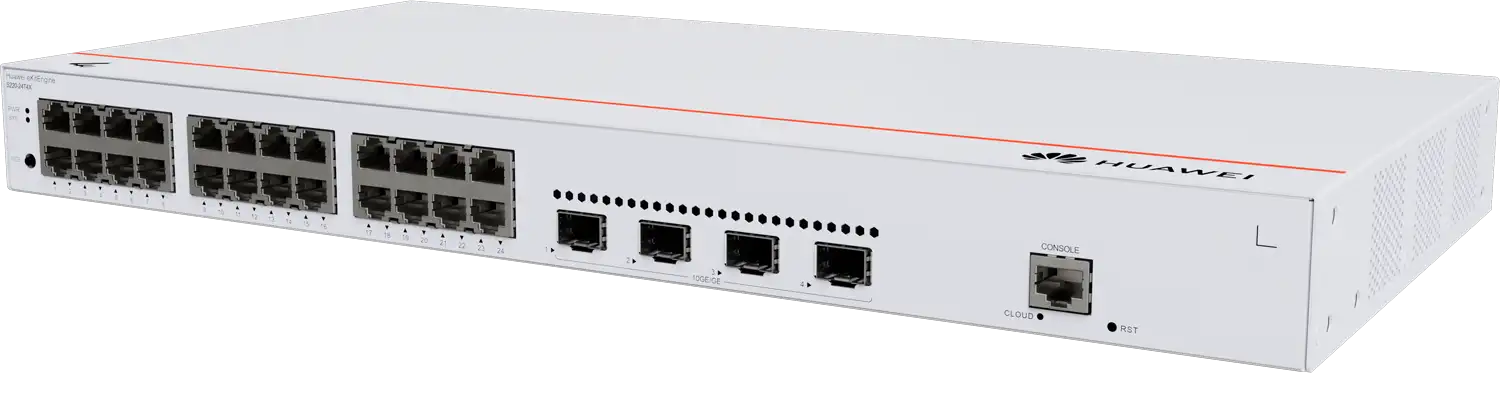

Huawei S220-24T4X 28 Port WEB-Managed eKit SMB Switch

Product Id: 29.05.487.17

Brand Huawei

Regular Price Tk 43,180 Monthly EMI Tk 3,598
Special Price Tk 40,000

Delivery in 1 days

Quick Overview

  • Form Factor - 1U Rack-mountable
  • Port - 21 - 30 Port
  • Type - Network Switch
  • Manageability - Managed
  • PoE - No
General
Brand
Huawei

Model
Huawei S220-24T4X

Type
Network Switch


Ports & Slots
Port
21 - 30 Port

Number of Total Port
28 Port

Gigabit Port
28

SFP+ Port
4


Technical Info
PoE
No

Manageability
Managed

Interface(s)
24 x 10/100/1000Mbps Ethernet , 4 x 10GE SFP+

Memory
2GB

Connector Type
24 x 10/100/1000 Mbps RJ45, 4 x 10/100/1000Mbps SFP+

MTBF
620194.5 Hours


Physical Description
Fan/Fanless
Fan

Indicators
PWR, SYS (Steady on, Fast blinking, Slow blinking), MODE, CLOUD (Fast blinking, Slow blinking)

Body Material
Metal

Body Color
Light Grey

Form Factor
1U Rack-mountable

Dimension
43.6 x 442 x 220mm

Weight
2.32 Kg


Power
Power Supply
100 - 240 V AC; 50/60 Hz

Approx. Power Consumption
27.27W (Typical), 35.04W (Max.), 19W (Static)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
Typical heat dissipation: 93.05 BTU/hour, Maximum heat dissipation: 119.56 BTU/hour, MTTR: 2 hours, Availability: > 0.99999, Noise at normal temperature (acoustic power): 47 dB(A), Noise at normal temperature (acoustic pressure): 35 dB(A), Number of fans modules: 1, Long-term operating temperature: - 5 Degree C to 50 Degree C at an altitude of 0 -1800m (0-5906 ft.), Restriction on the operating temperature variation rate: When the altitude is 1800 - 5000 m (5906-16404 ft.), the highest operating temperature reduces by 1 Degree C every time the altitude increases by 220 m (722 ft.), Storage temperature: -40 Degree C to 70 Degree C, Long-term operating relative humidity: 5% RH to 95% RH (non-condensing), Long-term operating altitude: 0 - 5000 m (0 - 16404 ft.), Storage altitude: 0 - 5000 m (0 - 16404 ft.), Power supply mode: AC built-in, Rated input voltage: AC input: 100 - 240 V AC; 50/60 Hz, Input voltage range: AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz, Maximum input current: 0.8 A, Flash memory: Physical space: 1 GB, Console port: RJ45,` Service port surge protection: Common mode: -+7 kV, Power supply surge protection: Differential mode: -+6 kV; common mode: -+6 kV, Ingress protection level (dustproof/waterproof): IP20, Types of fans: Built-in, Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment, Airflow direction: Air intake from left and front, air exhaustion from right, Certification: EMC certification, Safety certification, Manufacturing certification

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
