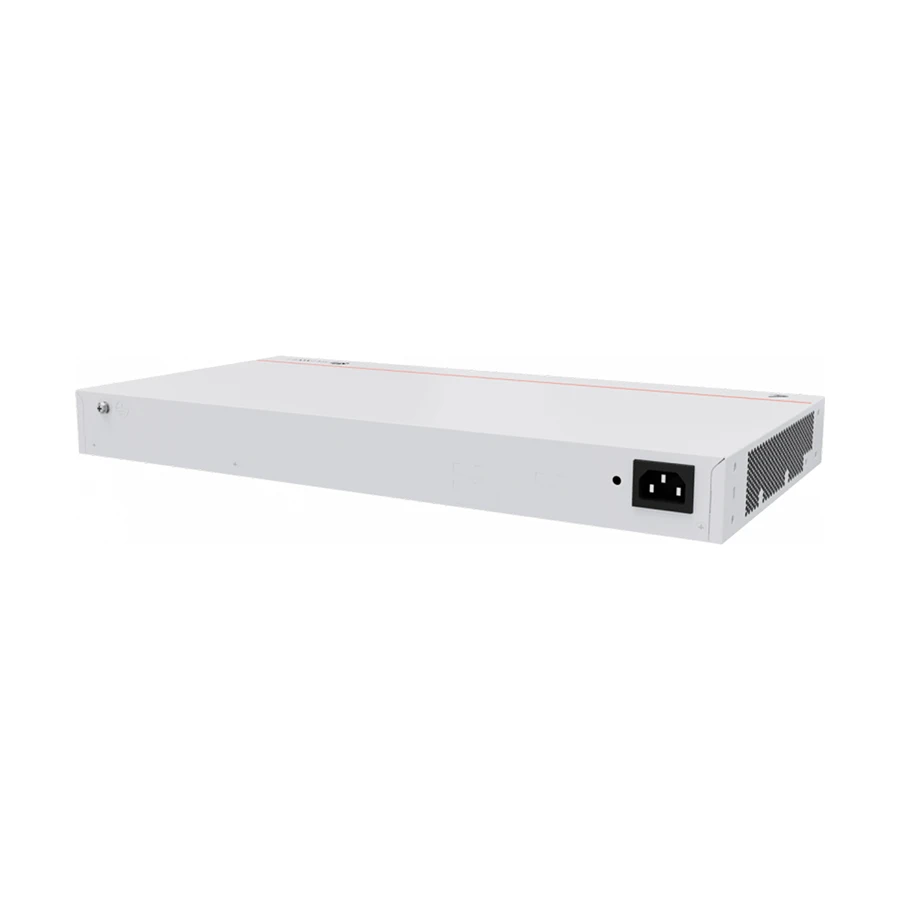

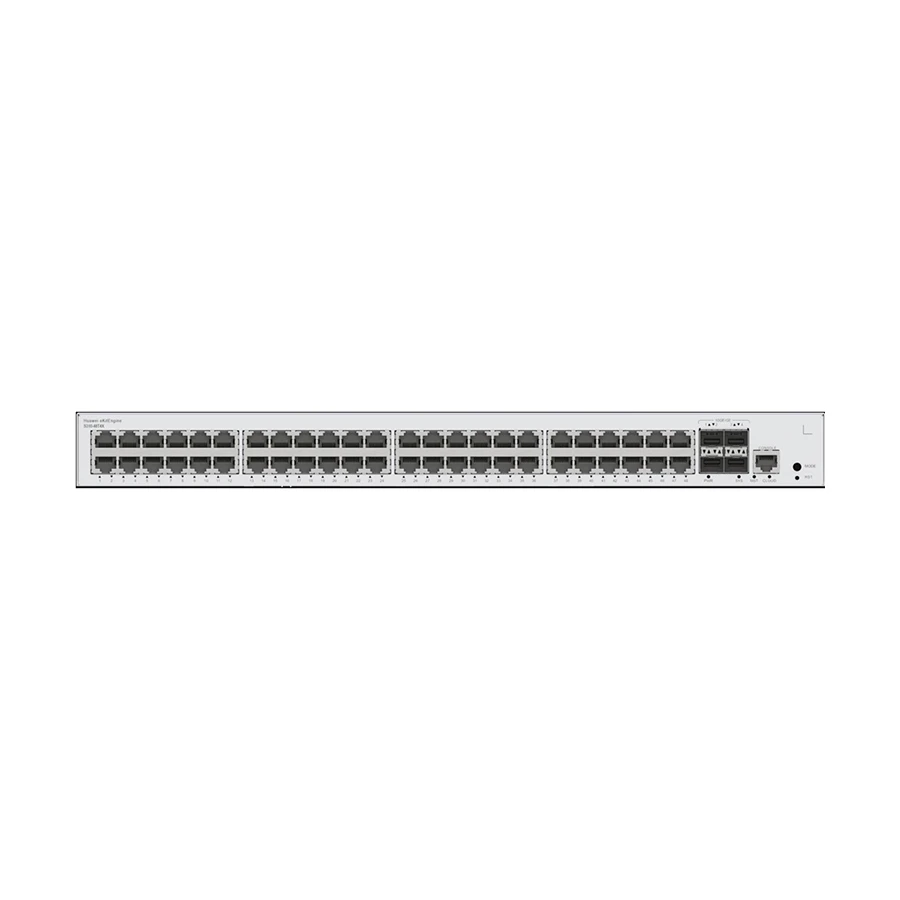

Huawei S310-48T4X 52 Port Managed eKit SMB Switch

Product Id: 29.05.487.32

Brand Huawei

Regular Price Tk 90,920 Monthly EMI Tk 7,577
Special Price Tk 84,000

Delivery in 1 days

Quick Overview

  • Form Factor - 1U Rack-mountable
  • Port - Above 30 Port
  • Type - Network Switch
  • Manageability - Managed
  • PoE - No
General
Brand
Huawei

Model
Huawei S310-48T4X

Type
Network Switch


Ports & Slots
Port
Above 30 Port

Number of Total Port
52 Port

Gigabit Port
52

SFP+ Port
4


Technical Info
PoE
No

Manageability
Managed

Interface(s)
48 x 10/100/1000Mbps Ethernet, 4 x 10GE SFP

Memory
2GB

Connector Type
48 x 10/100/1000 Mbps RJ45, 4 x 10/100/1000Mbps SFP+

MTBF
355987.26 Hours


Physical Description
Fan/Fanless
Fan

Indicators
PWR, SYS (Fast blinking, Steady on, Slow blinking), MST (Steady on, Blinking), CLOUD (Fast blinking, Slow blinking)

Body Material
Metal

Body Color
White

Form Factor
1U Rack-mountable

Dimension
43.6 x 442.0 x 220mm

Weight
2.71 Kg


Power
Power Supply
100 - 240 V AC; 50/60 Hz

Approx. Power Consumption
36.95 W (Typical), 44.03 W (Max.), 18.8 W (Static)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
Typical heat dissipation: 126.07 BTU/hour, Maximum heat dissipation: 151.15 BTU/hour, MTTR: 2 hours, Availability: > 0.99999, Noise at normal temperature (acoustic power): 46.6 dB(A), Noise at normal temperature (acoustic pressure): 34.6 dB(A), Number of fans modules: 1, Long-term operating temperature: - 5 Degree C to 50 Degree C at an altitude of 0 -1800m (0-5906 ft.), Restriction on the operating temperature variation rate: When the altitude is 1800 - 5000 m (5906-16404 ft.), the highest operating temperature reduces by 1 Degree C every time the altitude increases by 220 m (722 ft.), Devices cannot start when the temperature is lower than 0 Degree C. The operating temperature ranges from - 5 degree C to +45 Degreee C when optical modules with transmission distances greater than or equal to 60 km are used. The device does not support dying gasp when the ambient temperature is higher than 40 Degree C, Storage temperature: -40 Degree C to 70 Degree C, Long-term operating relative humidity: 5% RH to 95% RH (non-condensing), Long-term operating altitude: 0 - 5000 m (0 - 16404 ft.), Storage altitude: 0 - 5000 m (0 - 16404 ft.), Power supply mode: AC built-in, Rated input voltage: AC input: 100 - 240 V AC; 50/60 Hz, Input voltage range: AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz, Maximum input current: 1.6 A, Flash memory: Physical space: 1 GB, Console port: RJ45, Service port surge protection: Common mode: -+7 kV, Power supply surge protection: Differential mode: -+6 kV; common mode: -+6 kV, Ingress protection level (dustproof/waterproof): IP20, Types of fans: Built-in, Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment, Airflow direction: Air intake from left and air exhaust from right, Certification: EMC certification, Safety certification, Manufacturing certification

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
