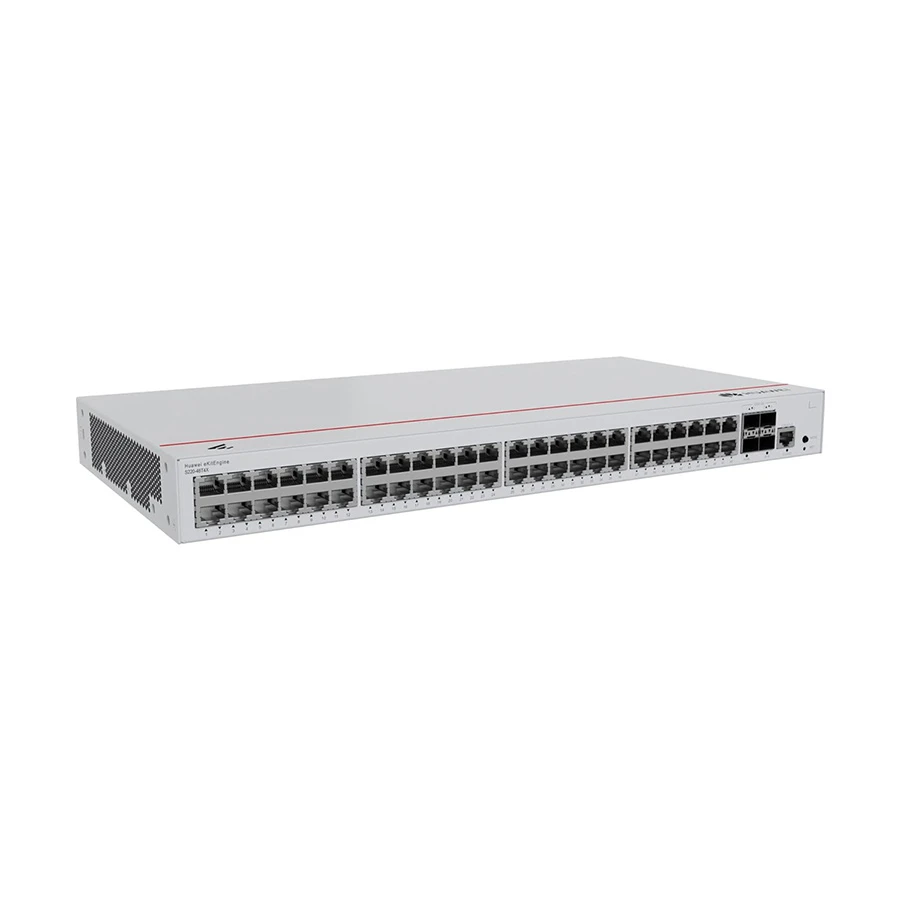

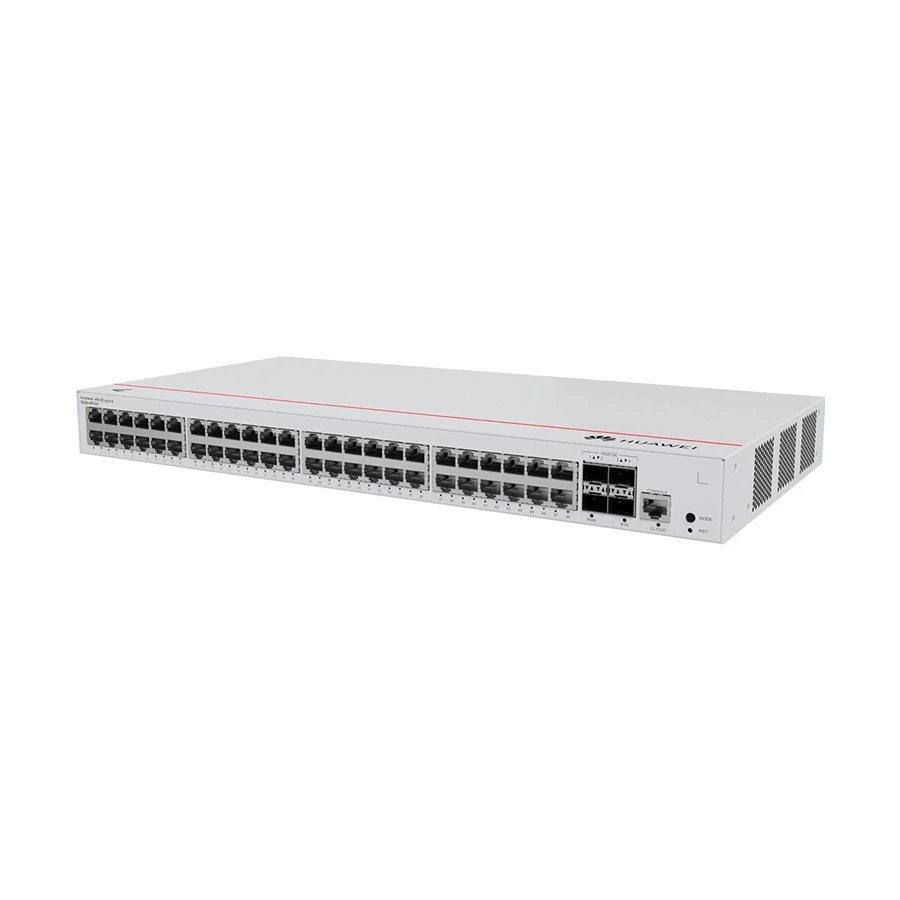

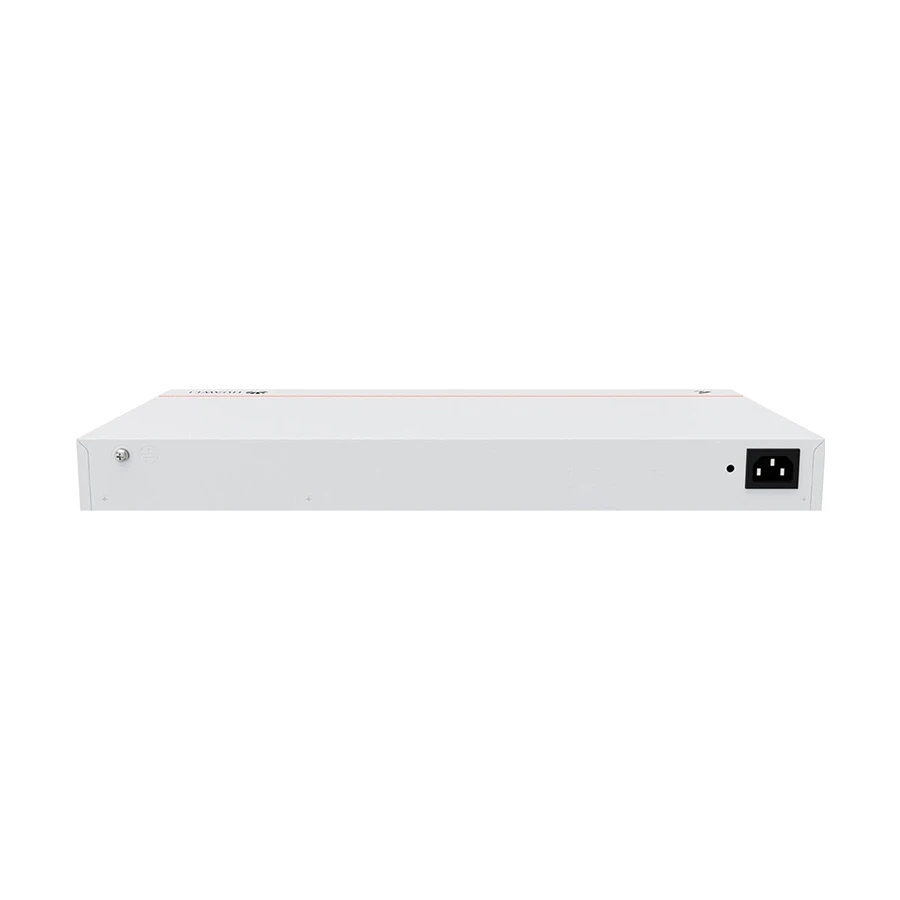

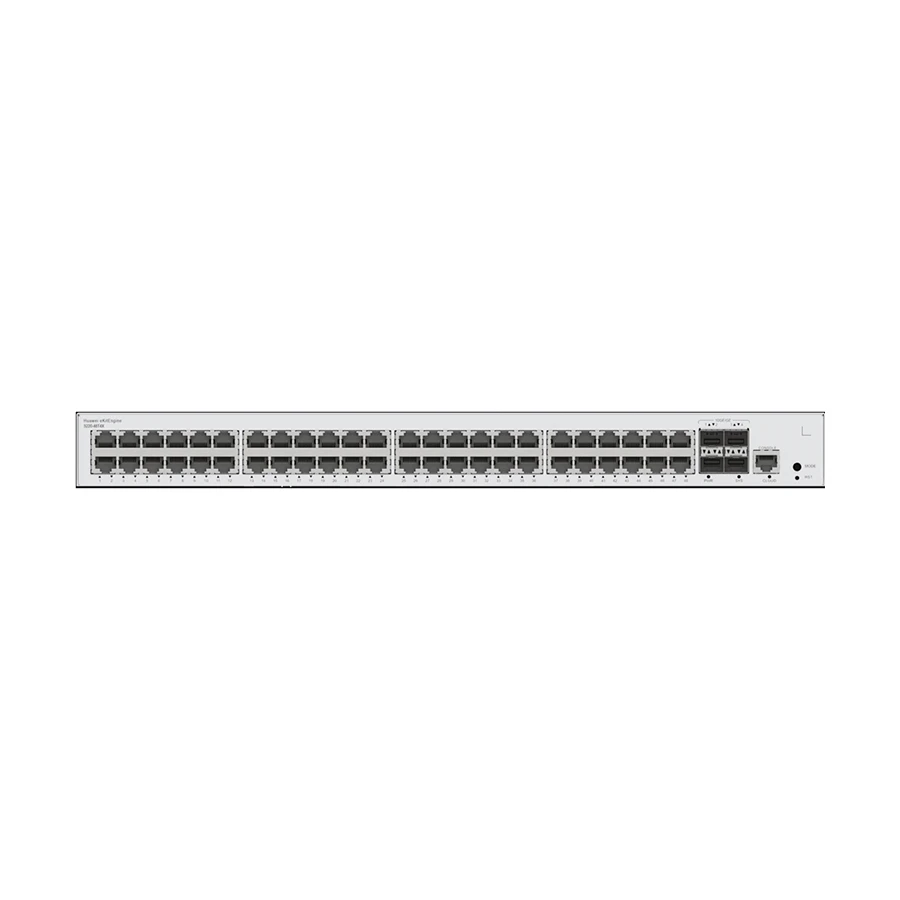

Huawei S220-48T4X 52 Port Managed eKit SMB Switch
Product Id: 29.05.487.21
Brand
Huawei
Quick Overview
- Form Factor - 1U Rack-mountable
- Port - Above 30 Port
- Type - Network Switch
- Manageability - Managed
- PoE - No
General
Brand
Huawei
Model
Huawei S220-48T4X
Type
Network Switch
Ports & Slots
Port
Above 30 Port
Number of Total Port
52 Port
Gigabit Port
52
SFP+ Port
4
Technical Info
PoE
No
Manageability
Managed
Interface(s)
48 x 10/100/1000Mbps Ethernet, 4 x 10GE SFP+
Memory
2GB
Connector Type
48 x 10/100/1000 Mbps RJ45, 4 x 10/100/1000Mbps SFP+
MTBF
355987.26 Hours
Physical Description
Fan/Fanless
Fan
Indicators
PWR, SYS (Fast blinking, Steady on, Slow blinking), CLOUD (Fast blinking, Slow blinking)
Body Material
Metal
Body Color
White
Form Factor
1U Rack-mountable
Dimension
43.6 x 442 x 220mm
Weight
2.71 Kg
Power
Power Supply
100 - 240 V AC; 50/60 Hz
Approx. Power Consumption
36.95 W (Typical), 44.3 W (Max.), 18.8 W(Static)
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Typical heat dissipation: 126.07 BTU/hour, Maximum heat dissipation: 151.15 BTU/hour, MTTR: 2 hours, Availability: > 0.99999, Noise at normal temperature (acoustic power): 46.6 dB(A), Noise at normal temperature (acoustic pressure): 34.6 dB(A), Number of fans modules: 1, Long-term operating temperature: - 5 Degree C to 50 Degree C at an altitude of 0 -1800m (0-5906 ft.), Restriction on the operating temperature variation rate: When the altitude is 1800 - 5000 m (5906-16404 ft.), the highest operating temperature reduces by 1 Degree C every time the altitude increases by 220 m (722 ft.), Devices cannot start when the temperature is lower than 0 Degree C. The operating temperature ranges from - 5 degree C to +45 Degreee C when optical modules with transmission distances greater than or equal to 60 km are used. The device does not support dying gasp when the ambient temperature is higher than 40 Degree C, Storage temperature: -40 Degree C to 70 Degree C, Long-term operating relative humidity: 5% RH to 95% RH (non-condensing), Long-term operating altitude: 0 - 5000 m (0 - 16404 ft.), Storage altitude: 0 - 5000 m (0 - 16404 ft.), Power supply mode: AC built-in, Rated input voltage: AC input: 100 - 240 V AC; 50/60 Hz, Input voltage range: AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz, Maximum input current: 1.6 A, Flash memory: Physical space: 1 GB, Console port: RJ45, Service port surge protection: Common mode: -+7 kV, Power supply surge protection: Differential mode: -+6 kV; common mode: -+6 kV, Ingress protection level (dustproof/waterproof): IP20, Types of fans: Built-in, Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment, Airflow direction: Air intake from left and front, air exhaustion from right, Certification: EMC certification, Safety certification, Manufacturing certification
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
