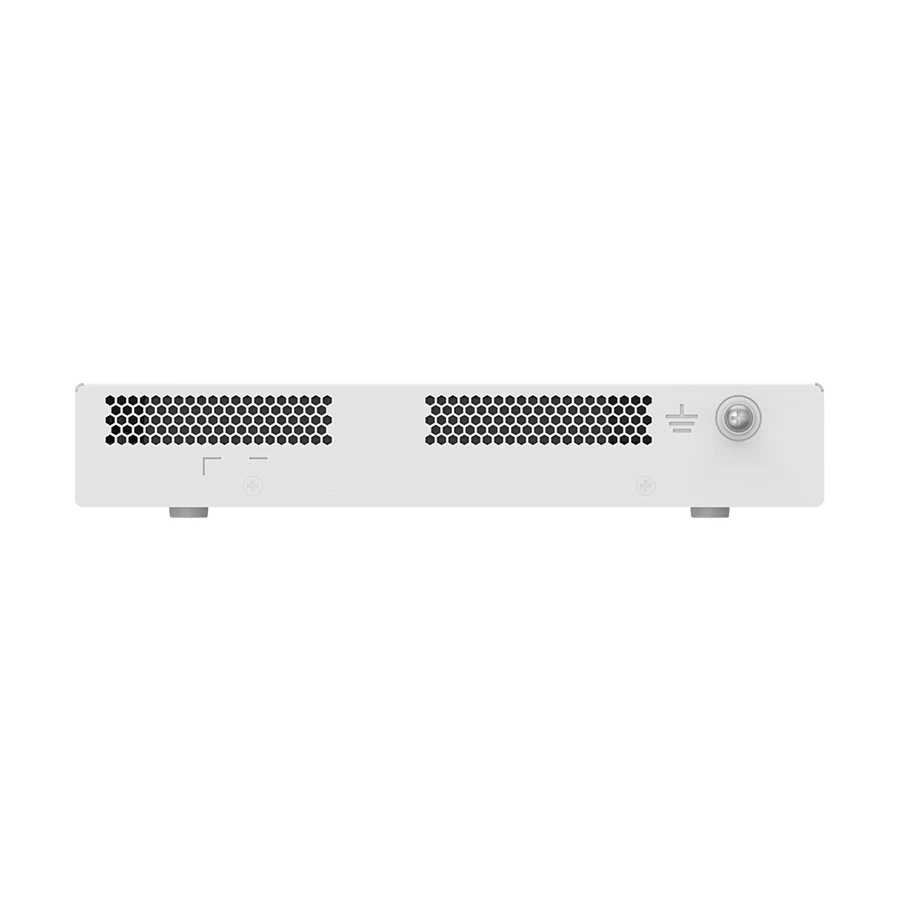

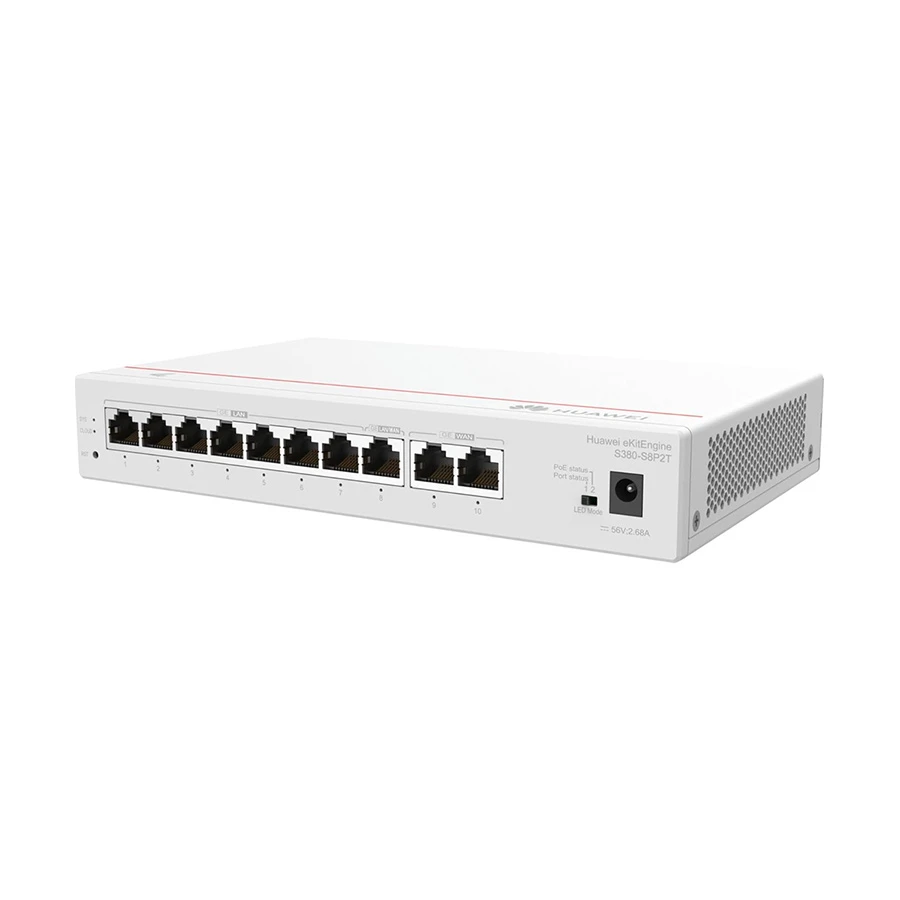

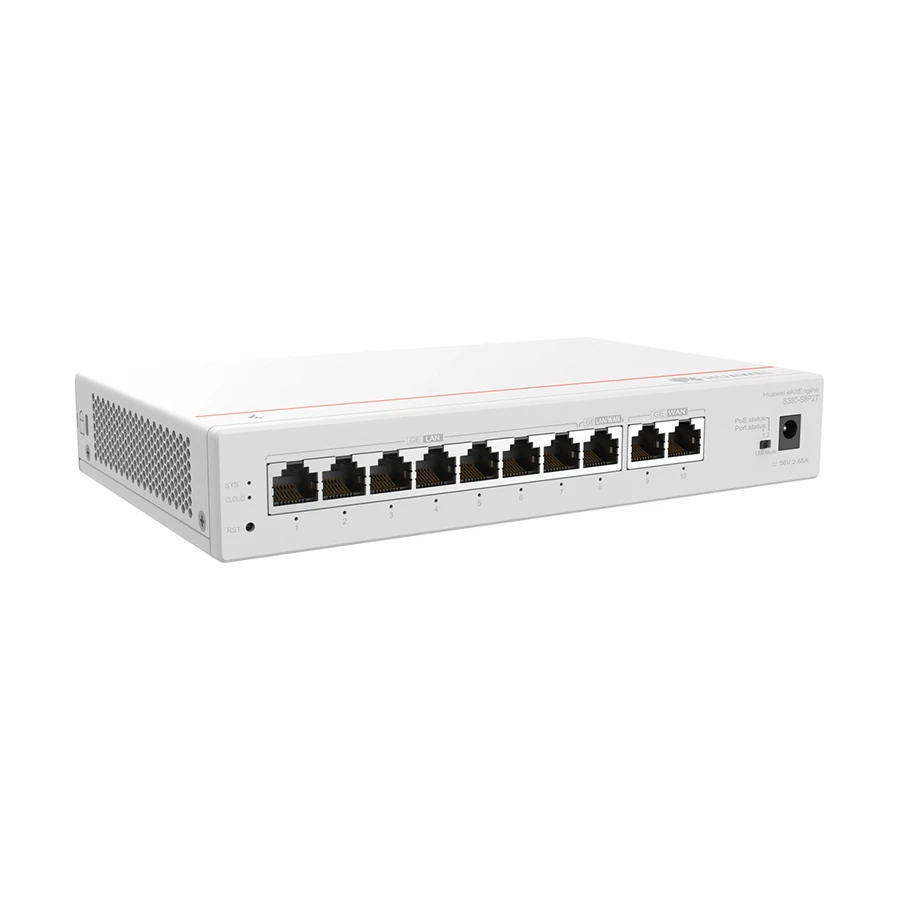

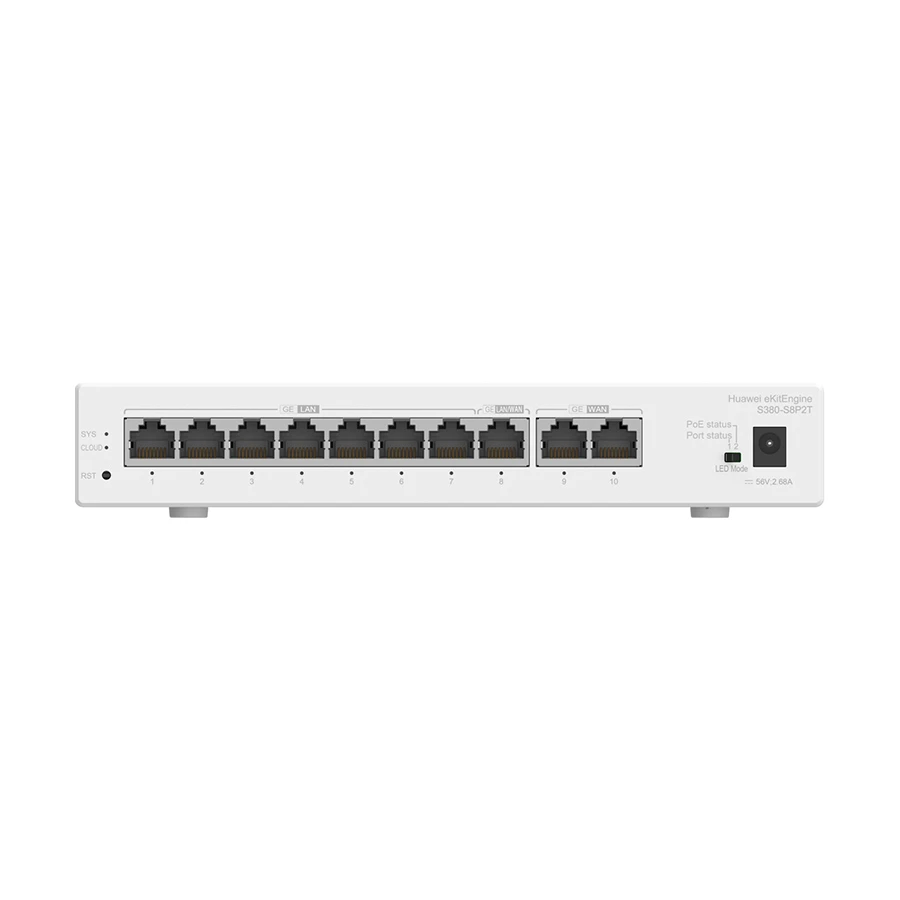

Huawei S380-S8P2T 10 Port, 512MB RAM, Gigabit Ethernet eKit Router
Product Id: 29.01.487.18
Brand
Huawei
Quick Overview
- Antenna (Type & Qty) - Not Applicable
- WiFi Coverage (Approximate) - Not Applicable
- Router Type - Ethernet
- Band - No
General
Brand
Huawei
Model
Huawei S380-S8P2T
Router Type
Ethernet
Hardware
Data Transfer Rate (Wifi)
Not Applicable
WiFi Network Standards
Not Applicable
LAN Network Standard
10/100/1000
WAN Network Standard
10/100/1000
Data Transfer Rate (Lan)
1000 Mbps
RAM
512MB
Storage
512MB
Interface
Interface(s)
8 x 10/100/100Mbps PoE+ (124W) LAN Ports, 2 x 10/100/1000Mbps WAN Port
Number of WAN Port
2
Number of LAN Port
8
USB Interface
No
Internet Connectivity
WAN Only
SIM Card Slot Included
No
Sim Card Slot
No
Wireless
Antenna (Type & Qty)
Not Applicable
Wi-Fi Generation
Lan Only
Band
No
WiFi Coverage (Approximate)
Not Applicable
Number of Concurrent User
Not Applicable
Performance
3G/4G
No
Mesh Technology
No
MIMO Technology
No
Security
Operating Frequency
Not Applicable
VPN Support
No
Voice Assistant
No
Built in Antivirus
No
Electrical
Power
56V - 2.687A, 124W (PoE)
Operating Temperature
0 Degree C to 40 Degree C
Storage Temperature
-40 Degree C to 70 Degree C
Operating Humidity
5% RH to 95% RH (non-condensing)
Physical Description
Wall Mountable
No
Button
1 x Reset Button
LED Indicators
System status indicator, Cloud indicator, Port indicator (Port status), Port indicator (PoE status)
Weight (Kg)
1.5 kg
Dimensions
210.0 x 130.0 x 35.0mm
Color
White
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Chassis height [U]: 0.8U, Chassis material: Metal, Typical power consumption [W]: 12.4W, Typical heat dissipation [BTU/hour]: 42.3 BTU/hour, Maximum power consumption [W]: 145.8W (PoE: 124W), Maximum heat dissipation [BTU/hour]: 497.5 BTU/hour, Static power consumption [W]: 7.53W, MTBF [years]: 65.36 years, MTTR [hours]: 2 hours, Availability: 0.99999, Noise at normal temperature (acoustic power) [dB(A)]: Noise-free (no fans), <30, Noise at normal temperature (acoustic pressure) [dB(A)]: Noise-free (no fans), < 20, Uplink ports: 2 x GE WAN, Downlink ports: 8 x GE LAN (124W PoE+), Long-term operating altitude [m(ft.)]: 0-5000 m (0-16404 ft.), Storage altitude [m(ft.)]: 0-5000 m (0-16404 ft.), Maximum input current [A]: 2.68A, Rated input voltage [V]: Power adapter input: 100-240 V AC; 50/60Hz Power adapter output: 56V DC, Input voltage range [V]: Power adapter input: 90-290V AC; 47-63Hz, Eth Management port: LAN port, Service port surge protection [kV]: Common mode: +/-4 kV, Power supply surge protection [kV]: Power adapter: +/- 6 kV in differential mode and +/- 6 kV in common mode, Ingress protection level (dustproof/waterproof): IP20, Heat dissipation mode: Natural heat dissipation.
Certifications
EMC certification, Safety certification, Manufacturing certification.
Country Of Origin
China
Made in/ Assemble
China
