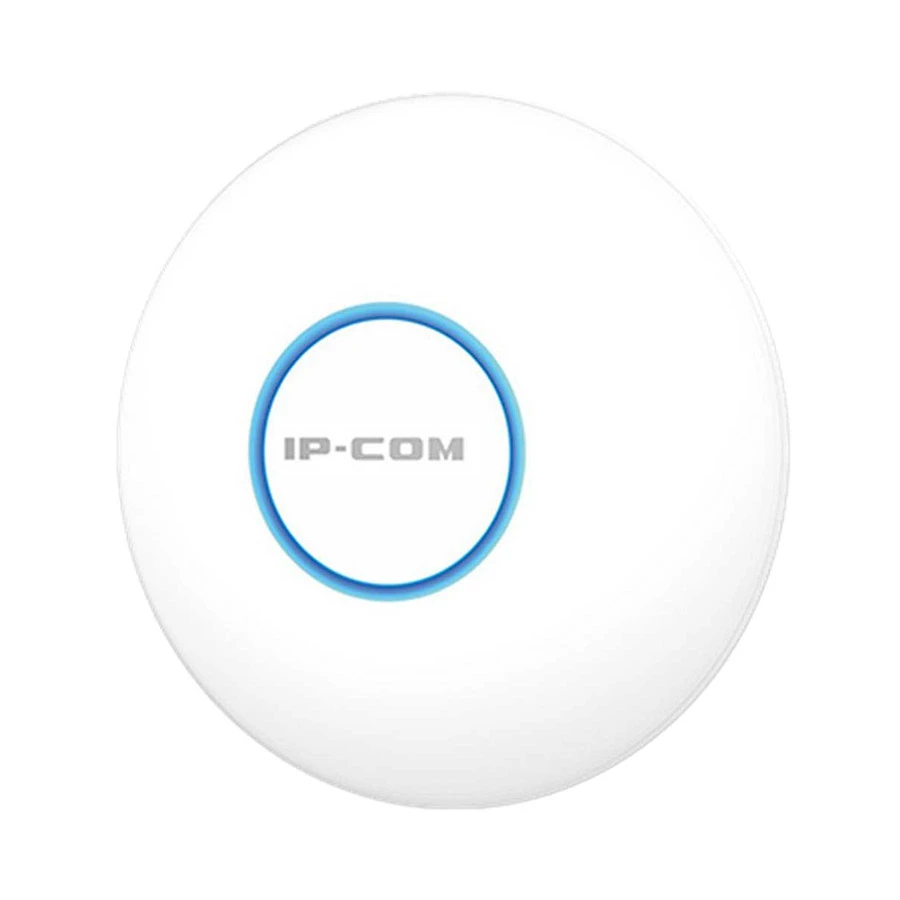

IP-Com iUAP-AC-LR 1317Mbps Dual-Band Long Range Access Point

Item: IP-Com iUAP-AC-LR 1317Mbps Dual-Band Long Range Access Point
Rating: 5
Author: Nafrin Jahan Nupur

9 reviews

Product Id: 29.02.947.02

Coming Soon

Quick Overview

Network Standards - IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Data Transfer Rates - 1317 Mbps
Outdoor Range - 200 Meter
Band - Dual
Interface(s) - 1 x 10/100/1000 Base-TX port
Antenna (Type & Qty) - 3 x Internal

Payment Method Shipping & Charge Order Procedure

Brand

IP-Com

Model

IP-Com iUAP-AC-LR

Network Standards

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Data Transfer Rates

1317 Mbps

Outdoor Range

200 Meter

Band

Dual

Interface(s)

1 x 10/100/1000 Base-TX port

Number of WAN Port

Number of LAN Port

Bluetooth

Antenna (Type & Qty)

3 x Internal

Max. Concurrent Clients

256

MU-MIMO Support

Yes

Multi-User MIMO

Yes

Power Method

IEEE 802.3at & 24V, 0.5A Passive PoE

Max. Power Consumption

13.5W

Operating Mode

AP, Client+AP

Mounting

Yes

Color

White

Dimensions

176 x 176 x 43.5mm

Warranty Details

1 year

General

Brand

IP-Com

Model

IP-Com iUAP-AC-LR

Hardware

Network Standards

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Data Transfer Rates

1317 Mbps

Outdoor Range

200 Meter

WAN Network Standard

LAN Network Standard

10/100/1000

Interface

Interface(s)

1 x 10/100/1000 Base-TX port

Number of WAN Port

Number of LAN Port

USB Sharing Support

Wireless

Security Protocols

WEP, WPA-PSK, WPA2-PSK, WPA, WPA2

Band

Dual

Frequency

2.4GHz - 5GHz

Bluetooth

Antenna (Type & Qty)

3 x Internal

Antenna Gain

4 dBi

Antenna Placement

Internal

MU-MIMO Support

Yes

Multi-User MIMO

Yes

Transmission Power

Adjustable by 1 dBm

Wireless Modes

Access Point

Management

Wireless Users Capacity

256

Max. Concurrent Clients

256

SSID Numbers

Operating Mode

AP, Client+AP

Management

Web UI

Electrical

Power Method

IEEE 802.3at & 24V, 0.5A Passive PoE

Max. Power Consumption

13.5W

Passive PoE Power Supply

24V, 0.5A Passive PoE

Environmental

Operating Temperature

-10 Degree C - 45 Degree C

Operating Humidity

10% - 90% RH, non-condensing

Storing/Storage Temperature

-30 Degree C - 70 Degree C

Storing/Storage Humidity

10% - 90% RH, non-condensing

Physical Description

Button

1 x Reset

LED Indicators

1 x Power

Mounting

Yes

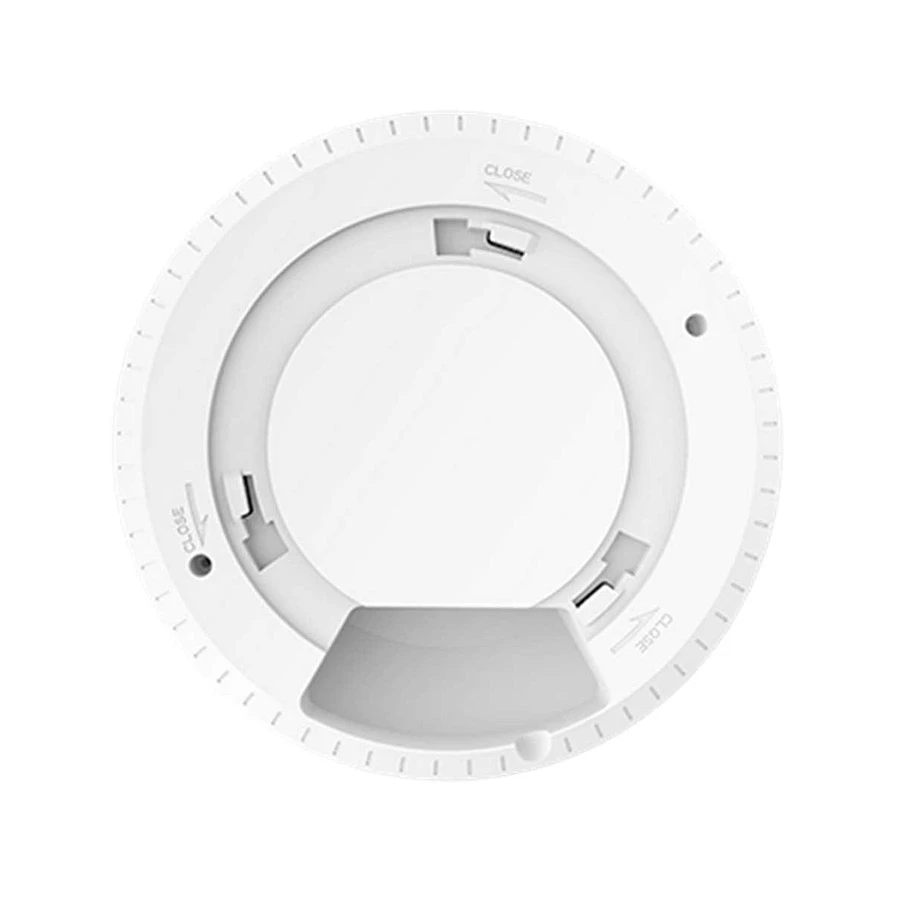

Mount Options

Ceiling

Dimensions

176 x 176 x 43.5mm

Color

White

Packet Contents

IP-Com iUAP-AC-LR Access Point, User Manual

Warranty

Warranty Details

1 year

Additional Info

Others

2.4 GHz data rate: 1 - 450 Mbps, 5 GHz data rate: 6 - 867 Mbps, 2.4 GHz Max. output power: 29 +/- 1.5 dBm, 5 GHz Max. output power: 26 +/- 1.5 dBm, 802.11b RX sensitivity: -94 dBm, 2.4 GHz 802.11n (MCS7) RX sensitivity: -73 dBm, 5 GHz 802.11a RX sensitivity: -93 dBm, 5 GHz 802.11n (MCS7) RX sensitivity: -74 dBm, Max. No. of SSID: 8 at 2.4 GHz, 4 at 5 GHz, Max. connected clients: 128 at 2.4 GHz, 256 at 5 GHz, Access control: MAC address-based, Diagnostics tool: Ping, Traceroute, Firmware upgrade: Local and AC upgrade, Reboot: Local and AC reboot, Reset: Local and AC reset

Specialty

Adjustable power transmit, Frequency analysis, AP isolation, Connected clients control, RSSI threshold, VLAN tagging for SSID, LED indicator control, Scheduled reboot, Reboot at specified interval, Backup configuration, Restore configuration, MU-MIMO for high throughput, Up to 1317 Mbps dual-band data rate, 24V0.5A Passive PoE or IEEE 802.3at Gigabit PoE Port, Wireless coverage up to 200 meters, Gigabit internet connection for ultra-fast experience, IEEE 802.11ac Wave2 and MU-MIMO, Built-in omni-directional antennas, Built-in RF for intelligent optimization, VLAN tagging for SSID, Standard PoE sourcing and DC power supply for easy deployment

Country Of Origin

China

Made in/ Assemble

China

Details

Features of IP-Com iUAP-AC-LR Access Point In Bangladesh

Gigabit internet connection for ultra-fast experience

Up to 1317 Mbps dual-band data rate and the Gigabit Ethernet port offer you ultra-fast internet connections.

IEEE 802.11ac Wave2 and MU-MIMO

Compliant with IEEE 802.11ac Wave2 and powered by MU-MIMO technology, a single iUAP-AC-LR can communicate with multiple wireless clients at one time, letting you enjoy higher throughput and better experience.

Dual-band for more connected clients

iUAP-AC-LR allows clients supporting either 2.4 GHz or 5 GHz band, or both to connect to it at the same time, tripling the quantity of connected clients of traditional single-band AP.

Built-in omni-directional antennas

Built-in high-gain omni-directional antennas guarantee a broader and stable coverage.

Built-in RF for intelligent optimization

Featuring various anti-interference algorithms, the built-in RF enables iUAP-AC-LR to evenly allocate bandwidth resources for multiple users, filter interference, and optimize data rate, offering you a guaranteed signal strength and reliable wireless experience.

VLAN tagging for SSID

iUAP-AC-LR allows you to set multiple SSIDs and add VLAN tags for SSIDs, thus protecting your network.

Standard PoE sourcing and DC power supply for easy deployment

You can use an IEEE 802.3at-compliant PoE sourcing equipment, or a 24V DC power adapter to power on iUAP-AC-LR.

Centralized management

The ProFi Controller makes it easy to manage and monitor the whole ProFi devices in a real-time manner and cloud services enable a remote and secure access free from the restrictions of device location.
