Others
Deployment: Pole Mount, Application Scenarios: PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance. GND: 1 x GND, Reception Sensitivity: 11a 6Mbps -96dBm + - 1.5dBm, 11n MCS0: -96 + - 1.5dBm, 11n MCS7: -72 + - 1.5dBm. Passive PoE: Passive power over ethenet via PoE/LAN (+ 4,5pins -7,8pins) Voltage range: 21-25V DC. Software - TDMA: Support, Enable/Disable Wireless Radio: Support, SSID Hidden: Support, Wireless Client isolation: Support, SSID Isolation: Support, Channel Bandwidth: 10/ 20/ 30/ 40MHz. Channel Shift: Support, Wireless Access Control: Support, Weak Signal Client Limitation: Support, Transmission Power: Adjustable power by 1dBm, WMM Capable: Support, APSD Capable: Support, Transparent Bridge: Support, VLAN Tagging for SSID: Support, DHCP Server: Support, Schedule Reboot: Support, Page Timeout: Support, Ping Watchdog: Support, Dyndns: noip, dyndns.org. Network Diagnoses: Ping, Traceroute, Signal Scan. Time & Date Setting: Support, Firmware upgrade: Support, Backup/Restore Configuration: Support, Username Managerment: Support, System Logs: Support, Managed By Controller: PC Software CPE Assistant, Range: 20KM.
Specialty

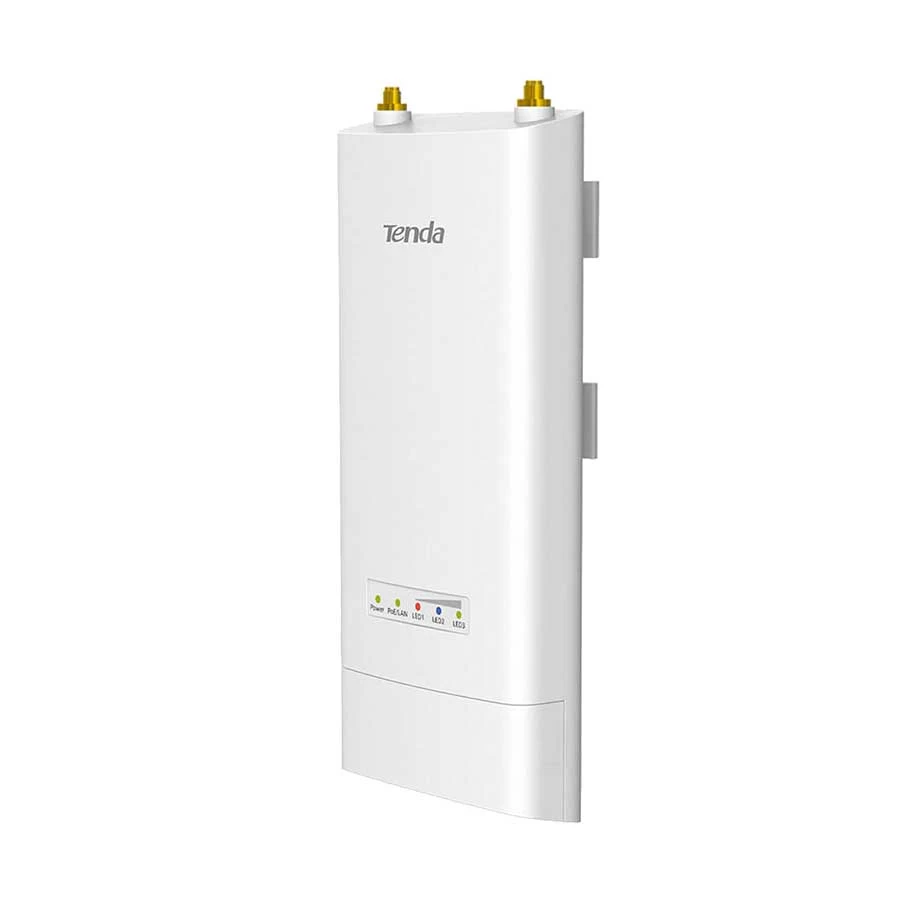

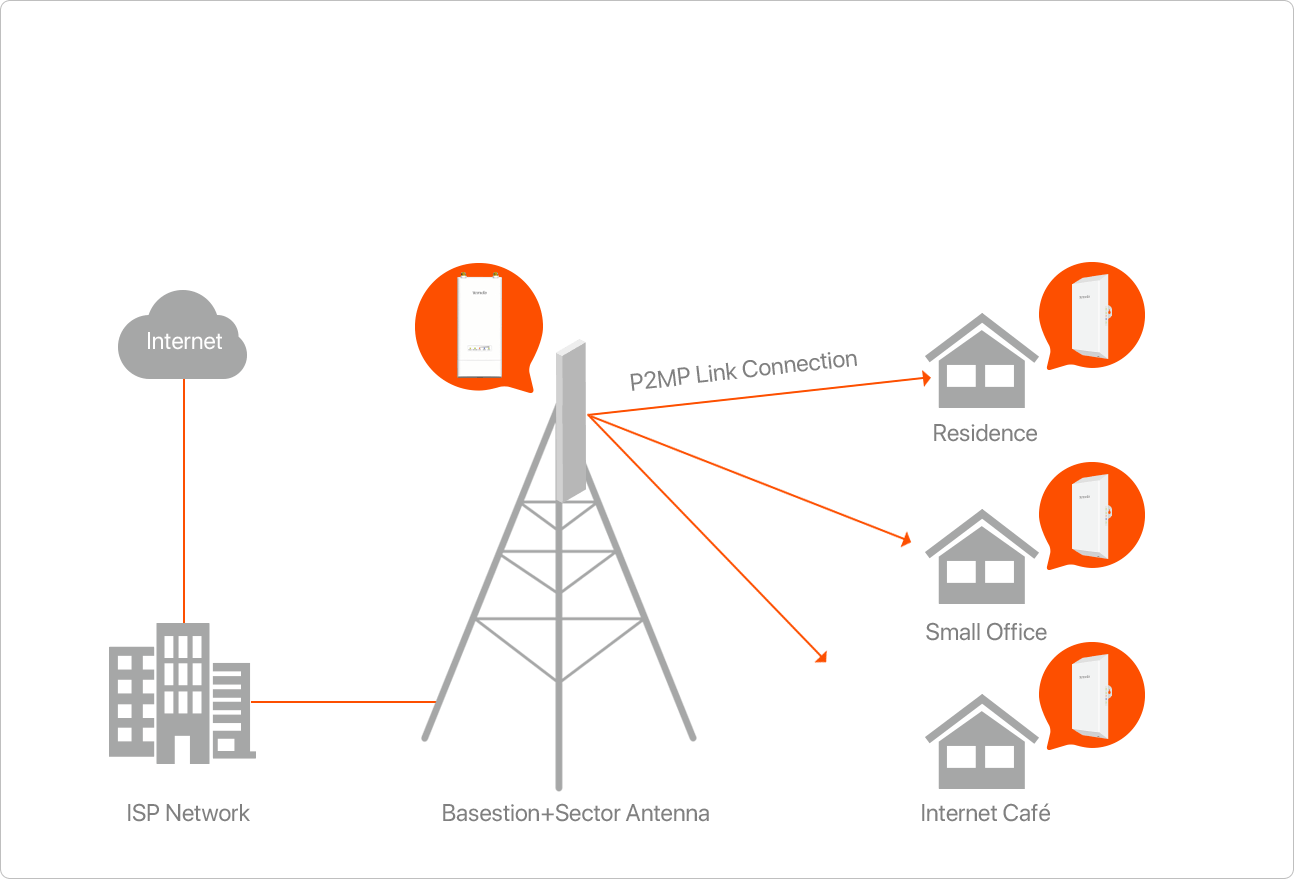

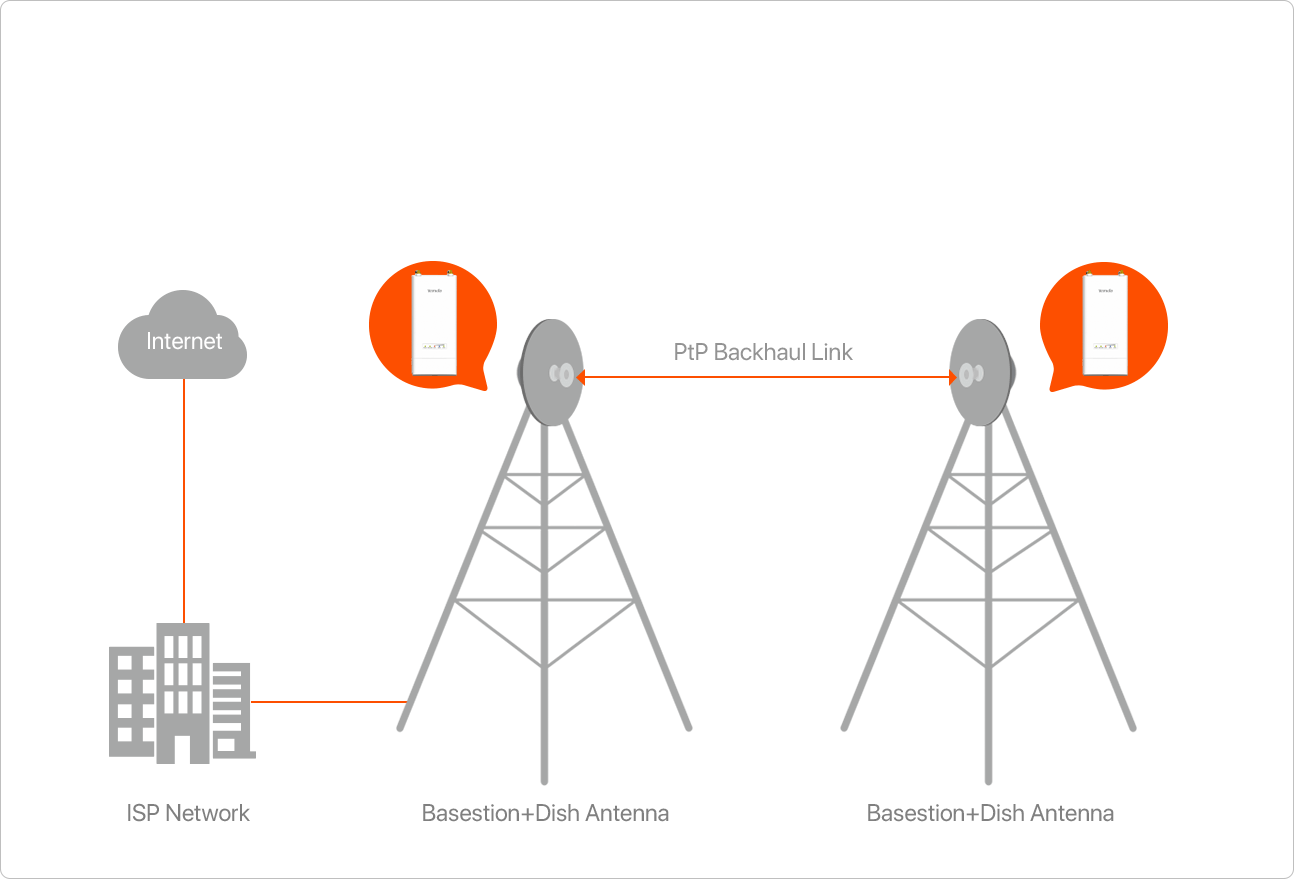

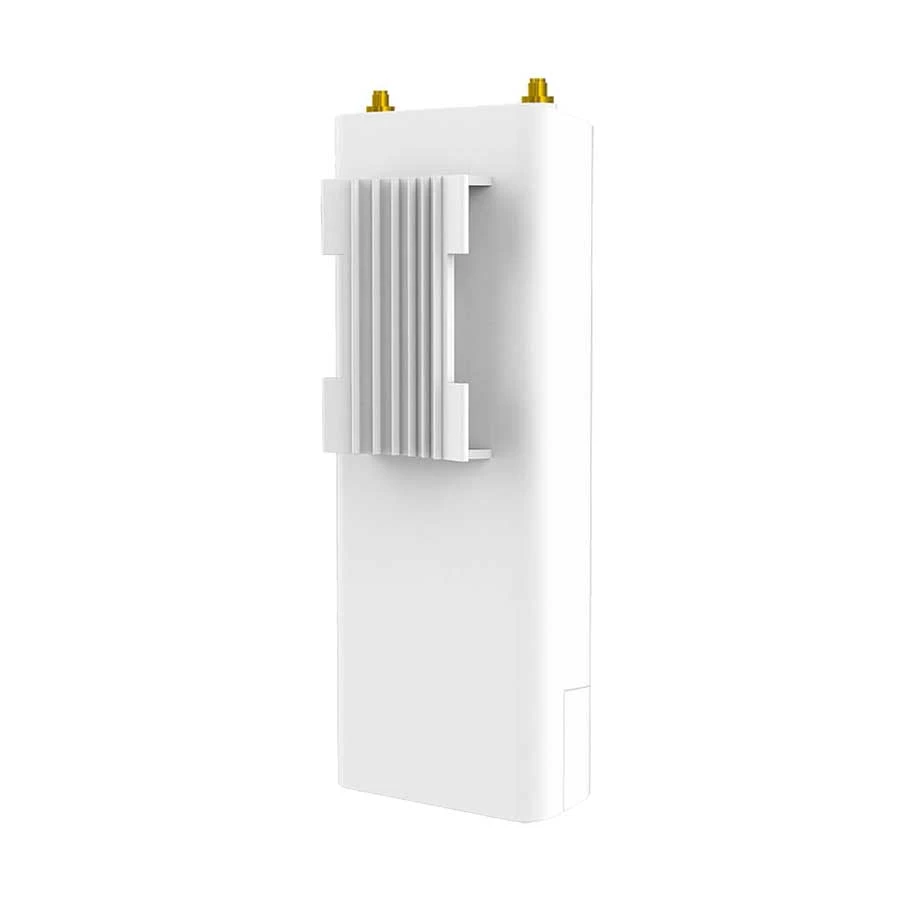

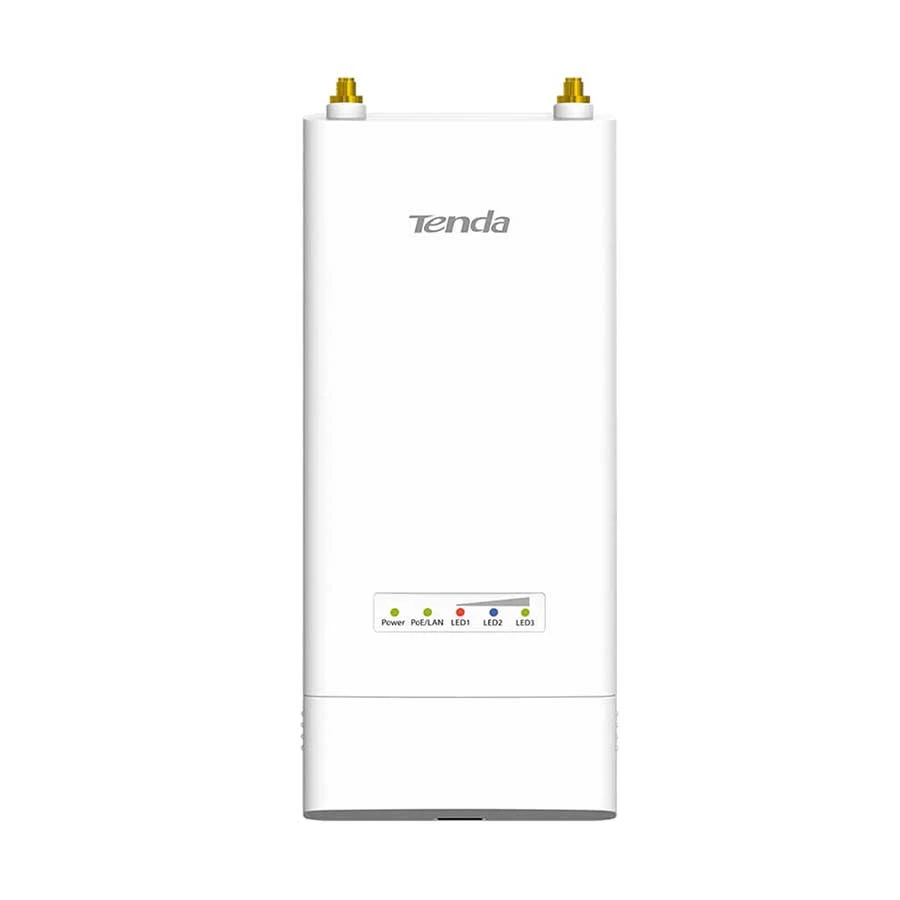

B6 5GHz 11n 300Mbps Basestation is designed for PtP and PtMP solutions for rural wireless connectivity and CCTV surveillance.Features with two RP- SMA enable it to pair with dish antenna or sector antenna to establish PtP backhaul connection and P2MP link. It adopts Tenda TDMA (Time Division Multiple Access) proprietary protocol-TD-MAX to improve performance and capacity. The auto-bridging technology enable it easy to setup for both business and home users. 10/20/30/40MHz Channel Bandwidth for better throughput - B6 applys special optimization in software for register parameter to deliver 10/20/30/40MHz channel bandwidth option. It provides extra 10MHz and 30MHz channel bandwidth option to consumed according applycation scenarios. When you choose 30MHz channel bandwidth option, it can increase throughput for noisy environments. When you choose 10MHz channel bandwidth option, it can increase the number of available, non-overlapping channels, so networks can scale better. CPE Assistant-Centralized Management Platform - B6 equips with centralized management software that helps users easily manage all the devices in their network from a single PC - CPE Assistant. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using CPE Assistant.
