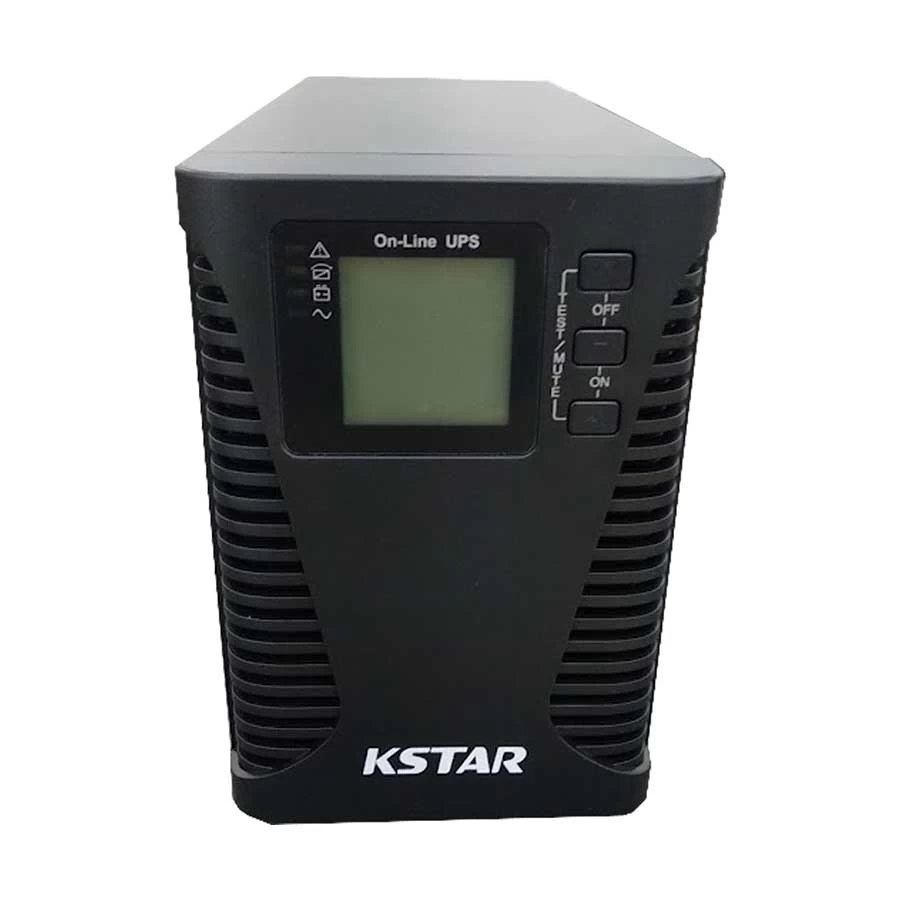

Kstar HP Series 1000VA Online UPS #HP910CS

Product Id: 48.06.678.13

Brand Kstar

Regular Price Tk 18,230 Monthly EMI Tk 1,519
Special Price Tk 16,900

Quick Overview

  • Type - Online UPS
  • Input Voltage (V) - 110 - 300Vac
  • Output Voltage (V) - 220/ 230/ 240Vac +1%
  • Load Capacity - 700W
  • Back up time(Full load) - 5 Minutes
  • Body Material - Unmentioned
General
Brand
Kstar

Model
Kstar HP Series

Type
Online UPS


Technical Info
Volt Ampere (VA)
1000V

Input Voltage (V)
110 - 300Vac

Output Voltage (V)
220/ 230/ 240Vac +1%

Frequency (Hz - KHz)
46-54Hz or 56-64Hz (auto sensing)

Load Capacity
700W

Transfer Rate
0ms

LED Display
No


Battery Info
Battery.
3 pc with 12V & 7Ah

Back up time(Full load)
5 Minutes

Back up time (Half load)
12 Minutes


Main Features
Fuse
Unmentioned

Stabilizer
Unmentioned


Physical Description
Output connection (Back side)
3 Port

Body Material
Unmentioned

Weight (Kg)
14 kg (Standard Unit)


Warranty
Warranty Details
1 Year (Box Mandatory While Claiming)


Additional Info
Others
Standard Backup, For PC and Networking Device only, Part No: HP910CS, Nominal voltage: 220/230/240Vac, Power factor: >0.99, Output frequency: Sychronized with the utility on AC mode; 50Hz/60Hz +- 0.2% on Battery mode, Harmonic distortion (THD): <3% (linear load), Crest factor: 3:1 (Max), Efficiency: >= 86%, Battaery DC voltage: 36Vdc, Charge Current(standard unit): 1A, Charge Current(long run unit): 7A, Typical recharge time: 8 hours (to 90% of full capacity), Communication interface: RS232, Port: Fan, Battery socket, Output socket, RJ45, Input socket, Input breaker,Transfer time: Between AC Mode and Bypass Mode: 4ms (typical value 2.5ms), Operating temperature: 0 Degree C -40 Degree C, Storage temperature: -25 Degree C - 55 Degree C, Humidity range: 0%-95% (non-condensing), Altitude: <1500m, Noise level: <45db, LCD indication: 1. Input voltage/frequency, battery voltage, output voltage/frequency, load watt/VA and percent, inverter temperature 2. Operation mode such as ``on line``, ``on batt``, or ``on bypass``, LED indication: 1. Green LED for normal operation, 2. Yellow LED for warning condition, 3. Red LED for abnormal operation, Overload capability: 1. >110%, 30s turn to bypass mode, 2. >150%, 300ms turn to bypass mode.

Specialty
High frequency and double conversion online technology. fully digitized microDrocessor control Wide input voltage range. LCD display. UPS start up without battery Cold start. Advanced battery management. Automatic battery charging in UPS off mode. Lightning and surge protection. Short circuit and overload inrotection. Battery voltage disDlay. EMI/RFI noise filter.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
