LevelOne WAP-8123 AC1200 Mbps Dual Band PoE Wireless Access Point

Item: LevelOne WAP-8123 AC1200 Mbps Dual Band PoE Wireless Access Point
Rating: 5
Author: Verified Buyer

Product Id: 29.02.484.11

Coming Soon

Quick Overview

Network Standards - IEEE 10BASE-T (IEEE 802.3), IEEE 100BASE-TX (IEEE 802.3u), IEEE 1000BASE-T (IEEE 802.3ab), IEEE 802.11a/b/g/n/ac, IEEE 802.3at Power over Ethernet.
Data Transfer Rates - 1200 Mbps
Band - Dual
Interface(s) - 1 x 10/100/1000 WAN port (RJ-45), 1 x 10/100/1000 LAN port (RJ-45)
Antenna (Type & Qty) - 2 x Internal
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Levelone

Model

Levelone WAP-8123

Network Standards

IEEE 10BASE-T (IEEE 802.3), IEEE 100BASE-TX (IEEE 802.3u), IEEE 1000BASE-T (IEEE 802.3ab), IEEE 802.11a/b/g/n/ac, IEEE 802.3at Power over Ethernet.

Data Transfer Rates

1200 Mbps

Band

Dual

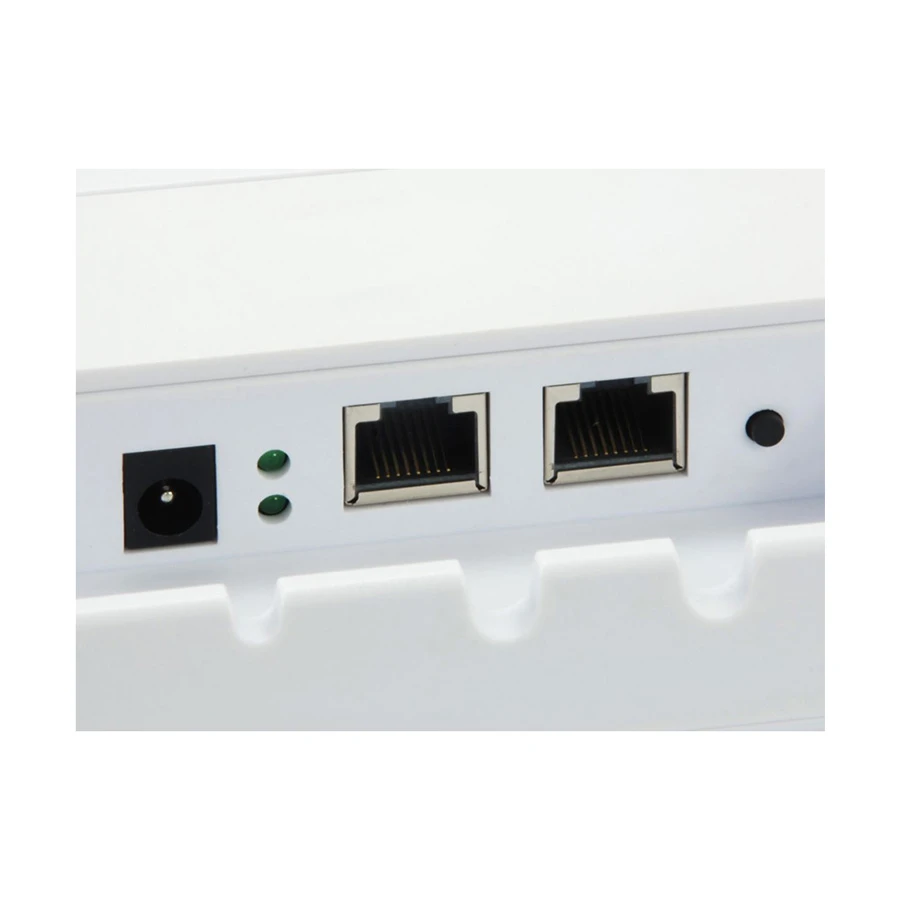

Interface(s)

1 x 10/100/1000 WAN port (RJ-45), 1 x 10/100/1000 LAN port (RJ-45)

Number of WAN Port

Number of LAN Port

Bluetooth

Antenna (Type & Qty)

2 x Internal

Memory

128MB

Storage (MB/GB/TB)

16MB

MU-MIMO Support

Yes

Multi-User MIMO

MU-MIMO Support (2 x 2)

Power Method

12V DC / PoE (IEEE 802.3at)

Max. Power Consumption

20W

Operating Mode

Repeater Mode, AP Mode, Gateway Mode

Mounting

Yes

Color

White

Dimensions

198 x 32 x 198mm

Weight (gm)

520 gm

Warranty

1 Year (Without Adapter)

General

Brand

Levelone

Model

Levelone WAP-8123

Hardware

Network Standards

IEEE 10BASE-T (IEEE 802.3), IEEE 100BASE-TX (IEEE 802.3u), IEEE 1000BASE-T (IEEE 802.3ab), IEEE 802.11a/b/g/n/ac, IEEE 802.3at Power over Ethernet.

Data Transfer Rates

1200 Mbps

WAN Network Standard

10/100/1000

LAN Network Standard

10/100/1000

Memory

128MB

Storage (MB/GB/TB)

16MB

Storage Type

Flash

Interface

Interface(s)

1 x 10/100/1000 WAN port (RJ-45), 1 x 10/100/1000 LAN port (RJ-45)

Number of WAN Port

Number of LAN Port

Wireless

Band

Dual

Frequency

2.4GHz - 5GHz

Bluetooth

Antenna (Type & Qty)

2 x Internal

Antenna Placement

Internal

MU-MIMO Support

Yes

Multi-User MIMO

MU-MIMO Support (2 x 2)

Wireless Modes

Repeater Mode, AP Mode

Management

SSID Numbers

Operating Mode

Repeater Mode, AP Mode, Gateway Mode

Technical Info

Ideal Use

Home & Office Uses.

Security

Wireless Security

WPA3 encryption, compatible with WPA2

Electrical

Power Method

12V DC / PoE (IEEE 802.3at)

Power Adapter Output

12V

Max. Power Consumption

20W

Passive PoE Power Supply

Yes, IEEE 802.3at

Environmental

Operating Temperature

0 to 50 degree C

Operating Humidity

10% to 90% RH

Storing/Storage Temperature

0 to 70 degree C

Storing/Storage Humidity

5% to 90% RH

Physical Description

LED Indicators

WIFI status

Mounting

Yes

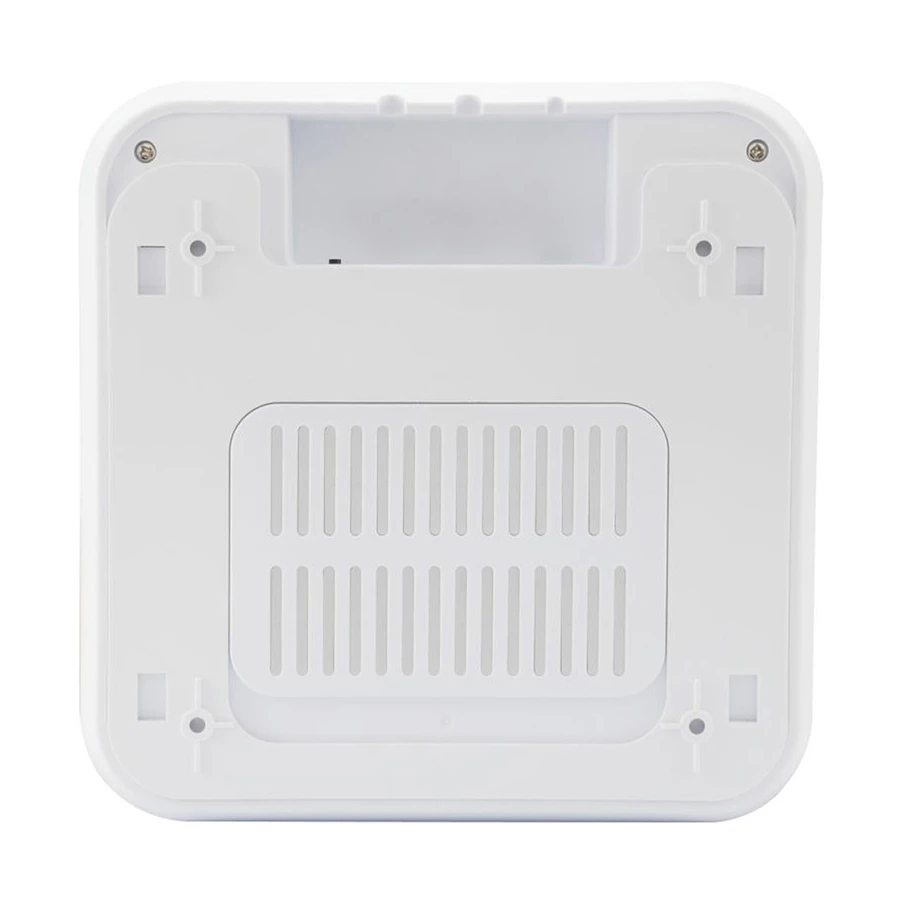

Mount Options

Ceiling Mount

Dimensions

198 x 32 x 198mm

Color

White

Weight (gm)

520 gm

Packet Contents

WAP-8123, Schraubenset, RJ45-Ethernet Cable, Quick Installation Guide, Declaration of Conformity

Warranty

1 Year (Without Adapter)

Additional Info

Others

Approval and Compliance: CE, RoHS, Antenna: Built-in 2 x 2 MIMO antenna, EIRP (dBm): 20 dBm, Encryption: WPA2 Personal (AES), WPA3 Personal (AES), Frequency band: 2.412 to 2.484 GHz, 5.18GHz to 5.825GHz, Wireless channels: (2.412 to 2.484 GHz: CH 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 5.150GHz to 5.850GHz : CH 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 116, 120, 124, 128, 132, 140, 149, 153, 157, 161, 165).

Specialty

Provides wireless speeds of up to 1200Mbps(300Mbps in 2.4GHz/867Mbps in 5GHz), MU-MIMO technology greatly enhances WLAN performance for all clients, Compatible with IEEE 802.11a/b/g/n/ac Wave 2 wireless standards, Multi-operation modes to suit different wireless applications, Dual power support: 12V DC/PoE (IEEE 802.3at), Provides up to 8 SSIDs to separate network traffic, High power and receiver sensitivity designed to boost your signal coverage and link speed, Supports WPA3 encryption, compatible with WPA2 (Provides wireless speeds of up to 1200Mbps(300Mbps in 2.4GHz/867Mbps in 5GHz), MU-MIMO technology greatly enhances WLAN performance for all clients, Compatible with IEEE 802.11a/b/g/n/ac Wave 2 wireless standards, Multi-operation modes to suit different wireless applications, Dual power support: 12V DC/PoE (IEEE 802.3at), Provides up to 8 SSIDs to separate network traffic, High power and receiver sensitivity designed to boost your signal coverage and link speed, Supports WPA3 encryption, compatible with WPA2), Web-Based GUI Configuration, Multiple SSID (4 SSID for 2.4GHz, 4 SSID for 5GHz).

Country Of Origin

Germany

Made in/ Assemble

China

Details

Features of Levelone WAP-8123 Access Point In Bangladesh

The Levelone WAP-8123 AC1200 Mbps Dual Band PoE Wireless Access Point is a great device for improving your network. It supports dual bands and offers high-speed wireless access. With a data transfer rate of up to 1200 Mbps, it provides fast and reliable connectivity. The device also supports Power over Ethernet (PoE), which simplifies the installation process. This access point is ideal for enhancing wireless coverage in homes or offices.

Features & Benefits of Levelone WAP-8123 AC1200 Mbps Dual Band PoE Wireless Access Point

The Levelone WAP-8123 AC1200 Mbps Dual Band PoE Wireless Access Point offers several great features. It provides dual-band Wi-Fi, which ensures faster speeds and better coverage. The device supports the IEEE 802.11a/b/g/n/ac standards, making it compatible with most devices. With a data transfer rate of 1200 Mbps, it is ideal for high-speed internet activities like streaming and gaming. The PoE feature makes installation easier by allowing the device to be powered through Ethernet cables. The two internal antennas enhance signal strength and improve range. It is equipped with both WAN and LAN ports for flexible networking options.

Easy Buying Guide Of Levelone WAP-8123 AC1200 Mbps Dual Band PoE Wireless Access Point

Before buying the Levelone WAP-8123 AC1200 Mbps Dual Band PoE Wireless Access Point, there are a few points to consider. First, make sure you need a device with PoE support for easy installation. It works well for medium to large-sized areas, but you may need additional access points for larger spaces. Its dual-band technology is suitable for users who need stable connections for streaming or gaming. However, it lacks advanced features like external antenna ports, which might be a drawback for those with large, complex networks. This product is ideal if you need reliable, high-speed wireless coverage in your home or office. However, if you have a large home or need more customization, consider other options.

Sum it up

The Levelone WAP-8123 AC1200 Mbps Dual Band PoE Wireless Access Point is perfect for improving wireless access in medium-sized spaces. It provides strong and fast connections for everyday use. For the best price, visit Ryans Computers Limited and buy this product today.

What is the price of Levelone WAP-8123 Access Point In Bangladesh?

The price of Levelone WAP-8123 Access Point not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Levelone WAP-8123 Access Point from our website or visit our showrooms nearby.
