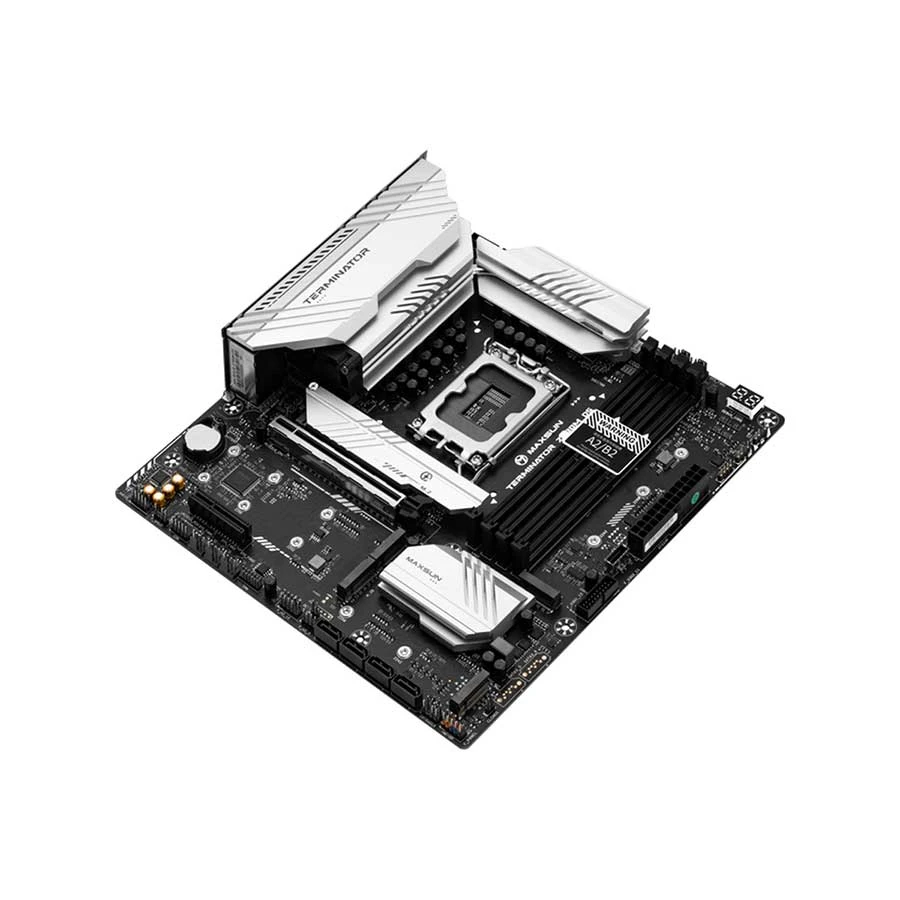

MAXSUN Terminator Z790M D5 (Wi-Fi 6E) Motherboard #MS-TERMINATOR Z790M D5 WIFI

Item: MAXSUN Terminator Z790M D5 (Wi-Fi 6E) Motherboard #MS-TERMINATOR Z790M D5 WIFI
Rating: 5
Author: Verified Buyer

4 reviews

Product Id: 02.01.970.04

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - Intel Z790
Sockets Supported - LGA1700
Supported CPU - 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Generation - 12th/13th
Memory Slot - 4
Memory Max. - 192GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Maxsun

Model

Maxsun Terminator Z790M D5 (Wi-Fi 6E)

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

192GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.3

Form Factor

Micro-ATX

Supported Operating System

Windows 11, 10

Body Color

Black

Warranty

3 Year Replacement

General

Brand

Maxsun

Model

Maxsun Terminator Z790M D5 (Wi-Fi 6E)

Body Color

Black

Part No

MS-TERMINATOR Z790M D5 WIFI

CPU

Chipset Brand

Intel

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Generation

12th/13th

Memory Support

Memory Type

DDR5

Memory MHz

7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Memory Channel

Dual

Memory Slot

Memory Max.

192GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

5 x M.2 (3 x M.2 type 2242/2280/22110 (supports PCIe 4.0 x4 mode), 2 x M.2 type 2242/2280 (supports PCIe 4.0 x4 mode))

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x4 slot

Audio & Video

Audio Chipset

Realtek ALC897 Codec

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek RTL8125BG 2.5G LAN

LAN Speed (Mbps)

10/ 100/ 1000/ 2500Mbps

WiFi

Yes

WiFi Technology

Intel Wi-Fi 6E AX211

Bluetooth

Bluetooth 5.3

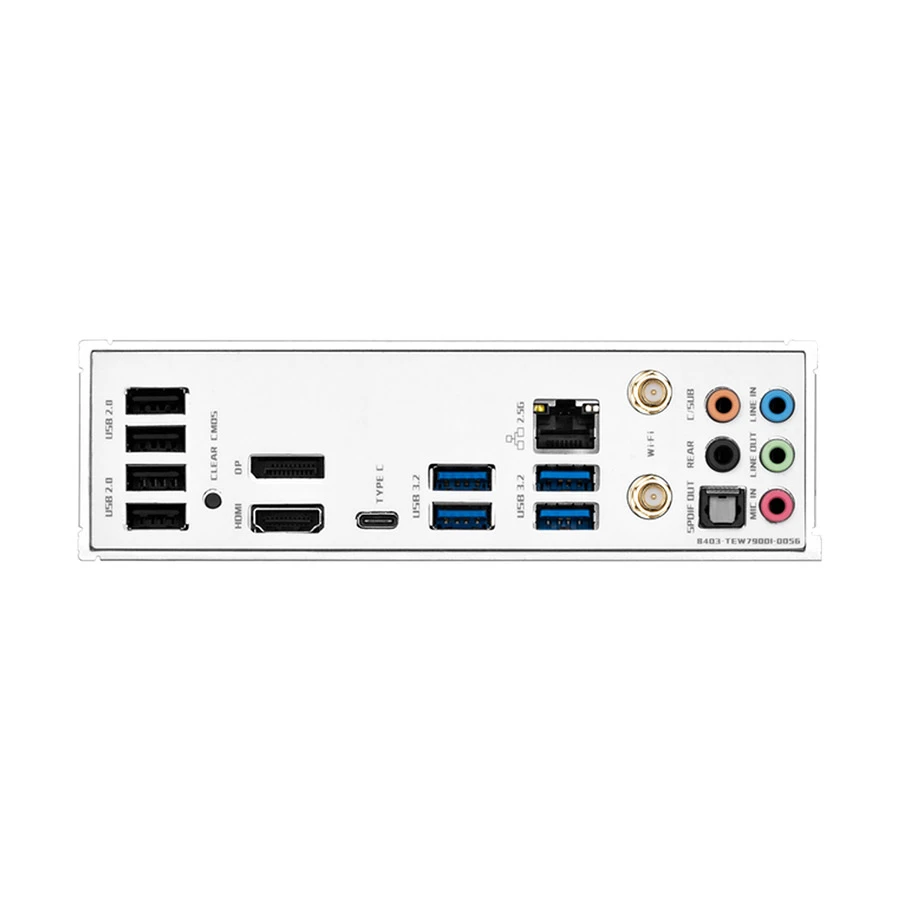

Ports

USB Port

1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

RGB

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Compatibility

Supported Operating System

Windows 11, 10

Compatible Products

Raptor Lake Refresh 14600K, Core i3 12100F, Core i3 13100F, Core i5 12400F, Core i5 13400F, Core i5 13500, Core i7 13700KF etc Intel Core Processors, Pentium Gold and Celeron Processors

Warranty

3 Year Replacement

Additional Info

Feature

Surging property, 10 phase power supply & hybrid heat dissipation, Expansion and upgrade, 5 x M.2 slots, Fast transmission, Front and rear dual 20G Type-C

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Maxsun Terminator Z790M D5 (Wi-Fi 6E) Motherboard In Bangladesh

The Maxsun Terminator Z790M D5 (Wi-Fi 6E) Intel Motherboard is built for high-performance computing. Supporting 12th and 13th generation Intel processors it offers incredible speed and efficiency. With DDR5 memory and a total capacity of 192GB this motherboard handles even the most demanding tasks with ease.

Benefits & Features

Cutting-Edge Compatibility: Supports Intel’s 12th and 13th generation CPUs with LGA1700 sockets for optimal performance.
DDR5 Memory: Four memory slots allow up to 192GB of RAM, ensuring smooth multitasking and enhanced system responsiveness.
Multiple M.2 Slots: Five M.2 sockets provide extensive storage options, making it easy to expand your system.
High-Speed USB-C Ports: Features front and rear 20Gbps USB-C ports for fast data transfer.
Micro ATX Form Factor: Compact size fits in most cases, offering flexibility in your build.
Advanced Cooling: Mixed-type cooling modules maintain optimal temperatures, even during intense use.
Next-Gen Connectivity: Equipped with 2.5G Ethernet and Wi-Fi 6E for fast and reliable networking.

Things to Consider Before Purchase

Check Compatibility: Ensure your CPU and components are compatible with the Maxsun Terminator Z790M D5 (Wi-Fi 6E) Intel Motherboard.
Installation: Handle the motherboard with care during installation to avoid any damage.
Cooling Needs: Plan for proper airflow and cooling to support the motherboard's performance.
Upgrade Potential: Consider your future upgrade needs, especially with the DDR5 and M.2 slots.

Sum it up

The Maxsun Terminator Z790M D5 (Wi-Fi 6E) Intel Motherboard offers top-notch performance, ample upgrade potential, and next-gen connectivity for all your computing needs.

What is the price of Maxsun Terminator Z790M D5 (Wi-Fi 6E) Motherboard In Bangladesh?

The price of Maxsun Terminator Z790M D5 (Wi-Fi 6E) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Maxsun Terminator Z790M D5 (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
