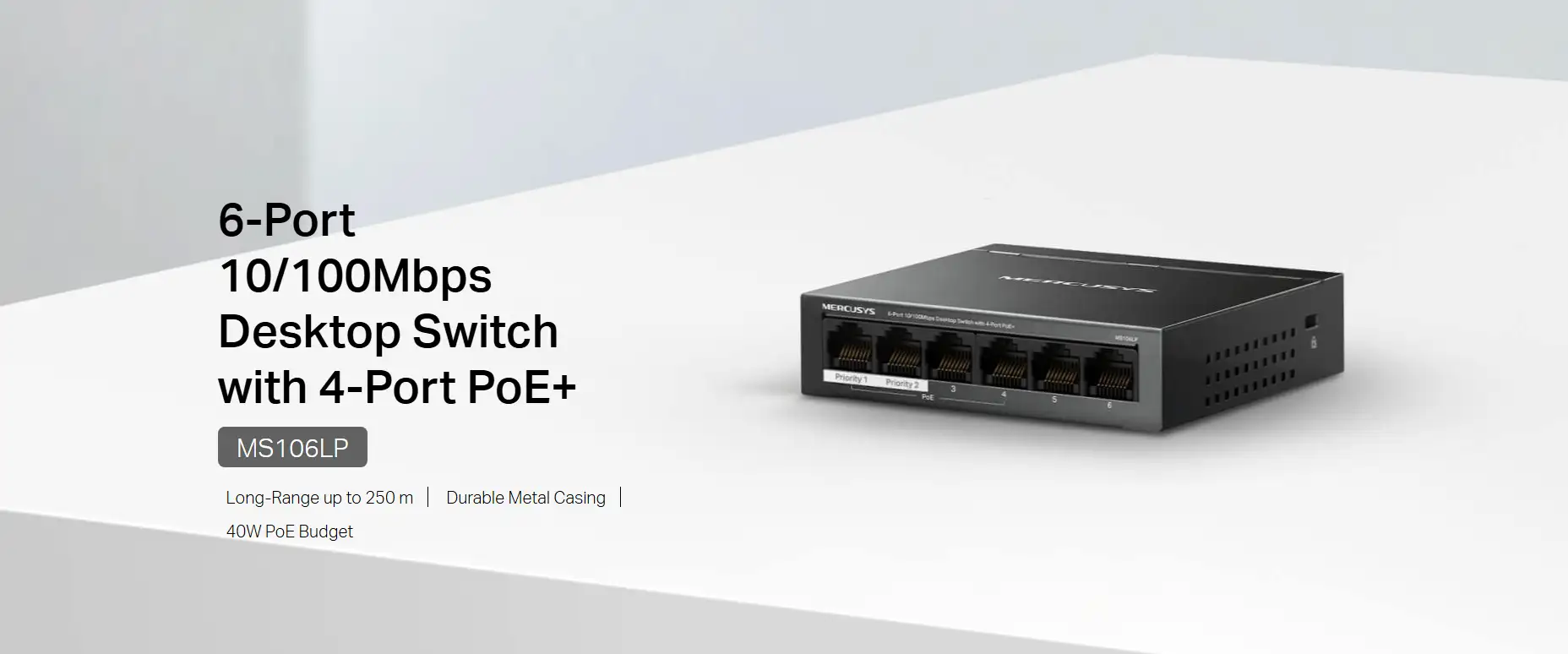

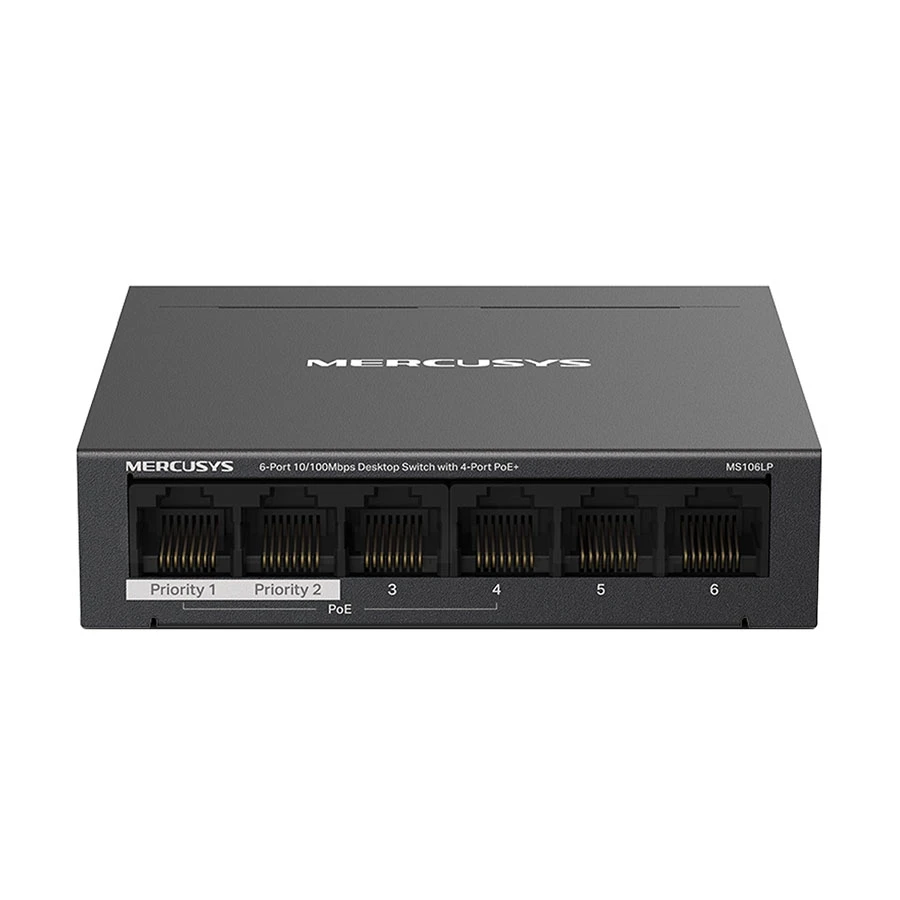

Mercusys MS106LP 6-Port Desktop Switch

Product Id: 29.05.771.11

Brand Mercusys

Special Price
Tk 2,219
Save Extra Tk 119 on online order
Regular Price
Tk 2,410

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 6 Port
  • PoE - Yes
  • Manageability - Unmentioned
  • Network Standards - IEEE 802.3x
  • Data Transfer Rate - 10/100 Mbps
  • Form Factor - Desktop/Wall Mounting
Avail EMI Offer
EMI starts from Tk 268/months
General
Brand
Mercusys

Model
Mercusys MS106LP

Type
Network Switch


Ports & Slots
Number of Total Port
6 Port

Gigabit Port
No

SFP Port
No

SFP+ Port
No

PoE Port
No

PoE+ Port
4


Technical Info
PoE
Yes

Manageability
Unmentioned

Interface(s)
2-Port 10/100Mbps Ethernet, 4-Port 10/100Mbps PoE+

Network Standards
IEEE 802.3x

Data Transfer Rate
10/100 Mbps

Connector Type
RJ45 port


Physical Description
Fan/Fanless
Fanless

Indicators
Yes

Body Color
Black

Form Factor
Desktop/Wall Mounting

Dimension

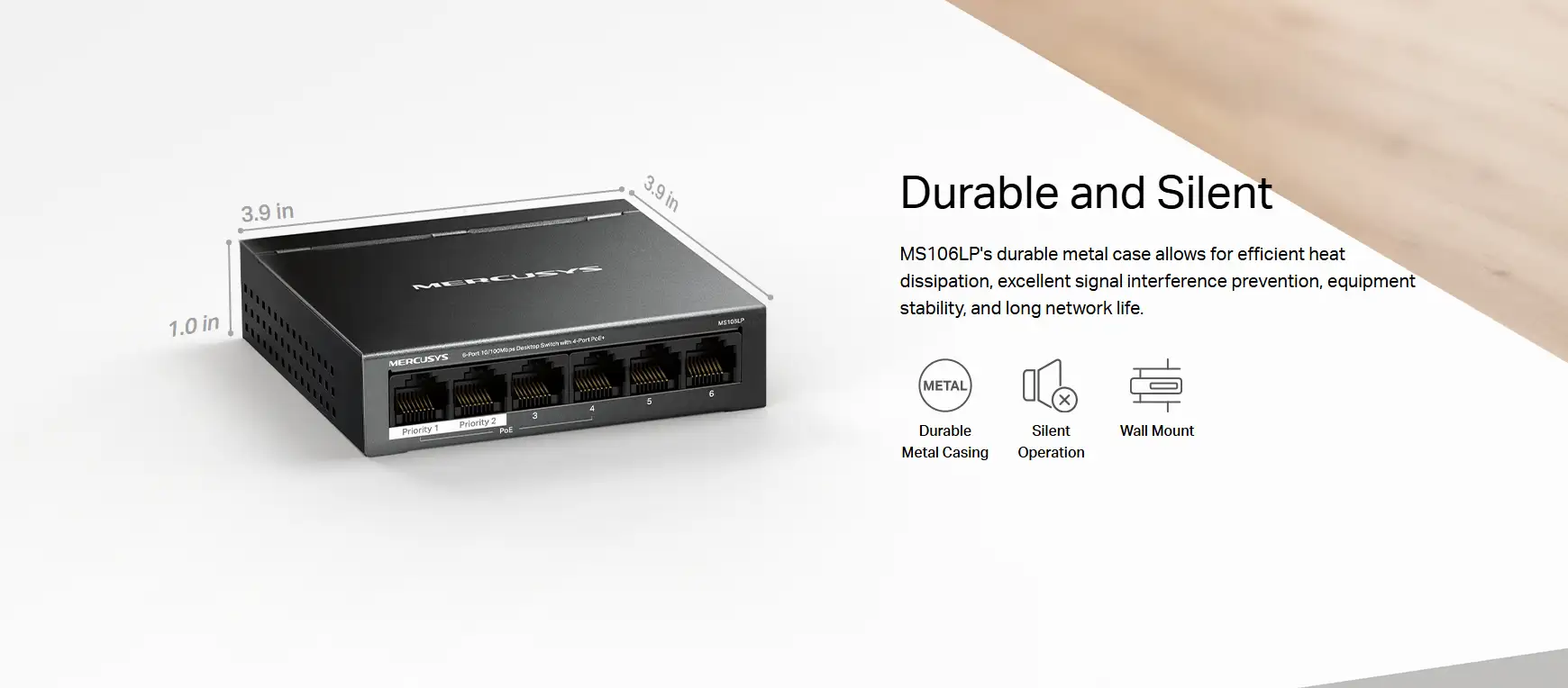

99.8 x 98 x 25mm

Packet Contents
1 x 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP), Power Adapter, Quick Installation Guide


Power
Power Supply
53.5V/0.81A (Adapter)

Approx. Power Consumption
1.87W (220 V / 50 Hz, no PD connected), 44.8W (220 V / 50 Hz, with 40W PD connected)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others

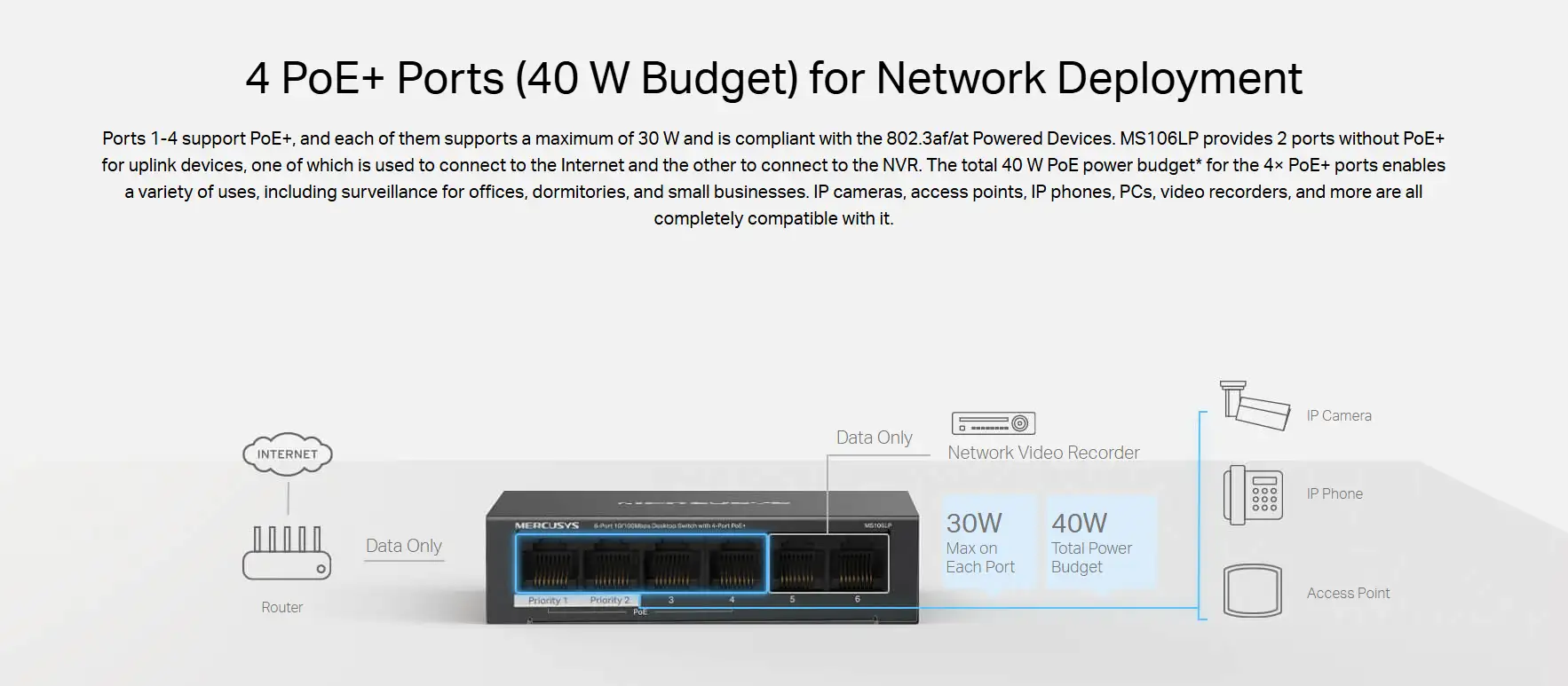

PoE Ports: RJ45 Standard: Compliant with 802.3 af/at Powered Devices, PoE Ports: Port 1- Port 4, PoE Power Budget: 40 W. Interfaces: 6x10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX. Installation: Desktop, Wall Mount. Data Rates: 10/100 Mbps at Half Duplex, 20/200 Mbps at Full Duplex. Jumbo Frame: 2 KB, Mac Address Table: 2K. Max Heat Dissipation: 6.34 BTH/h (no PD connected), 152.32 BTH/h (with 40W PD connected). Package Contents: 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP), Power Adapter, Quick Installation Guide. Operating Temperature: 0-40 Degree C, Storage Temperature: -40-70 Degree C, Operating Humidity: 10%-90% RH non-condensing, Storage Humidity: 5%-95% RH non-condensing.

Specialty

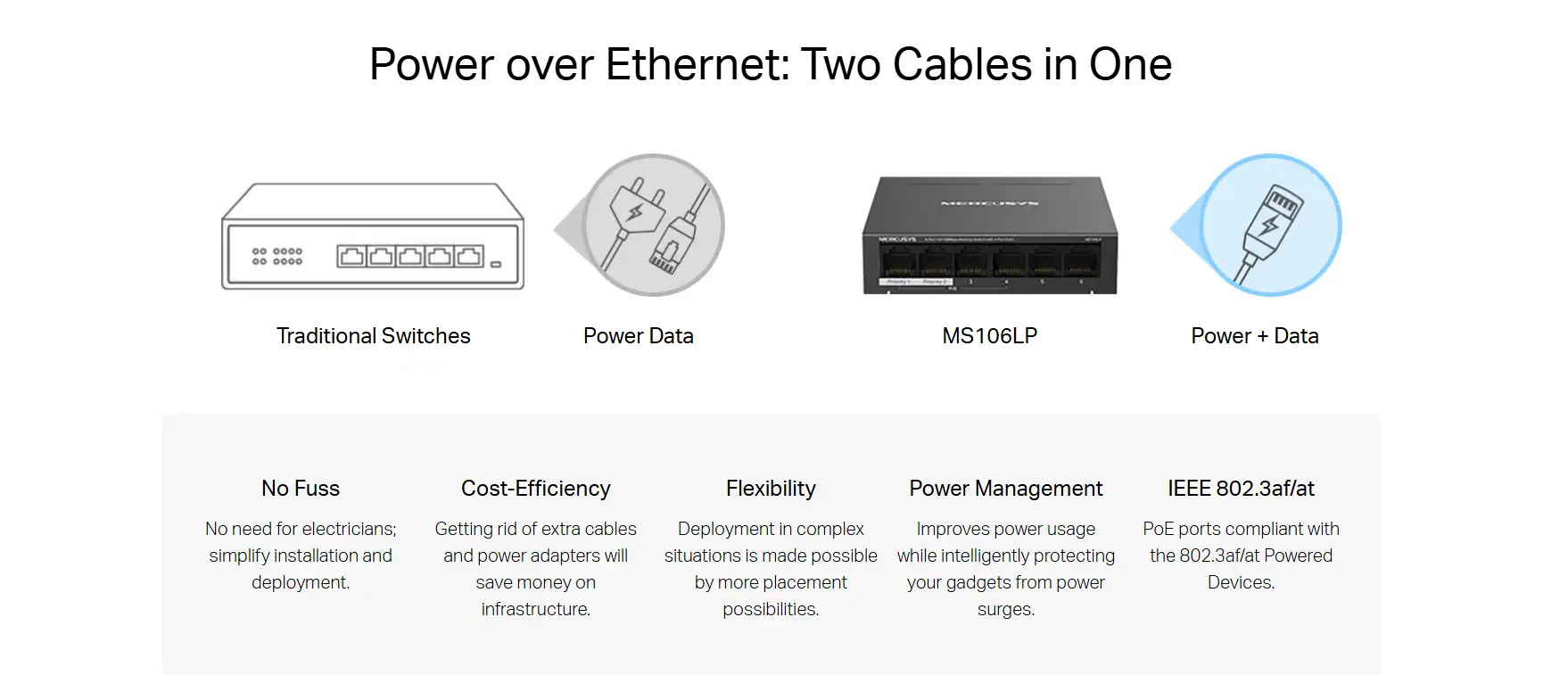

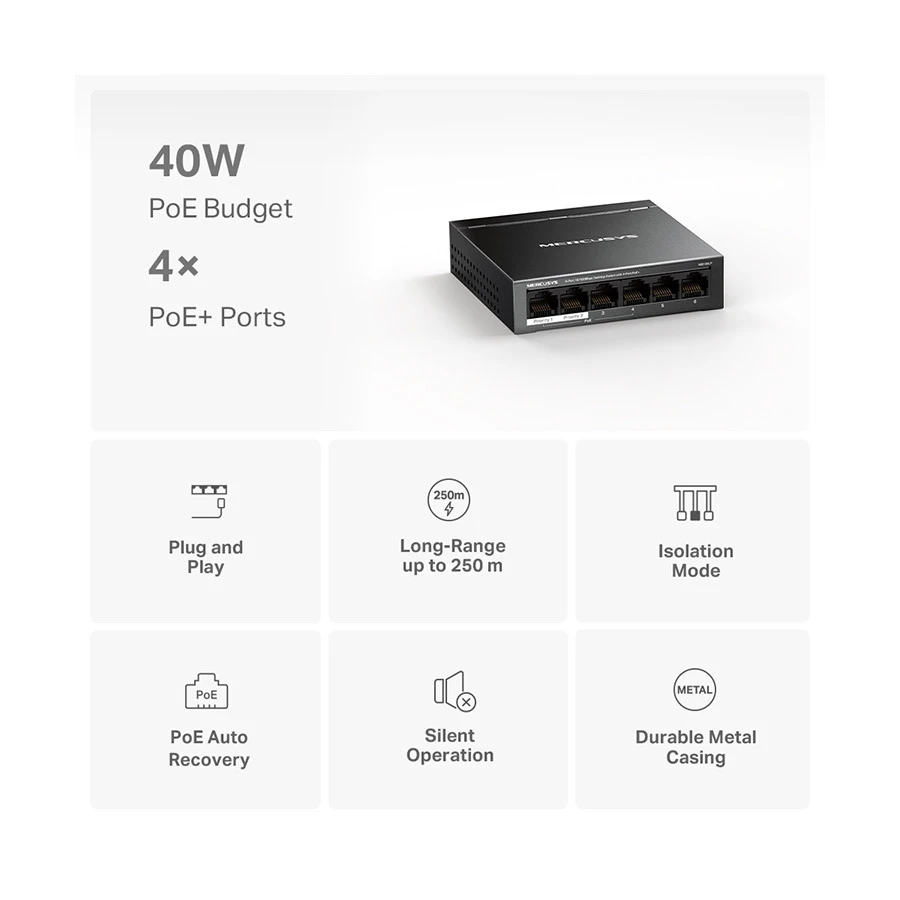

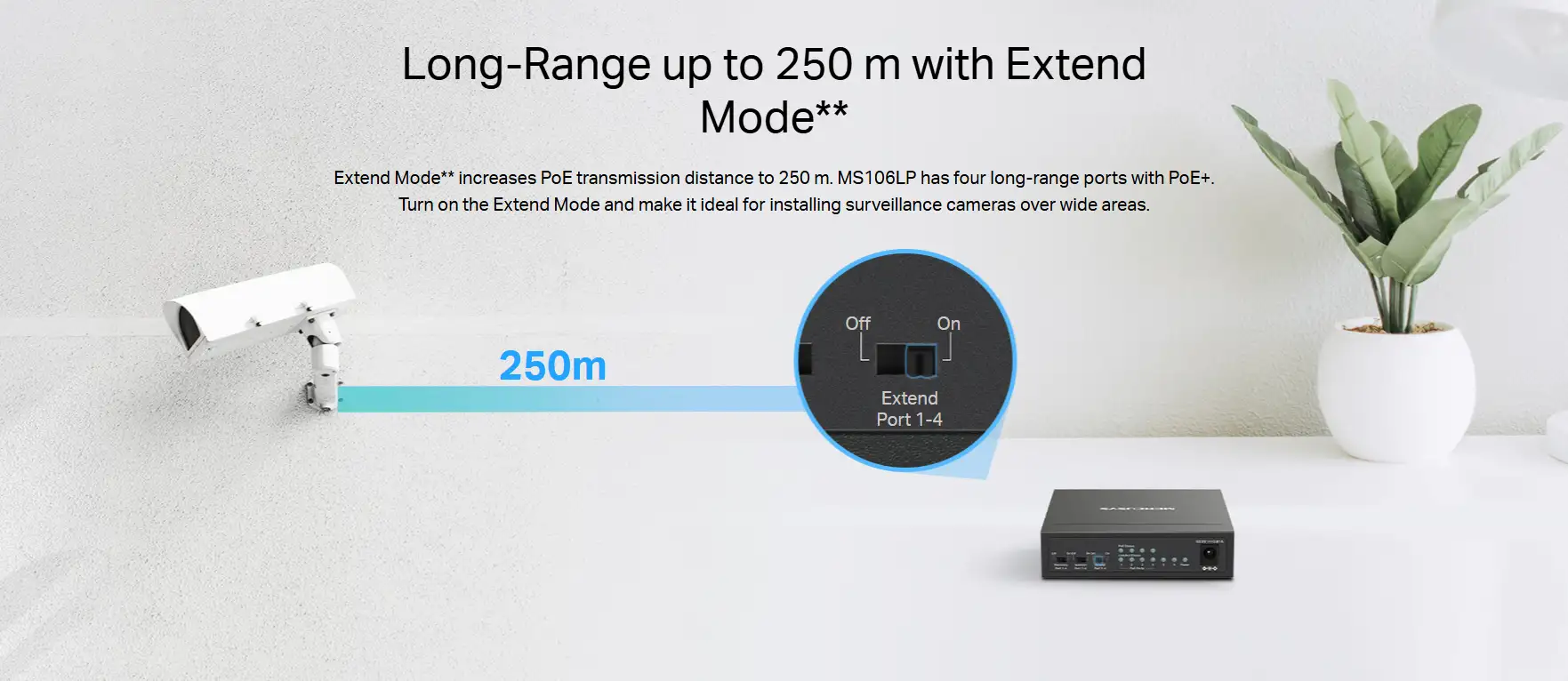

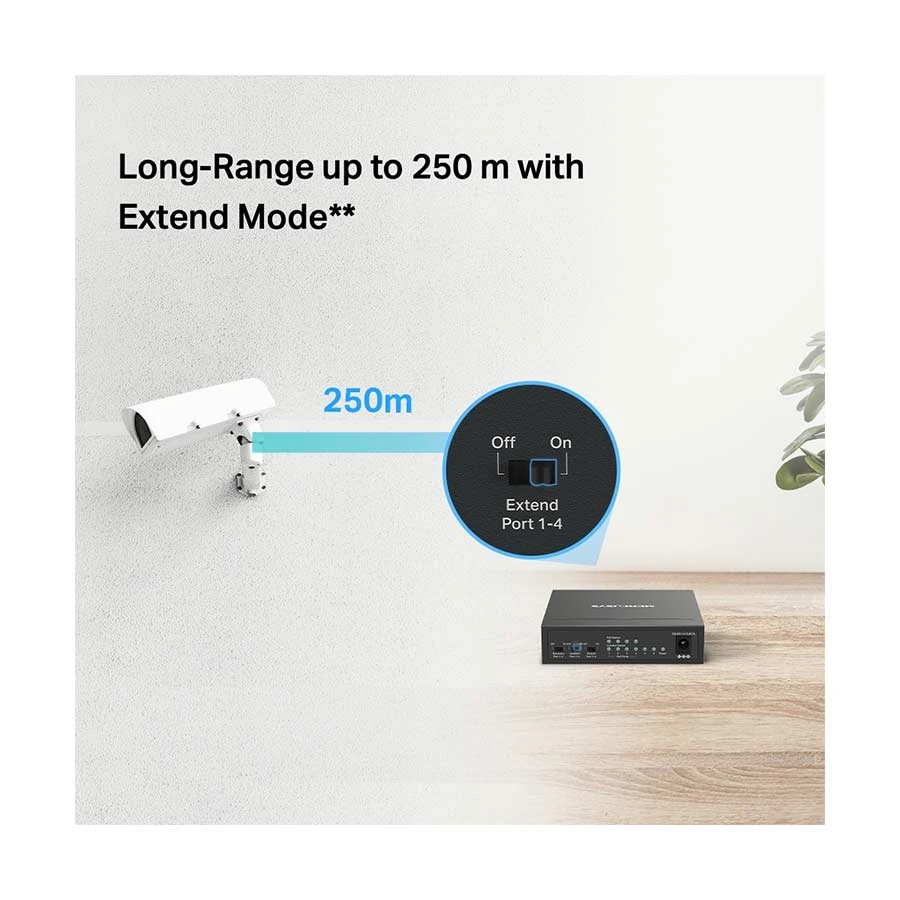

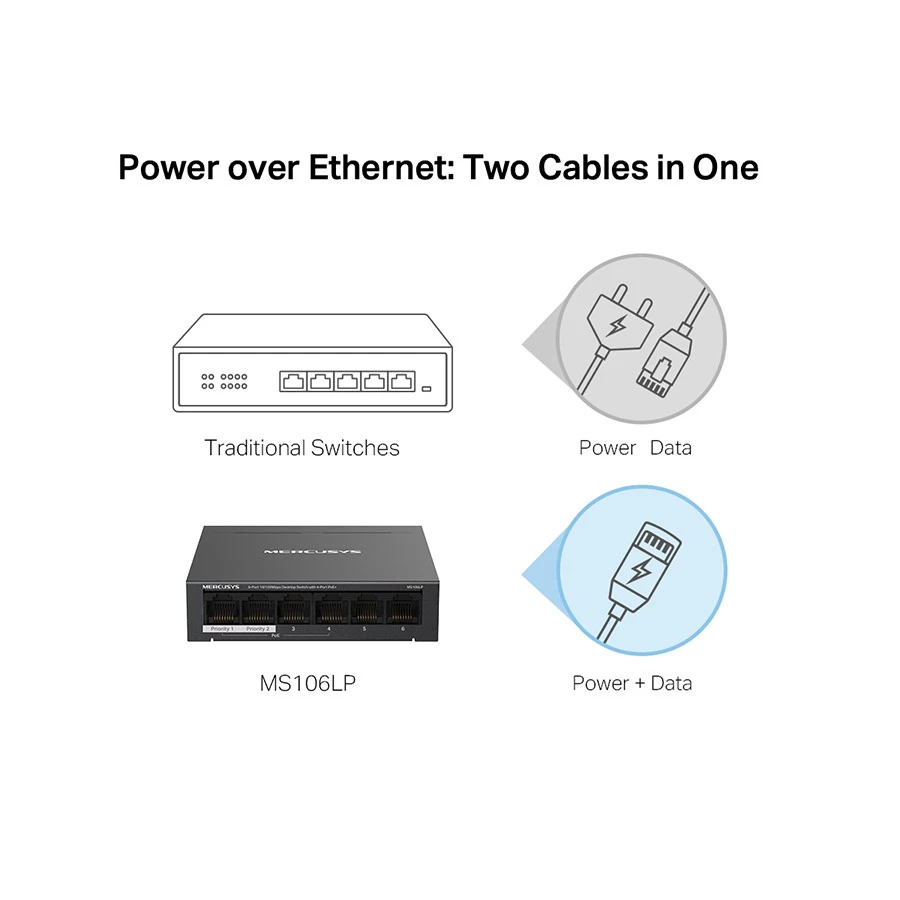

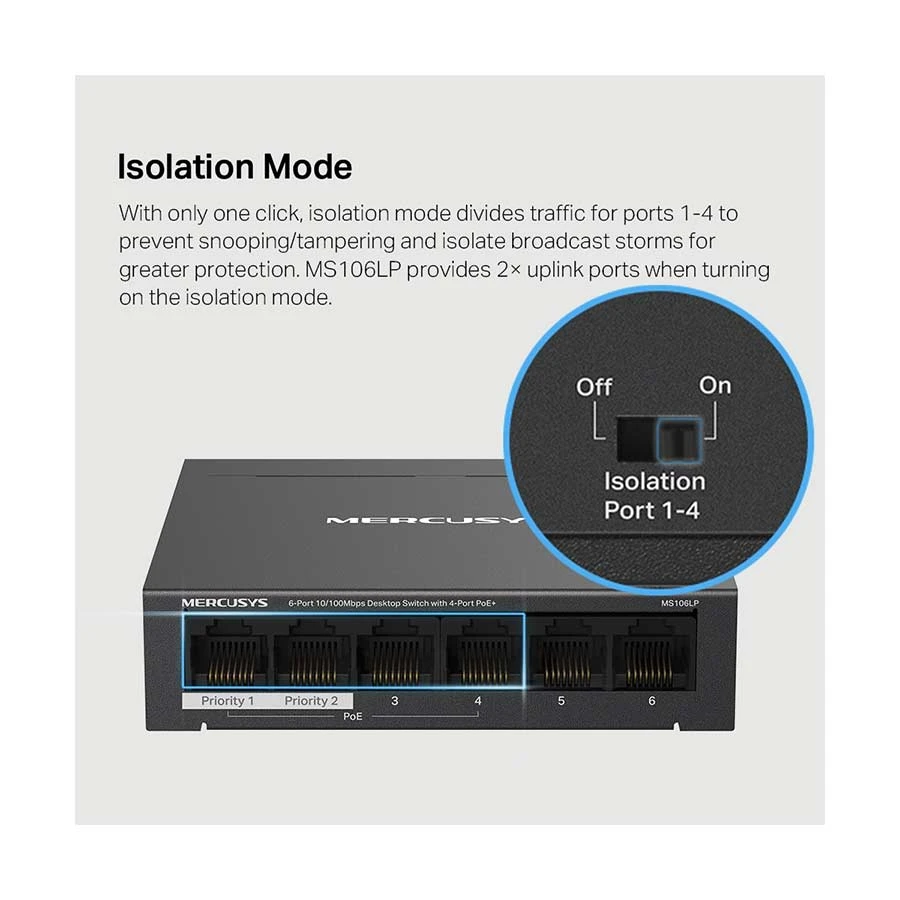

Two Cables in One: With four PoE+ ports, transfers data and power on one single cable, High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports, 2x Uplink Ports: MS106LP provides 2x uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR. Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode. Isolation Mode: One click to divide traffic for specific ports for stability and security. Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs. Durable Metal Casing: Allows for efficient heat dissipation and long network life. Plug and Play: Simple to use and saves time and effort. PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
