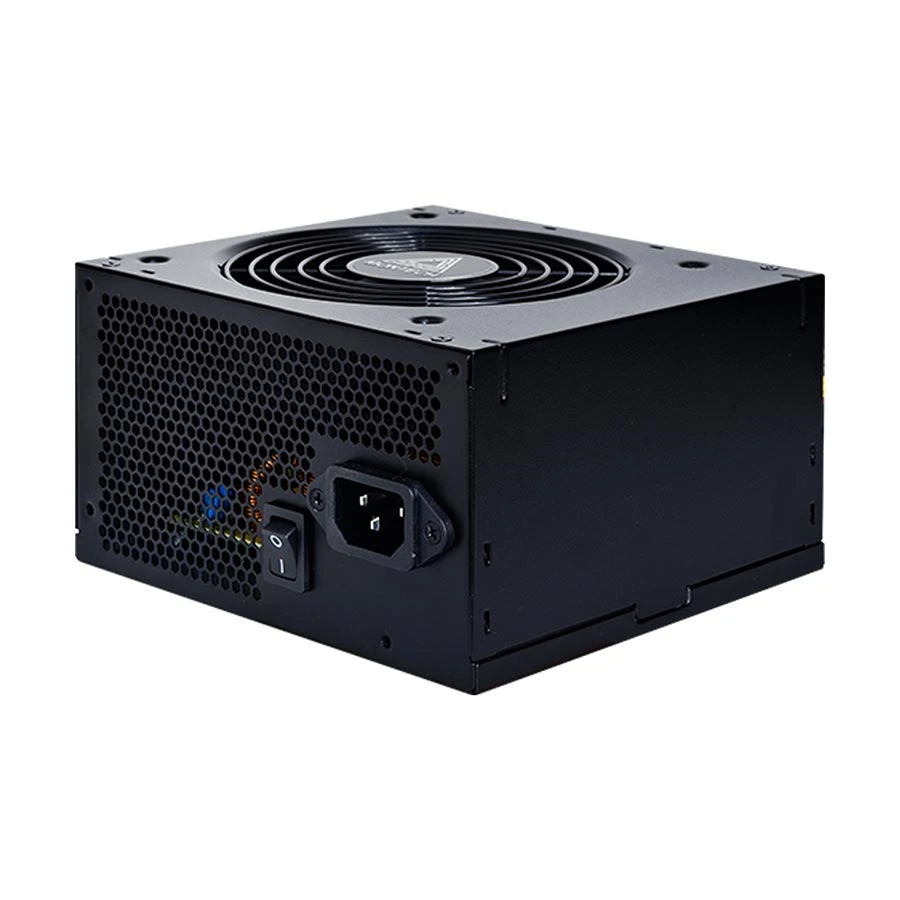

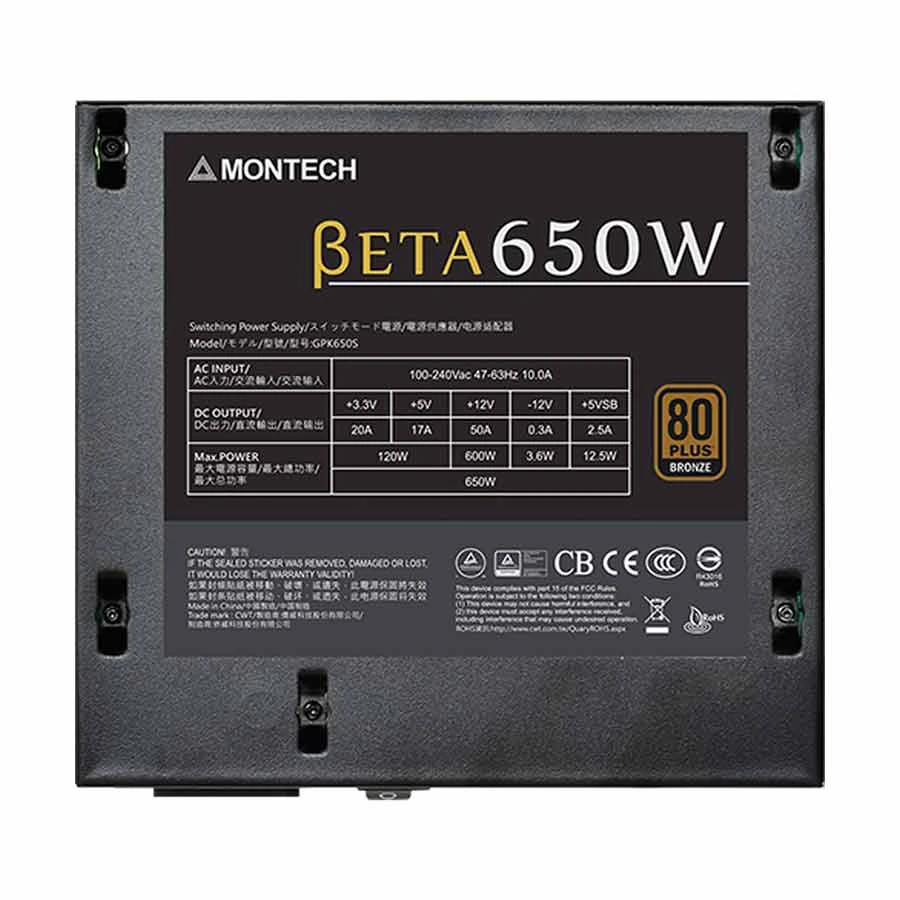

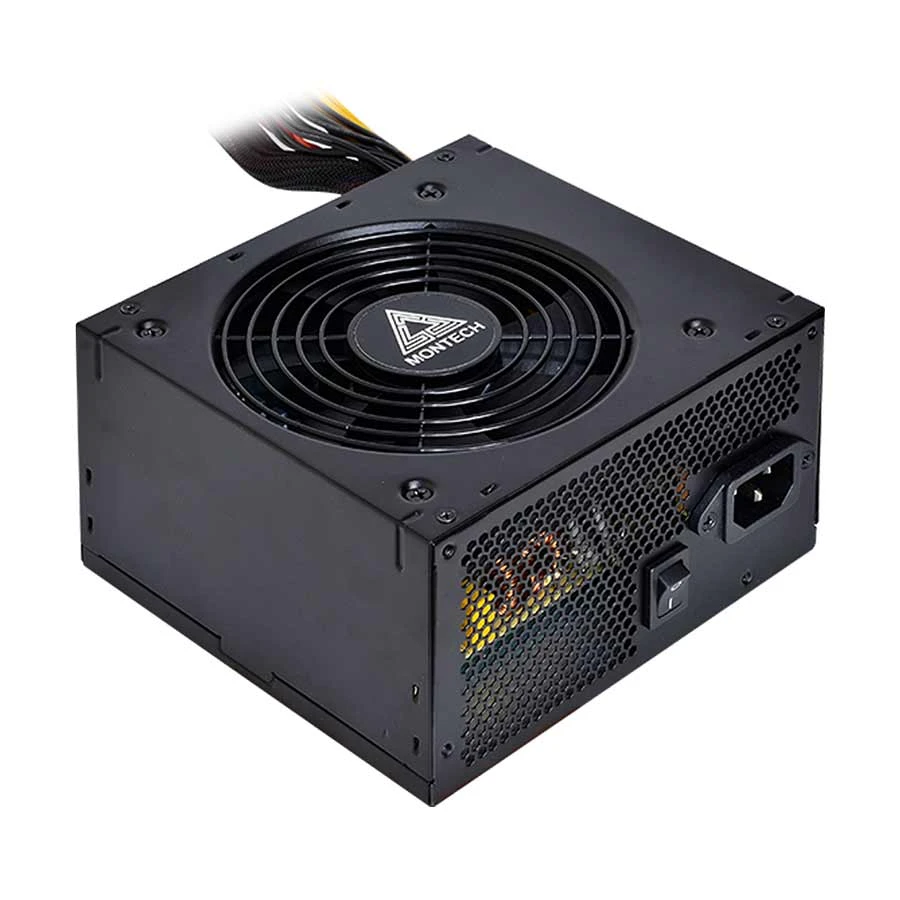

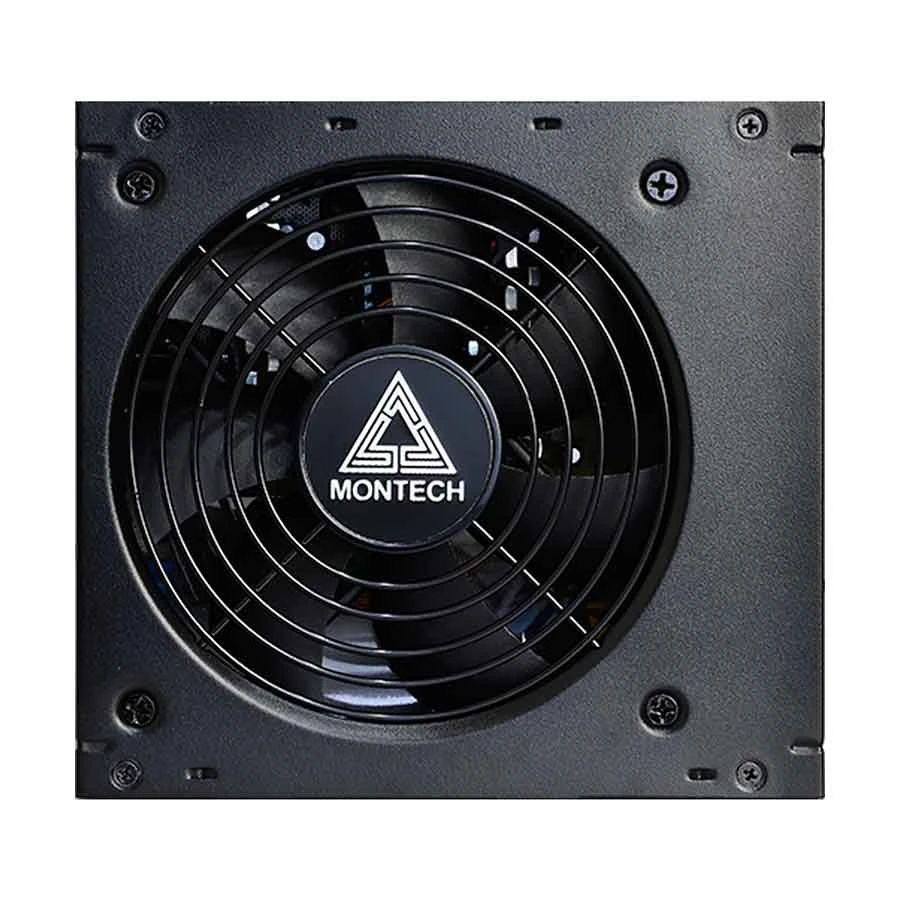

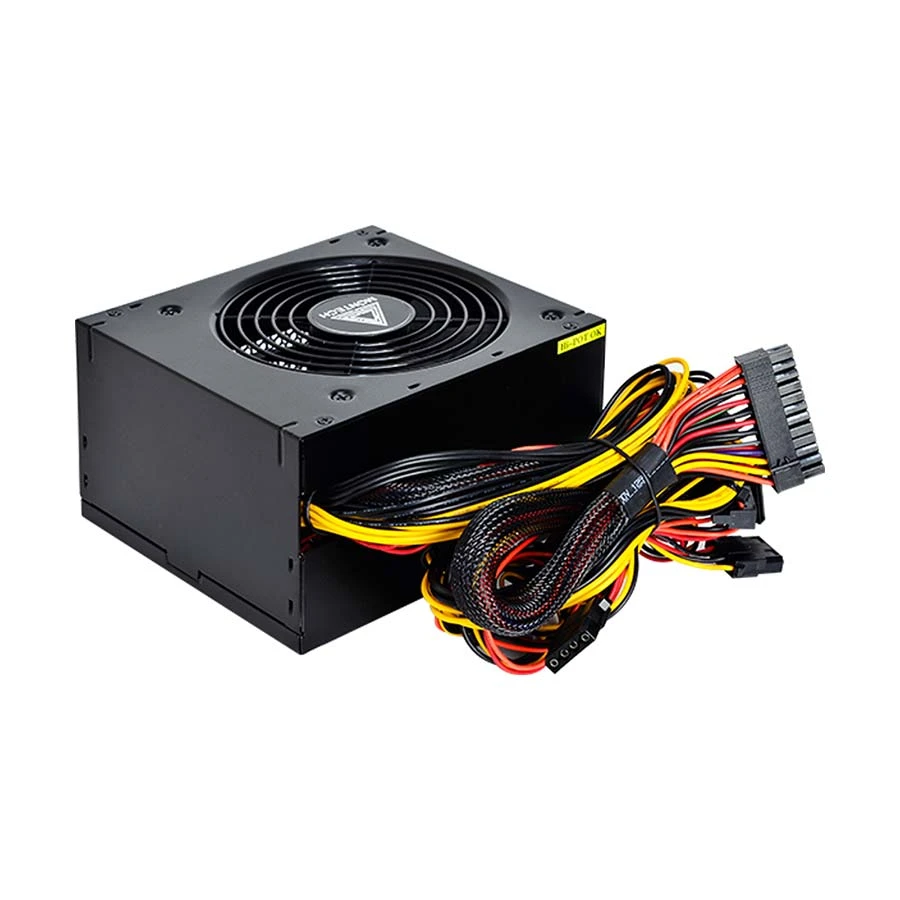

Montech BETA 650 650W Non Modular 80 Plus Bronze Certified Power Supply
Product Id: 55.01.839.02
Brand
Montech
Regular Price Tk 6,890
Monthly EMI Tk 574
Special Price Tk 6,390
Quick Overview
- PSU Category - Non Modular
- Type - ATX 12V
- Maximum Power - 650 Watt
- Efficiency - 83% Efficiency
- Efficiency Rating - 80 Plus Bronze
- Protection - OVP / OPP / UVP / SCP
General
Brand
Montech
Model
Montech BETA 650
Series
Beta Series
PSU Category
Non Modular
Type
ATX 12V
Cooling & Lighting
Fan Size
120mm
Lighting Effect
No
Lighting Type
Not Applicable
Performance
Efficiency
83% Efficiency
Efficiency Rating
80 Plus Bronze
PFC (Power Factor Correction)
Active PFC
Hold Up Time
10msec (minimum) at 80% of full load at 230Vac input.
Protection
Protection
OVP / OPP / UVP / SCP
Over Voltage Protection (OVP)
Yes
Over Power Protection (OPP)
Yes
Over Current Protection (OCP)
No
Over Temperature Protection (OTP)
No
Short Circuit Protection (SCP)
Yes
Under Voltage Protection (UVP)
Yes
Connectors
ATX Main Connectors
1
PCIe Connectors
2 x PCIE 6+2 Pin
SATA Power Connectors
6 x SATA
4-Pin Peripheral Connectors
2 x Molex 4Pin
Power
Min. Power (Approx.)
539W
Maximum Power
650 Watt
Input AC
100 - 240 VAC
Input Voltage
100 - 240V
Input Frequency Range
47Hz - 63Hz
Input Current
10A
Operating Temperature
0 - 45 degree C
Physical Description
MTBF
100000 Hours
Form Factor
ATX
Dimensions
150 x 140 x 86mm
Color
Black
Warranty
Warranty Details
3 year
Additional Info
Regulatory / Safety Approval
cTUVus / TUV / CB / CE / CCC / RoHS / FCC
Specialty
80 PLUS Bronze Certified, High Quality Components, Japanese Main Eletronic Capacitors, High Amperage +12V Single Rail, Silent Fan, 120MM silent fan, Beta series offers sufficient amount of cables. Also, the length of the cables are longer which makes building easier.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
