1 x M.2 (Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices)
M.2/SSD Slot Gen
Up to Gen 3
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
PCI Express Slot
1x PCIe 3.0 x16 slot, 2x PCIe 3.0 x1 slots
Audio & Video
Audio Chipset
Realtek ALC892
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 8111H
LAN Speed (Mbps)
10/100/1000
WiFi
No
Bluetooth
No
Ports
USB Port
6 x USB3.2 Gen 1, 6 x USB2.0
VGA Port
No
DVI Port
1
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
6 x SATA
Thunderbolt
No
TPM Port
Yes
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
DirectX Support
12
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
No
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 128 Mbit Flash
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 10
Warranty
Warranty
3 year
Additional Info
Feature

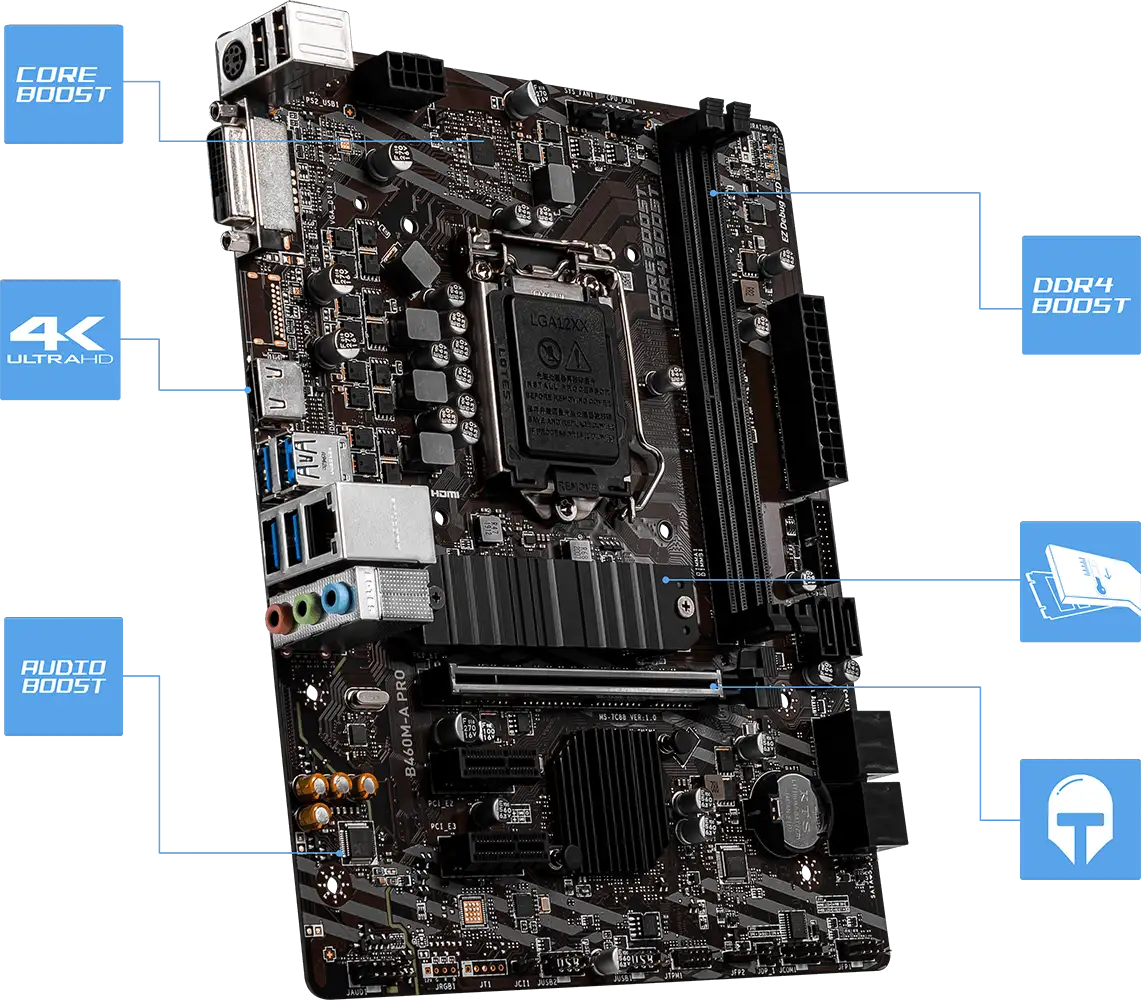

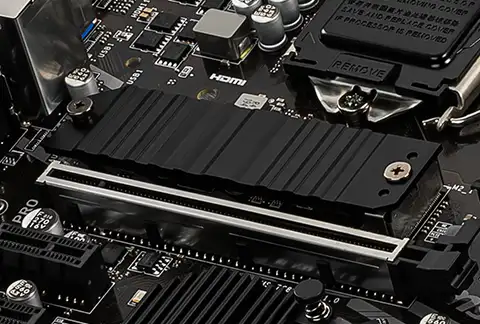

Core Boost, With premium layout and digital power design to support more cores and provide better performance, DDR4 Boost, Advanced technology to deliver pure data signals for the best performance and stability, M.2 Shield Frozr, Strengthened built-in M.2 thermal solution, Keeps M.2 SSDs safe while preventing throttling, making them run faster, Turbo M.2, Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs, Audio Boost, Steel Armor, Protecting VGA cards against bending and EMI for better performance, stability and strength
Others
1x 4-pin CPU fan connector, 1x 4-pin system fan connector, 1x Front panel audio connector, 2x Front panel connectors, 1x TPM module connector, 1x Serial port connector, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 4x EZ Debug LED, Audio jacks
Country Of Origin
Taiwan
Made in/ Assemble
China
