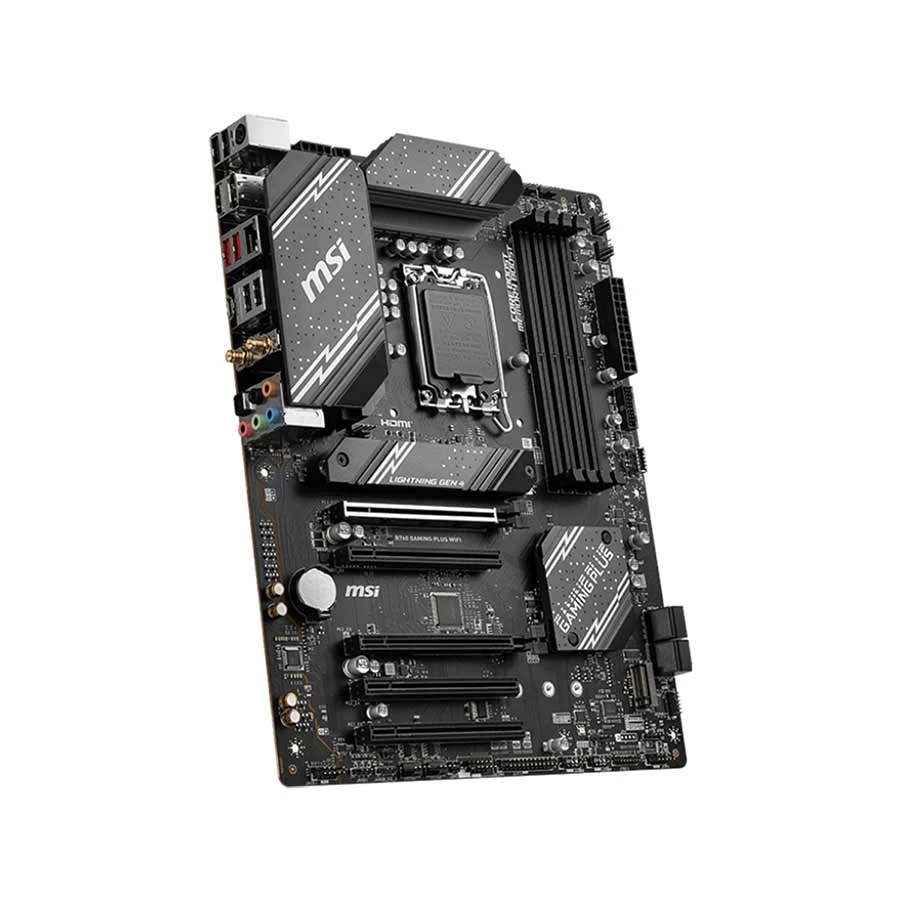

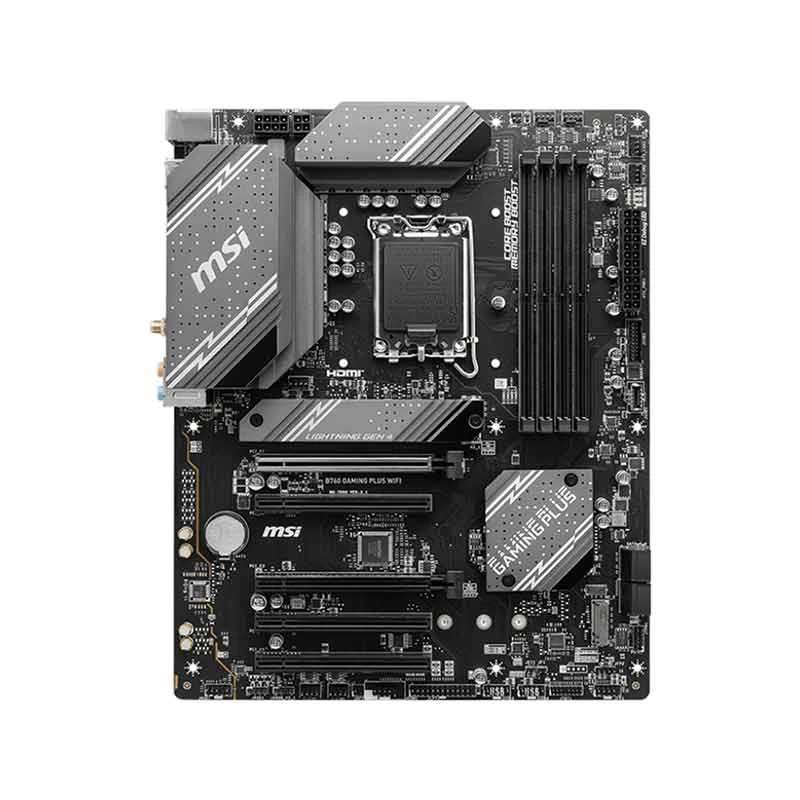

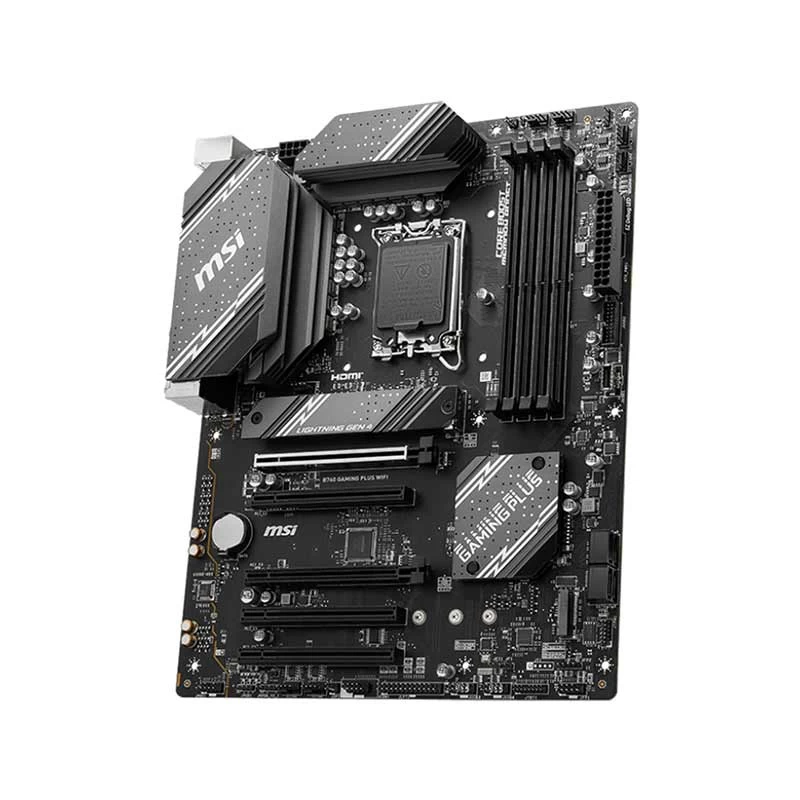

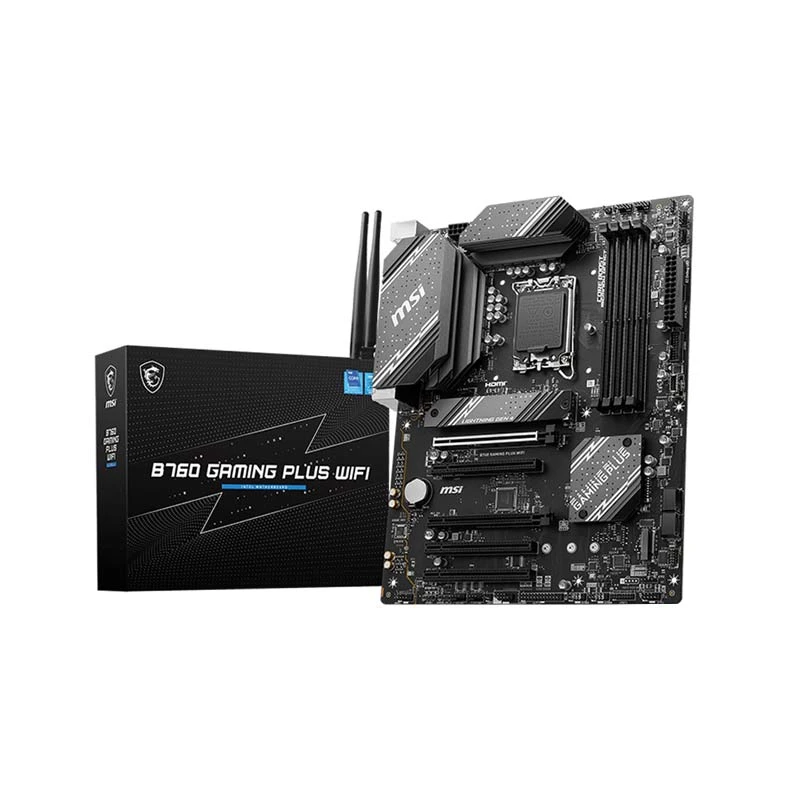

MSI B760 GAMING PLUS (Wi-Fi 6E) DDR5 Intel Gaming Motherboard

Product Id: 02.01.033.387

Brand MSI

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel B760
  • Memory Max. - 192GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors.
  • Generation - 12th/13th/14th
General
Brand
MSI

Model
MSI B760 GAMING PLUS (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors.

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz non-ECC, un-buffered memory

Memory Channel
Dual

Memory Slot
4

Memory Max.
192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 ( 1 x M.2 type 22110/2280/2260/2242 supports up to PCIe 4.0 x4, 1 x M.2 type 280/2260/2242 supports up to PCIe 4.0 x4 / SATA mode)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
5 x PCI-E x16 slot


Audio & Video
Audio Chipset
Realtek ALC897 Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8125BG 2.5G LAN

LAN Speed (Mbps)
10/100/1000/2500Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6E

Bluetooth
Bluetooth 5.3


Ports
USB Port
4 x USB 2.0 Type-A, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
1


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
ARGB

RGB Connector
2 x Addressable V2 RGB LED connector (JARGB V2), 1 x RGB LED connector(JRGB)

Approx. Power Consumption
70W

Form Factor
ATX


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
Compatible with LGA1700 Socket 12th, 13th & 14th Gen Intel Processor.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Others

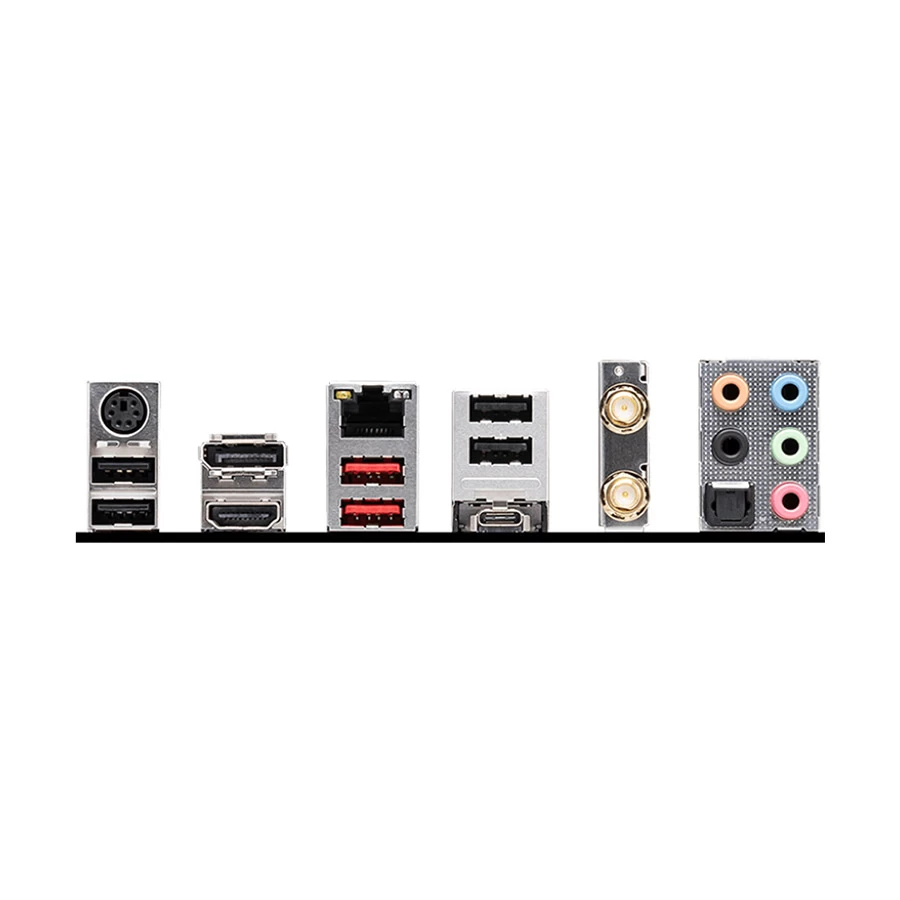

Back Panel Ports: ( Keyboard / Mouse, Audio Connectors, S/PDIF-OUT), Internel Connectors: (1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0))

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
