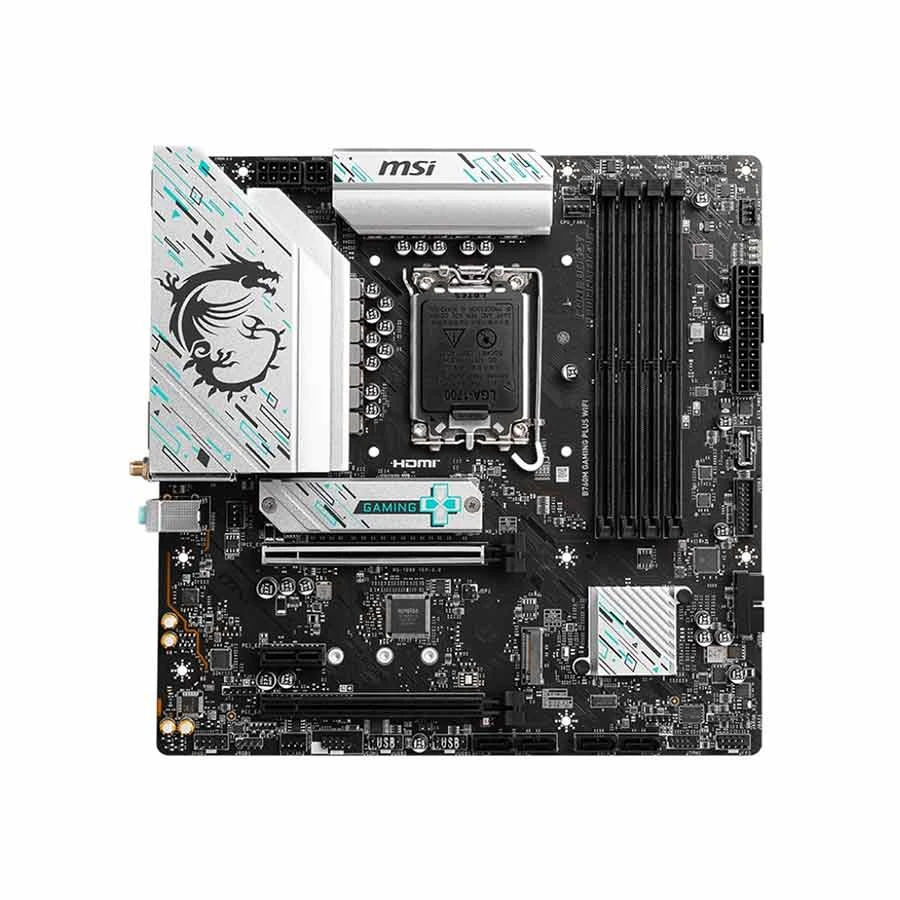

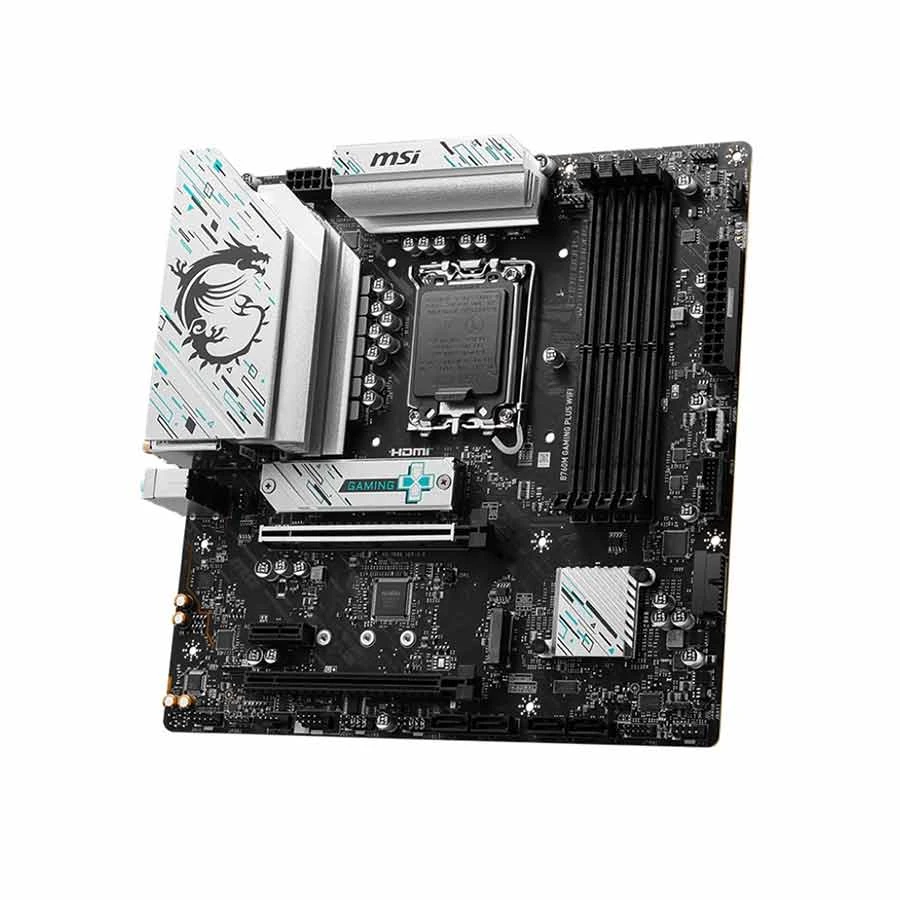

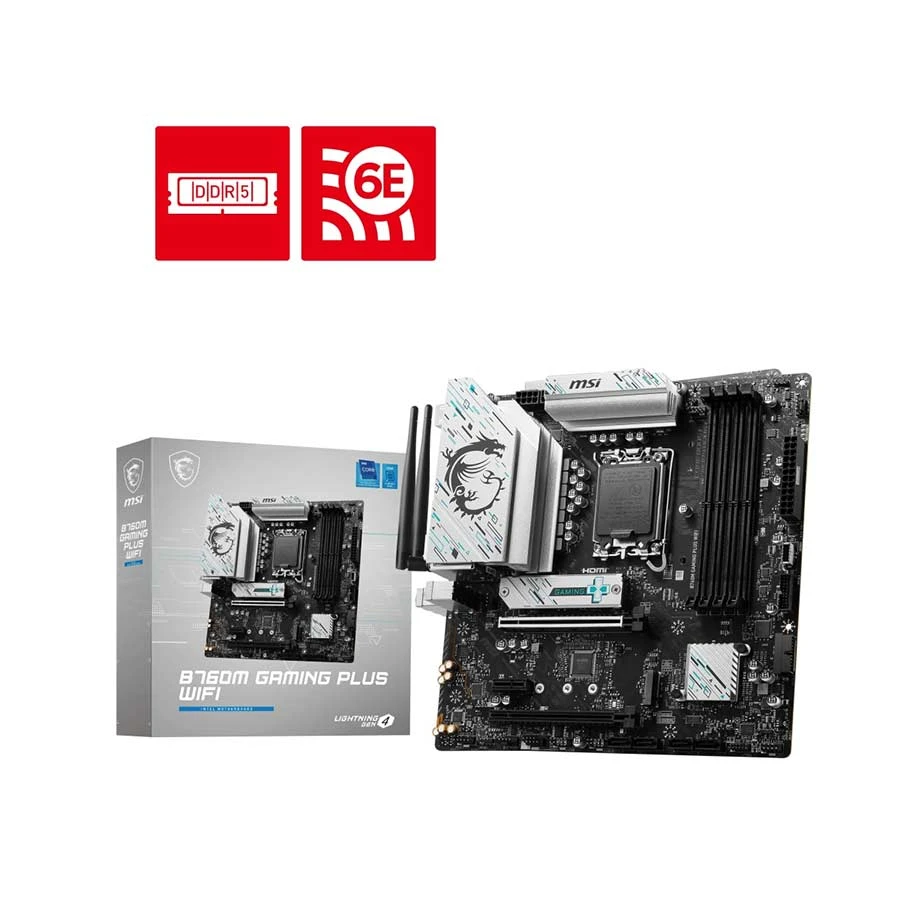

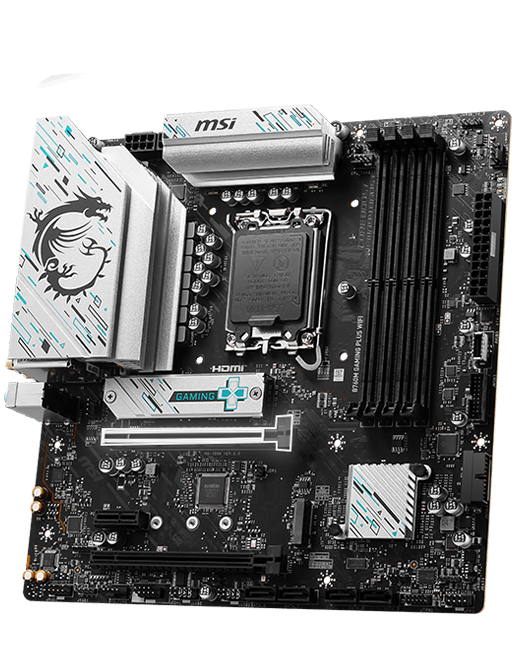

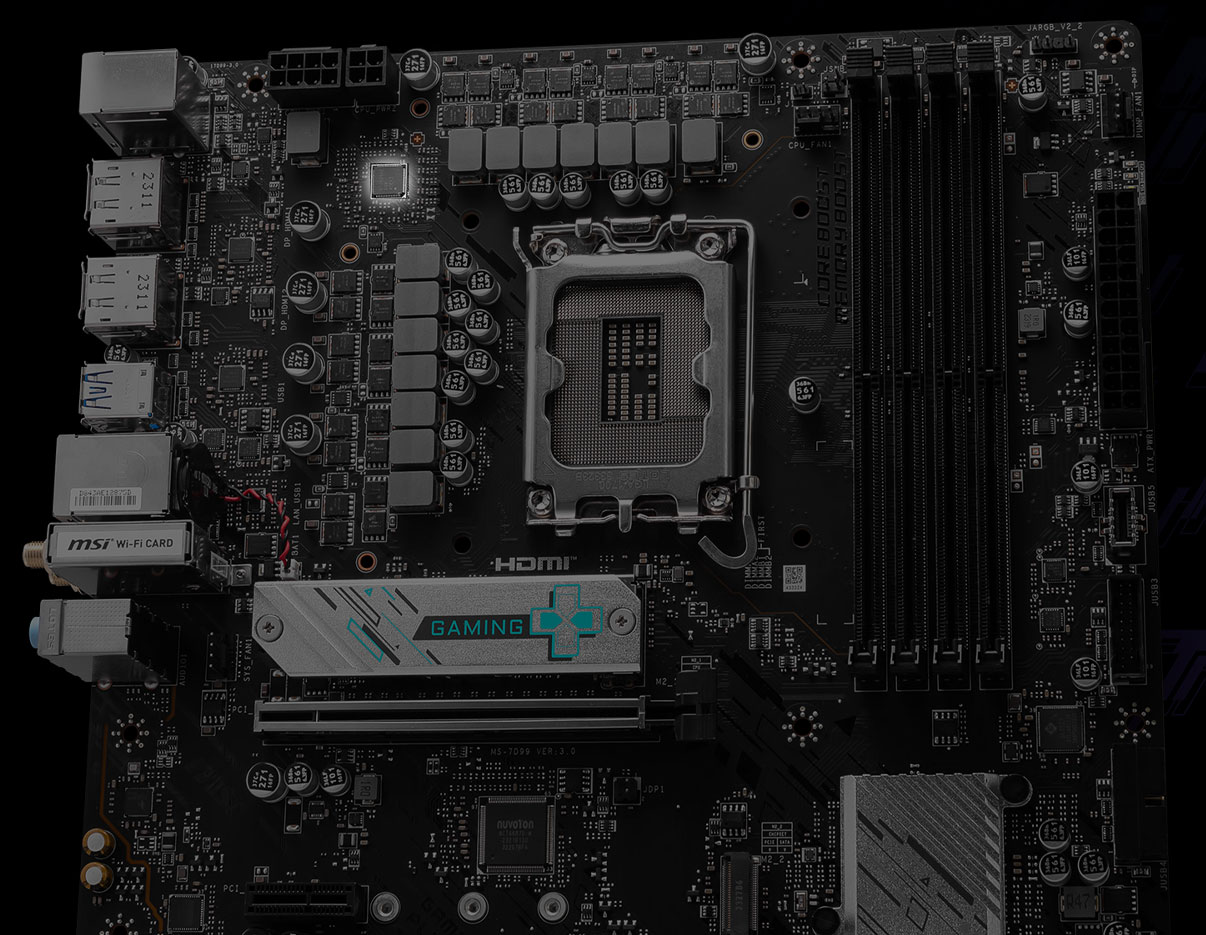

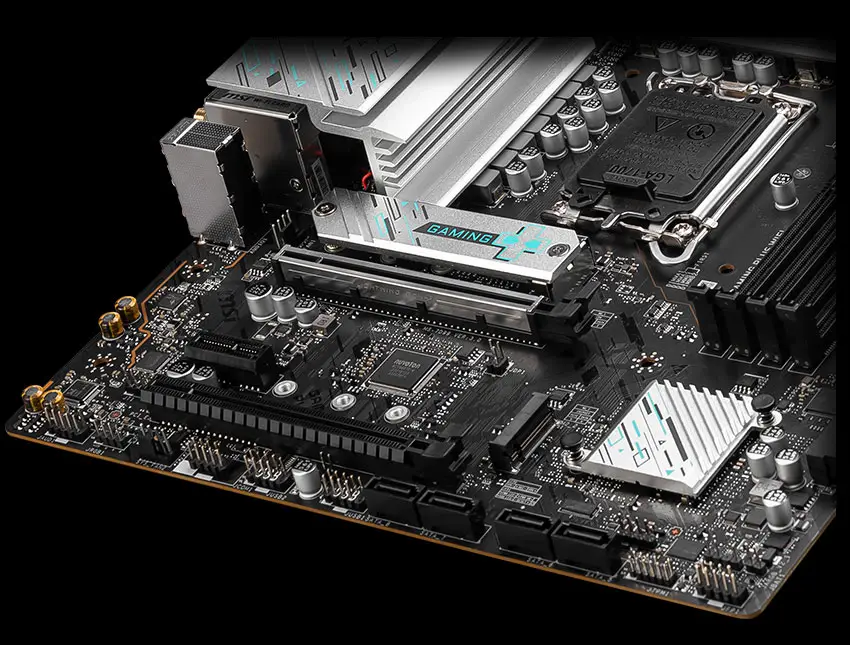

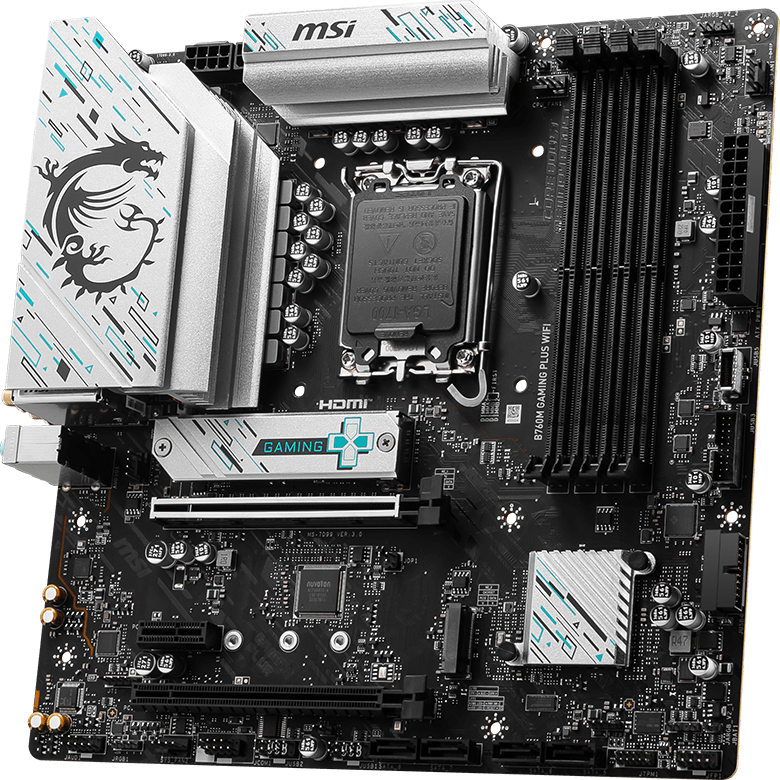

MSI B760M GAMING PLUS (Wi-Fi 6E) Intel Motherboard

Product Id: 02.01.033.506

Brand MSI

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel B760
  • Memory Max. - 192GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
General
Brand
MSI

Model
MSI B760M GAMING PLUS (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz

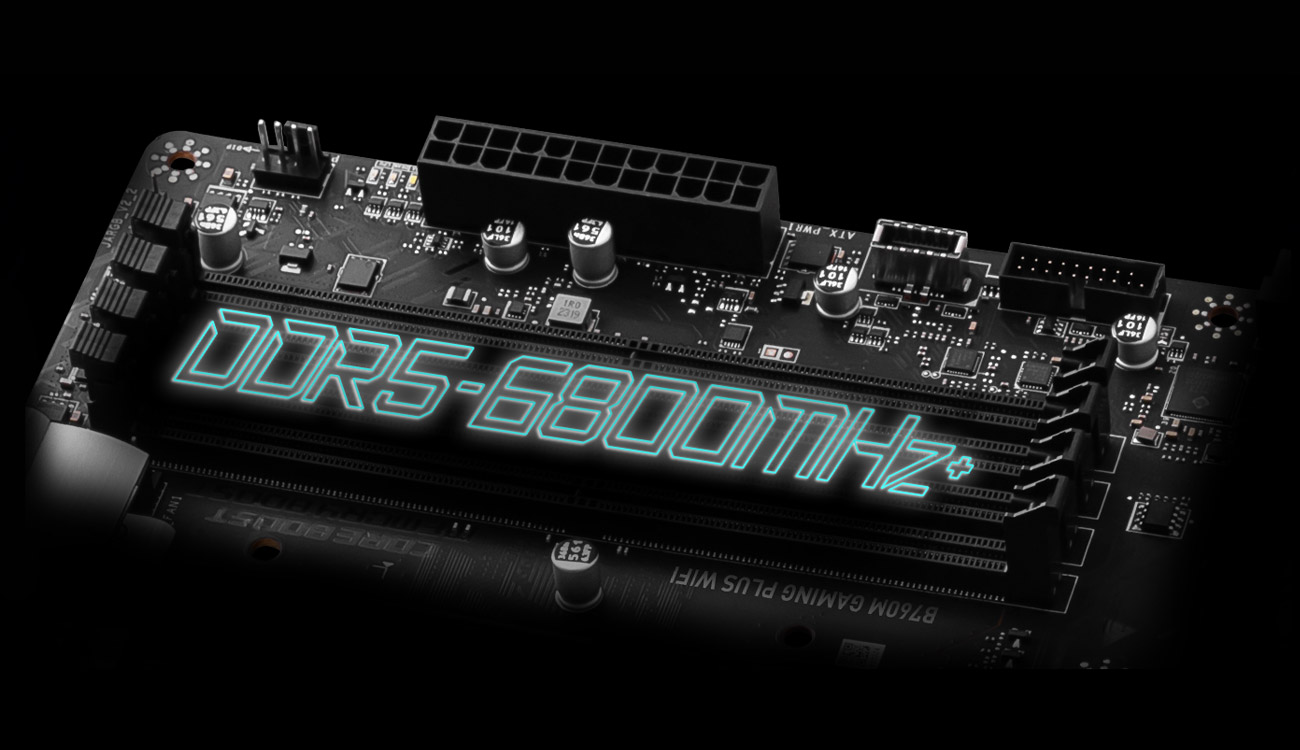

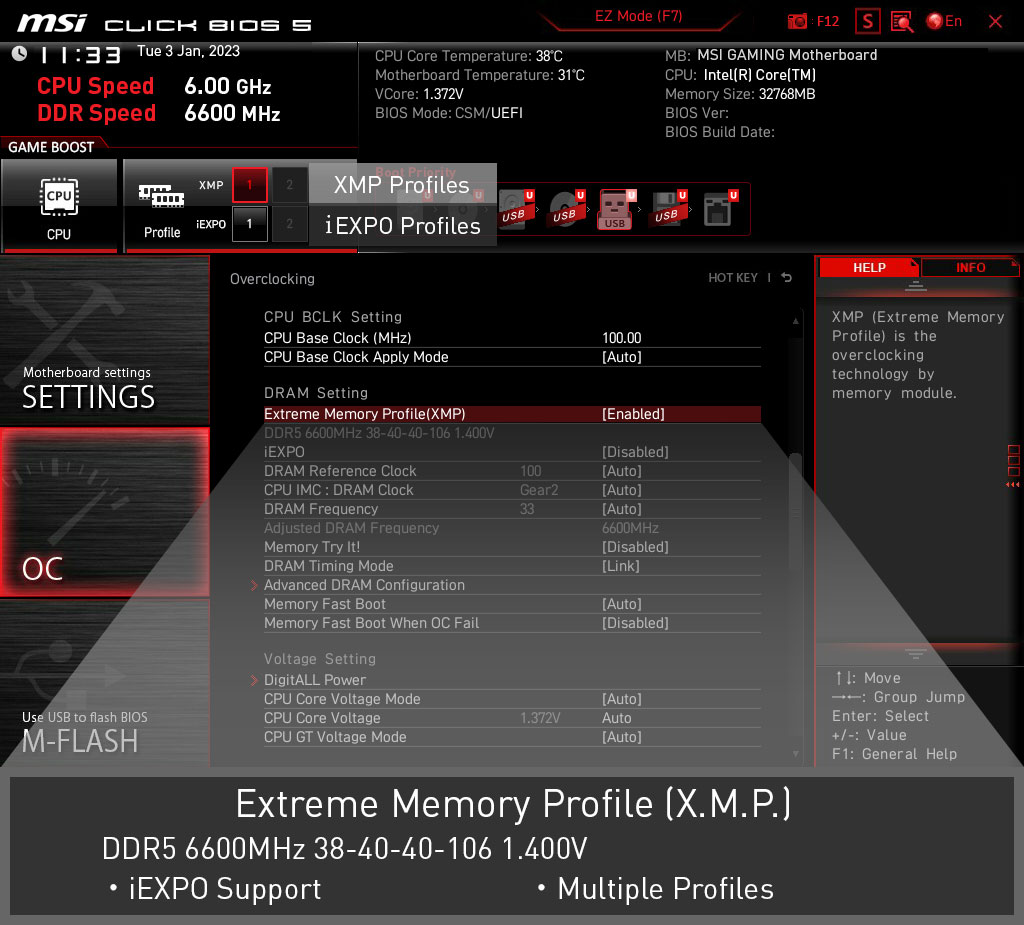

6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz non-ECC, un-buffered memory

Memory Channel
Dual

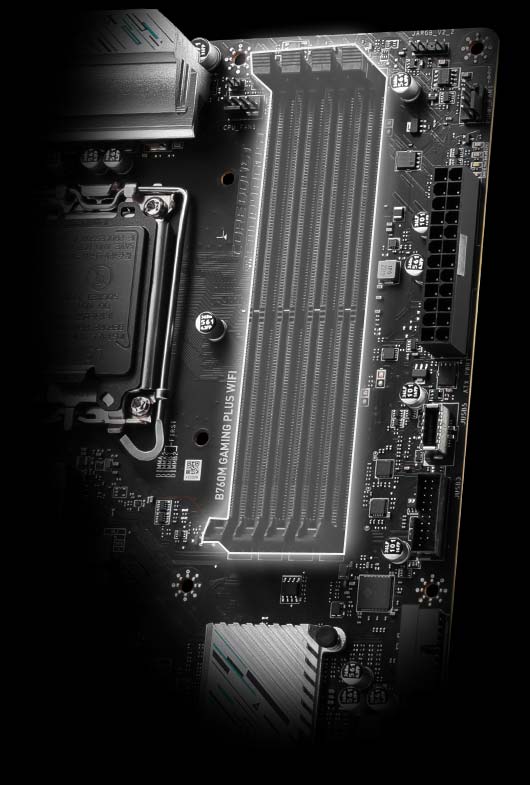

Memory Slot
4

Memory Max.
192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 ((1 x M.2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices),(1 x M.2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
2 x PCI-E x16 slot, 1 x PCI-E x1 slot


Audio & Video
Audio Chipset
Realtek ALC897 Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8125BG

LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps

WiFi
Yes

WiFi Technology
Intel Wi-Fi 6E

Bluetooth
Bluetooth 5.3

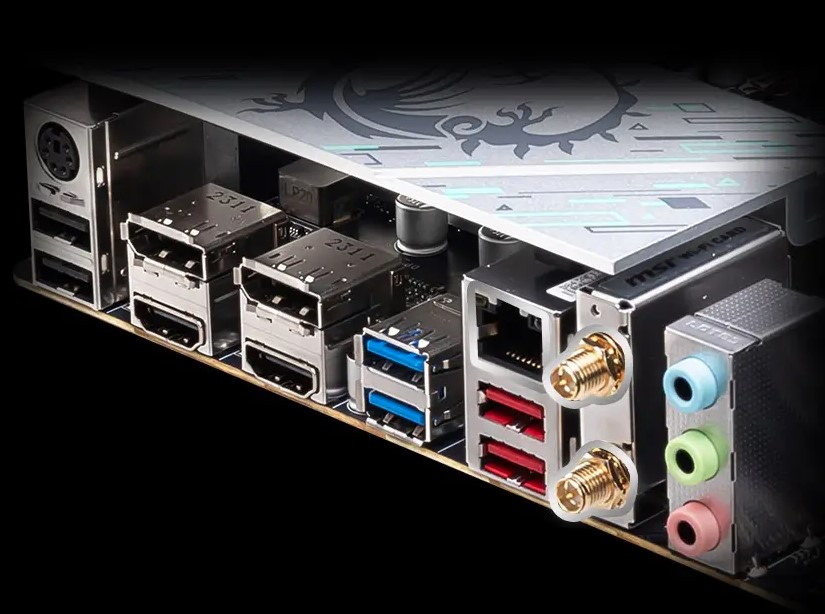

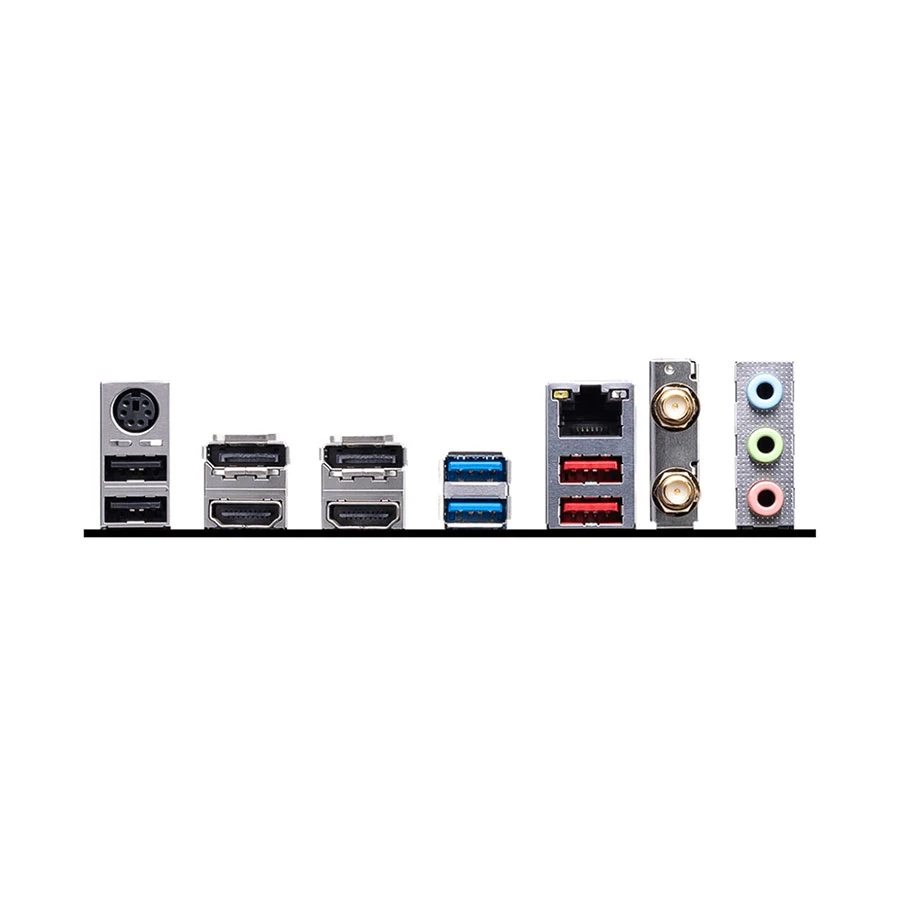

Ports
USB Port
2 x USB 3.2 Gen 1, 2 x USB 2.0, 2 x USB 3.2 Gen 2

VGA Port
No

DVI Port
No

HDMI Port
2

DisplayPort (DP)
2

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
1

COM Port
1


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Connector
1 x RGB LED connector(JRGB)

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Compatibility
Supported Operating System
Windows 10,11

Compatible Products
Alder Lake Core i5 12400F, Alder Lake Core i5 12400, Raptor Lake Core i5 13400F, Raptor Lake Core i5 13400, Raptor Lake Core i5 13500, Raptor Lake Core i5 13600KF, Core i7 12700K


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature

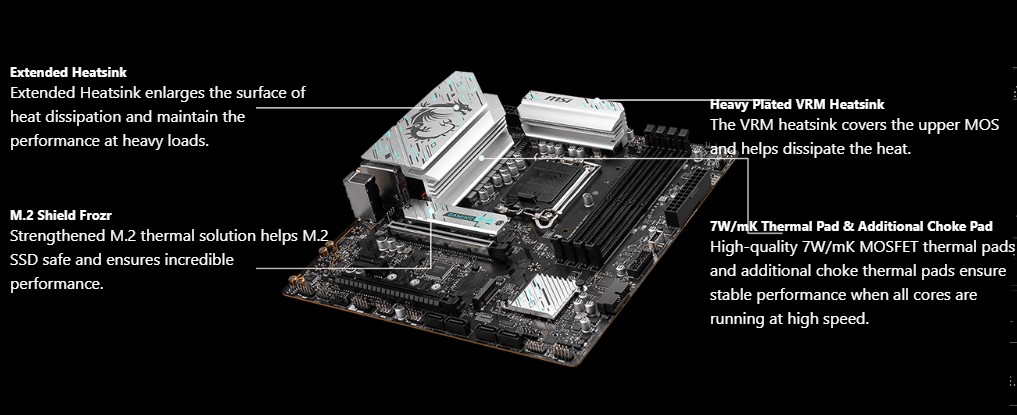

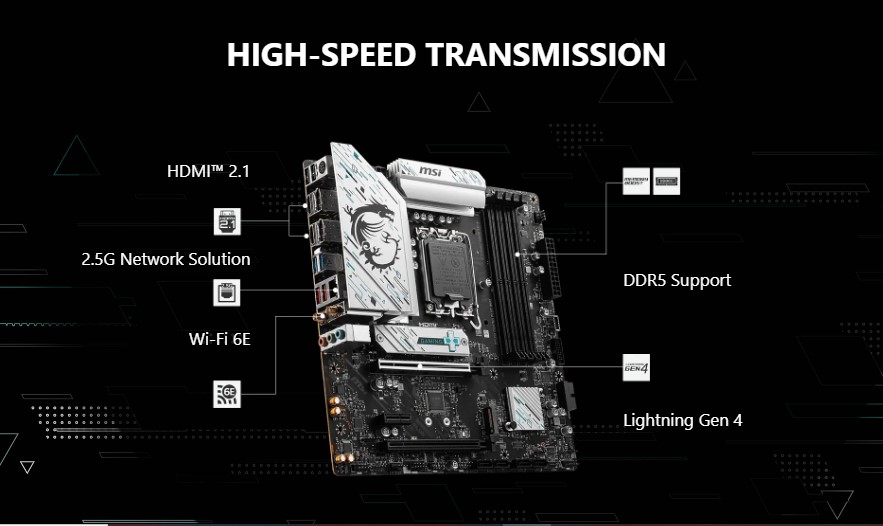

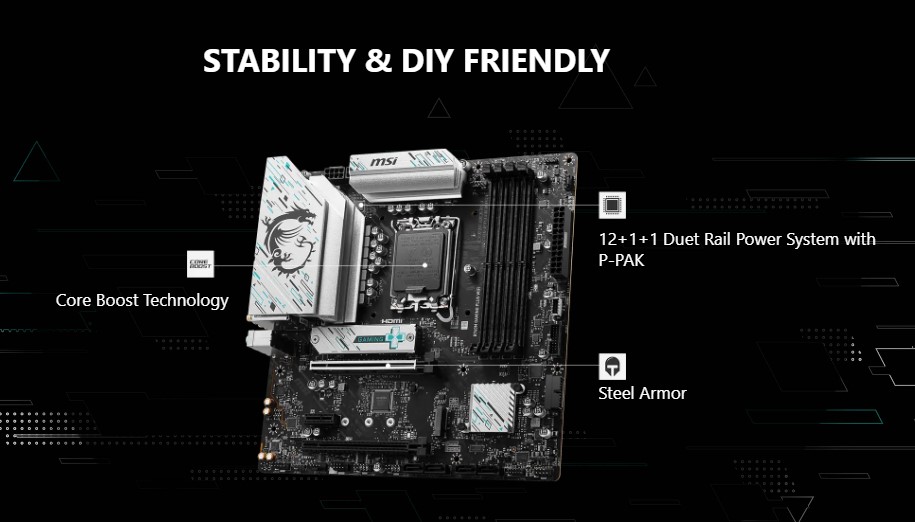

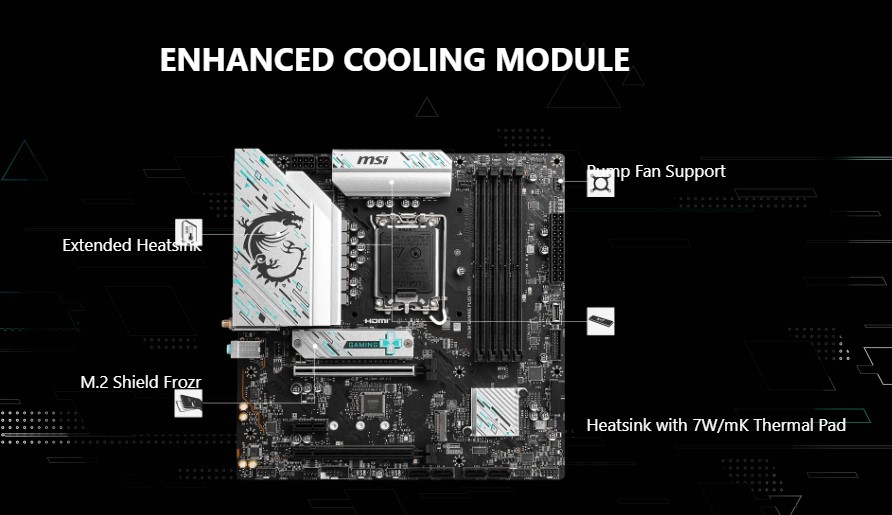

Latest DDR5 Memory, Lightning Gen4 Solution, Extended Heatsink Design, M.2 Shield FROZR, PCI-E Steel Armor, Frozr AI Cooling, 2.5G Network Solution, Wi-Fi 6E, Core Boost, Audio Boost

Others
The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Size: 243.84mmx243.84mm

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
