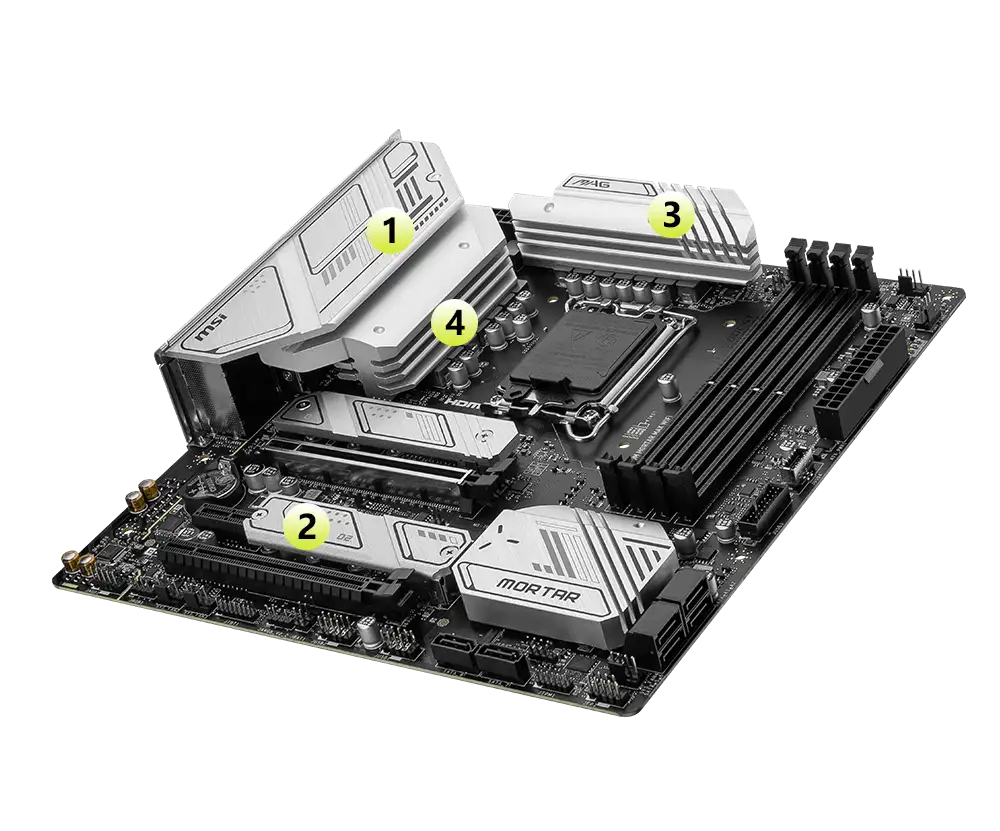

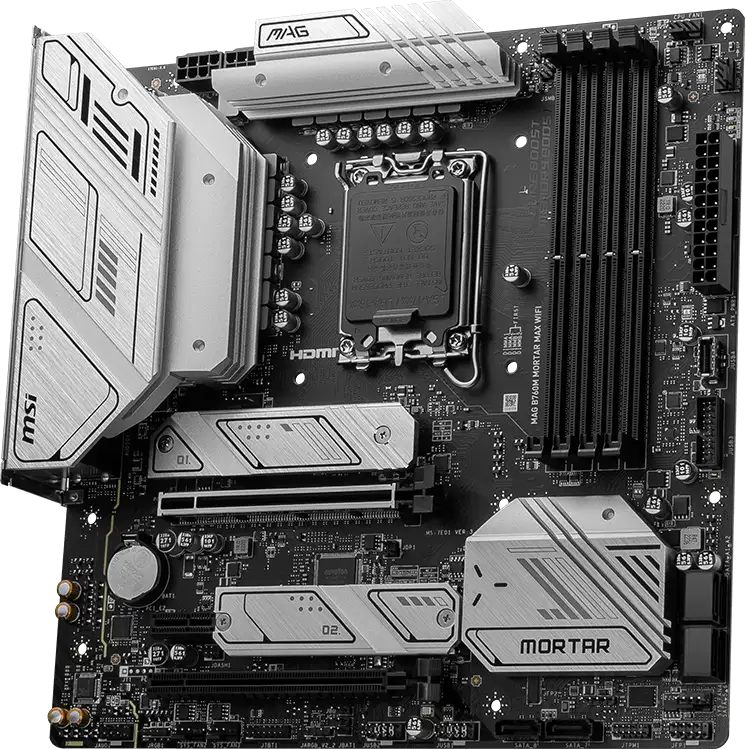

MSI MAG B760M MORTAR MAX (Wi-Fi 6E) DDR5 Gaming Motherboard
2 x M.2 (1 x M.2 supports up to PCIe 4.0 x4 supports 2280/2260/2242 devices, 1 x M.2 supports up to PCIe 4.0 x4/SATA mode supports 2280/2260/2242 devices)
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot
Audio & Video
Audio Chipset
Realtek ALC897 Codec
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 2.5Gbps LAN
LAN Speed (Mbps)
10/10/1000/2500Mbps
WiFi
Yes
WiFi Technology
Intel Wi-Fi 6E
Bluetooth
Bluetooth 5.3
Ports
USB Port
4 x USB 2.0 Type-A, 3 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2x2 Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
6
Thunderbolt
No
TPM Port
1
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
DirectX Support
No
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
Yes
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Connector
2 x Addressable V2 RGB LED connector (JARGB V2), 1 x RGB LED connector(JRGB)
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Compatibility
Supported Operating System
Windows 10 / 11
Warranty
Warranty
3 year
Additional Info
Feature
Lightning Gen 5, OC Engine, Latest DDR5 Memory, The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps, Featuring premium 2.5G LAN to deliver better network experience, Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1, M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster, Advanced technology to deliver pure data signals for the best performance, stability and compatibility, Core Boost, 6 Layer PCB with 2oz Thickened Copper.
Others
Connector: (1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0)).
Country Of Origin
Taiwan
Made in/ Assemble
China
