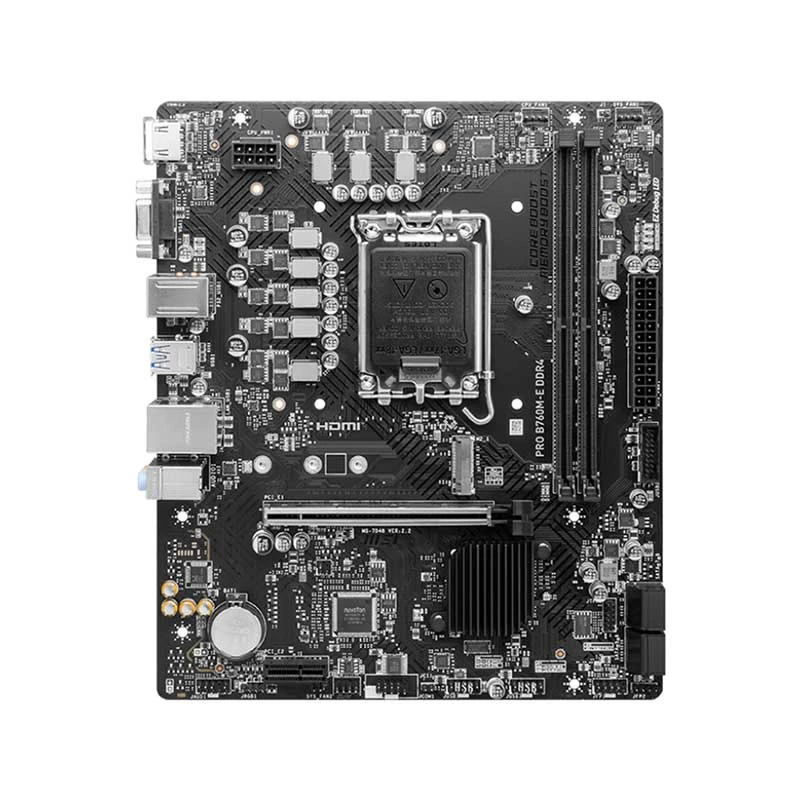

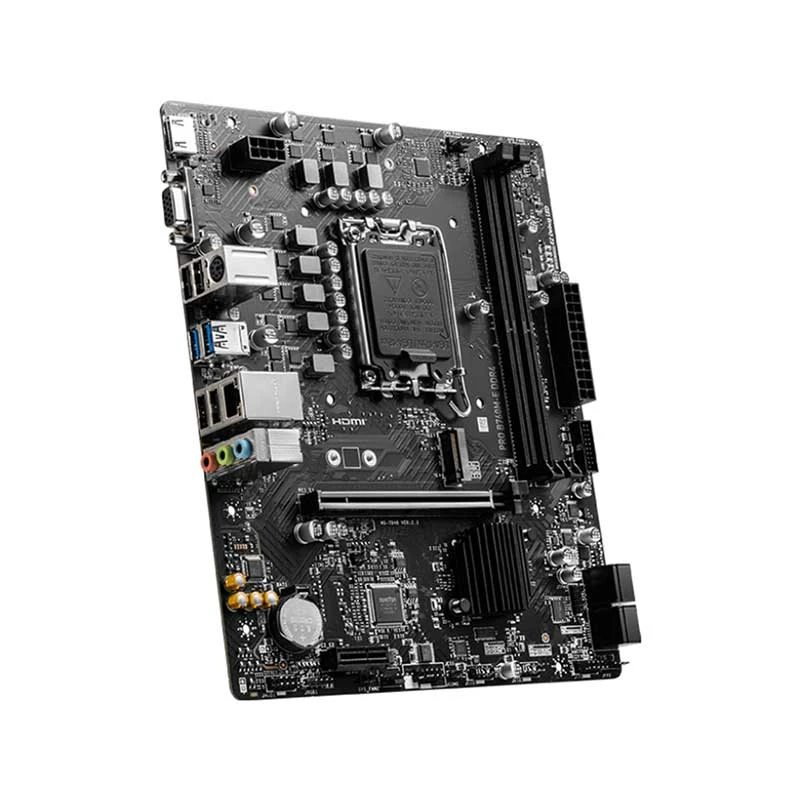

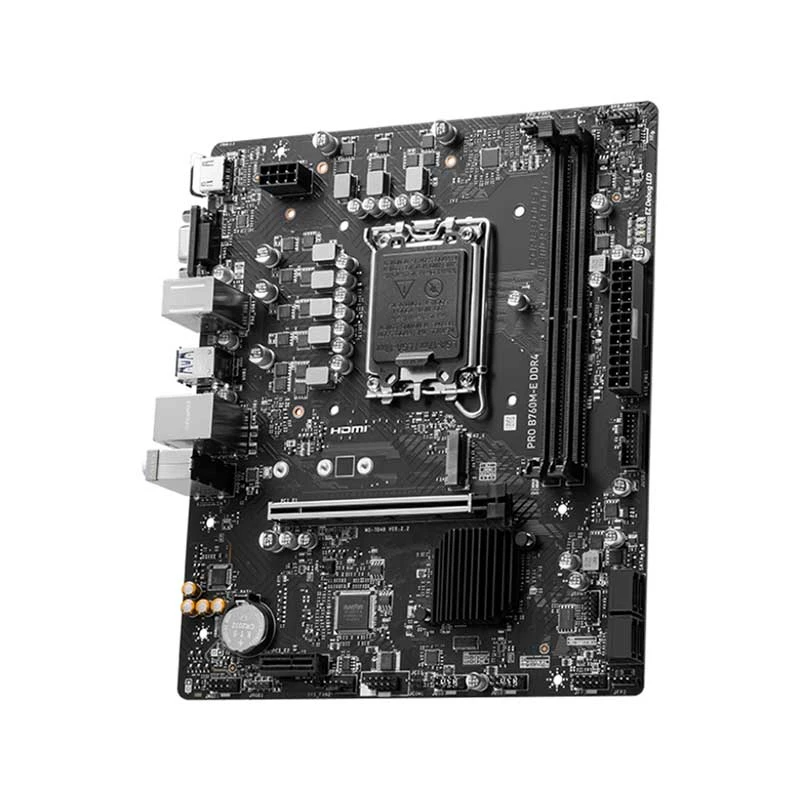

MSI PRO B760M-E DDR4 12th/13th/14th Gen Intel LGA1700 Socket Motherboard #3Y

Item: MSI PRO B760M-E DDR4 12th/13th/14th Gen Intel LGA1700 Socket Motherboard #3Y
Rating: 5
Author: Verified Buyer

10 reviews

Product Id: 02.01.033.527

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - Intel B760
Sockets Supported - LGA1700
Supported CPU - 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Generation - 12th/13th/14th
Memory Slot - 2
Memory Max. - 64GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Model

MSI PRO B760M-E DDR4

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th/14th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

64GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10, Windows 11

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI PRO B760M-E DDR4

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Generation

12th/13th/14th

Memory Support

Memory Type

DDR4

Memory MHz

4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

Memory Channel

Dual

Memory Slot

Memory Max.

64GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 (M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1x PCI-E x16 slot, 1x PCI-E x1 slot

Audio & Video

Audio Chipset

Realtek ALC897 Codec

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek RTL8111H

LAN Speed (Mbps)

10/100/1000Mbps

WiFi

WiFi Technology

Bluetooth

Ports

USB Port

4 x USB 2.0, 2 x USB 3.2 Gen1 Type A

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

RGB

RGB Connector

1x RGB LED connector(JRGB)

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Compatibility

Supported Operating System

Windows 10, Windows 11

Compatible Products

Intel Core i9/ i7/ i5/ i3, Pentium, Celeron processors. LGA1700 socket.

Warranty

3 year

Additional Info

Feature

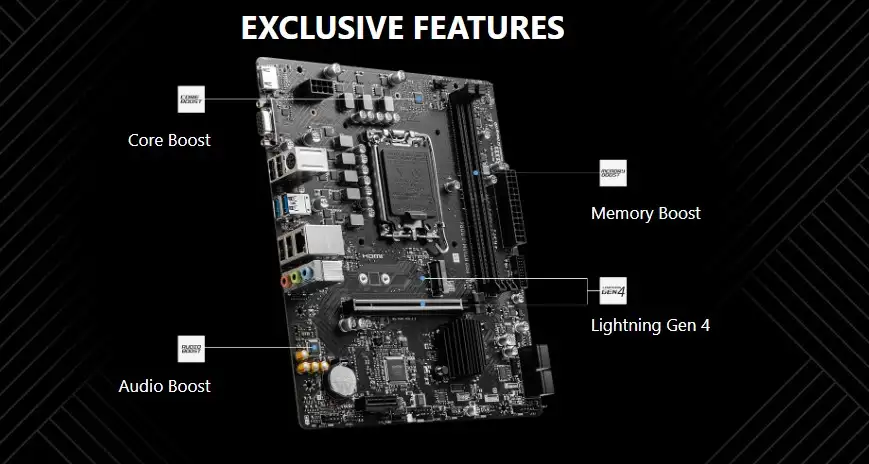

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC). Core Boost : With premium layout and digital power design to support more cores and provide better performance. Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility. Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2. AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience. Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Others

Internal I/O: 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x TPM pin header(Support TPM 2.0), Back Panel Port: Keyboard / Mouse, LAN port, Audio Connectors, LED Feature: 4x EZ Debug LED.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI PRO B760M-E DDR4 Motherboard In Bangladesh

The MSI PRO B760M-E DDR4 motherboard is an excellent choice for users seeking reliable performance with Intel’s 12th, 13th, and 14th Gen processors. Designed for DDR4 memory, this motherboard ensures smooth multitasking and efficient system operations, making it ideal for both productivity and gaming.

Features and Benefits

LGA1700 Socket: Supports Intel’s 12th, 13th, and 14th Gen processors for future-proofing.
DDR4 Memory Support: Delivers fast and efficient system performance for multitasking.
PCIe 4.0 Slot: Provides high-speed data transfers for graphics and other components.
M.2 Slot: Ensures fast storage with NVMe SSD support, reducing loading times.
Robust Power Delivery: Stable power for handling demanding tasks and gaming.
Micro-ATX Design: Compact form factor suitable for small to medium builds.

How to Maintain

Keep Dust-Free: Clean the motherboard regularly to avoid dust build-up.
Check Connections: Ensure all cables and components are securely connected.
Update BIOS: Keep the BIOS updated for the best compatibility and performance.
Ensure Proper Cooling: Maintain a good airflow to prevent overheating.
Handle with Care: Avoid touching the circuit board and handle it carefully when upgrading.

Call to Action

Enhance your PC with the MSI PRO B760M-E DDR4 Motherboard today! Visit Ryans Computers for the best prices and expert advice!

What is the price of MSI PRO B760M-E DDR4 Motherboard In Bangladesh?

The price of MSI PRO B760M-E DDR4 Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy MSI PRO B760M-E DDR4 Motherboard from our website or visit our showrooms nearby.
