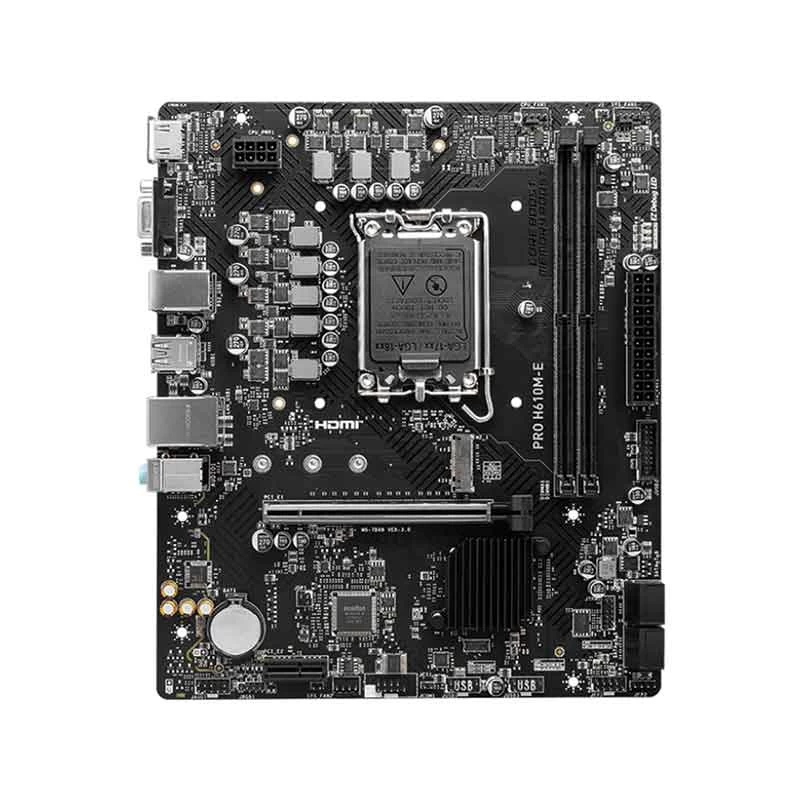

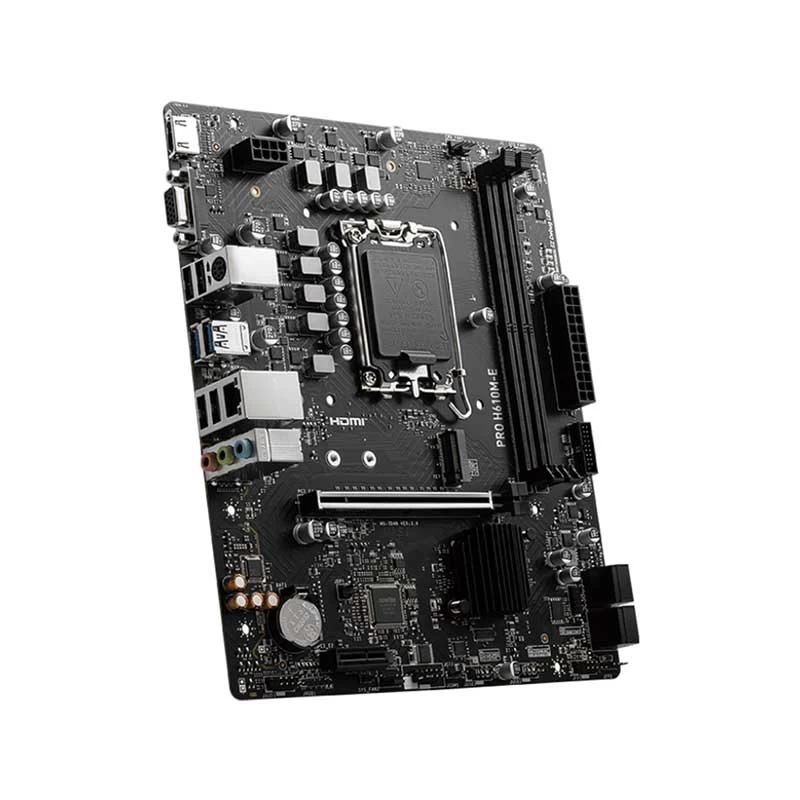

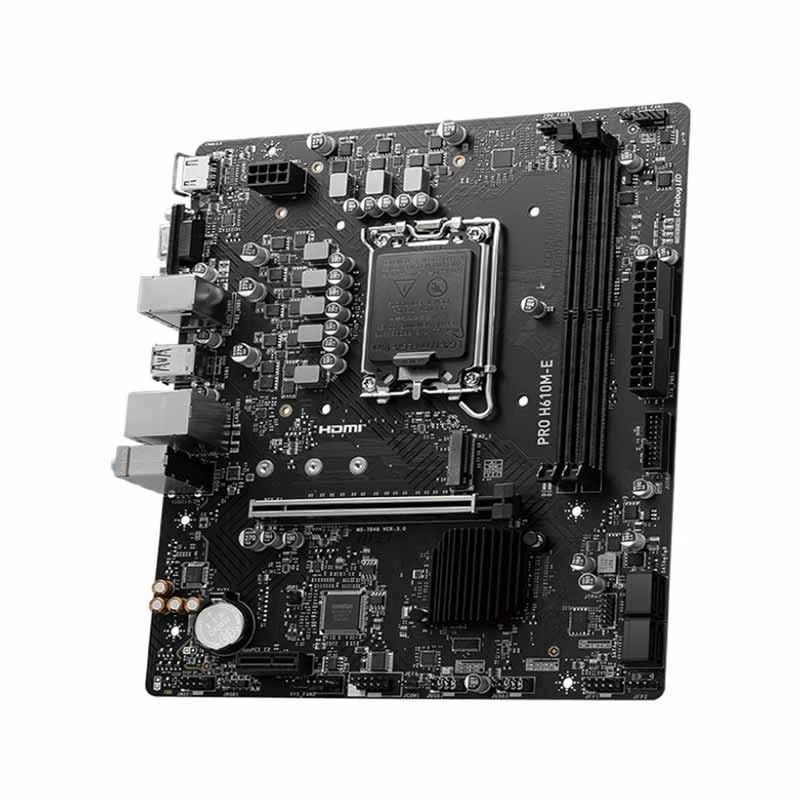

MSI PRO H610M-E DDR5 Intel Motherboard

Product Id: 02.01.033.394

Brand MSI

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel H610
  • Memory Max. - 96GB
  • Memory Slot - 2
  • Sockets Supported - LGA1700
  • Supported CPU - 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
General
Brand
MSI

Model
MSI PRO H610M-E

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel H610

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz non-ECC, un-buffered memory

Memory Channel
Dual

Memory Slot
2

Memory Max.
96GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 (1 x M.2 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCI-e x 16, 1 x PCI-e x 1 (PCI_E1 Gen PCIe 4.0 supports up to (From CPU), PCI_E2 Gen PCIe 3.0 supports up to (From Chipset))


Audio & Video
Audio Chipset
Realtek ALC897 Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8111H

LAN Speed (Mbps)
10/ 100/ 1000Mbps

WiFi
No


Ports

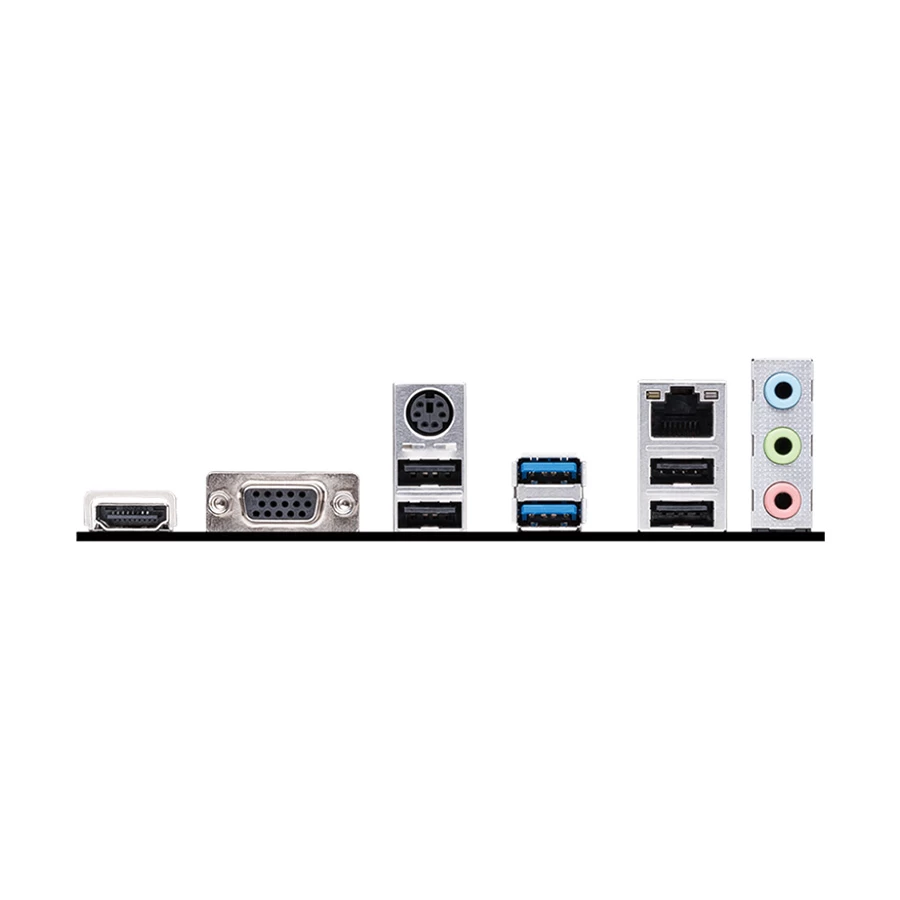

USB Port
4 x USB 2.0, 2 x USB 3.2 Gen 1 Type-A

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
1


Technical Info
CrossFire Support
No

Sli Support
No

RGB Support
RGB

RGB Connector
1 x RGB LED connector

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Compatibility
Supported Operating System
Windows 11, 10

Compatible Products
Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen & 13th Gen)


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. Lightning Gen4 Solution: The Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed. PCI-E Steel Armor: Protecting VGA cards against bending and EMI. EZ Debug LED: Easiest way to troubleshoot. Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value. Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.

Others
Internal I/O: 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), Back Panel Ports: Keyboard / Mouse, Audio Connectors

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
Eita ki i5 12400F er jonno valo hobe? Processor full load er somoy ki overheat korbe ei mobo?
By Rashed
A:
প্রিয় গ্রাহক, জি! ব্যবহার করতে পারবেন এবং লোড বেশি হলে স্বাভাবিক এর থেকে বেশি হিট হবে সকল প্রসেসর এই, ধন্যবাদ!
By Ryans Computers Ltd. , 27 Jan 2024 11:56:23 AM
Q:
Will Intel Core i5 12400 processor support with MSI Pro H610M- E Motherboard,
By Muhammad shafiul
A:
Dear Sir, Yes! It will be support Intel Core i5 12400 processor, Thanks for your query!
By Ryans Computers Ltd. , 29 Aug 2023 03:49:10 PM
Q:
Functional budget Product
By Mr. Sumaiya Jahan
A:
Dear Sir, Thanks for your valuable feedback.
By Ryans Computers Ltd. , 28 Aug 2023 04:01:01 PM
Your Question

REVIEW

Customer Reviews
Great value for the price!
By Md. Mahamudul Hasan . August, 2023
good
By Mr.Shoumik . August, 2023
Amazing Product
By Rafee . August, 2023
Amazing Mobo
By MR. MAZHARUL . August, 2023
Perfect for a super budget system.
By Abdul Aziz . August, 2023
Best quality Motherboard
By Riaz . August, 2023
Excellent Motherboard...Works Great
By Shafiqur Rahman . August, 2023
Best mainboard
By Kanon . August, 2023
