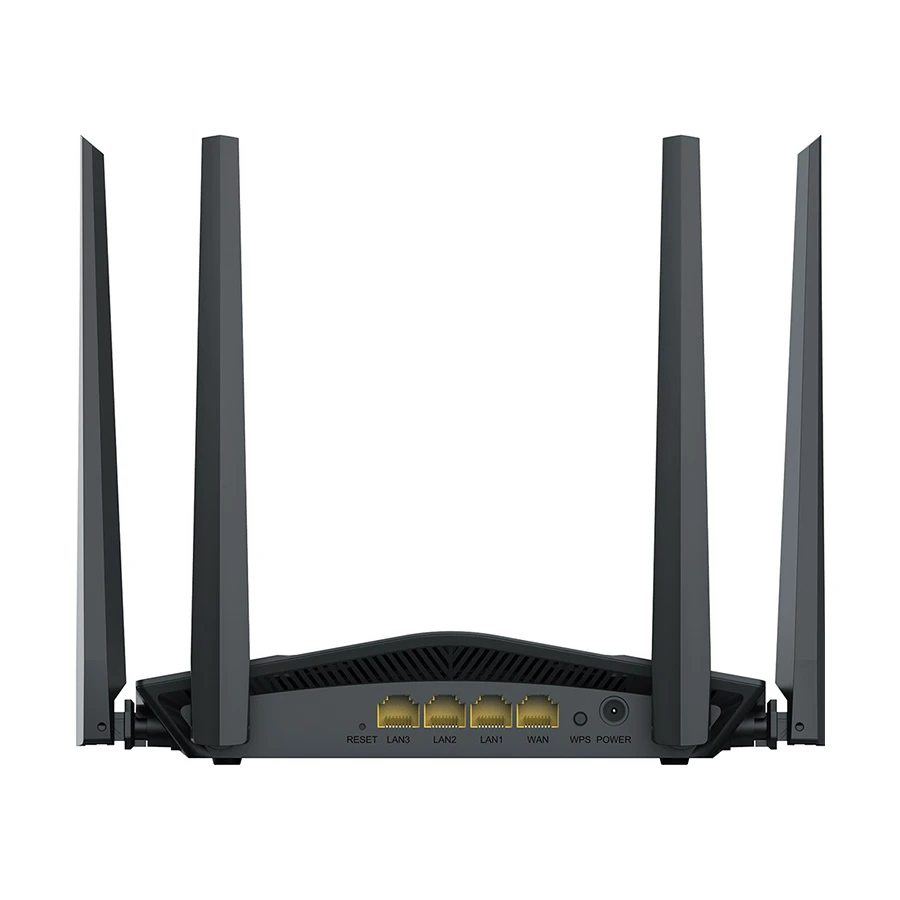

1 x 10/100/1000 RJ45 WAN, 3 x 10/100/1000 RJ45 LAN
Number of WAN Port
1
Number of LAN Port
3
Internet Connectivity
WAN Only
Wireless
Antenna (Type & Qty)
4 x 5dBi high gain antennas
WAN Type
DHCP, Static IP, PPPoE, L2TP, PPTP
Wi-Fi Generation
Wi-Fi 6
Band
Dual
Wi-Fi Coverage (Approximate)
Unmentioned
Number of Concurrent User
Unmentioned
Performance
Mesh Technology
Yes
MIMO Technology
Yes
Security
Operation/Working Wireless Modes
Router, Repeater Mode
Security Protocols
WPA-PSK, WPA2-PSK, WPA/WPA2-PSK,WPA3
VPN Support
No
Built in Antivirus
No
Electrical
Power
12V1A
Operating Temperature
0 Degree C - 40 Degree C
Storing/Storage Temperature
-40 Degree C - 70 Degree C
Operating Humidity
10%~90% non-condensing
Storing/Storage Humidity
5%~90% non-condensing
Physical Description
Button
WPS/MESH, RESET
Dimensions
226 x 144 x 190.5mm
Color
Black
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Feature
4x Fixed High-Performance Antennas, Multiple antennas form a signal-boosting array to cover more, directions and large areas, Beamforming Concentrates wireless signal strength towards, clients to expand WiFi range, High-Power FEM Improves transmission power to strengthen, signal coverage, WiFi Capacity: Allocate devices to different bands for optimal performance, OFDMA, Simultaneously communicates with multiple Wi-Fi 6/5/4 clients, Airtime Fairness, Improves network efficiency by limiting excessive occupation, 4 Streams Connect your devices to more bandwidth, FOTA, TR069, Remote Access, Backup & Restore.
Specialty
Various WAN connection types in AP Router mode: DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access (Russia PPPoE/PPTP/L2TP). MU-MIMO, beamforming technology. Easy wireless security setup at a push of the WPS button. Intelligent bandwidth control. Complete Gigabit ports. Support EASY MESH networking. Easy setup and support App management conveniently.
Others
WiFi Speeds: 5 GHz: 1201Mbps (802.11ax), 2.4 GHz: 300Mbps (802.11n), Guest Network: 1x5GHz Guest Network /1x2.4GHz Guest Network, Protocols: IPv4, IPv6, Port mapping: Virtual Server, DMZ, IPTV: Bridge, Tag VLAN, Dynamic DNS: DynDns, no-ip, System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable Subscription with an internet service provider (for internet access), Package Contents: 1 x NX10, 1 x Power Adapter, 1 x RJ45 Ethernet Cable, 1 x Quick Installation Guide.
Certifications
FCC, CE, RoHS, EAC, UkrSEPRO
Country Of Origin
China
Made in/ Assemble
China
