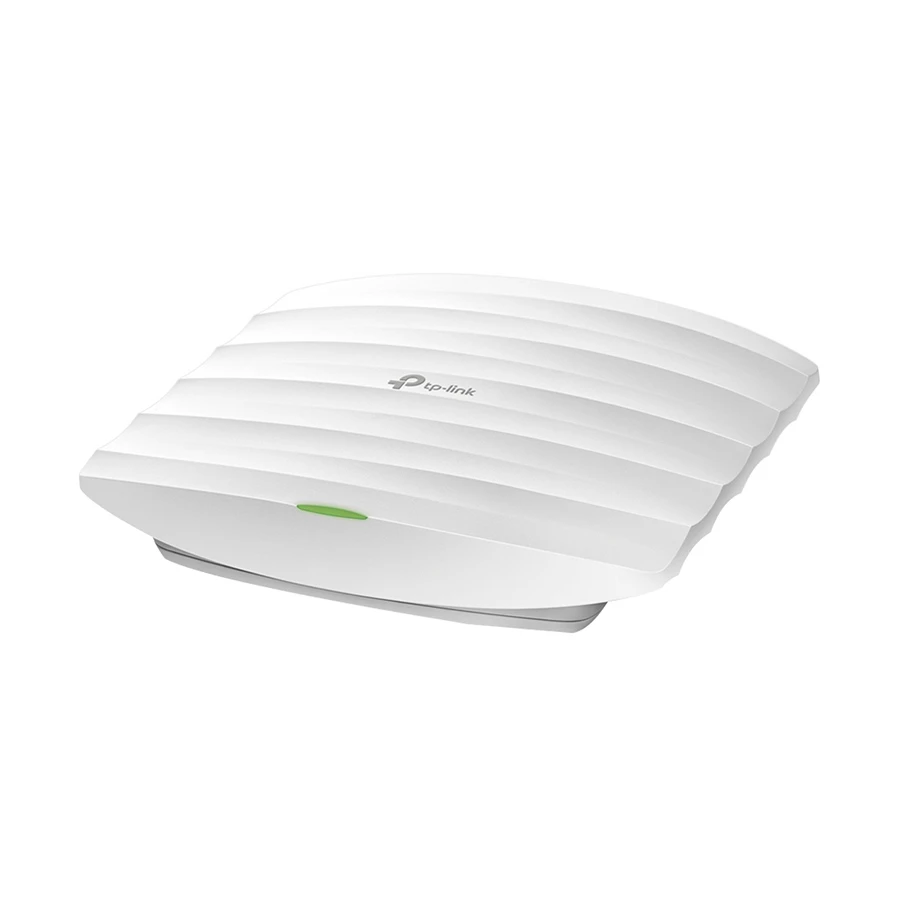

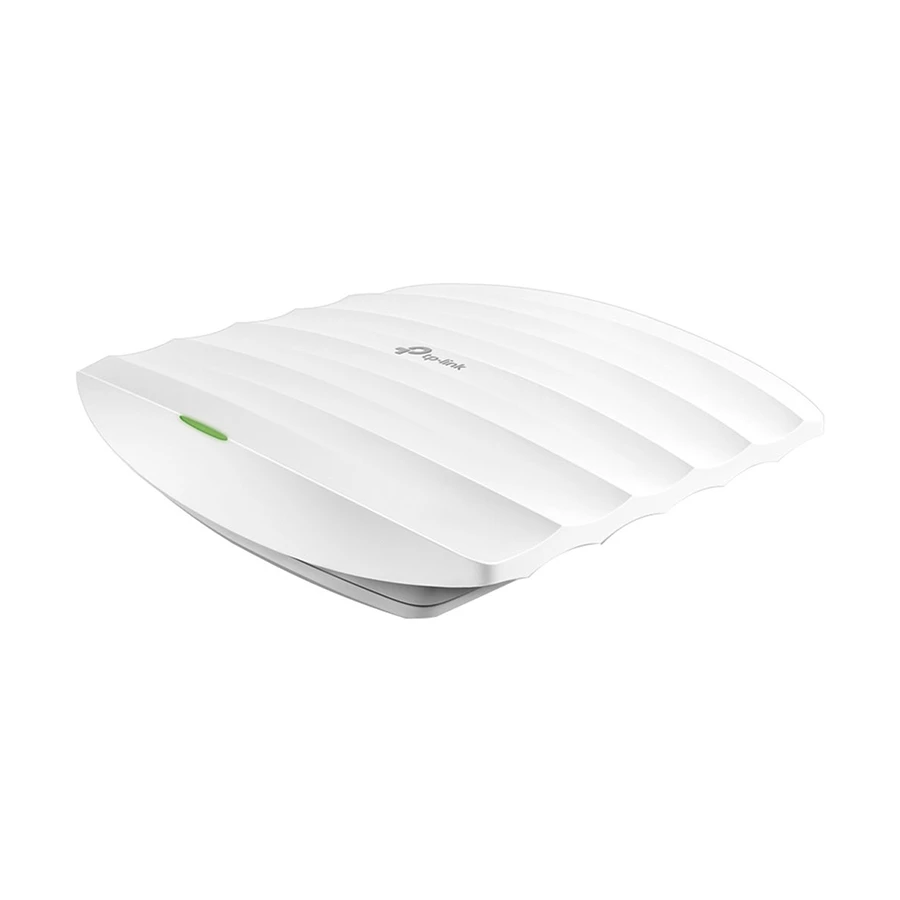

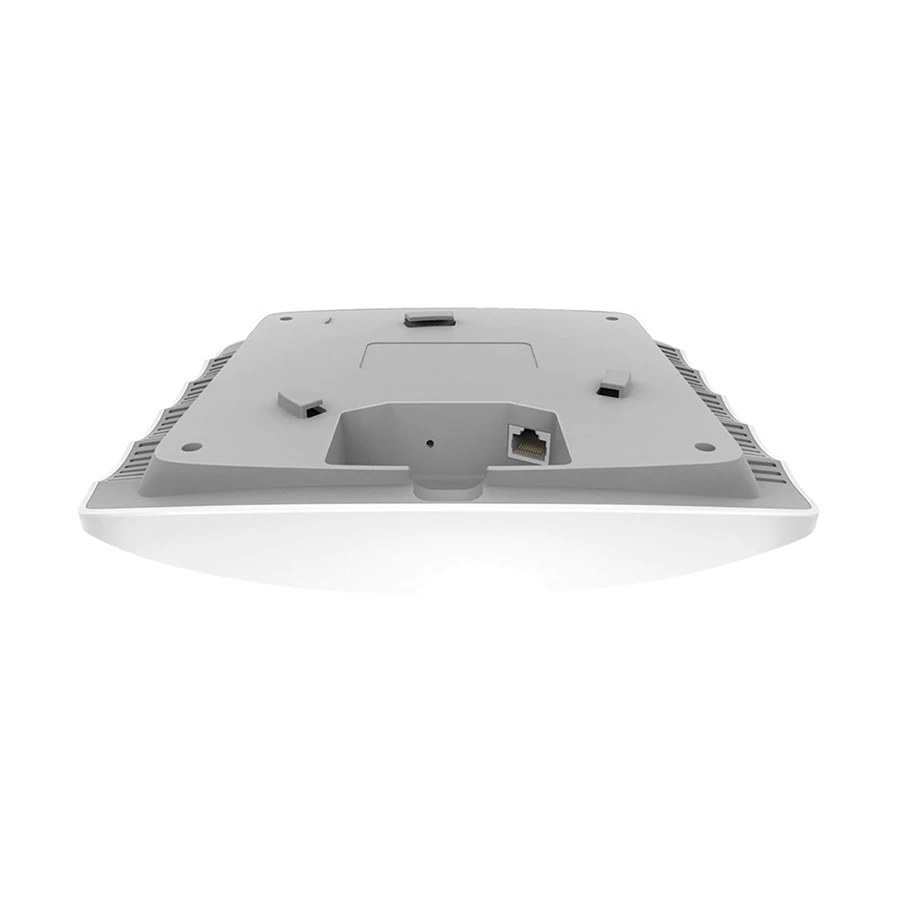

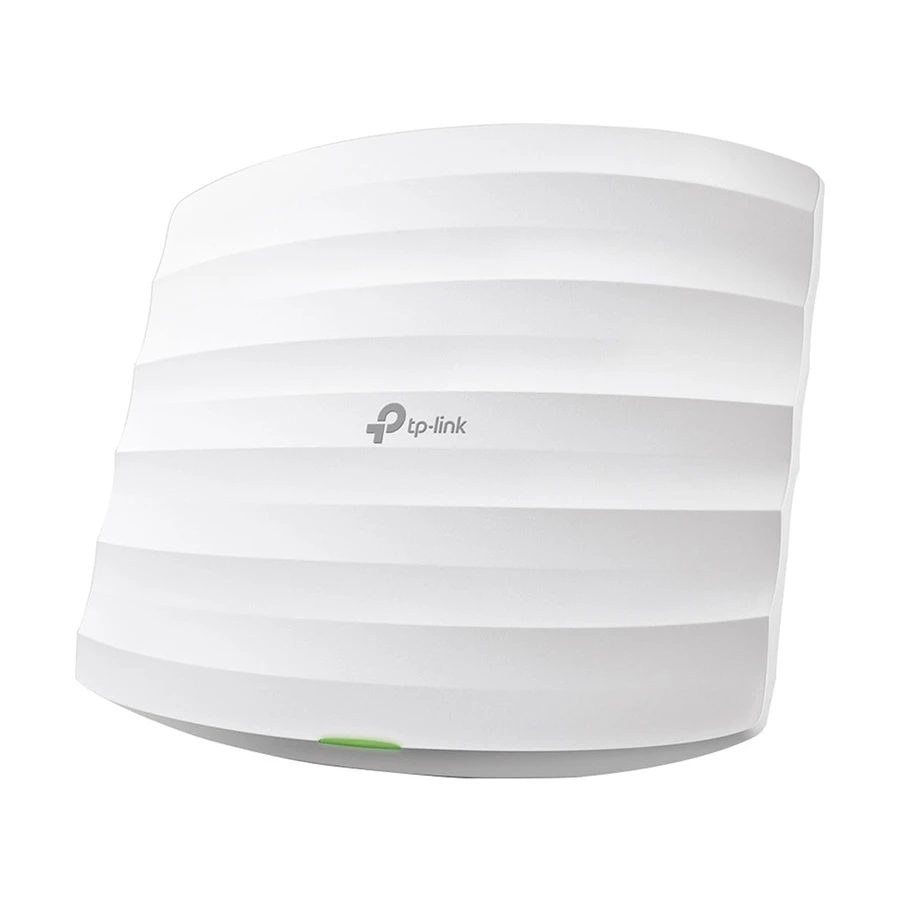

TP-Link EAP225 AC1350 MU-MIMO Gigabit Ceiling Mount Wireless Access Point

Product Id: 29.02.091.23

Brand Tp-link

Regular Price Tk 9,250 Monthly EMI Tk 771
Special Price Tk 7,590

Quick Overview

  • Data Transfer Rates - 1350 Mbps
  • Network Standards - IEEE 802.11a, b, g, n, ac
  • Antenna (Type & Qty) - 2 x Internal
  • Interface(s) - 1 x Gigabit Ethernet (RJ-45) Port
  • Band - Dual
General
Brand
TP-Link

Model
TP-Link EAP225 AC1350


Hardware
Network Standards
IEEE 802.11a, b, g, n, ac

Data Transfer Rates
1350 Mbps

LAN Network Standard
10/100/1000


Interface
Interface(s)
1 x Gigabit Ethernet (RJ-45) Port

Number of WAN Port
No

Number of LAN Port
1

USB Sharing Support
No


Wireless
Supported Protocols
MAC Filtering, SNMPv1, SNMPv2c

Band
Dual

Frequency
2.4GHz - 5GHz

Bluetooth
No

Antenna (Type & Qty)
2 x Internal

Antenna Gain
4dBi

Antenna Placement
Internal

MU-MIMO Support
Yes

Transmission Power
<-24dBm(2.4GHz), <-22dBm(5GHz)


Management
Throughput
1350 Mb/s Total, 2.4 GHz: 450 Mb/s, 5 GHz: 867 Mb/s

SSID Numbers
Up to 16 SSIDs

Web-Based Management
HTTP/ HTTPS

Multi-Site Management
Yes

Management MAC Access Control
Yes


Performance
Email Alerts
Yes


Technical Info
System Requierment
Windows 7, 8, 10, Vista, XP, Linux


Security
Wireless Security
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support


Electrical
Power Method
802.3af/at PoE, 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Max. Power Consumption
12.6W

Passive PoE Power Supply
802.3af/at


Environmental
Operating Temperature
0 Degree C to 40 Degree C

Operating Humidity
10–90% RH non-condensing

Storing/Storage Temperature
-40 Degree C to 70 Degree C

Storing/Storage Humidity
5–90% RH non-condensing


Physical Description
Button
Reset

LED Indicators
Yes

Mounting
Yes

Mount Options
Ceiling /Wall Mounting

Dimensions
205.5 x 181.5 x 37.1mm


Warranty
Warranty Details
2 Year (Without Adapter)


Additional Info
Others
Hardware Watch Dog: Yes, LED ON/OFF Control: Yes, System Logging Local/Remote Syslog: Local/Remote Syslog, Telnet: Yes, Multi-site Management: Yes, Certification: FCC, RoHS

Specialty
Wireless MU-MIMO Gigabit Ceiling Mount Access Point, Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds, Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations, Free cloud centralized management and Omada app for ultra convenience and easy management, Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections, MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections, Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience, Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times choose

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
