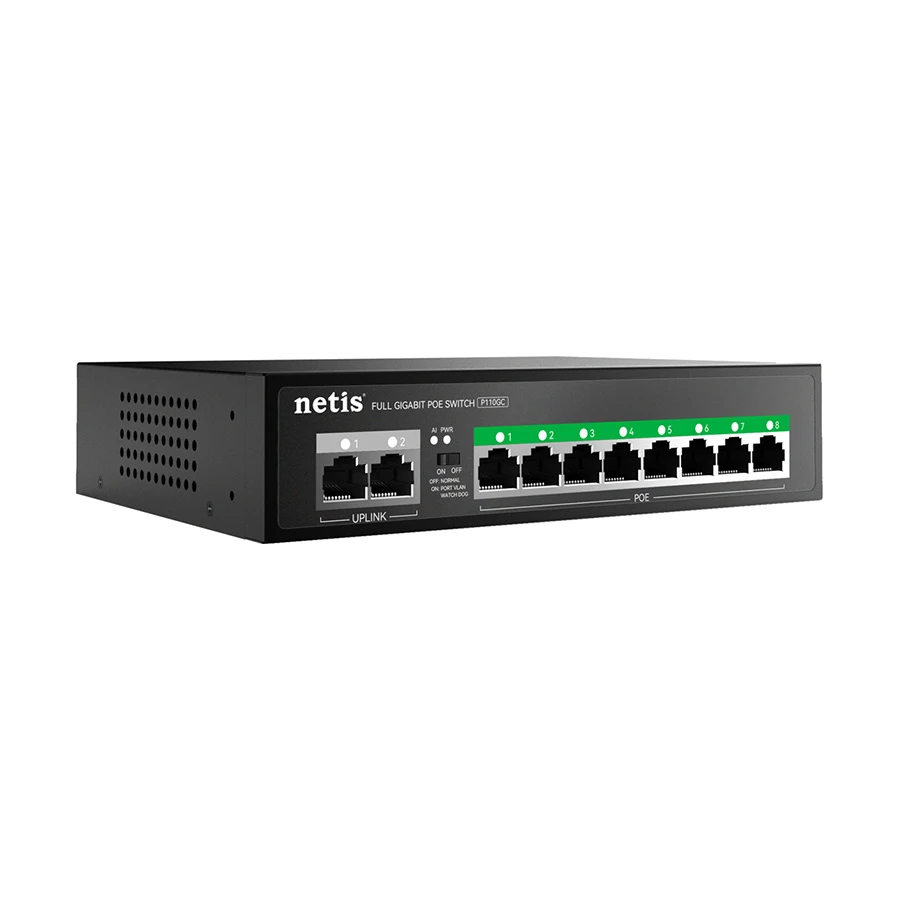

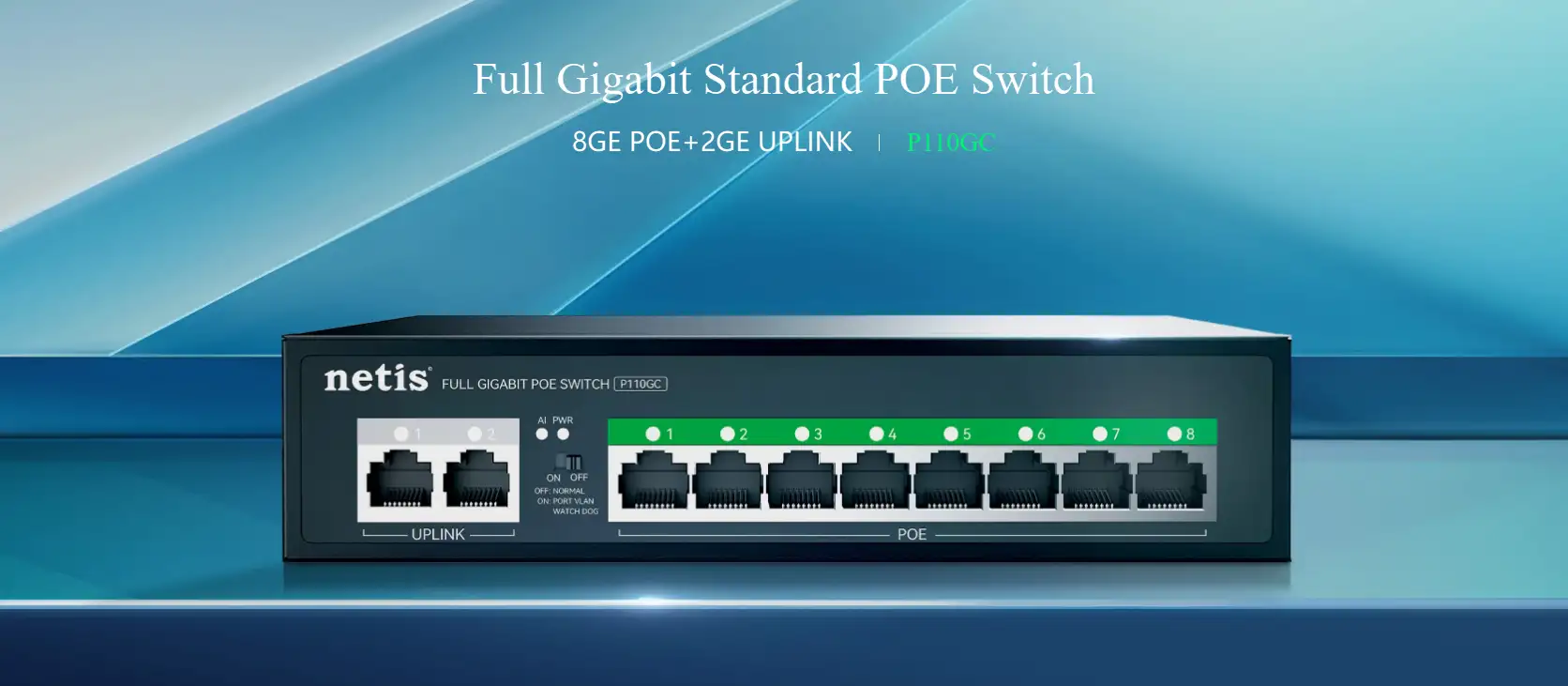

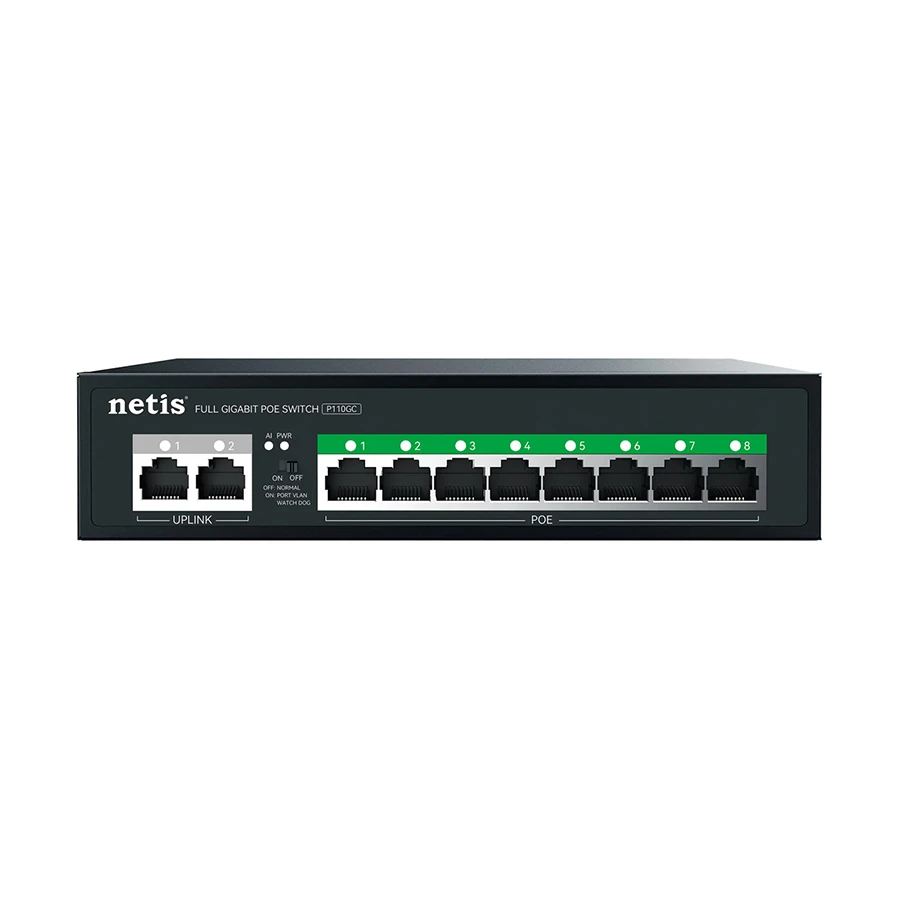

Netis P110GC 10-Port Unmanaged Standard POE Switch
8 x 10/100/1000M POE ports (Data /Power), 2 x 10/100/1000M RJ45 ports (Data)
Network Standards
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3i 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3af/at, Power over Ethernet, IEEE 802.3x Flow Control
Data Transfer Rate
10/100/1000 Mbps
Transmission Method
Store-and-forward
Connector Type
RJ45
Switching Capacity
20 Gbps
Physical Description
Fan/Fanless
Fanless
Indicators
PWR: Lighting - The device is powered on normally, AI: Lighting - The intelligent mode is enabled, Port: Lighting - Port link is normal Blinking - Data in transit.
Body Material
Steel
Body Color
Black
Form Factor
Desktop
Dimension
190 x 140 x 43mm
Power
Power Supply

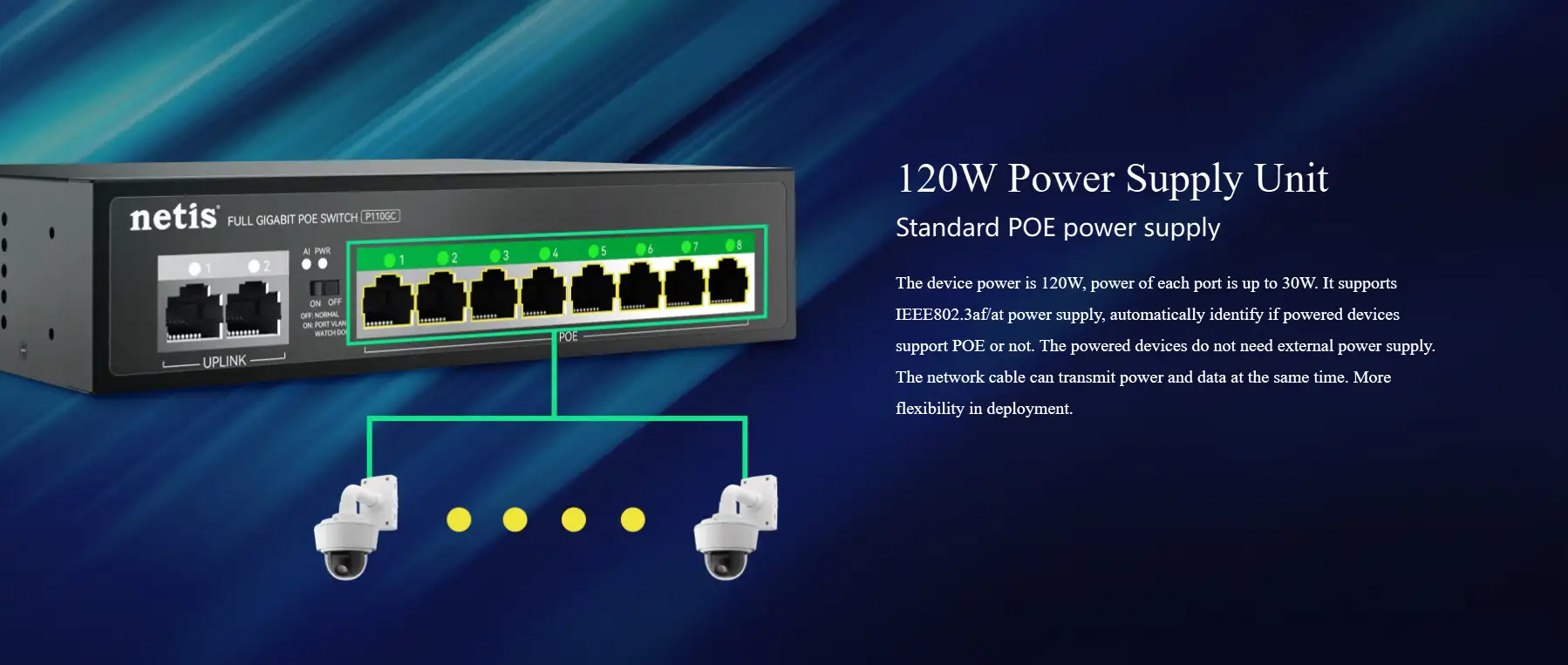

AC 100 - 240V 50-60HZ, Power Input POE Standards Single port maximum power 30W, whole switch maximum power 120W
Warranty
Warranty
1 Year (Without Adapter)
Additional Info
Others

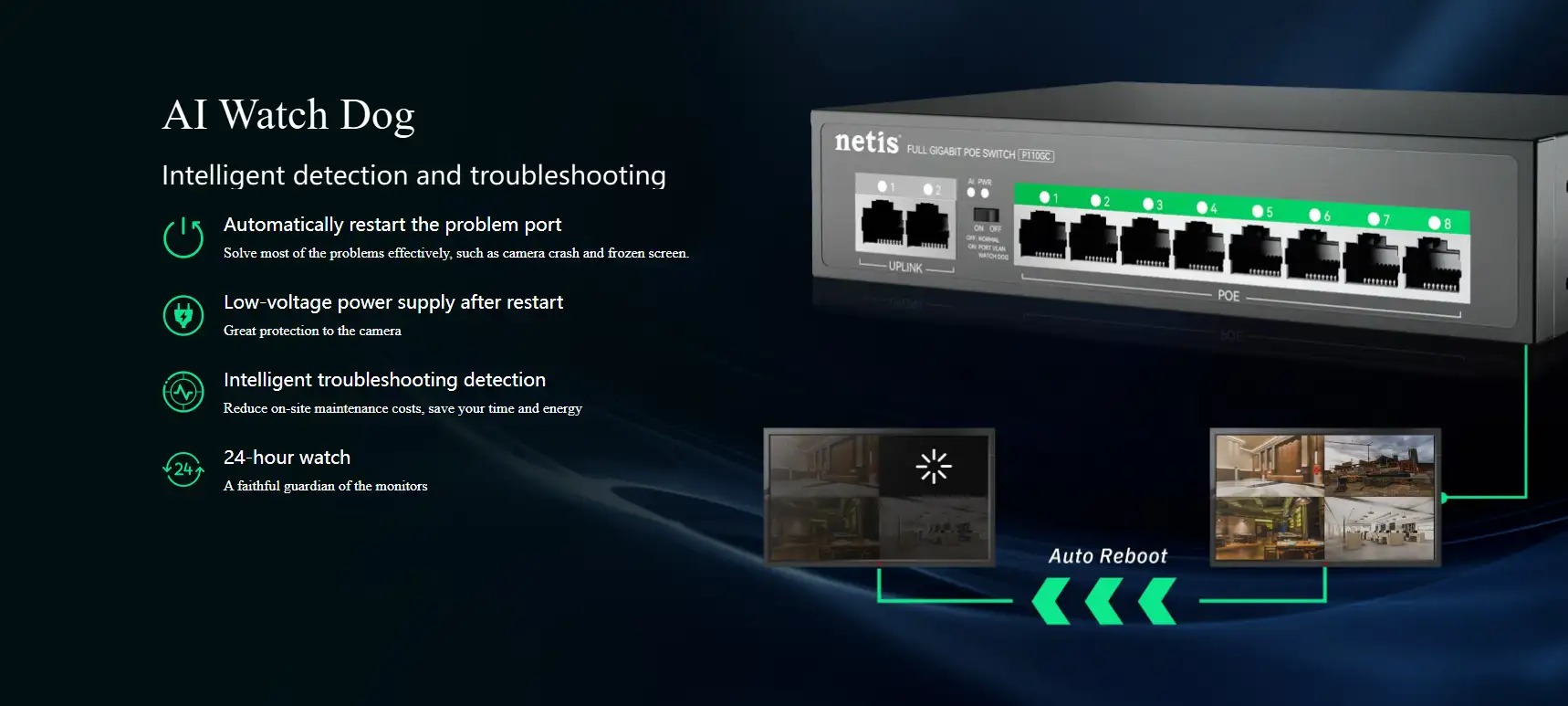

Mode: Normal Mode Port VLAN + Watch Dog Mode, MAC Address Table Size: 4K, Jumbo Frame: 2048 byte, Data Transfer Rate: (10Mbps(Half-duplex and Full-duplex), 100Mbps(Half-duplex and Full-duplex), 1000Mbps(Full-duplex)), Basic function: (Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Support POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging VLAN port isolation Watch Dog The AI automatically detects and restarts abnormal devices), Cabling type: (1000Base-TX: Cat 5e or better UTP/STP(100m) 100Base-TX: Cat 5e or better UTP/STP(100m) 10Base-TX: Cat 5e or better UTP/STP(100m)), Operation Temperature: 0 - 40 degree C, Storage Temperature: -40 - 70 degree C, Operation Humidity: 10% - 90% RH Non-condensing, Storage Humidity: 5% - 90% RH Non-condensing.
Specialty
Support over-current, over-voltage and short-circuit protection, Support Soft Start of High Power PD, Support sequential boot-up, 8 10/100/1000M adaptive POE power supply ports,2 10/100/1000Mbps adaptive Uplink, Power supply built-in 120W, POE IEEE 802. 3at/af compliant Powered Device (PD), IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode, 20Gbps switching fabric capacity/backplane bandwidth, Supports 2K MAC address table, MAC address auto-learning & auto-aging, Green Ethernet technology for effective power saving, LED indicators for simple diagnostics and management, Plug and play, no configuration required, Steel case, with external power supply.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
