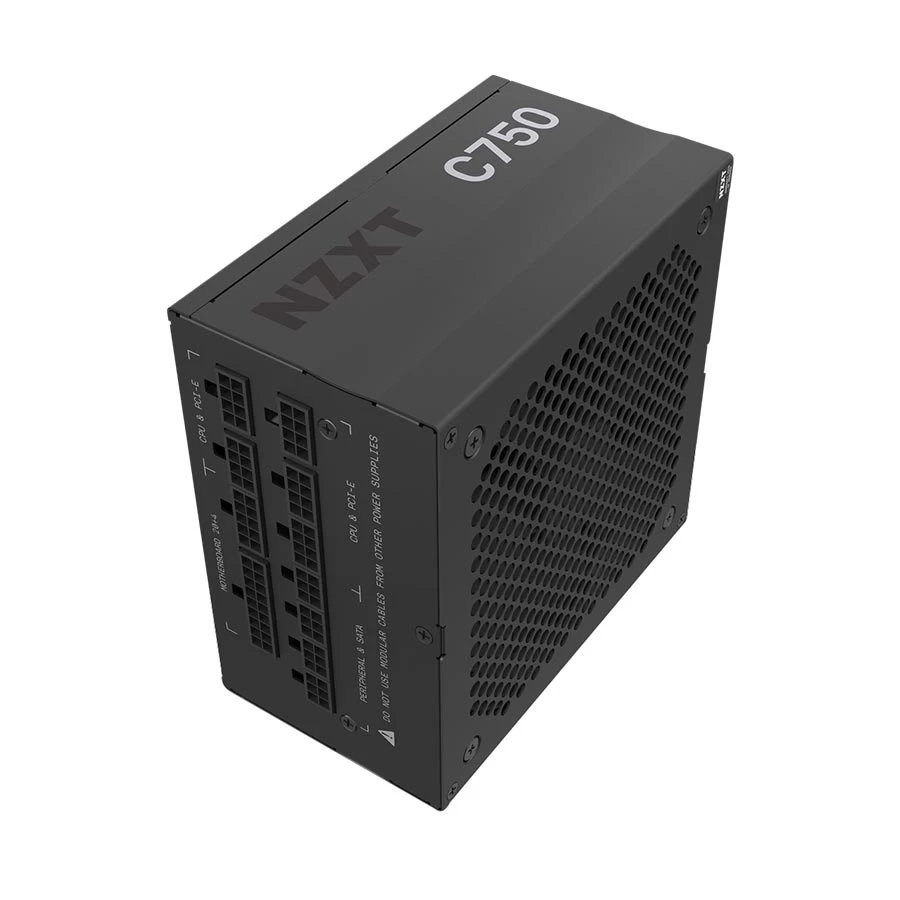

NZXT C750 750W ATX 80 Plus Gold Certified Fully-Modular Power Supply #PA-7G1BB-EU / PA-7G1BB-UK
Product Id: 55.01.681.25
Brand
Nzxt
Regular Price Tk 14,050
Monthly EMI Tk 1,171
Special Price Tk 12,999
Quick Overview
- PSU Category - Full Modular
- Type - ATX12V v2.52 / EPS12V v2.92
- Maximum Power - 750 Watt
- Fan Speed - 0-2300 -+ 10% RPM
- Efficiency - 87% Efficiency
- Efficiency Rating - 80 Plus Gold
General
Brand
NZXT
Model
NZXT C750
PSU Category
Full Modular
Type
ATX12V v2.52 / EPS12V v2.92
Part No
PA-7G1BB-EU / PA-7G1BB-UK
Cooling & Lighting
Fan Size
135mm
Lighting Effect
No
Zero RPM Fan Mode
Yes
Fan Bearing
Fluid-Dynamic
Fan Speed
0-2300 -+ 10% RPM
Noise Level
44.5 dBA max
Performance
Efficiency
87% Efficiency
Efficiency Rating
80 Plus Gold
Protection
Over Voltage Protection (OVP)
Unmentioned
Over Power Protection (OPP)
Unmentioned
Over Current Protection (OCP)
Unmentioned
Over Temperature Protection (OTP)
Unmentioned
Short Circuit Protection (SCP)
Unmentioned
Under Voltage Protection (UVP)
Unmentioned
Connectors
ATX Main Connectors
1
EPS Connectors
2
PCIe Connectors
6
SATA Power Connectors
6
4-Pin Peripheral Connectors
6
Power
Min. Power (Approx.)
650W
Maximum Power
750 Watt
Input AC
10A-5A 50Hz-60Hz
Input Frequency Range
50Hz-60Hz
Input Current
10A-5A
Peak Output Capacity
750 Watt
Operating Temperature
0 - 50 Degree C
Physical Description
MTBF
100000 Hours
Form Factor
ATX
Dimensions
150 x 150 x 86 mm
Body Material
Steel, PCB & Plastic
Color
Black
Warranty
Warranty Details
10 year
Additional Info
Regulatory / Safety Approval
cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
Others
Fan Airflow:93.02 CFM (Tpy.), Cable Specs: 24-pin ATX power:600 mm, Nylon sleeving, 4+4-pin CPU power:700 mm, Nylon sleeving, 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving, SATA power:500 + 150 mm, Peripherals:500 + 150 mm. PF Correction:Active @0.96. Inside the Box - C750 Power Supply x 1, 24-Pin ATX Power Cable x 1, 4+4-Pin CPU Power Cables x 2, 6+2-pin PCIe Power Cable x 3, SATA Cables x 2, Peripherals Cables x 2, 6-32 Screws x 4, AC Power Cord x 1.
Specialty
Modular design lets builders use only the cables they need, The sleeved main cables resist heat damage as well as fraying, Fits any case conforming to the ATX standard, Supports NVIDIA GPUs up to 3090 and AMD GPUs up to RX 6800 XT, Zero RPM Fan mode silences the fan under low-load conditions, Dynamic 135mm fluid-dynamic bearing fan.
Country Of Origin
USA
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
