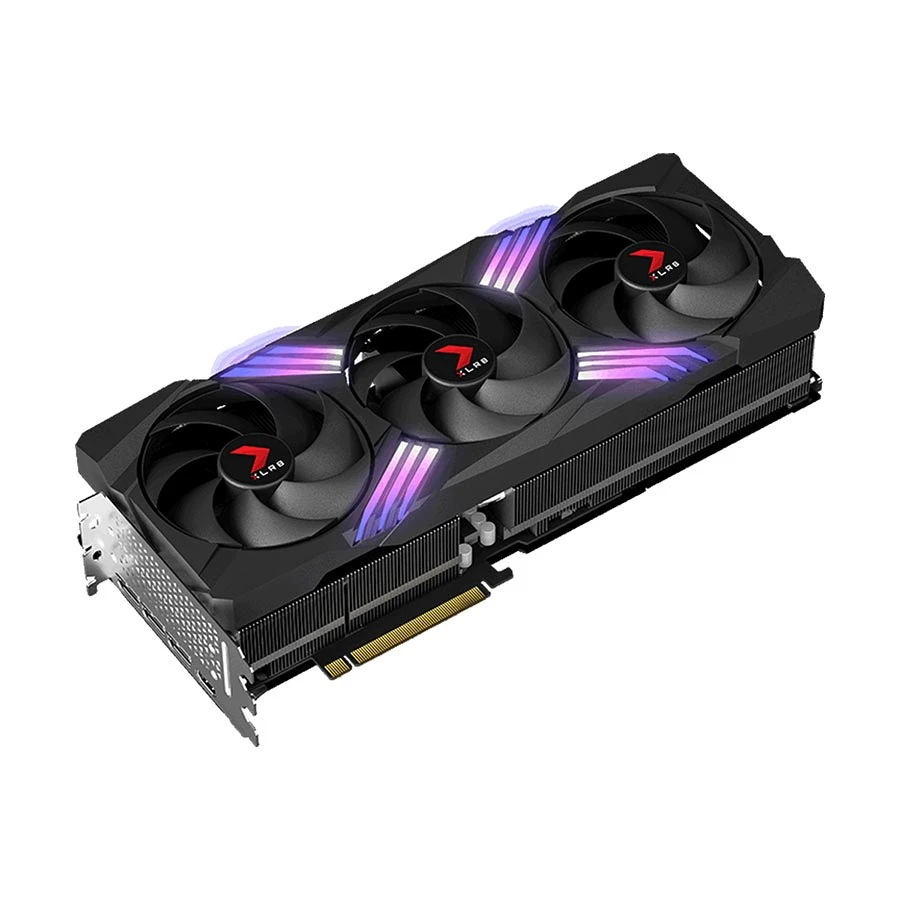

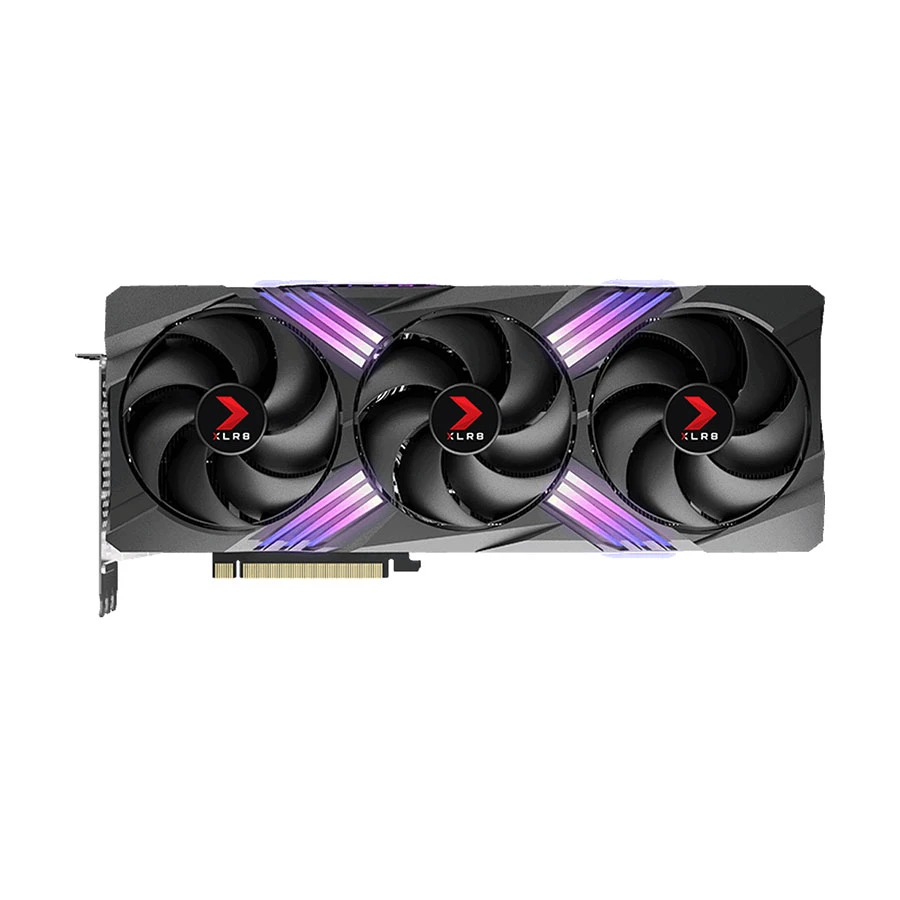

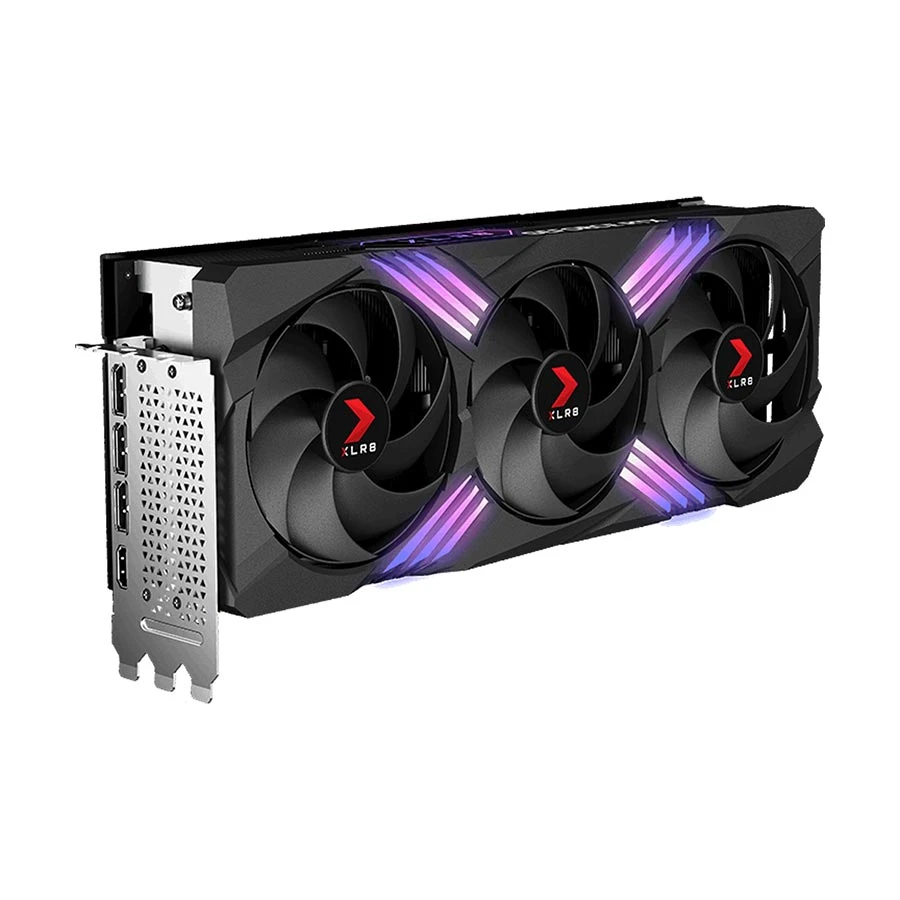

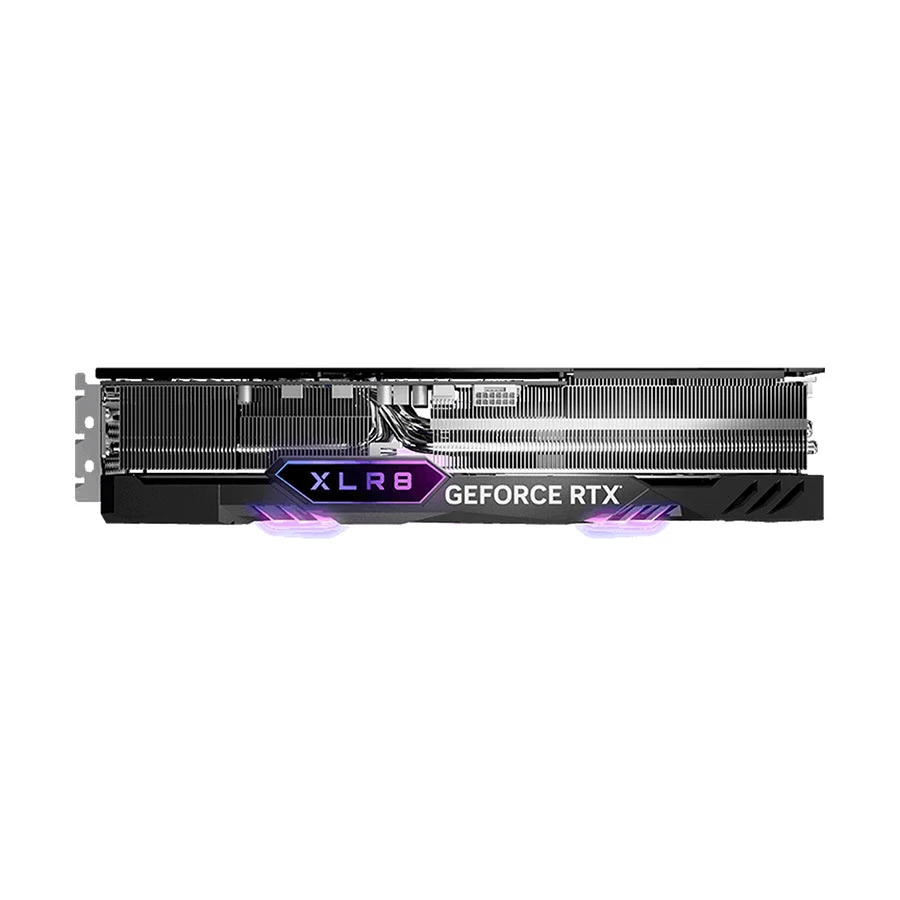

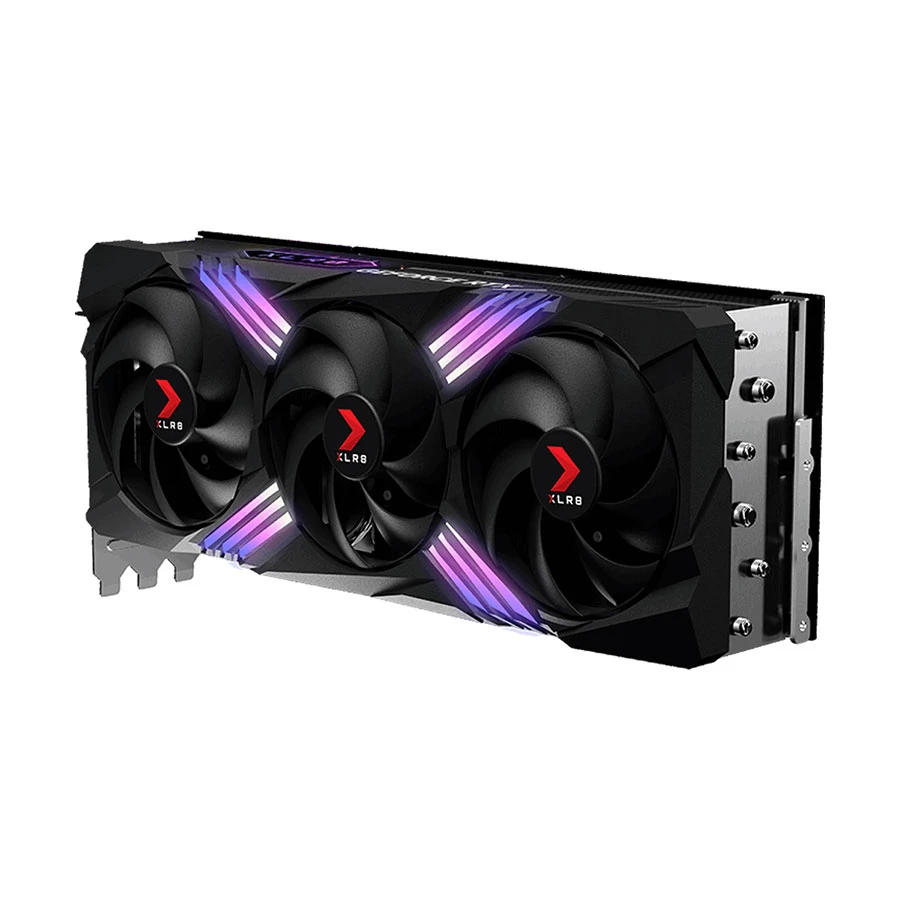

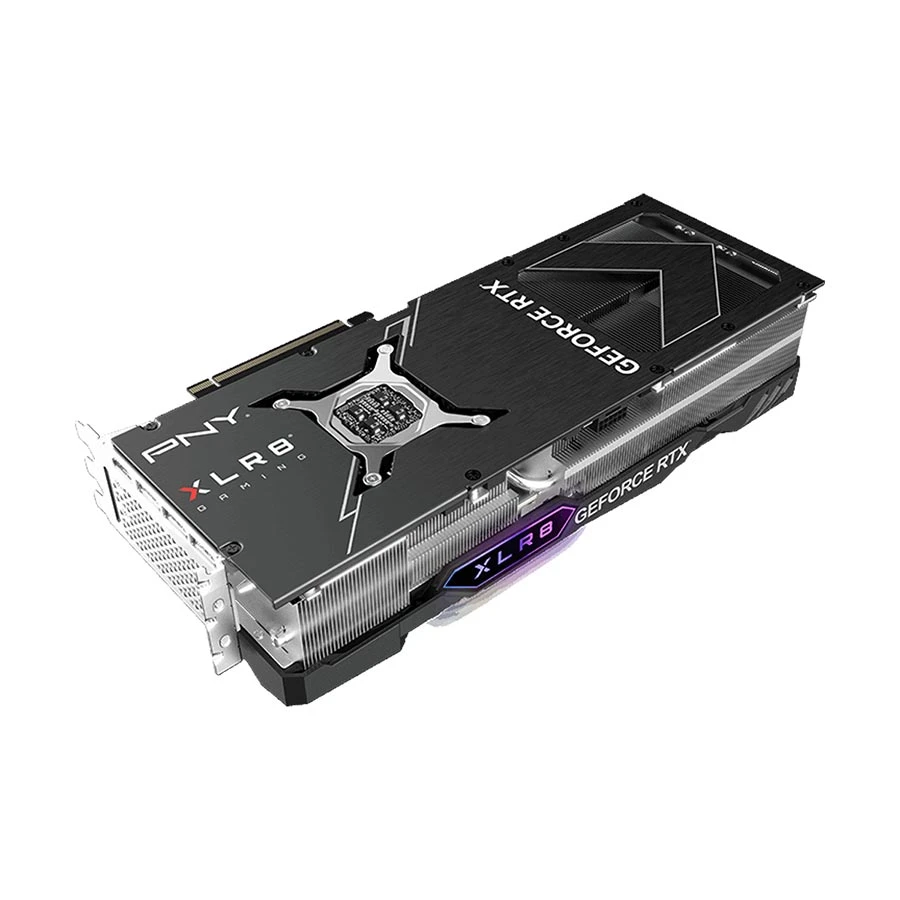

PNY GeForce RTX 4080 SUPER XLR8 Gaming Verto EPIC-X RGB Triple Fan DLSS 3 OC 16GB GDDR6X Graphics Card #VCG4080S16TFXXPB1-O
PNY GeForce RTX 4080 SUPER XLR8 Gaming Verto EPIC-X RGB Triple Fan DLSS 3 OC
Base Engine Clock Speed
2295 MHz
Boost Engine Clock Speed
2595 MHz
Memory Clock
23 Gbps
Capacity (GB/TB)
16GB
Memory Type
GDDR6X
Interface(s)
PCI-Express 4.0 x16
Graphics Resolution Max.
7680x4320
DirectX Support
12 Ultimate
OpenGL Support
4.6
Approx. Power Consumption
320W
Recommended PSU
750W
Power Connectors
3 x 8-pin
Multi Display Capability
Quad Display
Cooler Type
Fan
Lighting
Yes
Body Color
Black
Warranty Details
3 Year (No Warranty for Mining)
General
Brand
Pny
Chipset
NVIDIA GeForce
Series
RTX 4000
Chipset Model
GeForce RTX 4080 SUPER
Model
PNY GeForce RTX 4080 SUPER XLR8 Gaming Verto EPIC-X RGB Triple Fan DLSS 3 OC
Part No
VCG4080S16TFXXPB1-O
Technical Info
CUDA Core / Stream Processors
10240 (CUDA)
Engine Clock
2295 MHz (Base), 2595 MHz (Boost)
Base Engine Clock Speed
2295 MHz
Boost Engine Clock Speed
2595 MHz
Memory Clock
23 Gbps
Capacity (GB/TB)
16GB
Memory Bus
256-bit
Memory Bandwidth
736 GB/s
Memory Type
GDDR6X
Interface(s)
PCI-Express 4.0 x16
DirectX Support
12 Ultimate
OpenGL Support
4.6
HDCP Support
Yes, 2.3
Supported Operating System
Linux, Windows 10, 11
Display & Resolution
Graphics Resolution Max.
7680x4320
Multi Display Capability
Quad Display

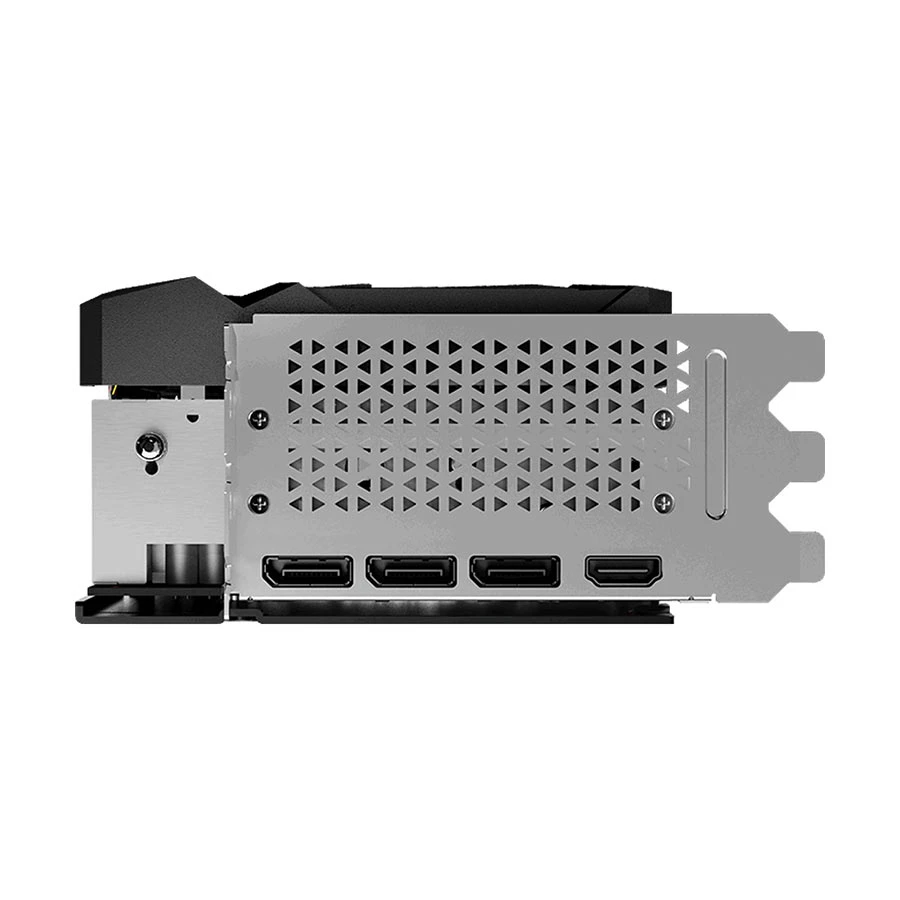

Ports
VGA Port
No
DVI Port
No
HDMI Port
1
Display Port
3
Power
Approx. Power Consumption
320W
Recommended PSU
750W
Power Connectors
3 x 8-pin
Physical Description
Card Dimension
331.724 x 137.668 x 71.12mm
Cooler Type
Fan
Cooling Fan
Triple
PCB Form
ATX
Lighting
Yes
RGB Effects
RGB
Body Color
Black
Package Contents
Card, Support Bracket, One 16-pin to Three 8-pin Power Cable.
Warranty
Warranty Details
3 Year (No Warranty for Mining)
Additional Info
Others
Power Input: 16-pin (One 16-pin to Three 8-pin)
Specialty

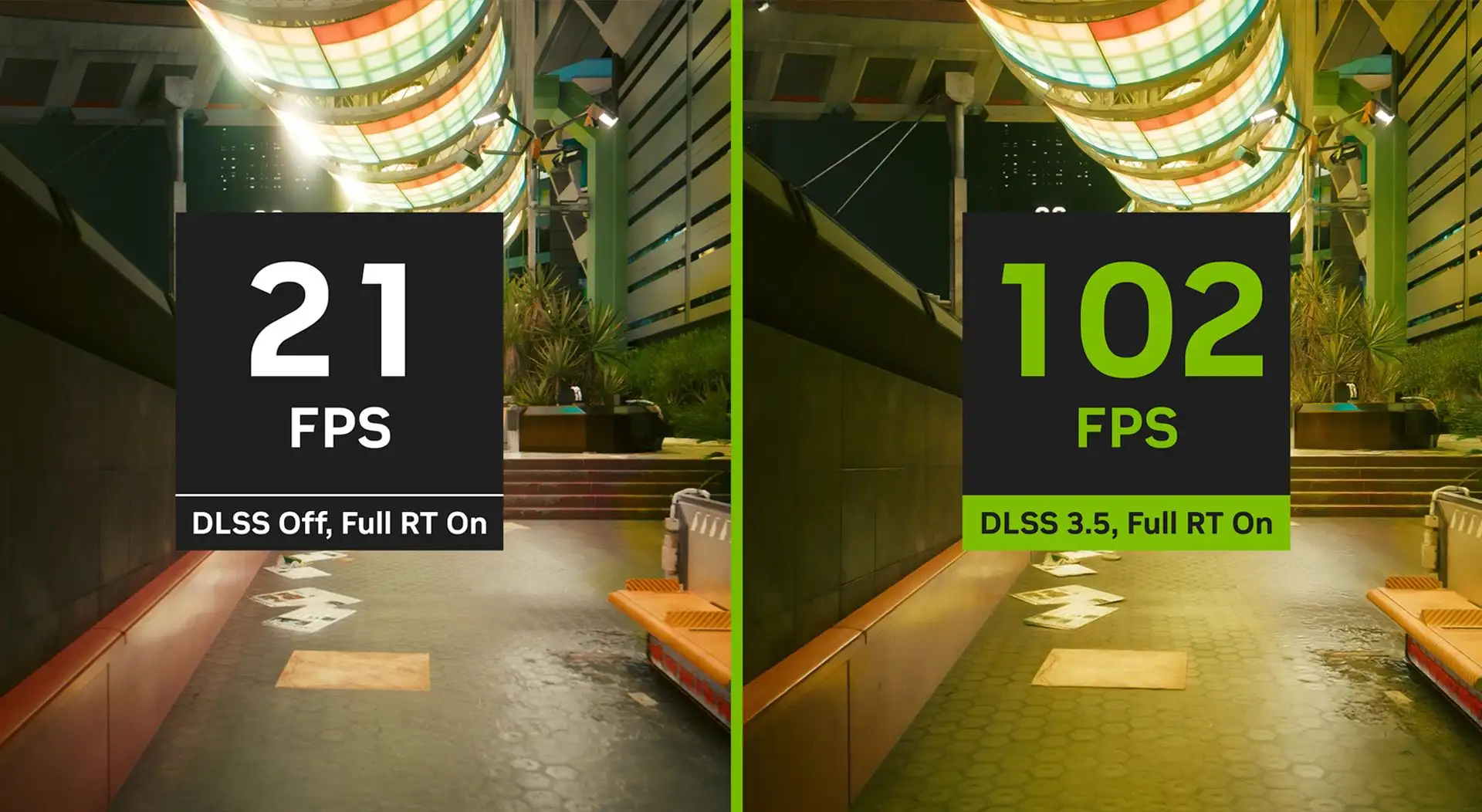

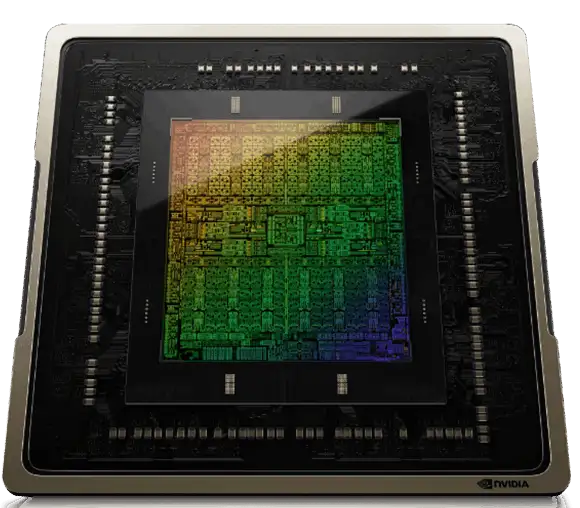

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing, Dedicated Ray Tracing Cores, Dedicated Tensor Cores, NVIDIA DLSS 3, Game Ready and NVIDIA Studio Drivers, NVIDIA GeForce Experience, NVIDIA Broadcast, NVIDIA G-SYNC, NVIDIA GPU Boost, PCI Express Gen 4, Vulkan RT APIs, Vulkan 1.3, DisplayPort 1.4a, up to 4K at 240Hz or 8K at 60Hz with DSC, HDR, As specified in HDMI 2.1a: up to 4K 240Hz or 8K 60Hz with DSC, Gaming VRR, HDR.
