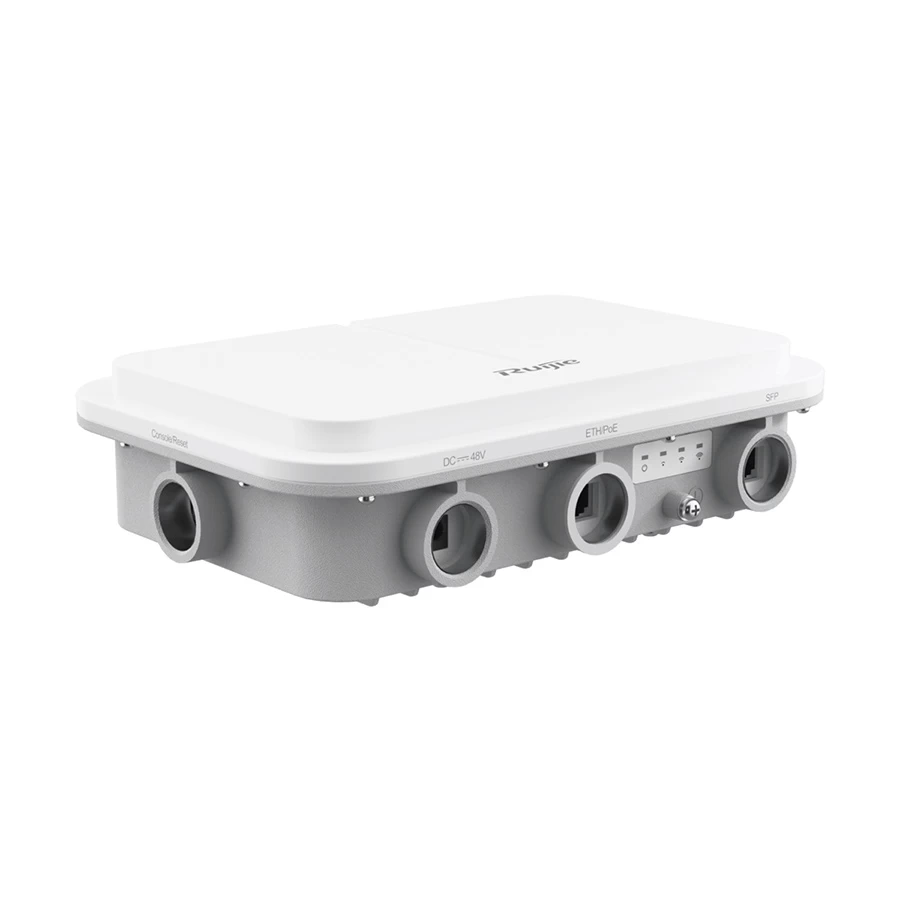

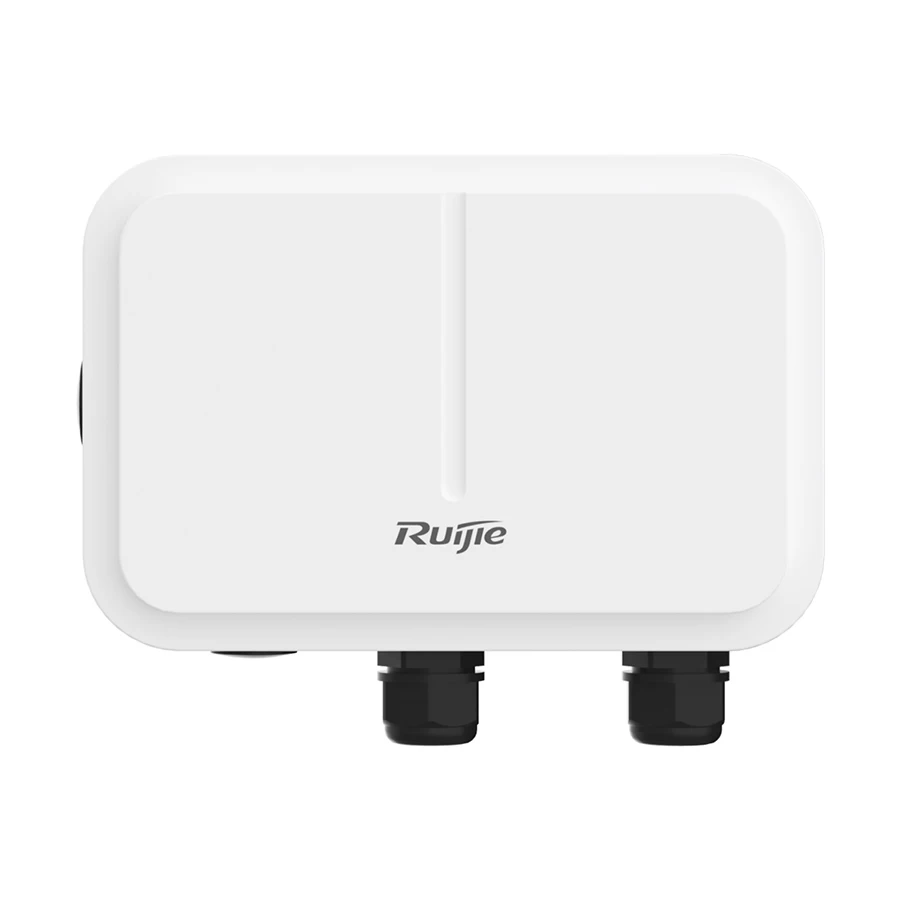

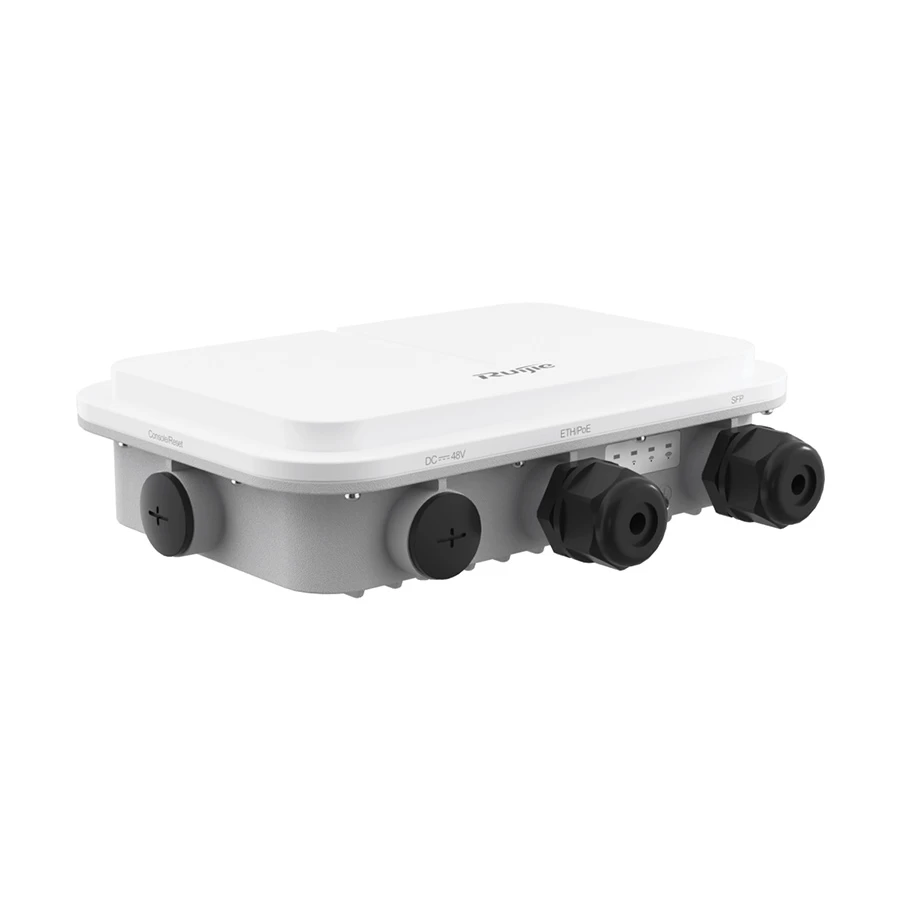

Ruijie RG-AP680(CD) (Wi-Fi 6) 2400 Mbps Wireless Dual Band Outdoor Access Point
Product Id: 29.02.925.43
Brand
Ruijie
Regular Price Tk 42,530 (Estimated)
Monthly EMI Tk 3,544
Special Price Tk 39,500 (Estimated)
Delivery in 25 days
Quick Overview
- Data Transfer Rates - 2400 Mbps
- Network Standards - 802.11ax
- Antenna (Type & Qty) - Unmentioned
- Interface(s) - 1 x 10/100/1000Base-T Ethernet port, supporting PoE input, 1 x GE SFP port, 1 x RJ45 console port (serial console port)
- Band - Dual
General
Brand
Ruijie
Model
Ruijie RG-AP680(CD)
Hardware
Network Standards
802.11ax
Data Transfer Rates
2400 Mbps
WAN Network Standard
Not Applicable
LAN Network Standard
10/100/1000
Interface
Interface(s)
1 x 10/100/1000Base-T Ethernet port, supporting PoE input, 1 x GE SFP port, 1 x RJ45 console port (serial console port)
Number of WAN Port
No
Number of LAN Port
1
Wireless
Band
Dual
Frequency
2.4 GHz, 5 GHz
Bluetooth
Yes
Antenna (Type & Qty)
Unmentioned
Antenna Gain
2.4 GHz radio: 9 dBi, 5 GHz radio: 9 dBi
Antenna Placement
Internal
MU-MIMO Support
Yes
Multi-User MIMO
Yes
Management
SSID Numbers
32
Management
Fault inspection and alarm, Information statistics and logging. Telnet, SNMP, SSH and TFTP-based management. Web-based management (Eweb).
Web-Based Management
Eweb
Remote Management
Yes
Performance
Waterproof Level/Grade
IP68
IP Rating
IP68
OFDM/OFDMA
OFDM and OFDMA
Technical Info
VPN Pass-Through
PPPoE, IPsec
Outdoor Use
Yes
DHCP
Yes
MTBF
> 250000 Hours
Security
Wireless Security
WPA3
Guest Network Support
Yes
Electrical
Power Method
48 V DC/0.35 A
AC Input Power
0.35 A
DC Input Power
48 V DC
Max. Power Consumption
2.95 W
Environmental
Operating Temperature
-40 to +65 Degree C
Operating Humidity
0% to 100% RH (non-condensing)
Storage Temperature
-40 to +85 Degree C
Storage Humidity
0% to 100% RH (non-condensing)
Physical Description
Button
1 x Reset button
LED Indicators
1 x multi-color system status LED, 3 x single-color RSSI LEDs
Mounting
Yes
Mount Options
Wall/Pole-mount
Dimensions
251 x 168 x 64mm (Unit)
Weight (gm)
1.5 kg (Unit)
Warranty
Warranty Details
3 Year (Without Adapter)
Additional Info
Others
Packet aggregation - 802.11n/ac/ax: A-MPDU and A-MSDU, Antenna type - Built-in intelligent antenna, Power increment - Configurable in increments of 1 dBm, Bluetooth 5.0, Antenna type - Integrated omnidirectional antenna, Max. antenna gain - 4.5 dBi, Max. transmit power - 10 dBm , Receive sensitivity - -88 dBm, WLAN: Max. number of associated STAs - 1,024 (up to 512 STAs per radio), Max. number of BSSIDs - 32 (up to 16 BSSIDs per radio), STA limiting - SSID-based STA limiting, Radio-based STA limiting, Bandwidth limiting- STA/SSID/AP-based rate limiting, Wireless roaming - Layer 2 and Layer 3 roaming, Security - Authentication and encryption, Data frame filtering, WIDS, ACL, CPP, NFPP, IP service - Static IPv4 address, IPv4 DHCP Client, NAT FTP ALG and NAT DNS ALG, Multicast - Multicast-to-unicast conversion, IPv6 basics - IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping, IPv6 DHCP Client, IP routing - IPv4/IPv6 static routing, User access management - Telnet, SNMP, SSH and TFTP-based management, Fat/Fit/Cloud mode switchover.
Specialty

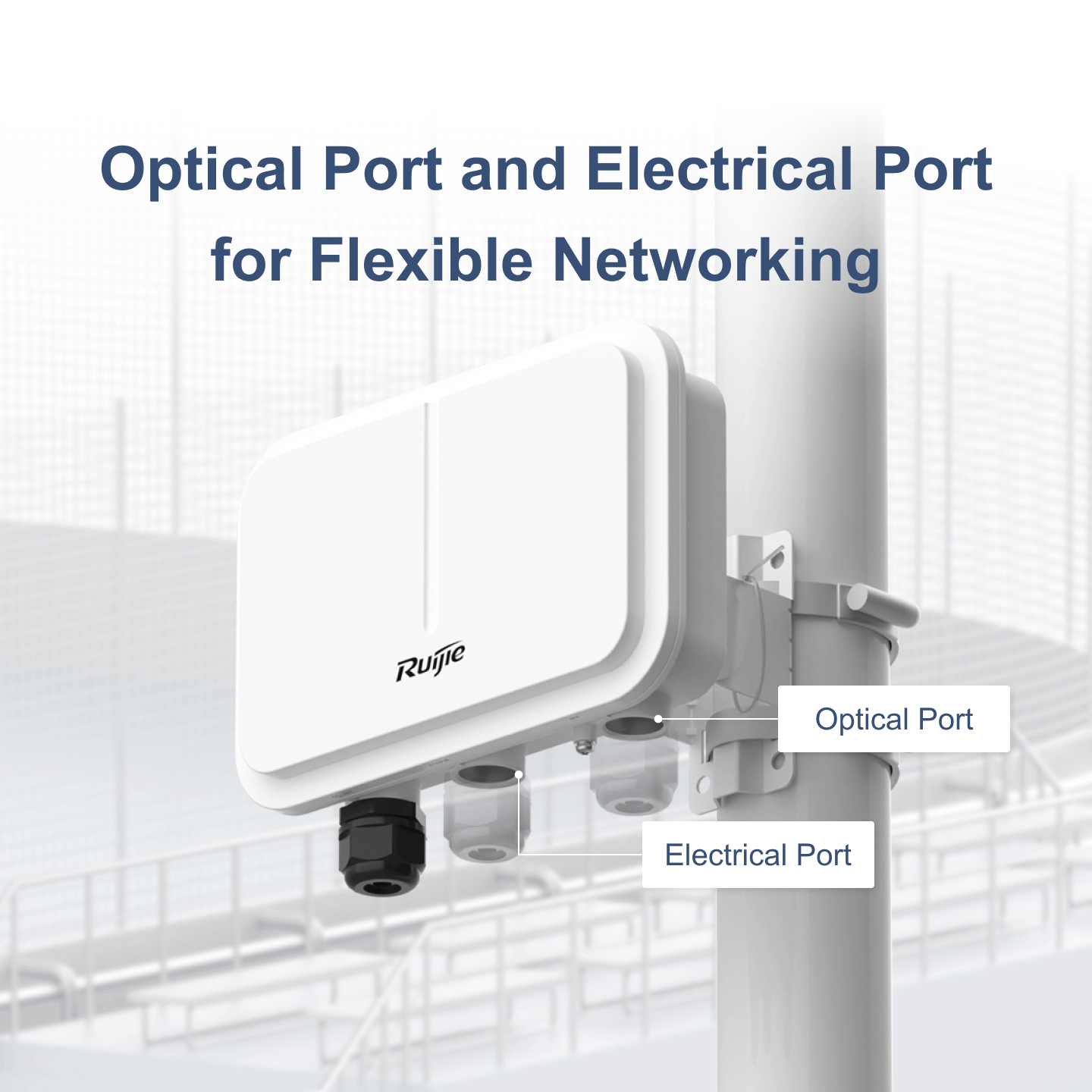

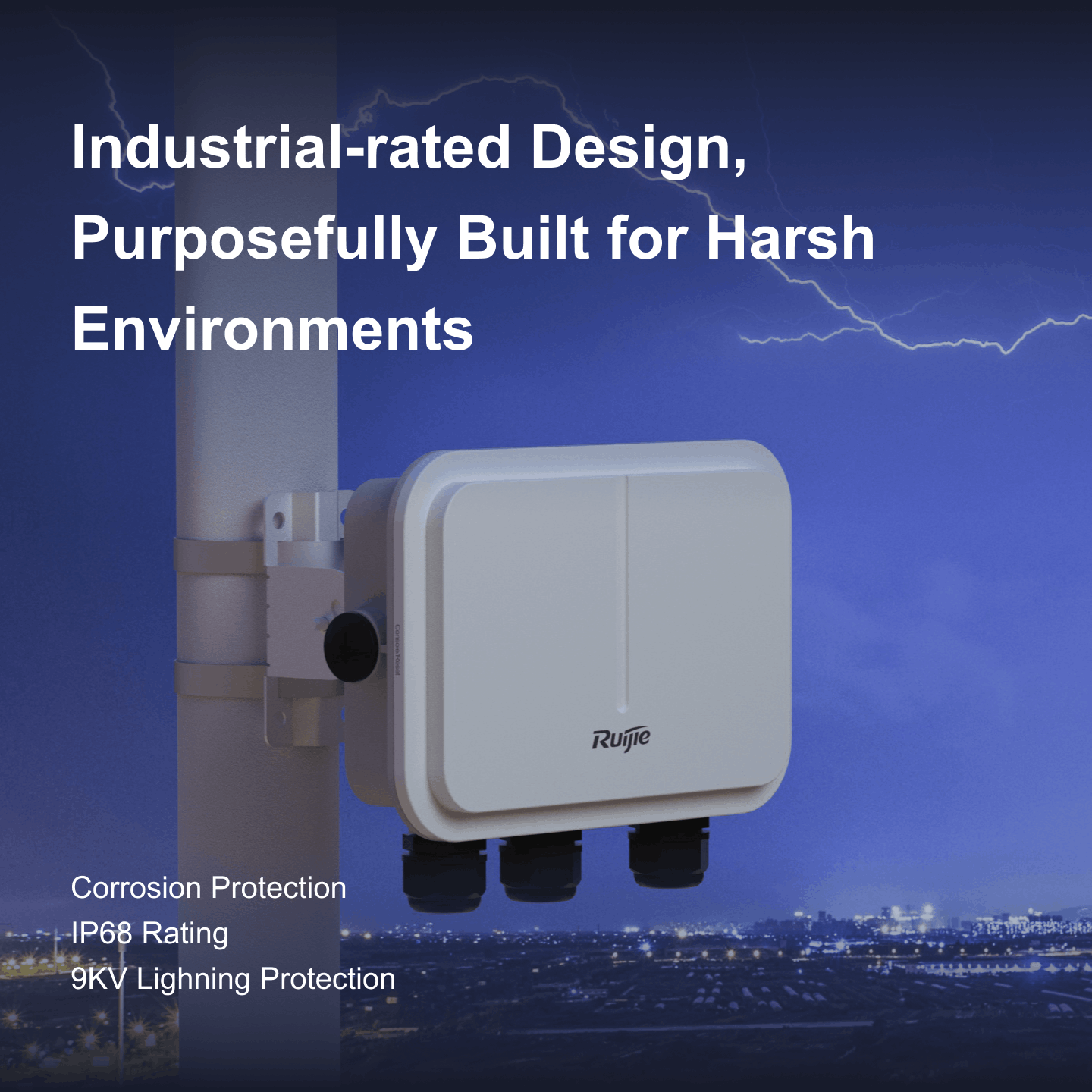

Industrial-rated design, IP68 rating, 9 kV surge protection, Optical port and electrical port for flexible networking, 2400 Mbps ultra-fast speed with Wi-Fi 6, Unified WIS cloud management for efficient O&M without site visits. Up to four spatial streams, Data rate of up to 2.4 Gbps, Compliance with IEEE 802.11a/b/g/n/ac and 802.11ax standards, Fat/Fit/Cloud mode switchover, IEEE 802.3af-compliant power supply and DC power supply.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Ruijie RG-AP680(CD) Access Point In Bangladesh
Brand - Ruijie, Model - Ruijie RG-AP680(CD), Network Standards - 802.11ax, Data Transfer Rates (Mbps) - 2400 Mbps, Band - Dual, Frequency - 2.4 GHz, 5 GHz, Interface - 1 x 10/100/1000Base-T Ethernet port, supporting PoE input, 1 x GE SFP port, 1 x RJ45 console port (serial console port), Number of WAN Port - No, Number of LAN Port - 1, LAN Network Standard - 10/100/1000, Bluetooth - Yes, Wireless Security - WPA3, Guest Network Support - Yes, Antenna Type & Qty - Unmentioned, Antenna Gain - 2.4 GHz radio: 9 dBi, 5 GHz radio: 9 dBi, Antenna Placement - Internal, Waterproof Level/Grade - IP68, OFDM/OFDMA - OFDM and OFDMA, MU-MIMO Support - Yes, Multi-User MIMO - Yes, Button - 1 x Reset button, LED Indicators - 1 x multi-color system status LED, 3 x single-color RSSI LEDs, Power Method - 48 V DC/0.35 A, AC Input Power - 0.35 A, DC Input Power - 48 V DC, Max. Power Consumption - 2.95 W, Operating Temperature - -40 to +65 Degree C, Operating Humidity - 0% to 100% RH (non-condensing), Storage Temperature - -40 to +85 Degree C, Storage Humidity - 0% to 100% RH (non-condensing), SSID Numbers - 32, VPN Pass-Through - PPPoE, IPsec, Outdoor Use - Yes, DHCP - Yes, MTBF - > 250000 Hours, Management - Fault inspection and alarm, Information statistics and logging. Telnet, SNMP, SSH and TFTP-based management. Web-based management (Eweb)., Web-Based Management - Eweb, Mounting - Yes, Mount Options - Wall/Pole-mount, Dimension - 251 x 168 x 64mm (Unit), Weight (gm) - 1.5 kg (Unit), Others - Packet aggregation - 802.11n/ac/ax: A-MPDU and A-MSDU, Antenna type - Built-in intelligent antenna, Power increment - Configurable in increments of 1 dBm, Bluetooth 5.0, Antenna type - Integrated omnidirectional antenna, Max. antenna gain - 4.5 dBi, Max. transmit power - 10 dBm , Receive sensitivity - -88 dBm, WLAN: Max. number of associated STAs - 1,024 (up to 512 STAs per radio), Max. number of BSSIDs - 32 (up to 16 BSSIDs per radio), STA limiting - SSID-based STA limiting, Radio-based STA limiting, Bandwidth limiting- STA/SSID/AP-based rate limiting, Wireless roaming - Layer 2 and Layer 3 roaming, Security - Authentication and encryption, Data frame filtering, WIDS, ACL, CPP, NFPP, IP service - Static IPv4 address, IPv4 DHCP Client, NAT FTP ALG and NAT DNS ALG, Multicast - Multicast-to-unicast conversion, IPv6 basics - IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping, IPv6 DHCP Client, IP routing - IPv4/IPv6 static routing, User access management - Telnet, SNMP, SSH and TFTP-based management, Fat/Fit/Cloud mode switchover., Specialty - Industrial-rated design, IP68 rating, 9 kV surge protection, Optical port and electrical port for flexible networking, 2400 Mbps ultra-fast speed with Wi-Fi 6, Unified WIS cloud management for efficient O&M without site visits. Up to four spatial streams, Data rate of up to 2.4 Gbps, Compliance with IEEE 802.11a/b/g/n/ac and 802.11ax standards, Fat/Fit/Cloud mode switchover, IEEE 802.3af-compliant power supply and DC power supply., Warranty - 3 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
What is the price of Ruijie RG-AP680(CD) Access Point In Bangladesh?
The price of Ruijie RG-AP680(CD) Access Point starts from 39,500 . The price may vary due to your customization and product availability. You can buy Ruijie RG-AP680(CD) Access Point from our website or visit our showrooms nearby.
